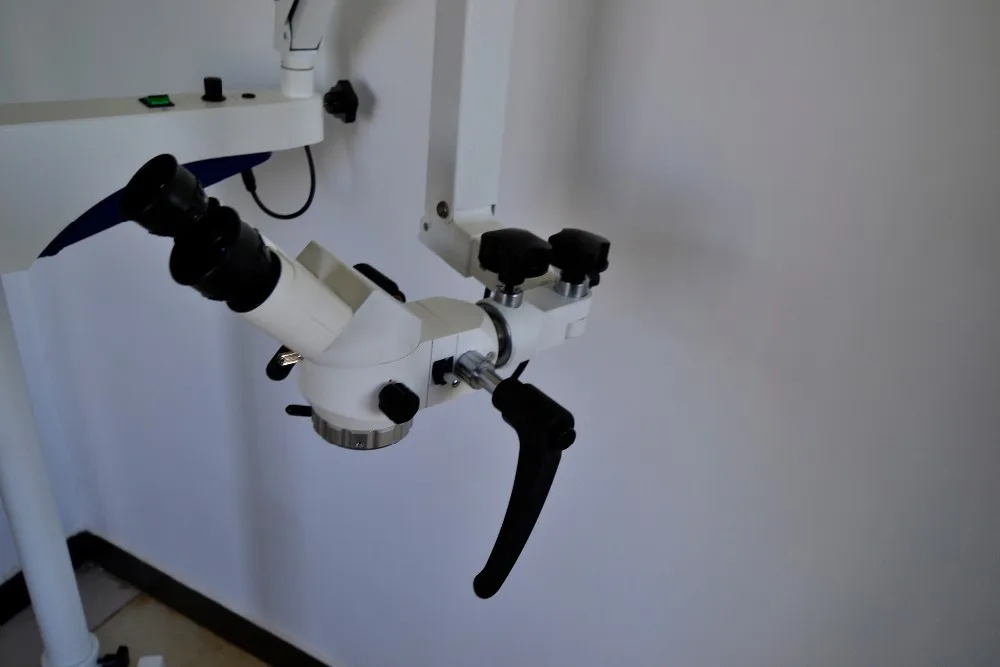

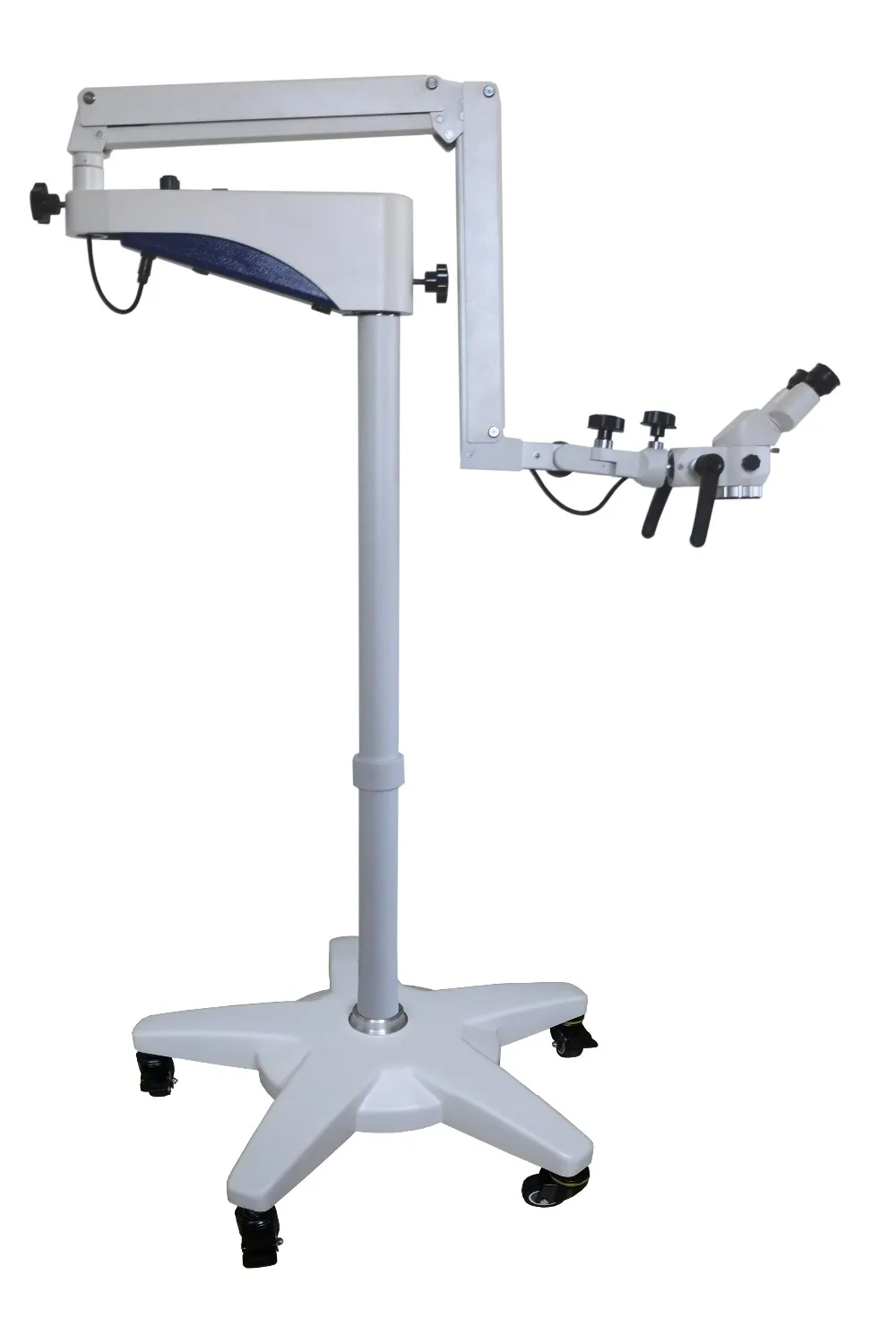

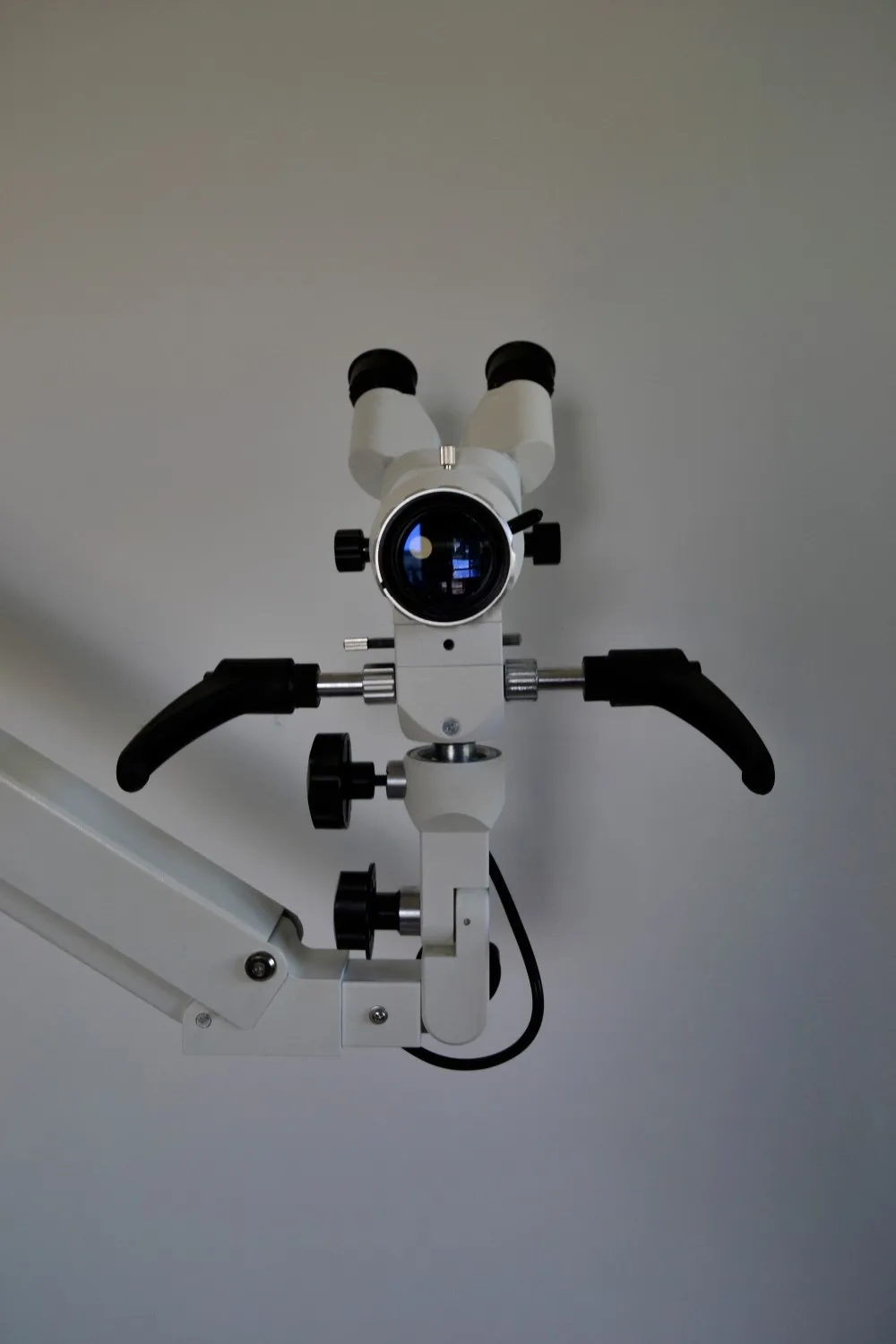

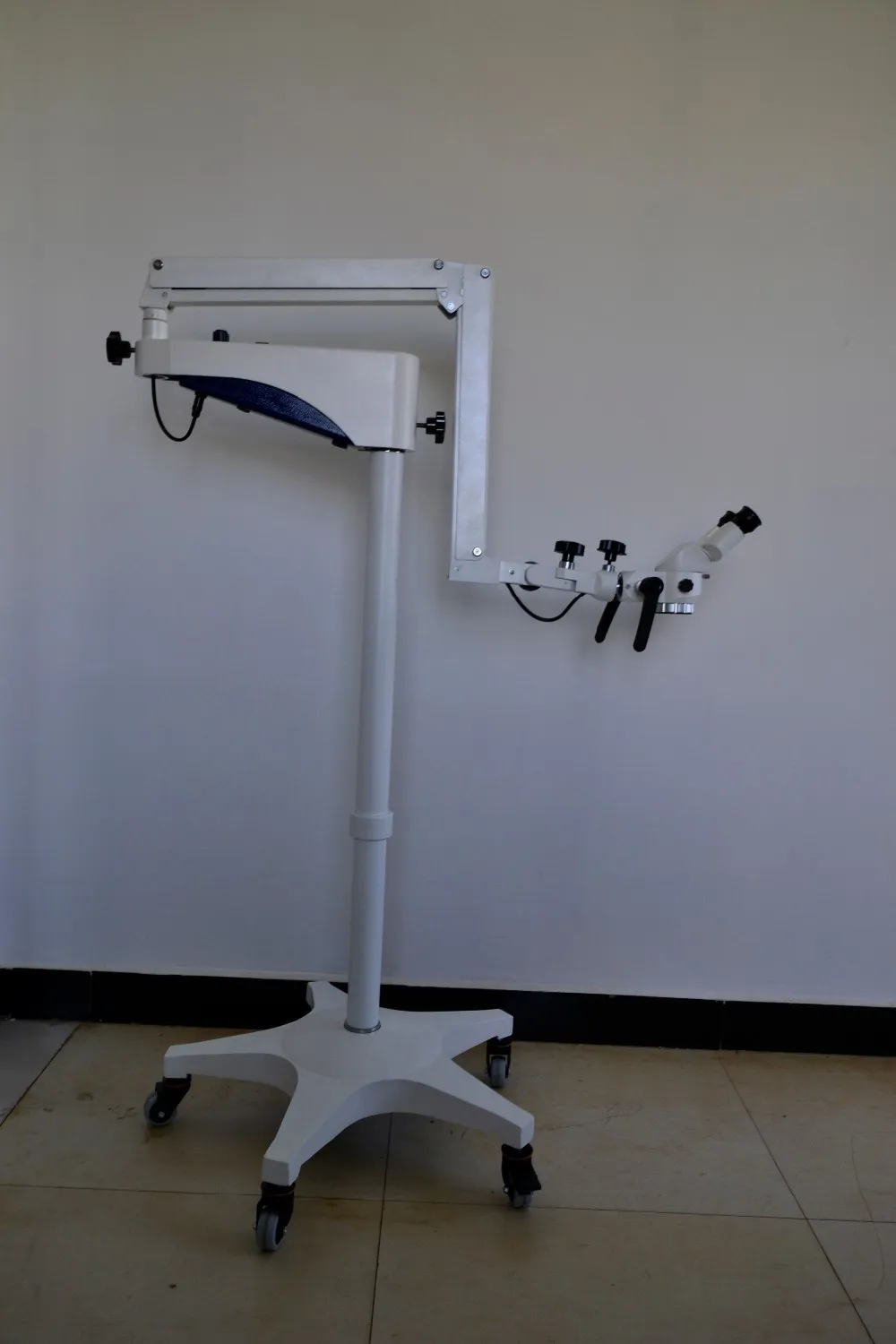

Dental & Ophthalmology Operation Microscope – 45° Tilted Observation Angle, 6X Binocular Magnification
This versatile surgical operation microscope features a high-brightness LED coaxial illumination system, multiple magnification levels, and smooth, flexible handling. Designed for precision micro-procedures, it is suitable for dental, ENT, ophthalmology, gynecology, and general surgical applications.

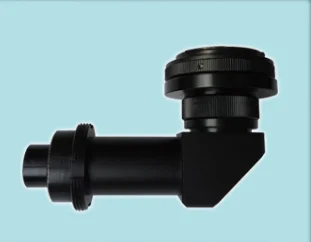

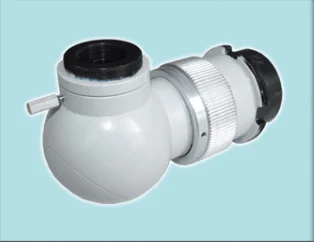

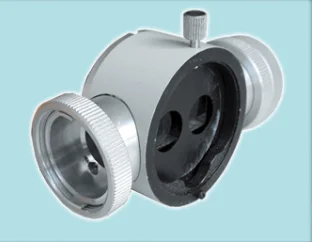

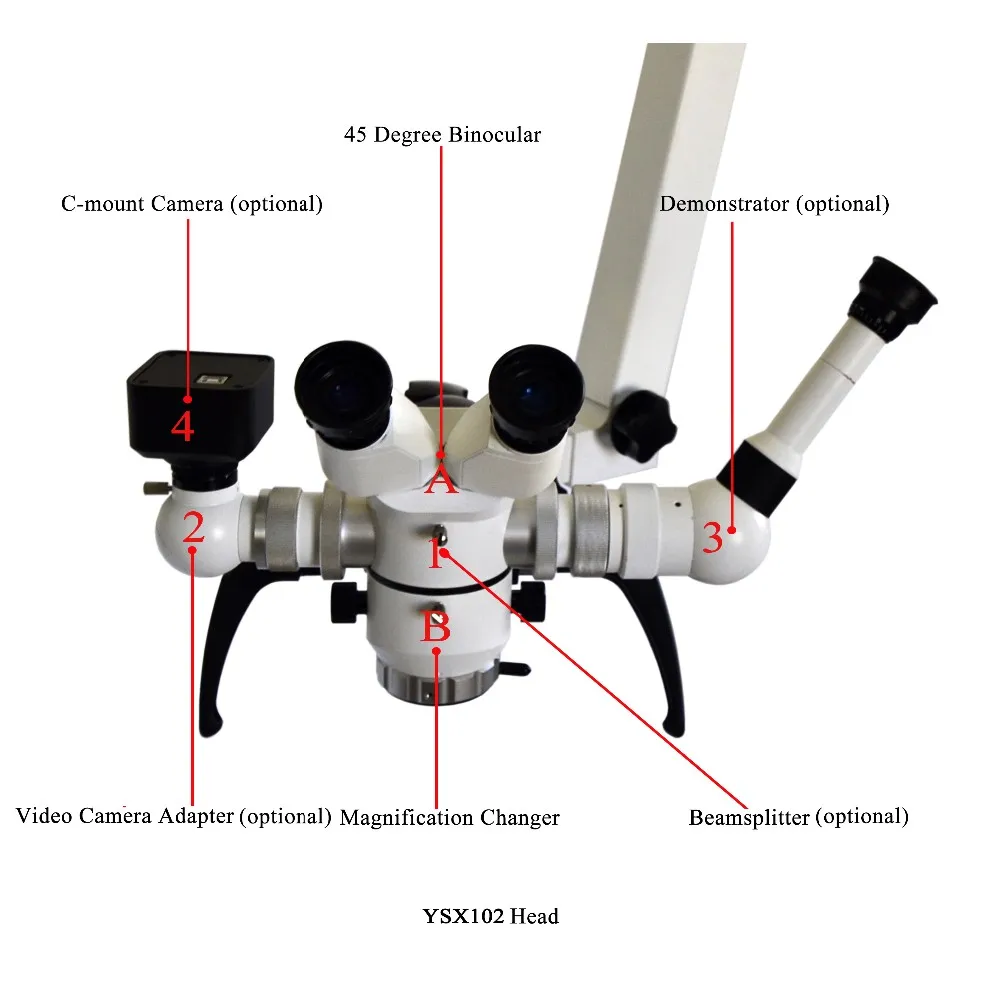

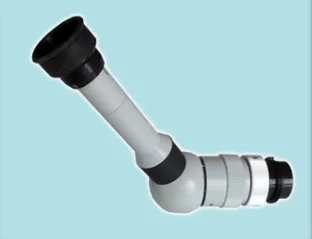

Video camera adapter Beamsplitter Demonstrator SLR camera adapter
YSX102 Operation Microscope Specifications:
-
Observation Angle: 45° tilted
-
Binocular Magnification: 6X
-
Interpupillary Distance: 50–80 mm
-
Diopter Adjustment: ±5D
-
Objective Lens Focal Length: F=200 mm and F=300 mm (two objectives included)
-
Magnification Changer: 3-step (0.6X, 1X, 1.6X)
-

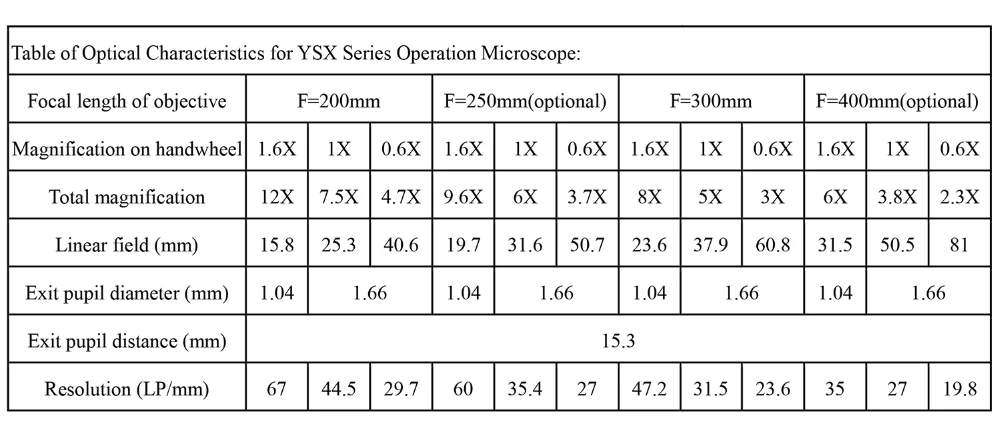

Total Magnification Options: 3X, 5X, 8X, 4.7X, 7.5X, 12X
-
Linear Field of View: 60.8 mm, 37.9 mm, 23.6 mm, 40.6 mm, 25.3 mm, 15.8 mm
-
Fine Focusing Range: 10 mm
-
Illumination: Coaxial lighting with 10W LED light source; adjustable brightness; >30,000 lx
-
Filters: Built-in green and yellow filters
-
Balancing Arm: Two-part arm with universal joints for smooth positioning
-

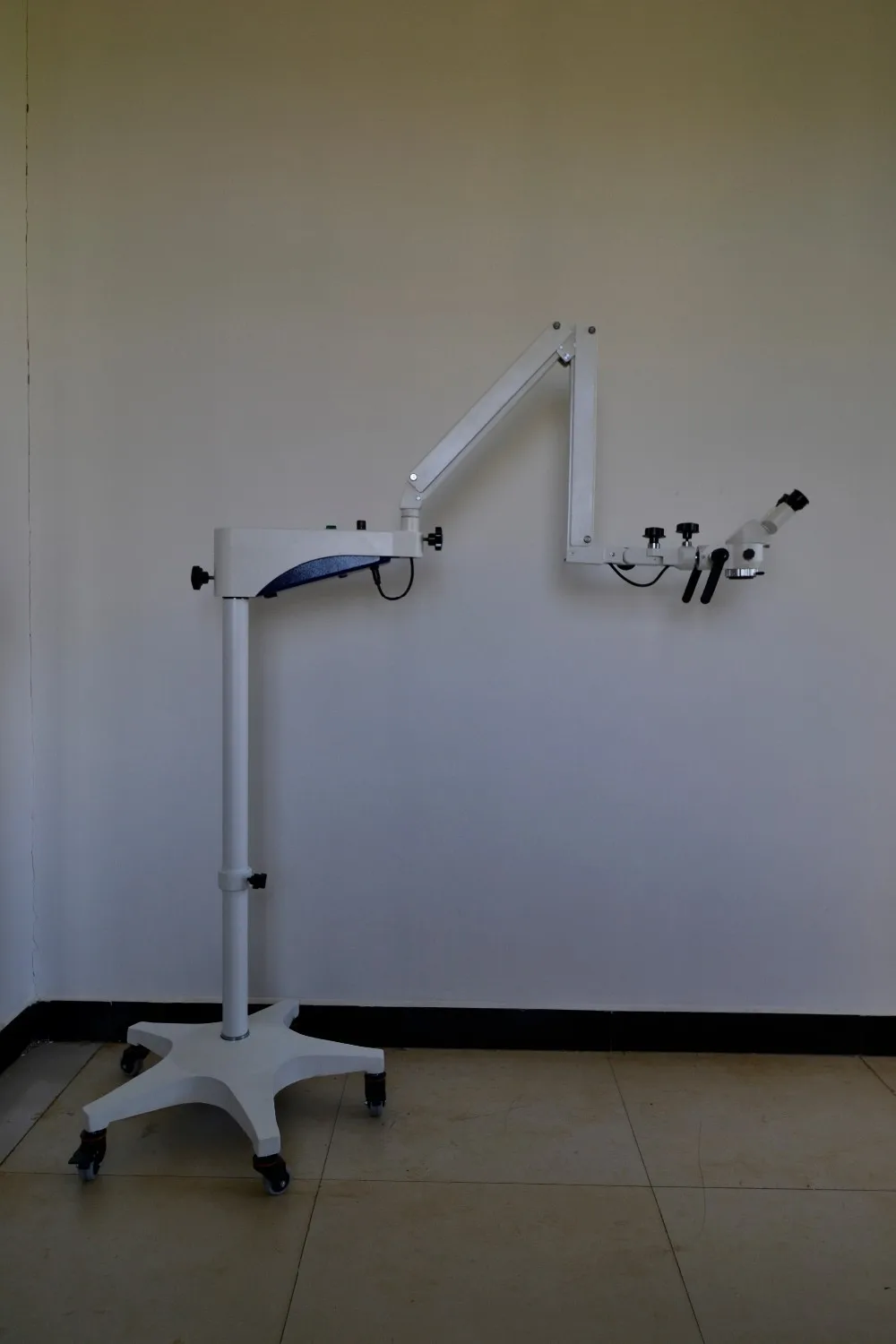

Floor Stand: Two-section column on a five-star caster base for stability and mobility
-
Power Supply: AC100V–240V
)
