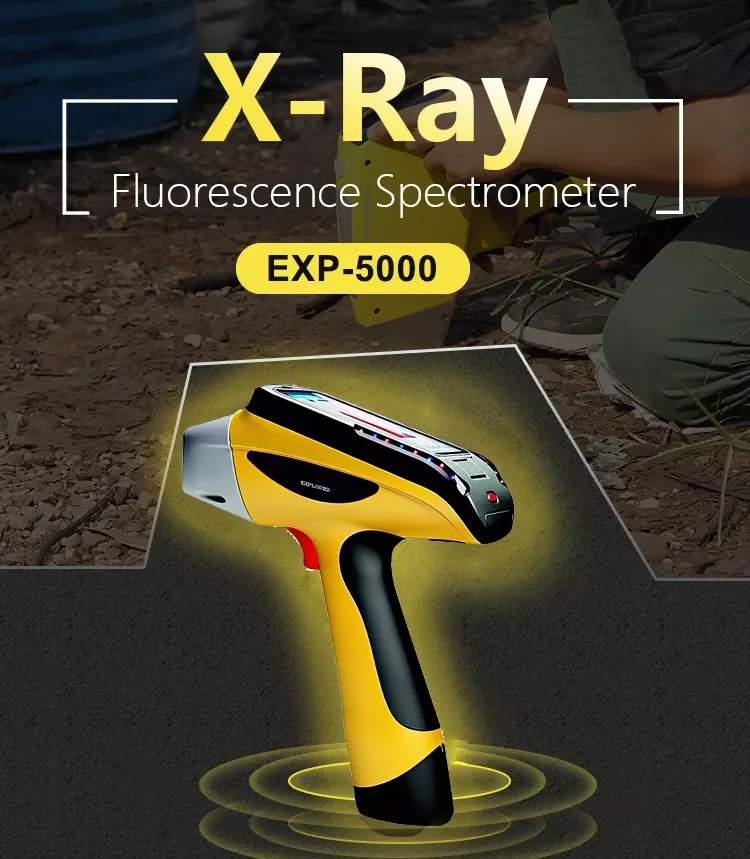

Handheld Gold Testing Small Metal Linen Tester Xrf Analyzer Explorer I EXP-5000

$21,000.00 $21,800.00
Unit price  per

FEATURES AT A GLANCE

EXPLORER 5000 handheld alloy analyzer is the first to use large-screen,high-resolution LCD and the new digital signal processor. The minimum detection limits make its performance as great as the desktop. With small size and light weight,EXPLORER is portable for testing and suitable for analyzing different kinds of alloy.
Application field
Precious metal alloy
Iron and steel smelting
Waste metal recycling
Machinery manufacturing and processing
Boiler pressure vessel
Aerospace industry
Shipbuilding


Right
Left
Front
 SPECIFICATIONS
NO
Index
Description
1
Model
EXPLORER 5000 handheld XRF analyzer
2
Analytical Method
Energy dispersive X ray fluorescence analytical Method
3
Elements Measuring Range
Atomic number from 12 to 92 [elements from Mg (Mg) to uranium (U)] can be measured
4
Simultaneous detector elements
Simultaneous analysis 40 elements
5
Microcomputer system
Customized system, CPU: 1G, system memory: 1G, extended stored maximum support 32G, standard 4G for mass storage data
6
The content range
ppm~99.99%
7
The detection time
1-60 seconds (a second report results)
8
A built-in system
GPS, WIFI, Bluetooth
9

Power Supply
Rechargeable lithium battery, standard is 9000mAh, sustainable work up to 12 hours; optional is 27000mAh super battery with wide
voltage 110V ~ 220V universal adapter for recharging power supply.
10
Detection Objective
Solid, liquid, powder
11
Detector
SDD detector or Fast-SDD detector (optional)
12
Detector resolution
Minimum can reach 125eV
13
The excitation source
50KV/200uA- Ag/Rh target end window integrated miniature X ray tube and high voltage power supply
14
Collimator and filter
Collimator diameters are 4.0mm and 2.0mm, 6 kinds of filters with automatic switching functions
15
Video system
500W pixel high resolution camera
16
Display screen
Brand new 5 inch transflective LCD touch screen, the resolution is 1080x720
17
Detection limit
The minimum detection limits at 1-500ppm
   18

       Safety
Multiple safety protection, no test, no radiation, radiation levels at work are far below the international standards, and has no
sample telemetry, automatic shut X light tube function. Standard radiation shields, thickened wall alloy test instrument
19
Specialty
Ore special edition analysis software, using intelligent one key test
20
Convenience of application
Key intelligent matching the best curve that no need to select curve
21
Data transmission
Digital multi-channel technology, SPI data transmission, quick analysis, the high count rate; waterproof mini USB, and can be
connected with a desktop computer
22
Operating ambient humidity
‚ȧ90%
23
Operating environmental temperature
-20¬įC-+50¬įC
24
Instrument dimension
244mm (Length) x 90mm (Width) x 330m (Height)
25
Instrument weight
1.7kg
26
Intelligent warming signals lndicator system
Green light means power on, red flushing means testing and yellow flushing means the problems
27

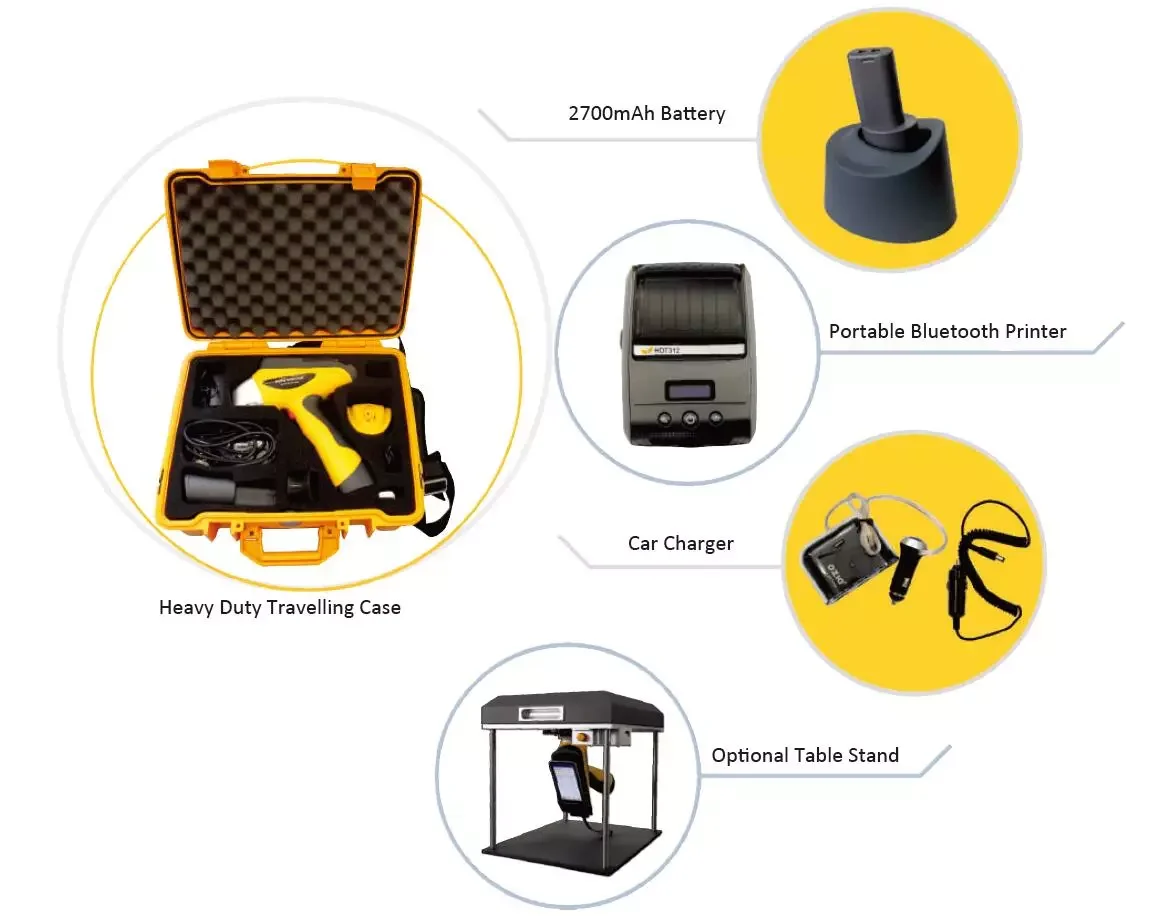

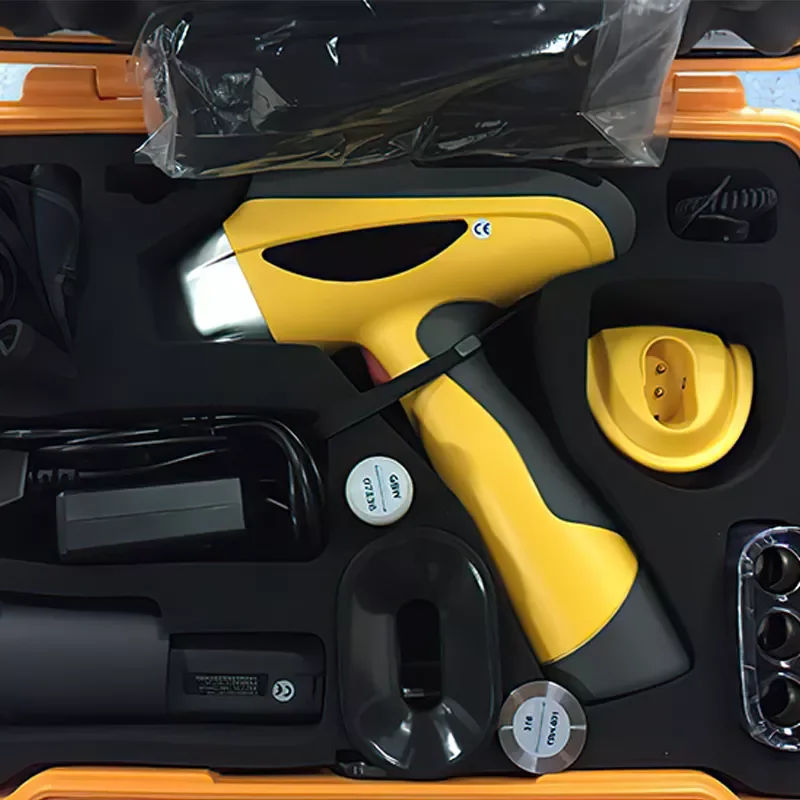

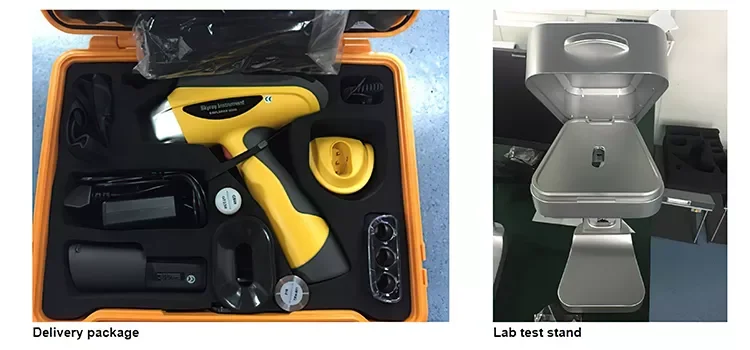

Accessories
Three-military-protection-box is compression, waterproof and shock absorption. Universal charger and car charger, 4G SD memory
card and card reader
Two Lithium battery and charger, PDA accessories, radiation shield. Optional accessories: the large battery, seat type test
support, Bluetooth printer, mil, manual pressure machine, and other options can to chosen…
