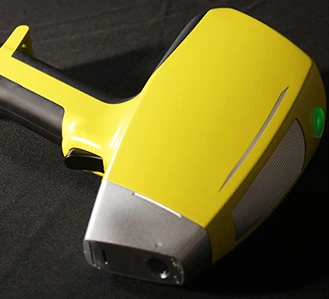

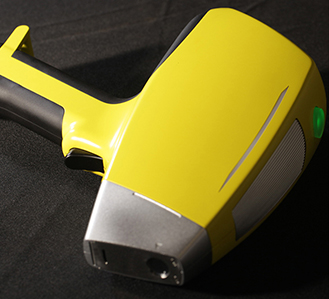

Metal Tester Gun Portable Handheld XRF Spectrometer Mineral Analyzer
Unit price/ per
Elements to be Analyzed and Test Modes
Standard configuration mode analysis range, such as special elements, can be added K,Ca,Ti,V,Cr,Mn,Fe,Co,Ni,Cu,Zn,As,Se,Rb,Sr,Y,Zr,Nb,Mo,Ag,Cd,Sn,Sb,Hf,Ta,W,Au,Hg,Pb,Bi.
Performance Features1. Small, light and easy to carry.2. High-speed processing chip, advanced algorithm and high-responsive software, resulting in even faster analysis.3. High-performance X-ray Tube, Ultra-high Resolution Detector combined with Digital Multi-channel Processing Technology, yielding super-high detection resolution.4. Indicator lights flash on both sides for safety purposes during measurement, i.e., the built-in double beam technology will automatically sense whether there is a sample at the measurement window.5. Industrial resistive touch screen, superior to capacitor screen in back-light and clearer against sunlight in the field. At the same time, people don't need to take off gloves when they are opreating machine in some particular environment.6. TrueX utilizes anti-slip, abrasion resistance and streamlined design, which is light and easy to carry. It also integrates the new high speed digital multi-channel technology, the new library grade base identification system and the super-FP algorithm. These features allow it to measure elements faster, with higher accuracy and greater repeatability.7. Intelligent battery management exerts a real-time monitoring of the residual capacity of battery and backup battery through MSBUS bus.8. Automatic switch to standby mode when not used and recovery after the machine is picked up, which saves power and extends working time; moreover, TrueX has a gravity sensing system which shuts down instrument automatically when it accidentally falls down, another safety consideration; TrueX will also give out alarm when ambient temperature or humidity exceeds the scope of application.9. TrueX adjusts air pressure factor automatically based on altitude it has detected. This function increases excitation effect of light elements by 40% and that of rare earth elements by 30%. 10. TrueX is supportive to battery hot plug, hence battery can be replaced without powering off the machine.11. On TrueX, users can customize the reports by adding their company
12. TrueX is built with double beam technology which can automatically sense whether there is a sample at the measurement window. This is also a safety and protection feature. The brightness of the display of TrueX is automatically regulated according to environment brightness.13. TrueX can be configured and maintained in a remote way via Internet.14. TrueX can build a three dimensional element content distribution graph allowing for a fast estimate of mineral reserves or the extent of geological disaster with the built-in GPS for latitude and longitude reading combined with a 3rd party GIS analysis software.15. TrueX's new algorithm optimizes the spectral resolution, so lower detection limits can be achieved, which are comparable with even large-scale lab instruments.16. TrueX Ultra-short optical™ path design can significantly improve light element excitation effects, without the fall/fill condition. 17. TrueX has a built-in environmental sensing system covering conditions such as temperature, dust humidity and others.
Application fields- Nondestructive, rapid and accurate analysis of alloy elements and alloy grade identification on the site- Metal identification /scrap metal sorting- QA/QC management in metal production, processing, casting, etc- Medicine and biological medicine- Identification of positive materials, oil refining and petrochemical industry- Thermal power plant, hydroelectric power station, nuclear power plant- Accurate element analysis of raw material and PMI identification so as to meet production needs and ensure security of equipment and materials used in the process.
Technical parameters and specifications
254 x 79 x 280 mm（L x W x H）.
50KV/200μA maximum pipe pressure pipe flow can be adjusted freely,Agtarget (standard),Au,W,Rh target(optional).
BOOST Si-PIN detector
Range of detection
All elements between Mg and U.

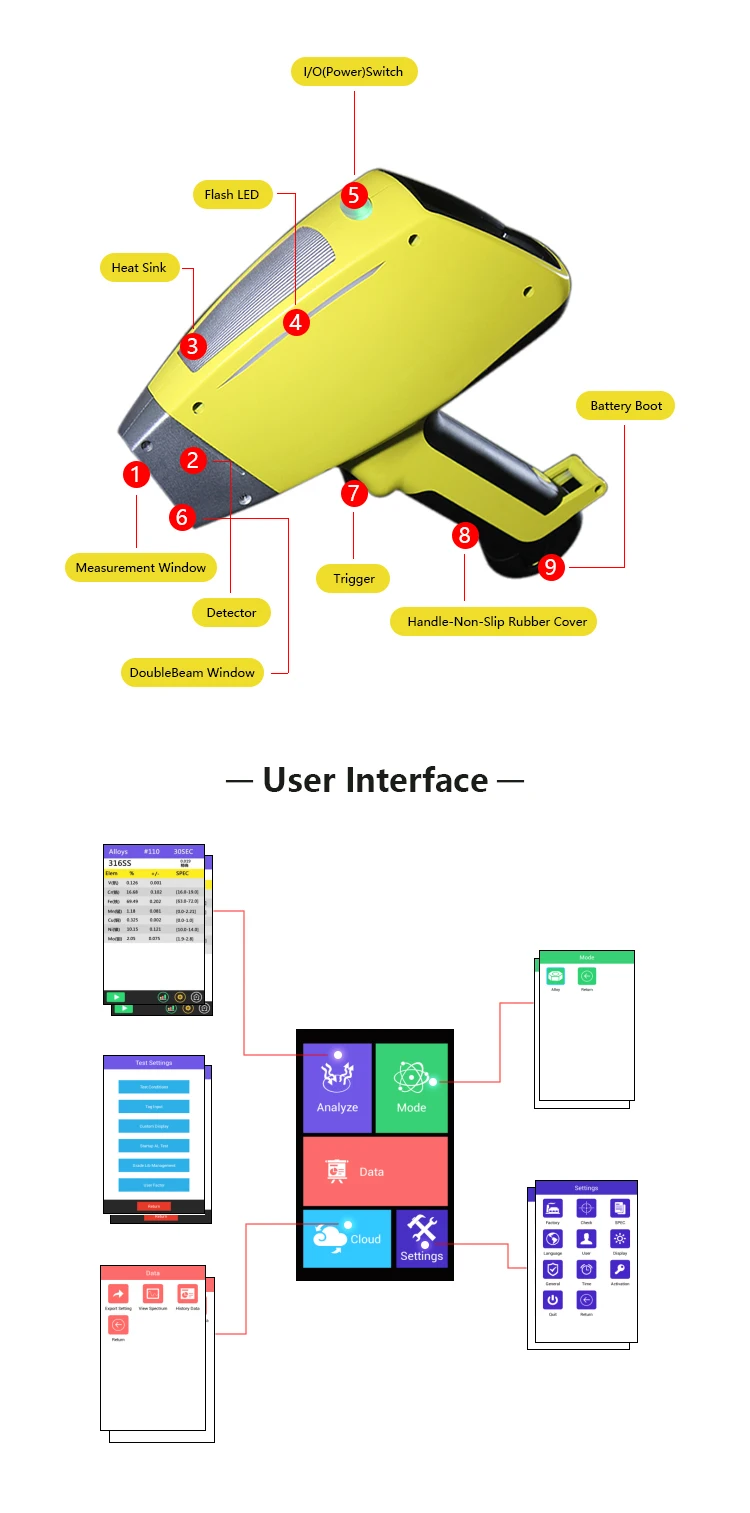

Industrial resistive touch screen with screen size of 4.3". Proprietary operating system software and sound waves. Multiple languages including English and Chinese. And it automatically adjusts display brightness according to the environment brightness.
32GB memory USB, bluetooth, WIFI, or liked to the Internet; instrument can be configured and repaired remotely. Data can be exported via EXCEL or PDF. Users can customize the reports by adding their company logos, addresses, test results, spectrum and others (such as product description, origin and batch number).
Equipped with a dedicated T-shaped radiator to dissipate the heat；no need to wait for cooling of detector time again.
Built-in double beam technology can automatically sense whether there is a sample at the measurement window. This is also a safety and protection feature. Waterproof, dust-proof and shockproof suitcase Drawell Safety Band；
Power supply system
Intelligent battery management through MSBUS bus, real-time monitoring of the residual capacity of battery and backup battery. The battery complies with air transport regulations of dangerous goods. A single battery can last 8 hours.
Fast speed and simple operation
High-speed processing chip, advanced algorithm and high-responsive software, resulting in even faster analysis.
High-performance X-ray Tube
Ultra-high Resolution Detector combined with Digital Multi-channel Processing Technology, yielding super-high detection resolution.
Sealed shell, light weight, durable and sealed integrated design.
