1.10.2 inch (1024 X 600) TFT LCD high-brightness, clear picture, wide viewing angles.

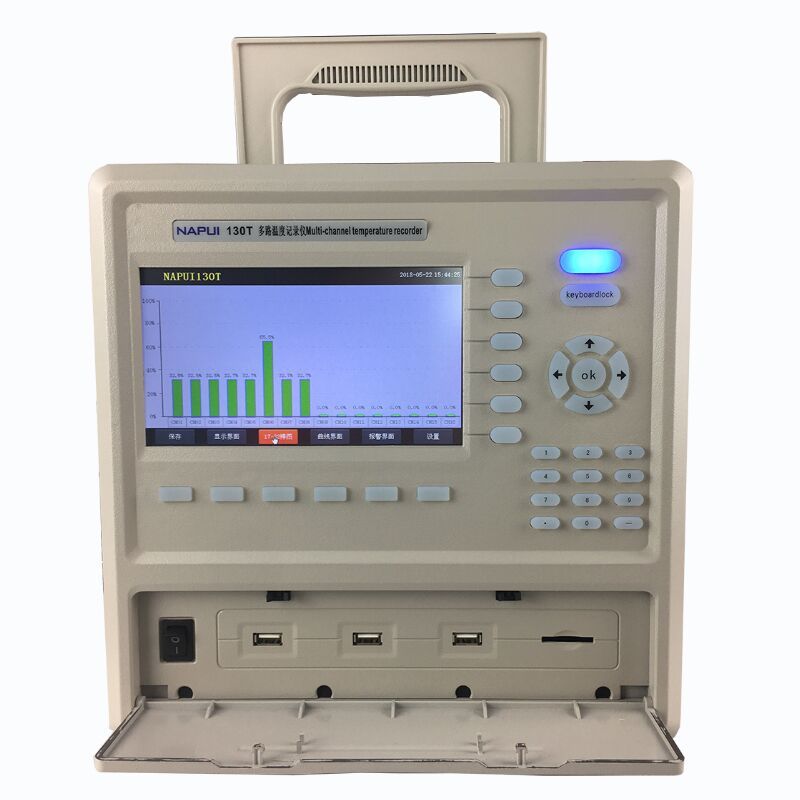

2.Support USB interface and large capacity. Effective support long-term information collection.

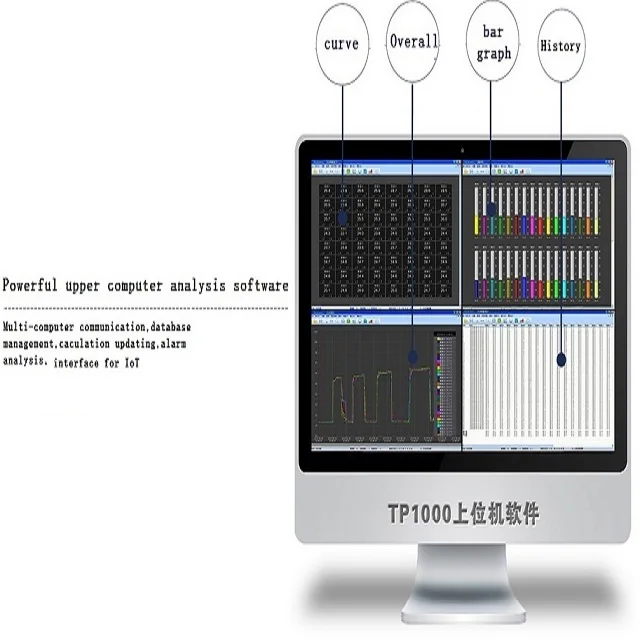

3.Powerful PC analysis software.
4.Data acquisition, monitoring, recording and controlling (including voltage, current, temperature, humidity, pressure,vibration, frequency, flow, liquid level, etc)

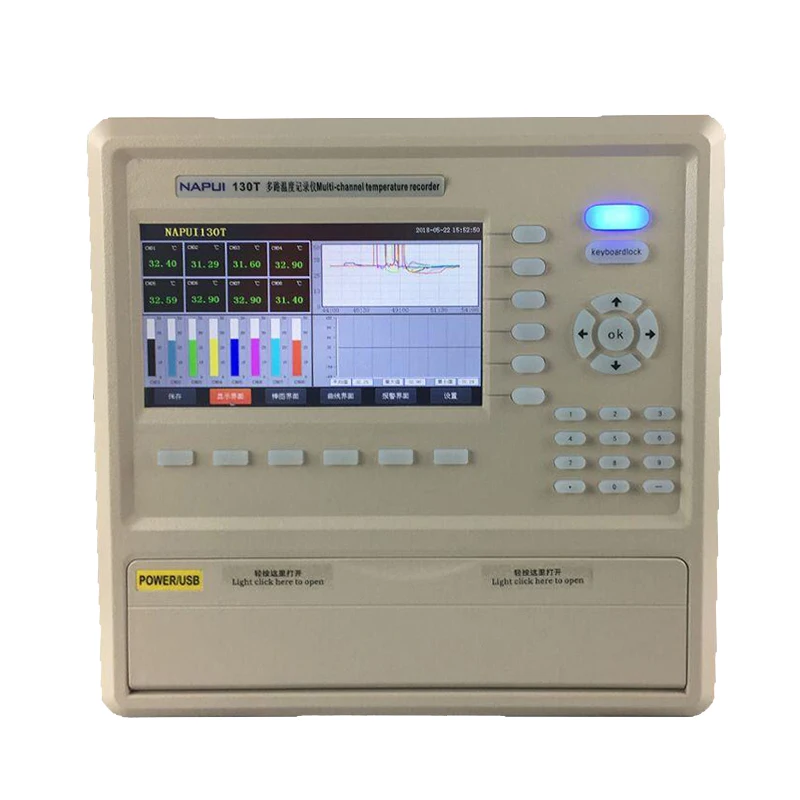

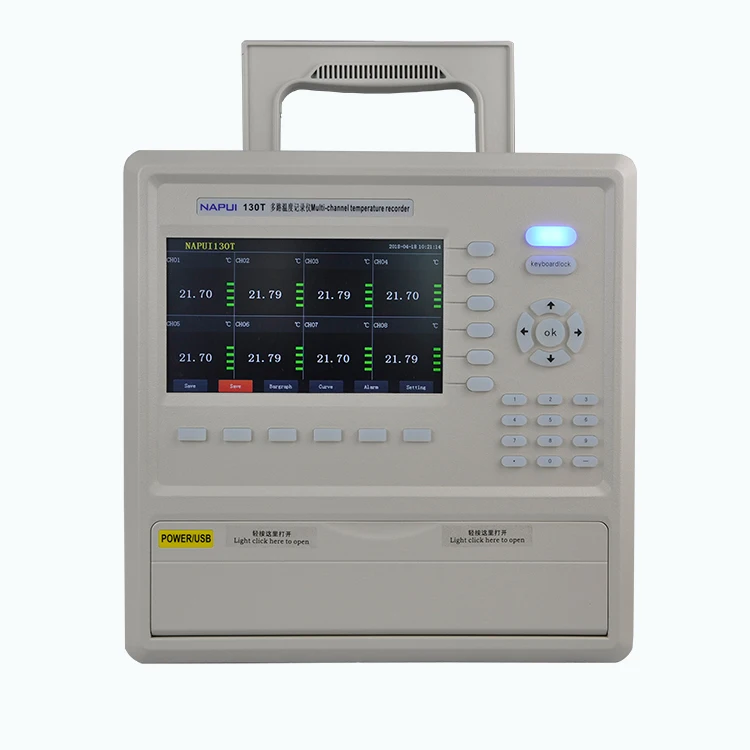

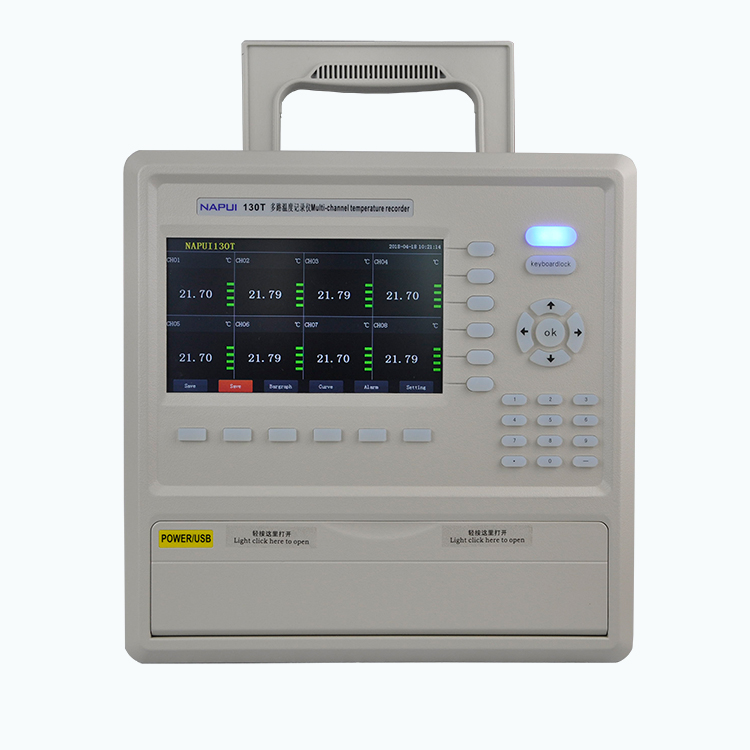

7 Inch. Color screen LCD Display Paperless recorder.

Power supply |
AC:85-265V,DC:12-25V |
Channel |
1-64Channels |
Input signal |
Thermocouples:K,E,R,B,N,T,J,S. PT100, DC |
DC(A):4-20mA,0-20mA |
|
DC(V):0-5V,0-10V,±312mV,±78mV |
|
Sampling frequency |
1-19999s Self-setting |
Recording capacity |
1 Minute record interval 4200Hours |
Alarm type |
High and low limit alarm. |
Communication |
RS232,RS485,Ethernet, USB,Mudbus TCP Communication protocol |
Operating temperature and humidity |
-20~50℃ ,Less than 95% non-condensing |
Material |
Fire ABS. |

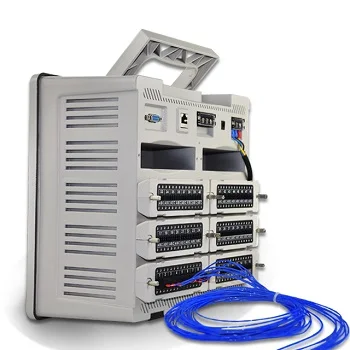

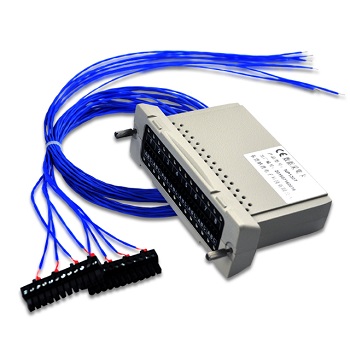

The blue wire is K type thermocouples
Mudbus, Ethernet, RS232,RS485,USB and power supply cables.

Detailed Images
