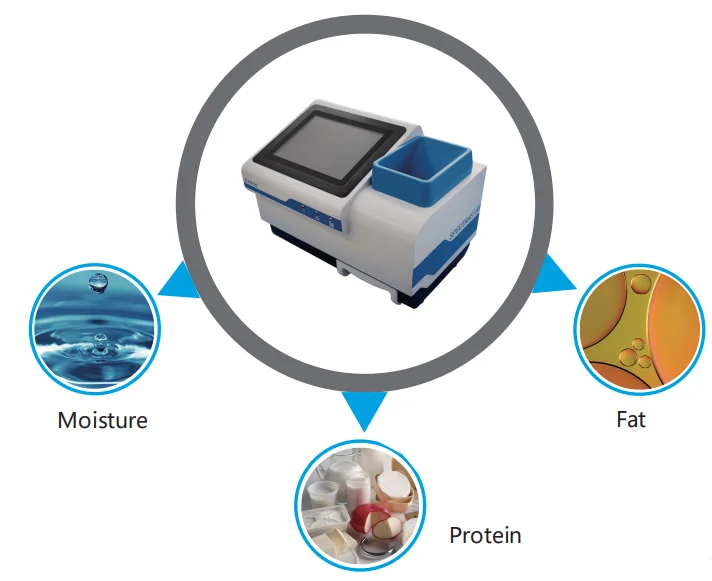

TPGA-2000 Near-infrared soybean analyzer is applicable for the efficient, fast, non-destructive, quantitative analysis of moisture, protein, fat of the soybean,to provide rapid detection methods for soybean quality identification. The instrument can be used in laboratory, workshop, field and other different.
Features
1. Efficient & Fast:Detecting time 1-3mins, simultaneously measure a variety of indicators of the sample, greatly shorten the detection time. 2. Scientific Precision:The equipment uses patented testing technology, automatic acquisition of 10 sub samples for analysis,combined with advanced priority algorithm, the detection accuracy and stability are improved. 3. Flexible & Diversified::According to the partical size of sample, choose suitable optical path modules can be matched toachieve different sample testing. 4. No damage:No need grinding, whole grain can be detector. 5. Intelligent analysis:Equipped with special analysis software, Self-check, Model correction, Wavelength correction, Testing,Auto generate Report and other functions. 6. Intelligent control:Equipped intelligent monitoring software, Electric(Power) status display, Temperature and Humiditymonitoring. 7. Convenient Operation: 8 inches touch screen, Windows 7 operation system. 8. Compatible Power Supply:Continuous outdoor operations. 9. Internet Applications:With USB type A,USB type B, RJ45 interfaces. Using for daily maintenance, model upgrade & update database.
Specification
Spectral Range |
680-1050nm |
Res |
Superior to 7nm |
Transmission Measurement Method |
29mm |
Detector |
Detector:Silicon diode array |
Measurement Method |
Transmission,measurement can detect up to 10 sub samples per time |
Product Size |
360mm×250mm×300mm |
