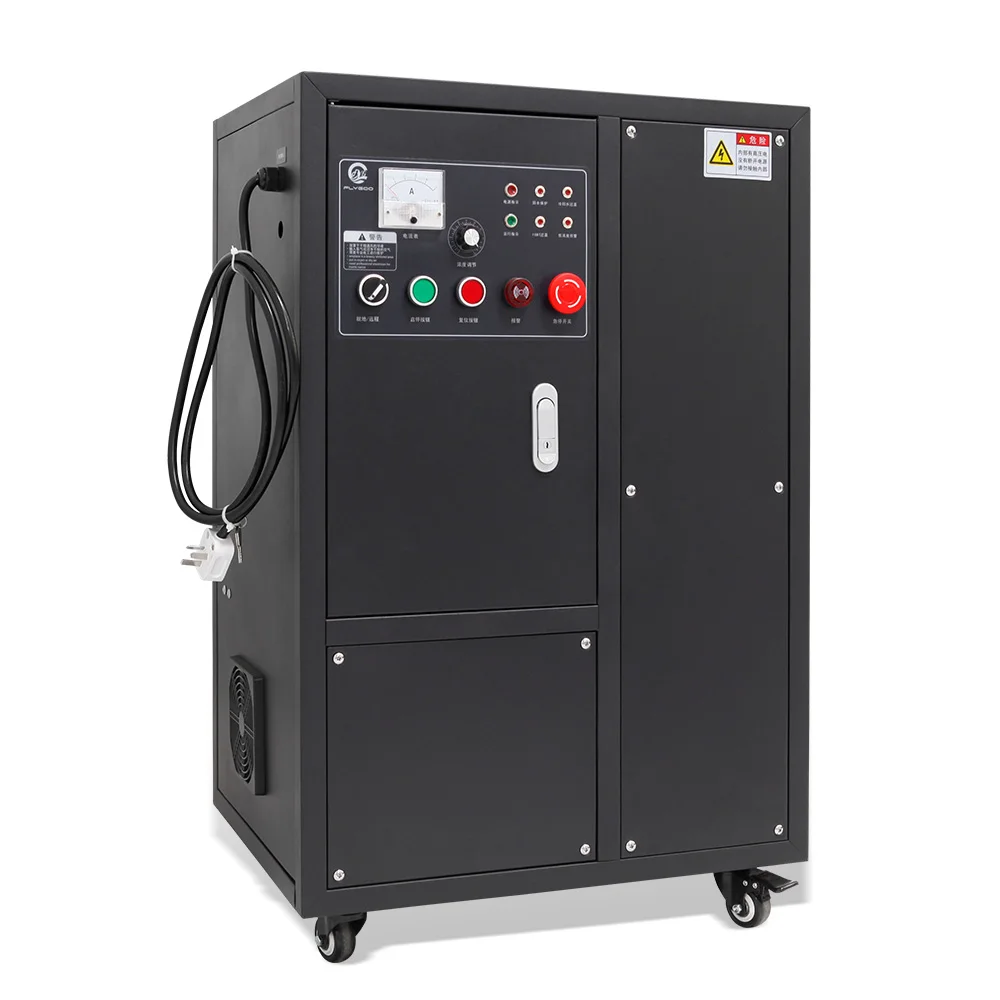

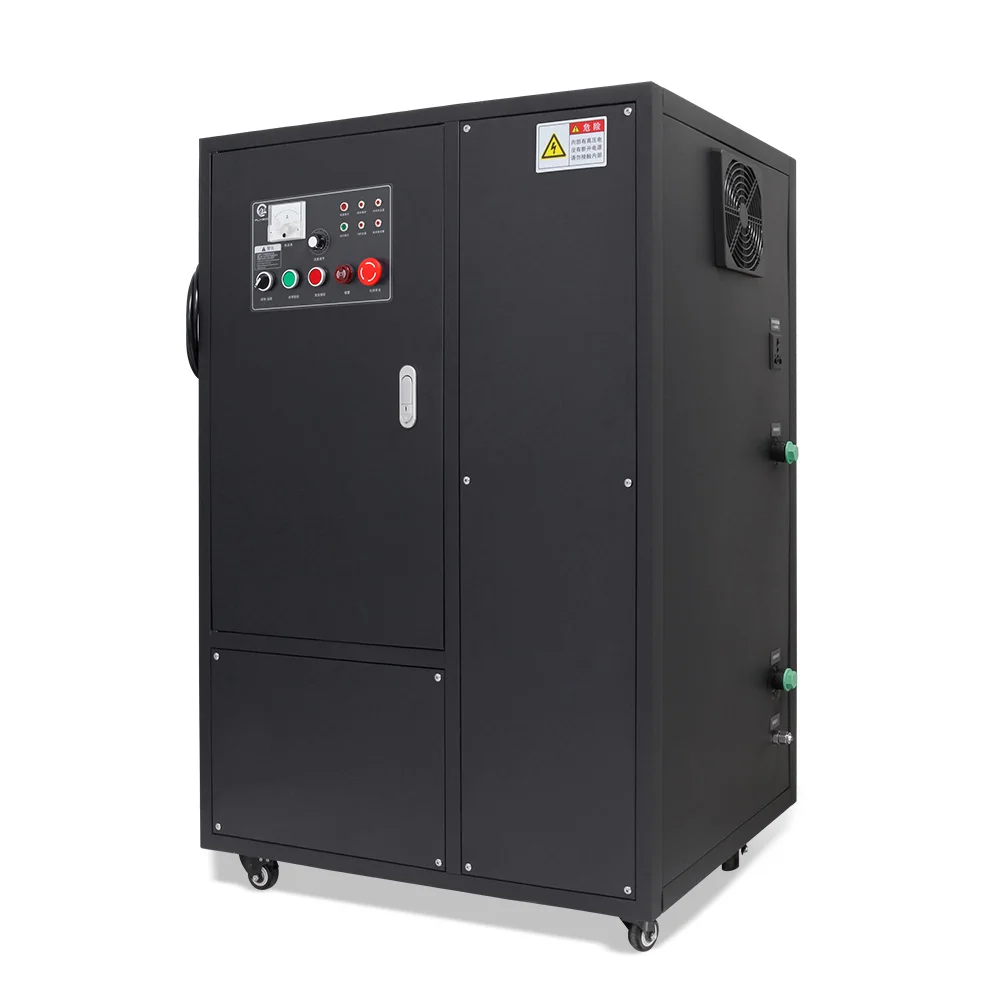

Reverse Osmosis Water Filter System Ozone Generator 50G 60G 80G 100G
This series of unit utilize oxygen from the internal oxygen generator as gas source, and high concentration ozone is generated by the CD ozone generation technology. The equipment has integrated oil-free air compressor, filtering system, External PSA oxygen generator, condenser, multi-point malfunction monitoring system, etc.
PRODUCT SPECIFICATIONS
Model |
FG-OF 50G |
FG-OF 60G |
FG-OF 80G |
FG-OF 100G |
|||
Ozone Output |
50g/hr |
60g/hr |
80g/hr |
100g/hr |
|||
Power |
1.15kw |
4.5kw |
5.5kw |
6.5kw |
|||
Gas Source |
Oxygen |
Oxygen |
Oxygen |
Oxygen |
|||
Electric |
220-240V/50,60Hz Single Phase |
||||||
Enclosure |
Stainless Steel + Painted |
||||||
Ozone Concentration |
80-120g/m3 |
||||||
Output Pressure |
0.06-0.1Mpa |
||||||
Oxygen Concentration |
90-94.4% |
||||||
Oxygen Flow Rate |
10LPM |
10LPM |
15LPM |
20LPM |
|||
Size(L*W*H) |
660*420*1080mm |
660*420*1080mm |
800*400*1230mm |
800*400*1230mm |
|||
Weight |
66kg |
68kg |
89kg |
91kg |
|||
Water Cooling System(22℃) |
0.3-0.4m3/hr |
0.3-0.4m3/hr |
0.3-0.8m3/hr |
0.7-0.8m3/hr |
|||
Inner Air Compressor |
Yes |
||||||
Application of water |
40-50m3/hr |
50-60m3/hr |
60-80m3/hr |
80-100m3/hr |
|||
Warranty |
1 Year |
||||||

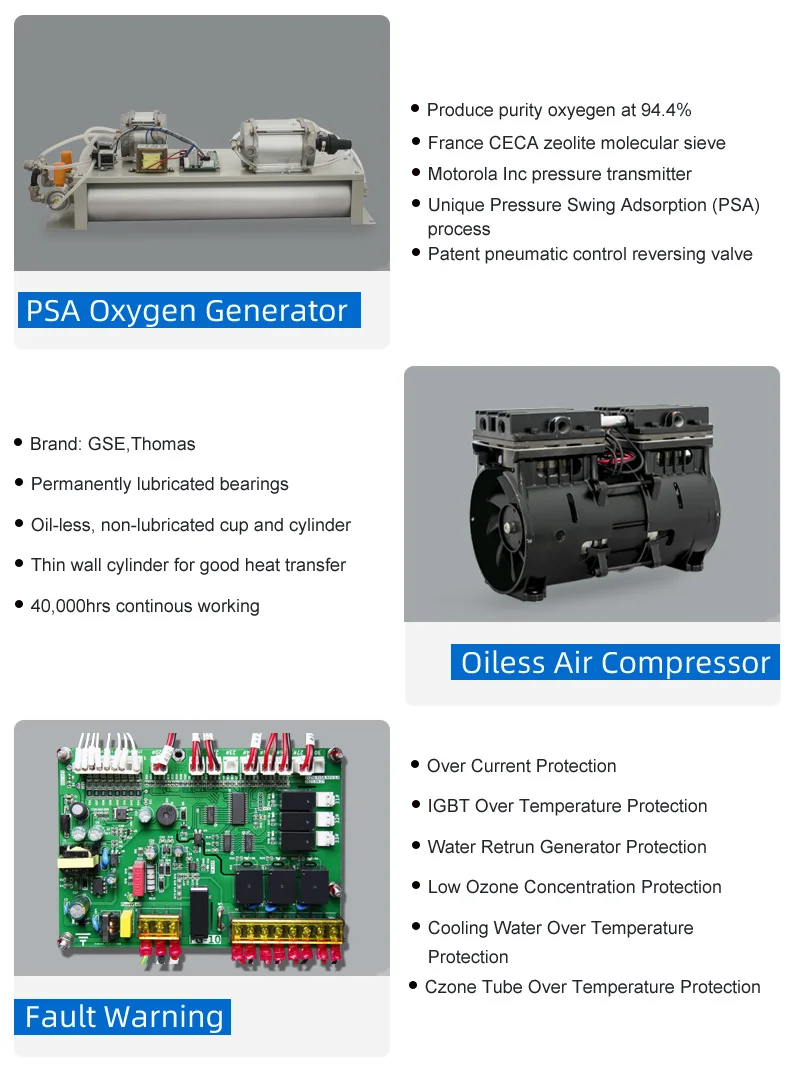

Features

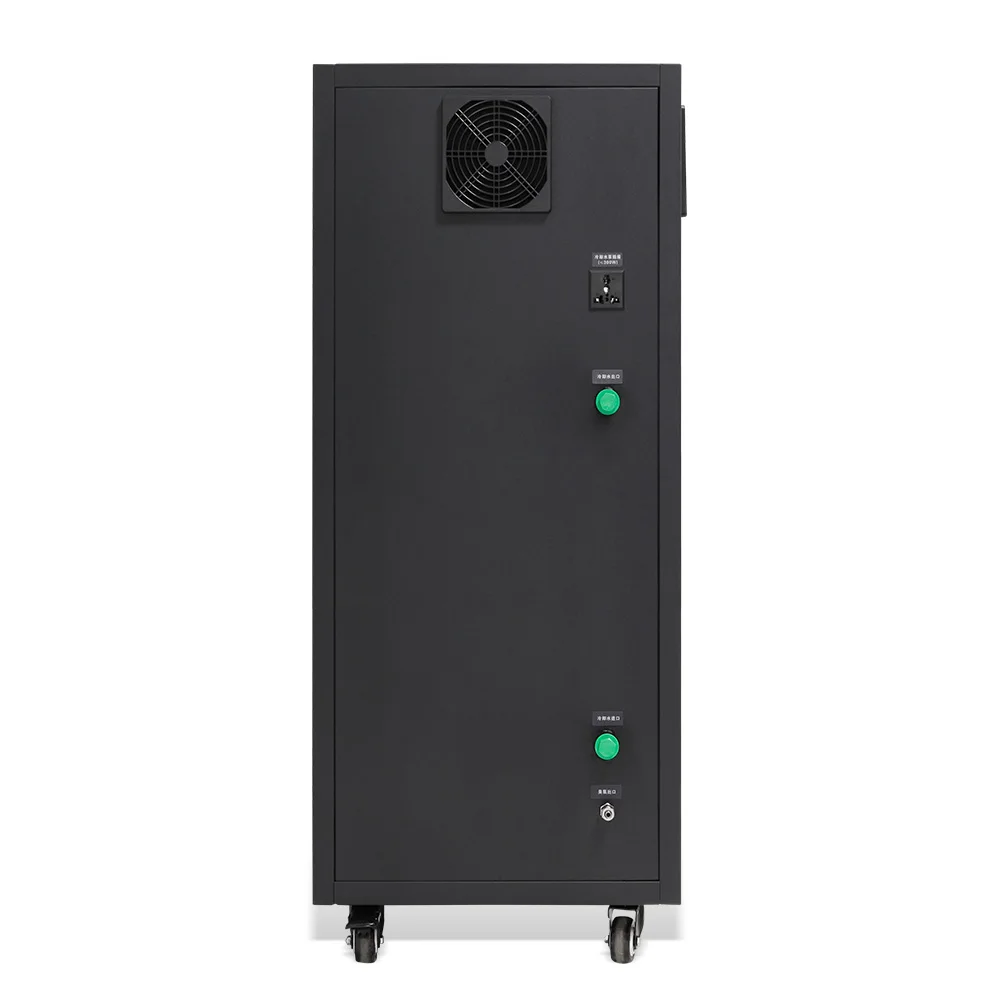

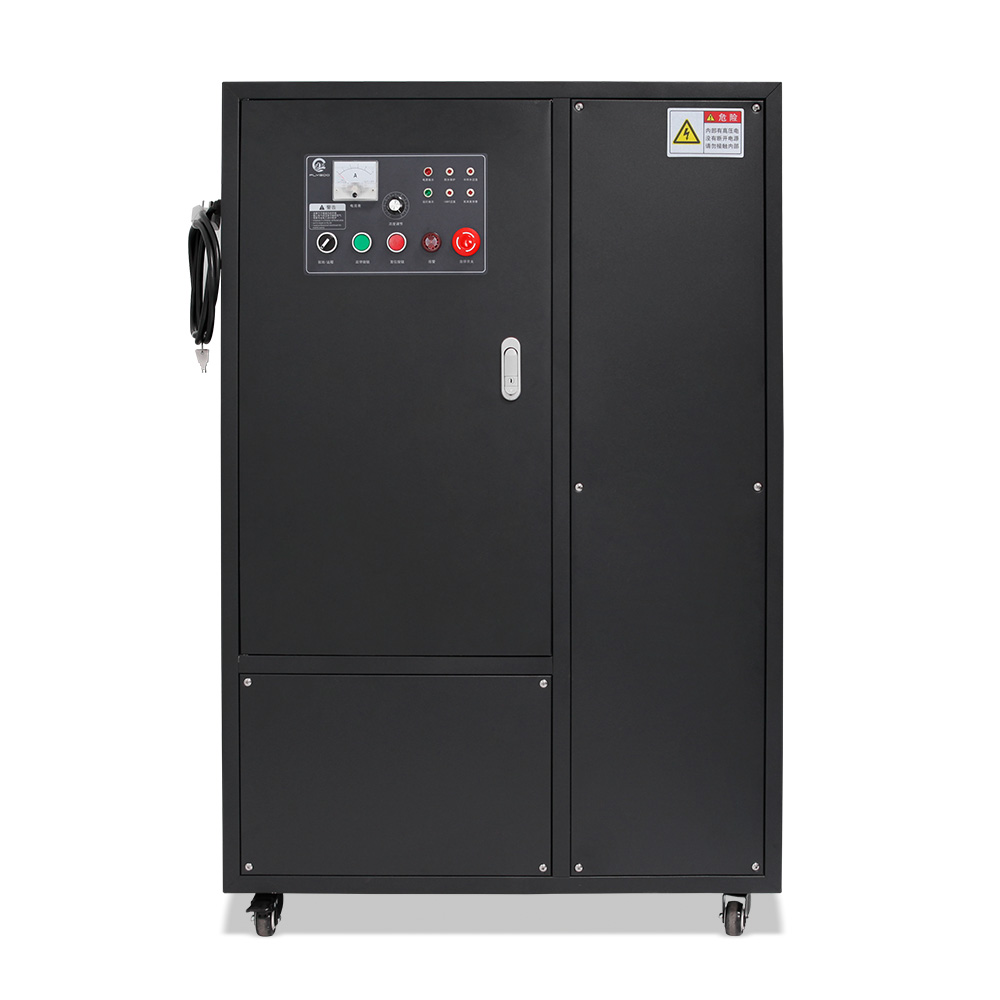

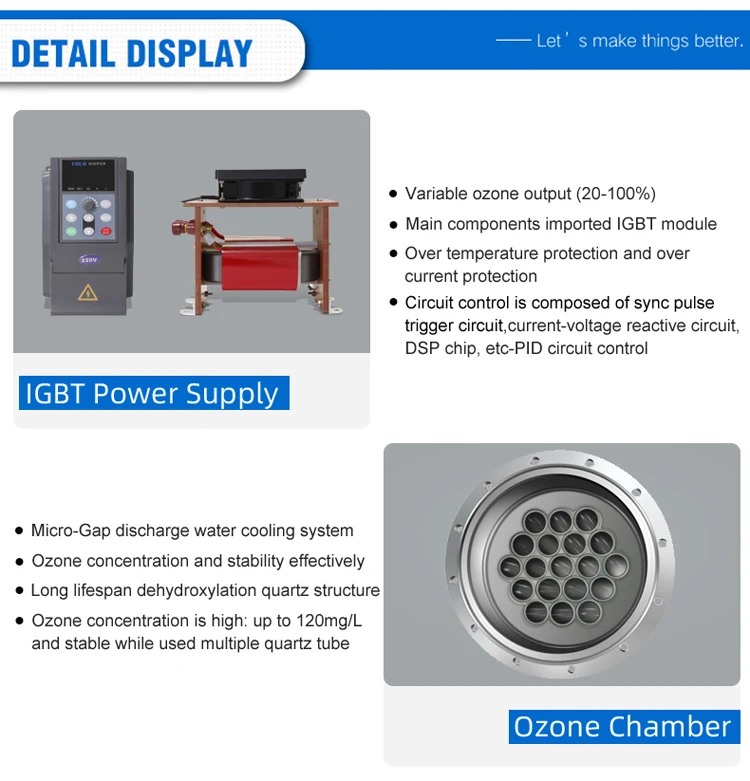

Detail Pictures

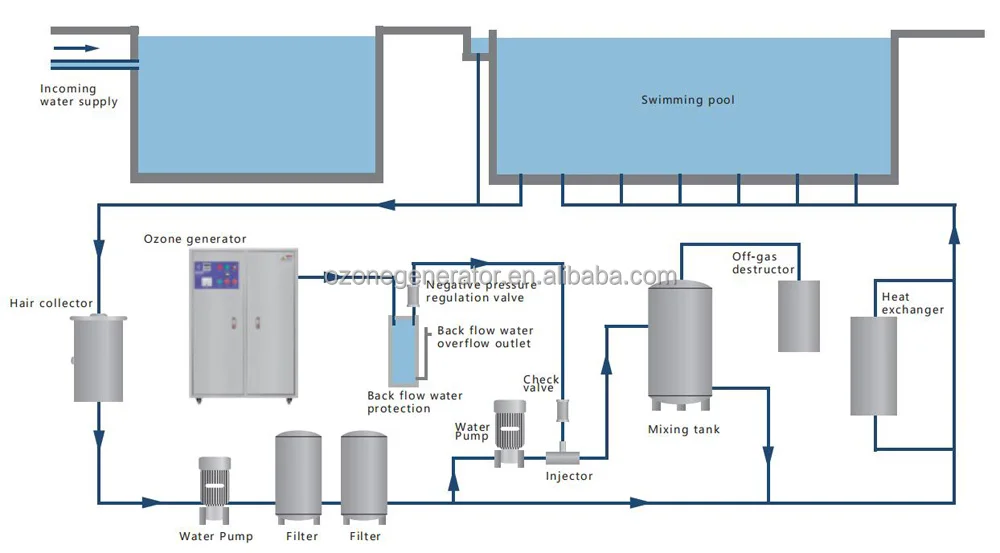

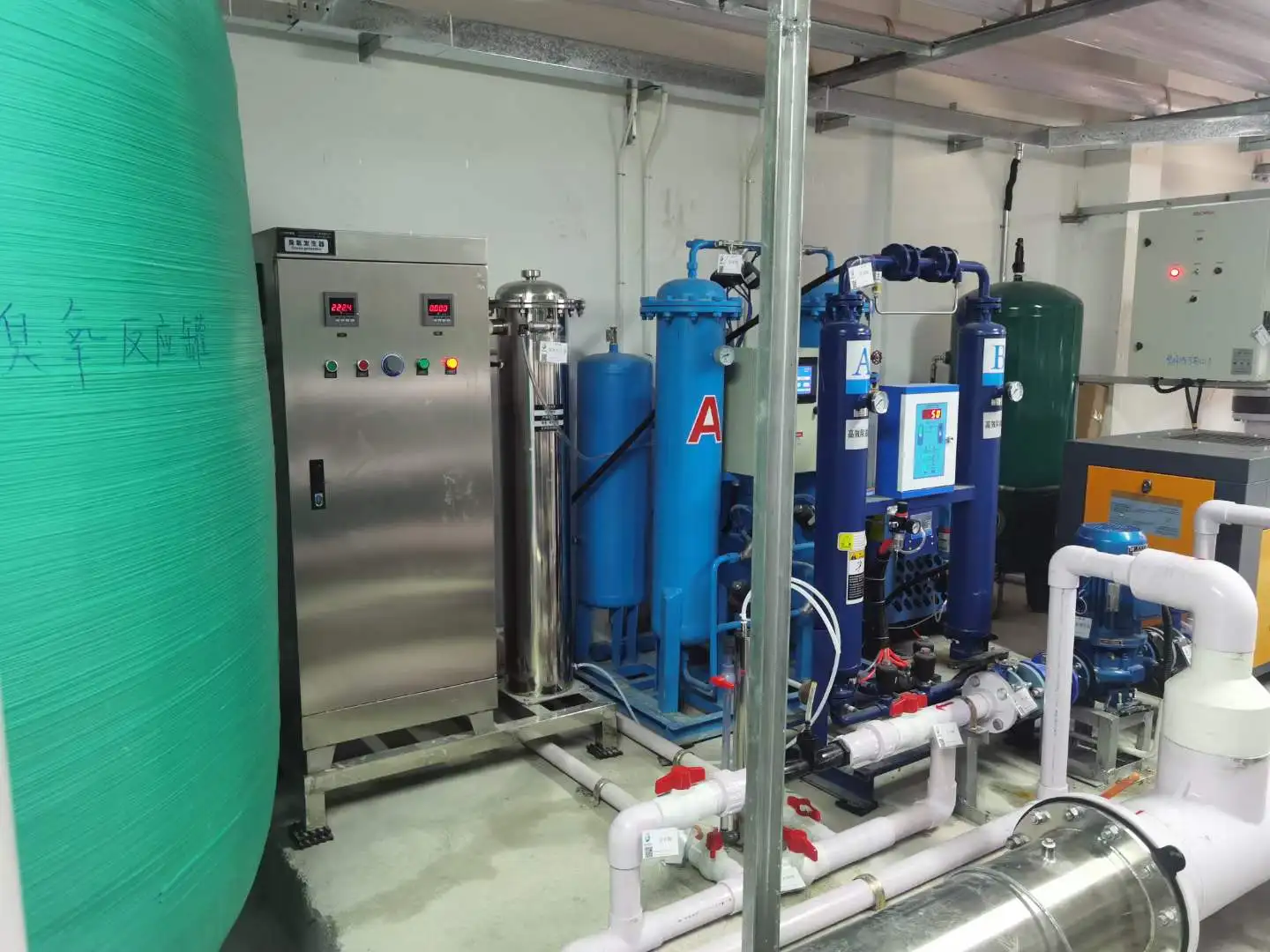

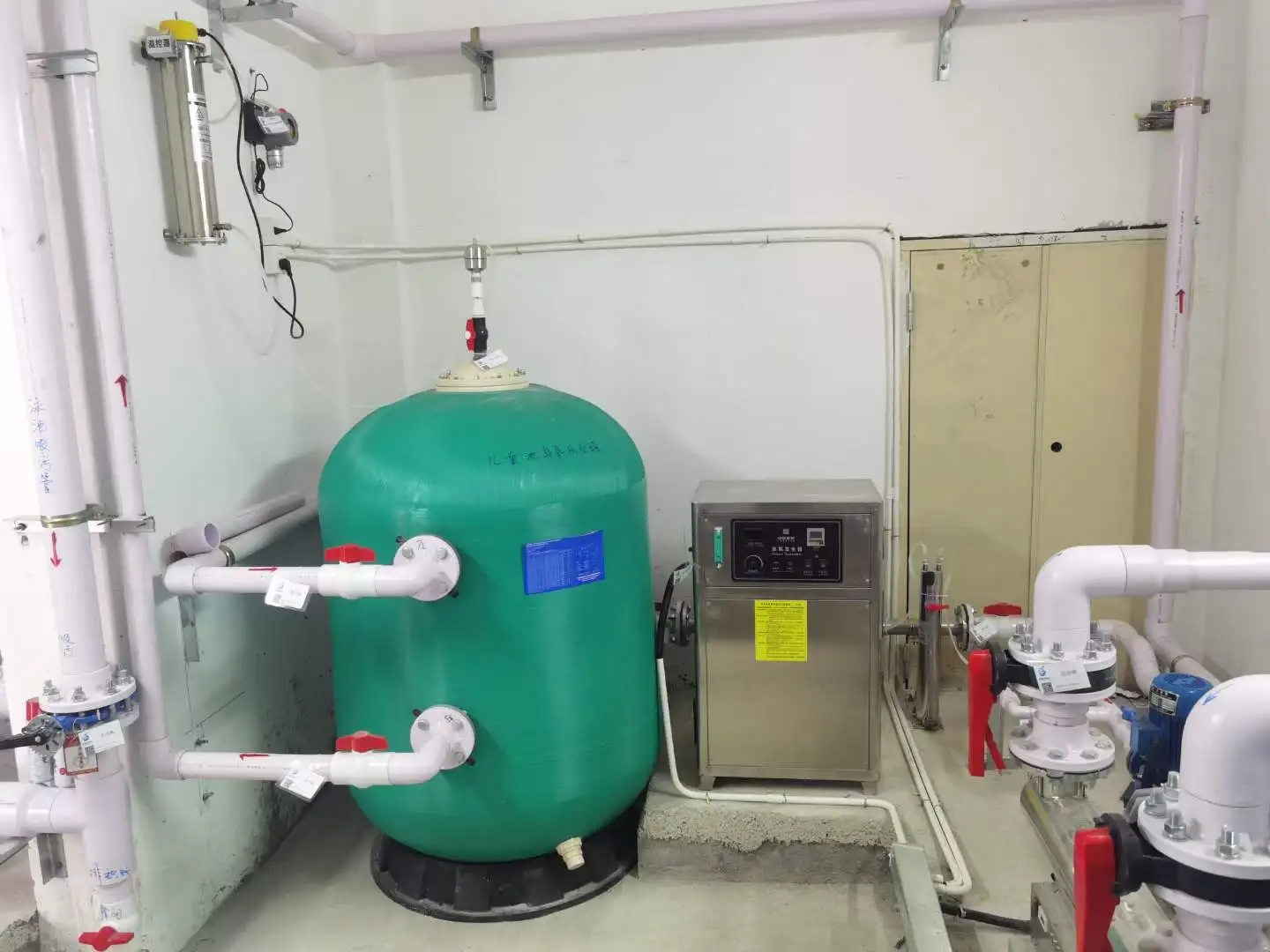

Application
