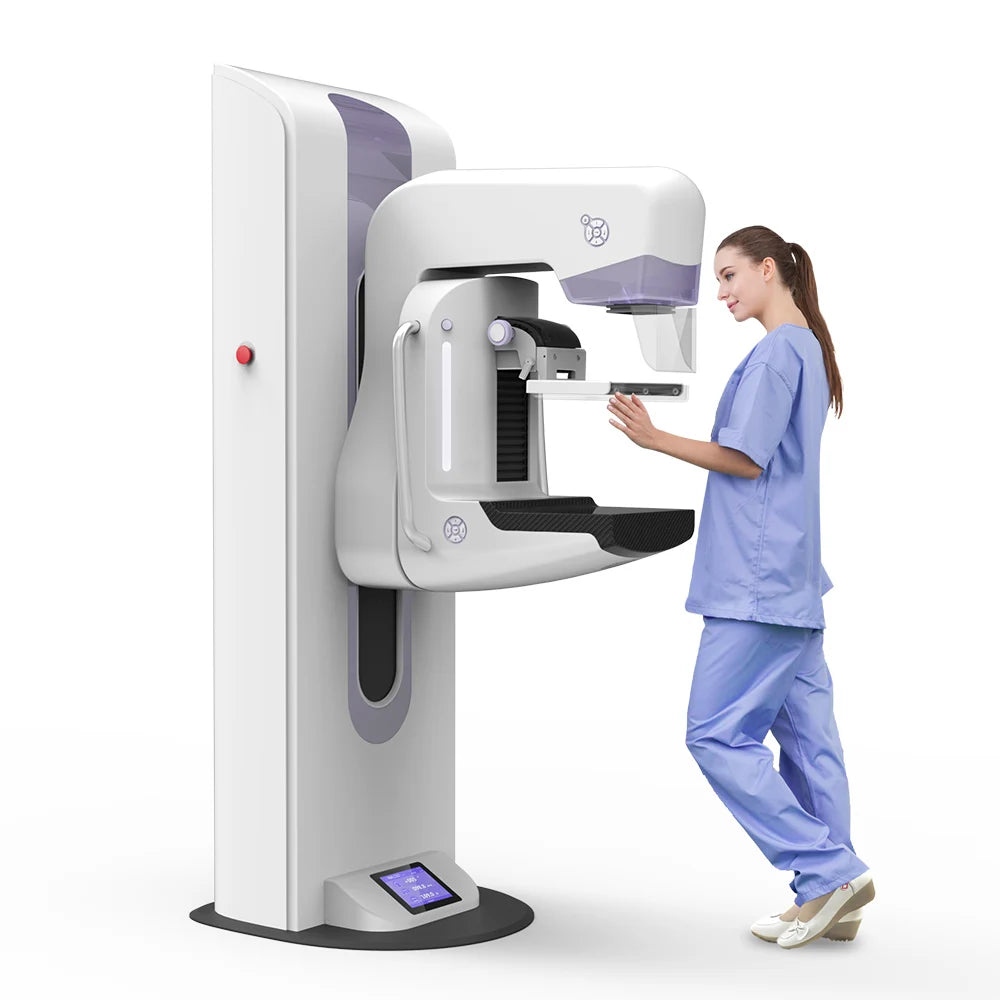

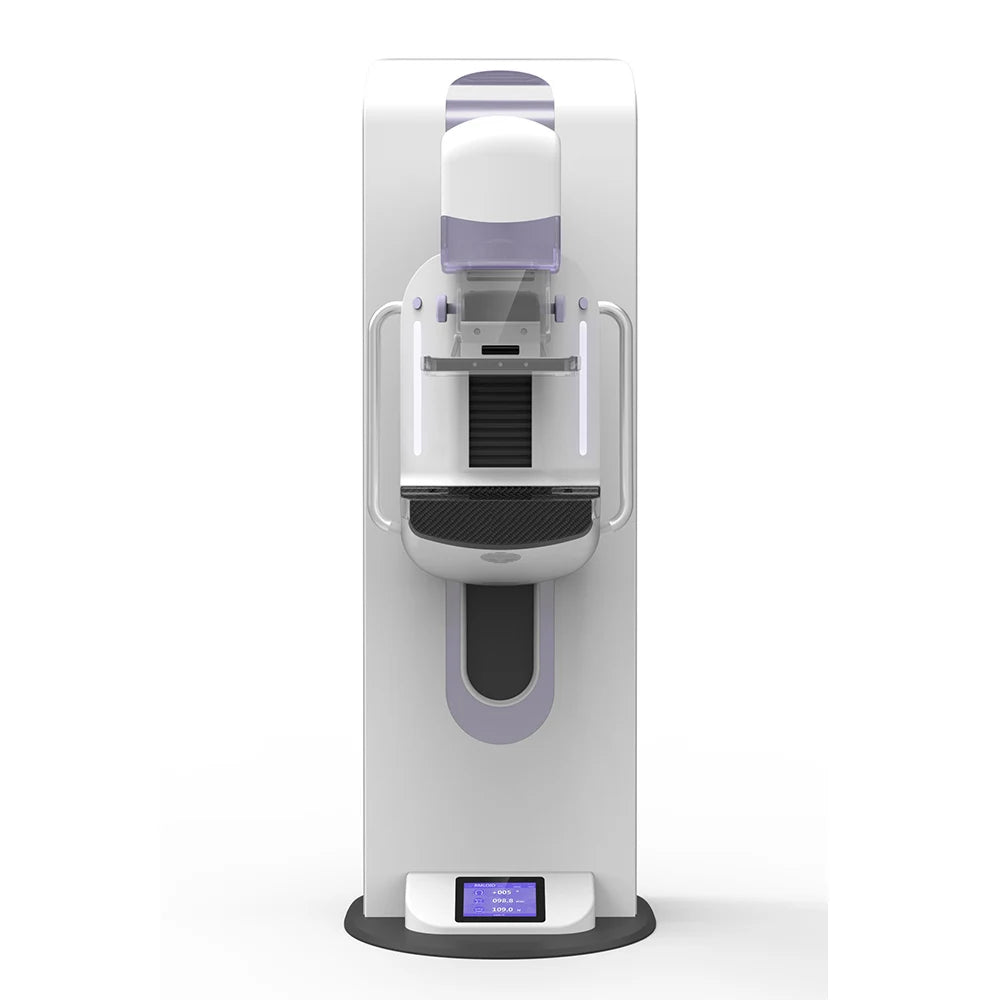

Introducing our advanced Digital Mammography System, designed to revolutionize breast examinations with cutting-edge technology and precise specifications:
- High Voltage Generator Type: Operates with a high-frequency inverter design for optimal performance.
- X-ray Tube Voltage: Adjustable within the range of 20-40kV (in 0.5kV increments), providing versatile settings for varied examinations.
- X-ray Tube Current: Ranges from 10mA to 160mA, ensuring accurate imaging with customizable intensity.
- Maximum Output Power: Offers a maximum power of 5kW (40kV, 125mA), guaranteeing efficient operation even at high settings.
- Radiograph Time: Adjustable from 0.005 to 10 seconds, facilitating swift yet detailed scans.
- mAs Range: From 0.5mAs to 560mAs, providing flexibility in exposure control for diverse patient needs.
- Exposure Control Modes: Equipped with manual, semi-automatic, and automatic modes for user convenience.
- Radiating Mode: Features cross-ventilation for enhanced safety and consistent performance.
- X-ray Tube: Utilizes the XM15 HMT-113 tube with options for small and big focus sizes (0.1mm/0.3mm), ensuring precision in imaging.
- Anode Heat Capacity: With a maximum capacity of 225kJ (300kHU), suitable for intensive usage in clinical settings.
- Anode Cooling: Utilizes efficient oil cooling mechanisms to maintain optimal operating temperatures.
- Radiation Field and Filtration: Offers a broad radiation field (18cm-50cm) with inherent (0.5mmBe) and additional (0.03mmMo) filtration for enhanced safety and image quality.
- Anode Speed: Adjustable between low-speed (3000r/min) and high-speed (10000r/min) settings for versatile imaging requirements.

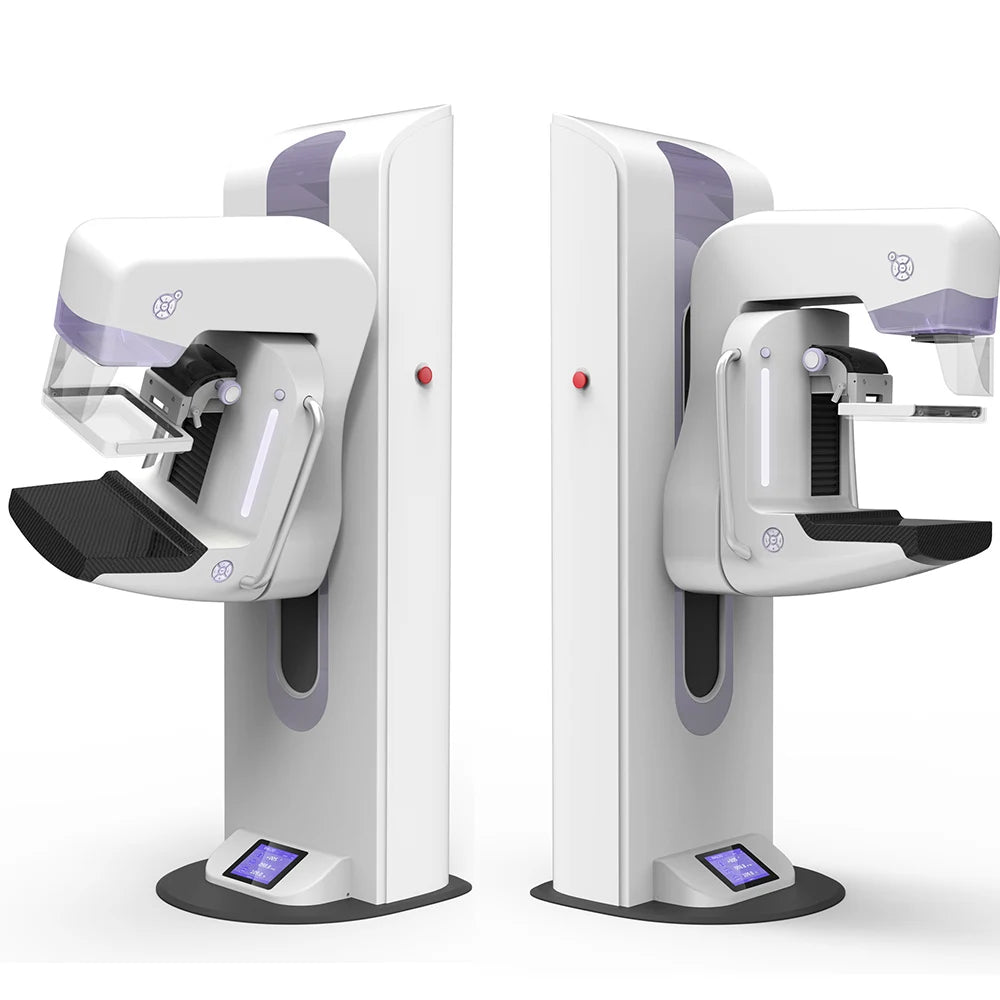

- C Arm Frame: Provides extensive vertical and rotational ranges of motion for optimal positioning during examinations.
- FPD (Flat Panel Detector): Features high-resolution imaging capabilities (2816*3584 pixels) with a pixel size of 85um and ā„16bit grayscale depth for detailed and accurate results.
- Collimator: Equipped with precise collimation options and filtration for targeted imaging and reduced radiation exposure.
- Image Acquisition Workstation: Offers a comprehensive workstation with a large screen (19"), ample memory (ā„8G), and DICOM compatibility for seamless integration with hospital systems.
- Integrated Design: Boasts an integrated design with the high-voltage generator, streamlining workflow and simplifying operation.
Our Digital Mammography System combines precision, efficiency, and safety, making it an indispensable tool for modern breast examinations in medical facilities.
Specifications
|
Digital Mammography System
|
|||
|
High voltage generator
|
Type
|
High frequency inverter type
|
|
|
X-ray tube voltage
|
20-40kV(step 0.5kV)
|
||
|
X-ray tube current
|
10mA-160mA
|
||
|
Maximum output power
|
5kW(40kV,125mA)
|
||
|
Nominal power
|
4.8kW(30kV,160mA,0.1s)
|
||
|
Radiograph time
|
0.005-10s
|
||
|
mAs
|
0.5mAS~560mAs
|
||
|
Minimum mAs
|
0.5mAs(50ms 10mA)
|
||
|
Maximun mAs
|
560mAs
|
||
|
Minimum mAs in AEC
|
6.3mAs
|
||
|
Exposure control
|
manual ,semi-auto,auto
|
||
|
Radiating mode
|
cross-ventilation
|
||
|
X-ray tube
|
|
XM15
|
HMT-113
|
|
|
small focus/big focus
|
small focus/big focus
|
|
|
Focus size
|
0.1mm/0.3mm
|
0.1mm/0.3mm
|
|
|
Maximum anode heat capacity
|
225kJ(300kHU)
|
225kJ(300kHU)
|
|
|
Maximum heat dissipation
|
500W
|
500W
|
|
|
Anode cooling mode
|
oil cooling
|
oil cooling
|
|
|
Nominal voltage
|
40kV
|
40kV
|
|
|
Target angle
|
15Ā°
|
10Ā°/16Ā°
|
|
|
Target material
|
Mo
|
Mo
|
|
|
Radiation field
|
18cm-50cm
|
18cm-50cm
|
|
|
Inherent filtration
|
0.5mmBe
|
0.5mmBe
|
|
|
Additional filtration
|
0.03mmMo
|
/
|
|
|
Anode speed
|
low-speed3000r/min; high-speed 10000r/min
|
low-speed3000r/min; high-speed 10000r/min
|
|
|
Anode input power
|
1.15-2KW / 4.8-9kW
|
0.7-1.35kW / 2.9-4.9kW
|
|
|
X-ray tube socket (C339v)
|
|
|
|
|
Additional filtration
|
0.03mmMo
|
||
|
Weight
|
13kg
|
||
|
C Arm frame
|
|
|
|
|
vertical range of motion
|
630-1400mmļ¼deviationĀ±5%
|
||
|
Rotation range of motion
|
+195Ā°~-155Ā°Angular division value 1Ā°ļ¼deviationĀ±2%
|
||
|
FID
|
660mm,deviationĀ±5%
|
||
|
3D tomographic axial rotation
|
+30Ā°~-30Ā°deviationĀ±2%
|
||
|
Rotate Mode
|
power-drive double speed rotate
|
||
|
|
Preset angle and memory function
|
||
|
Oppression plate
|
range of motion
|
245mm,deviationĀ±10%
|
|
|
range of motion in 1.5 times platfo
|
150mm,deviationĀ±10%
|
||
|
range of motion in 1.8 times platfo
|
75mm,deviationĀ±10%
|
||
|
Operation mode
|
Manual/Auto
|
||
|
Pressure range
|
0-300Nļ¼Manualļ¼150-200Nļ¼Autoļ¼
|
||
|
FPD
|
|
AXS-2430
|
HMD-2430
|
|
Pixel unit
|
85um
|
85um
|
|
|
Effective pixel size
|
239.36*304.64mm
|
239.36*304.64mm
|
|
|
Pixel matirx
|
2816*3584 pixels
|
2816*3584 pixels
|
|
|
Spatial resolution
|
ā„7 lp/mm
|
ā„7 lp/mm
|
|
|
Cooling mode
|
fan cooling
|
fan cooling
|
|
|
Grayscale
|
ā„16bit
|
ā„16bit
|
|
|
DQE
|
ā„50%
|
ā„50%
|
|
|
Grid
|
|
|
|
|
Grid proportion
|
5:1
|
||
|
Size
|
338*264mm
|
||
|
line pair
|
36lp/cm
|
||
|
focus
|
66cm
|
||
|
Collimator (HMC-915)
|
|
|
|
|
Power supply
|
24V DC,2A
|
||
|
Radiation field
|
Min 5*5cm/Max 24*30cm
|
||
|
Radiograph platform
|
Field 24*30cm SID 660mm,deviationĀ±5%
|
||
|
1.5 times radiograph platform
|
Field 16*20cm SID 440mm,deviationĀ±5%
|
||
|
1.8 times radiograph platform
|
Field 13.6*16.7cm SID 366.7mm,deviationĀ±5%
|
||
|
Collimator (HMC-915)
|
Inherent filtration
|
0.02mmAl
|
|
Additional filtration
|
0.03mmMo /0.025Rh
|
|
|
Illumination in max SID
|
>160Lux
|
|
|
Timer
|
Button/Autoļ¼30s timer
|
|
|
Indicator light
|
LED
|
|
|
maximum radiation leakage
|
<40mRh
|
|
|
Light field switch
|
Auto
|
|
|
Weight
|
3.6kg
|
|
|

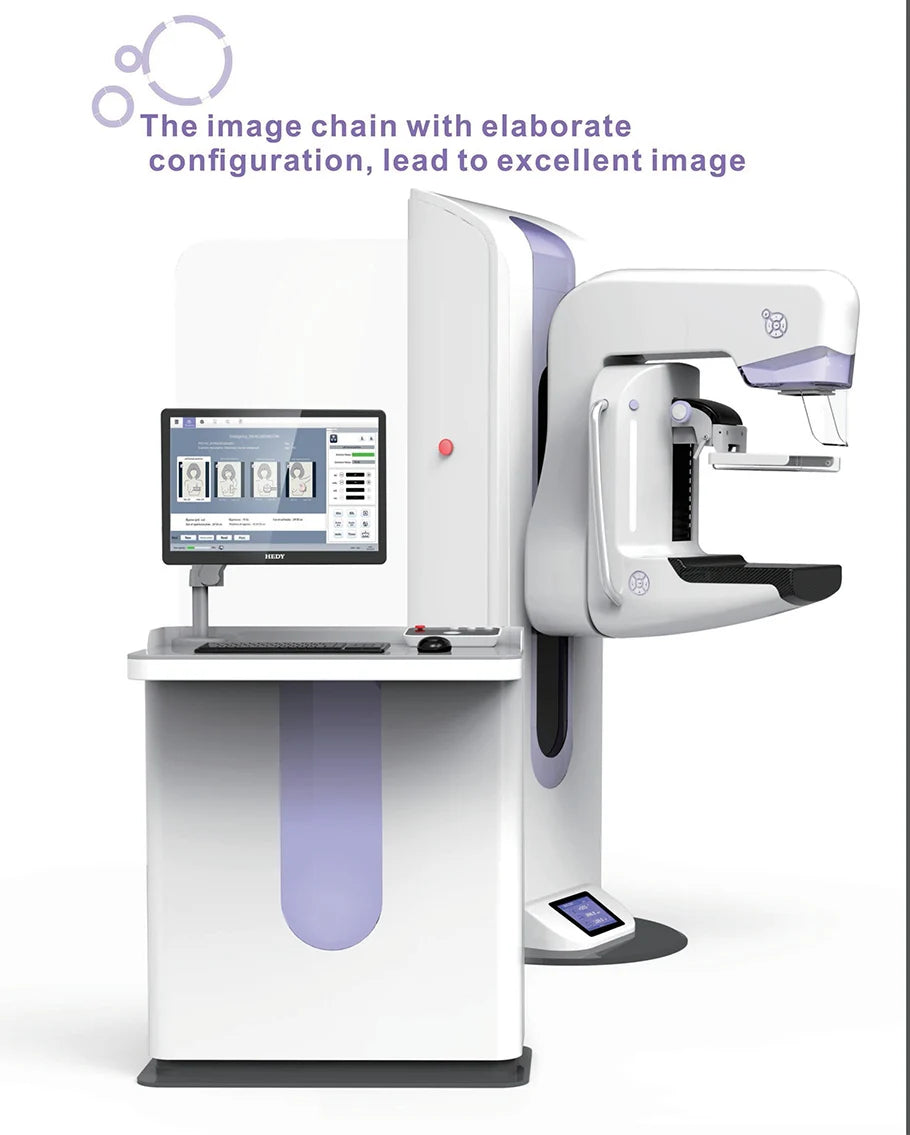

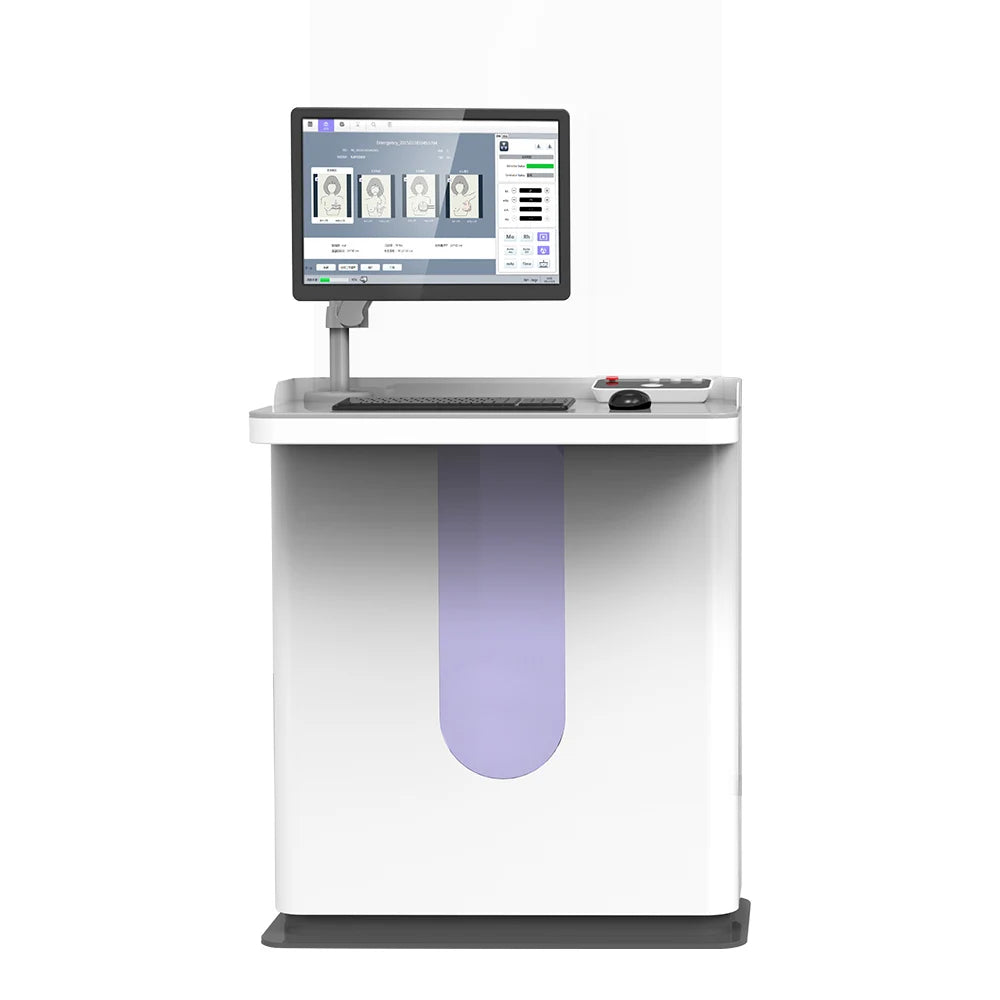

Image Acquisition Workstat
|
Screen size/resolution
|
19"ļ¼Resolution 1280*1024ļ¼Contrat 1000:1
|
|
Memory
|
ā„8G
|
|
|
Hard disk
|
ā„320G
|
|
|
OS
|
Win7
|
|
|
Image format
|
DICOM3.0(can connect with RIS)
|
|
|
Image storage capacity
|
ā„20000 images
|
|
|
|
mamual input patients' date or download form HIS/RIS through DICOM Worklist
|
|
|
|
CD-R writer (storage image)
|
|
|
|
Choosing Breast implants Function
|
|
|
|
Integrated design with High voltage generator, exposure specification setting in workstation
|
- Power Requirement : One-Phase single phase 220VĀ±20V AC
- Mains Frequency : 50Hz/60Hz
- Max Power : 5KW
- Standard Power : 4.8Kw
- Ma Range : 10~200mA
- MAS Range : 0.1~630mAS
- KV Range : 20~40KV
- Sample : Avaliable
