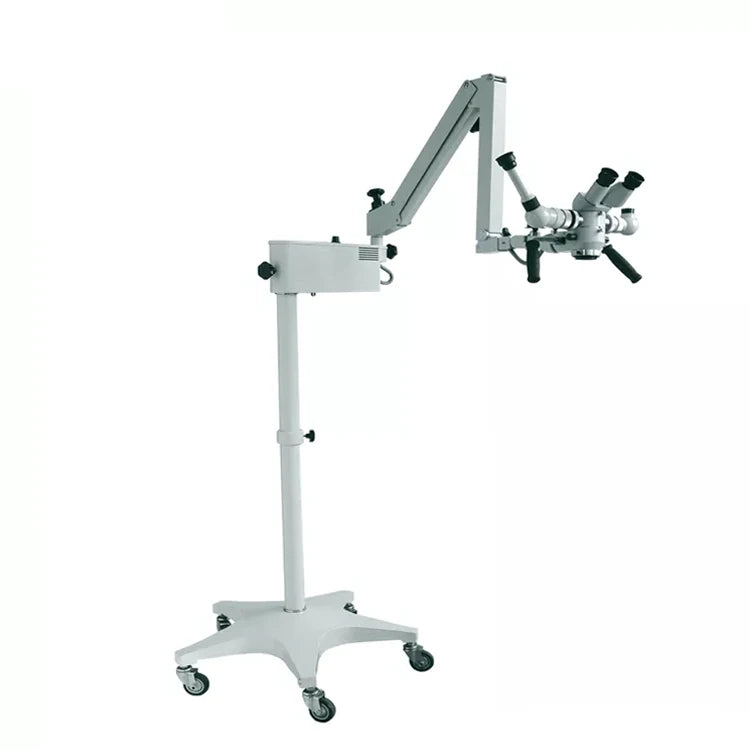

Operation microscope for ophthalmology
- Observation angle: 45°tilted
- Magnification of observation: 6X
- Interpupillary distance: 50mm-80mm
- Diopter: ±5D
- Focal length of objective: F=200mm, 250mm, 300mm, 400mm four objectives
- Magnification changer: 3-step: 0.6X, 1X, 1.6X
- Total Magnification: 2.4X-12X
- Linear field: 81-15.8mm
- Fine focusing distance: 10mm
- Illumination: Coaxial illumination with cold light source fiber-optic cable, brightness adjustable
- Lamp: 21V150W halogen lamp
- Filter: Build-in green and yellow filter
- With beamsplitter, TV adapter. Demonstrator optional
- With 2-part arm, counterweight adjustable and can be locked
- With floor stand
