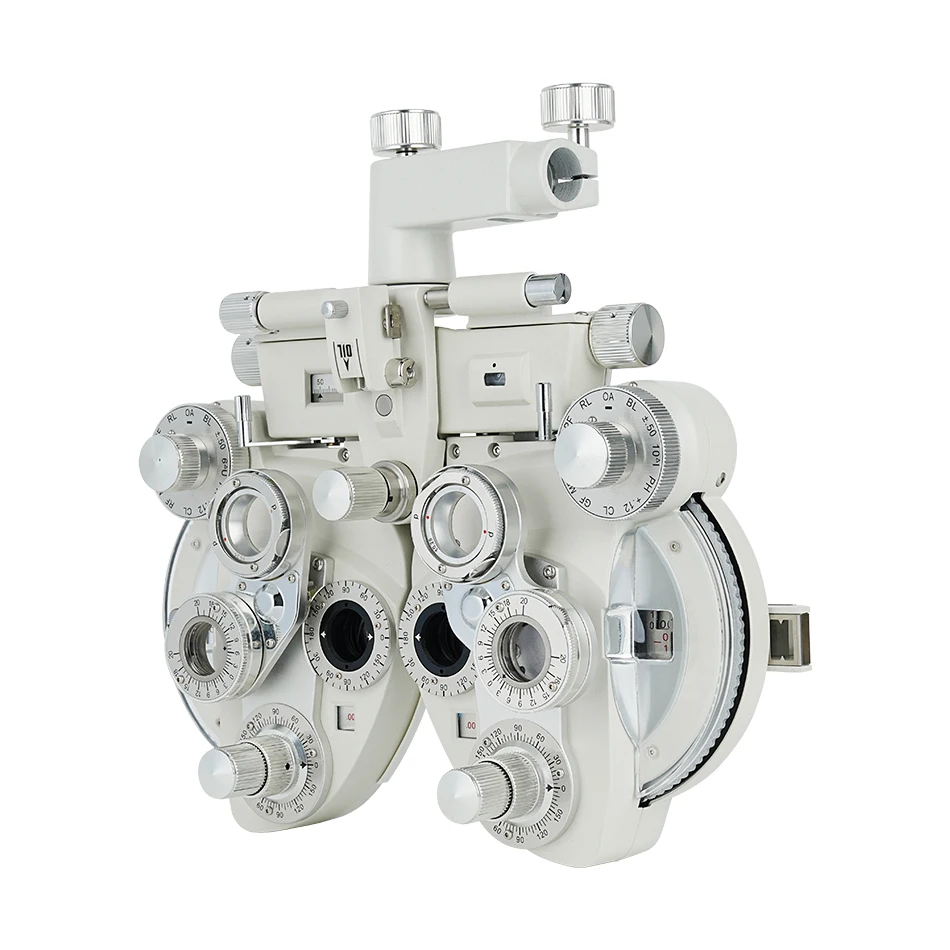

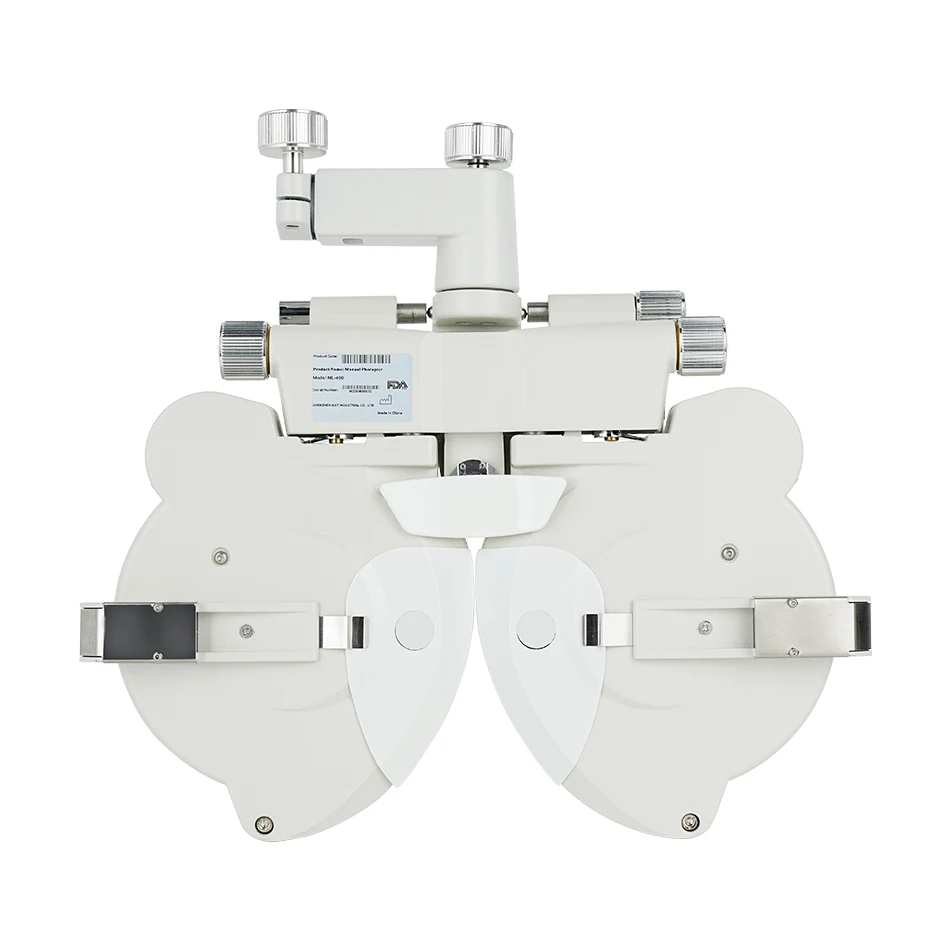

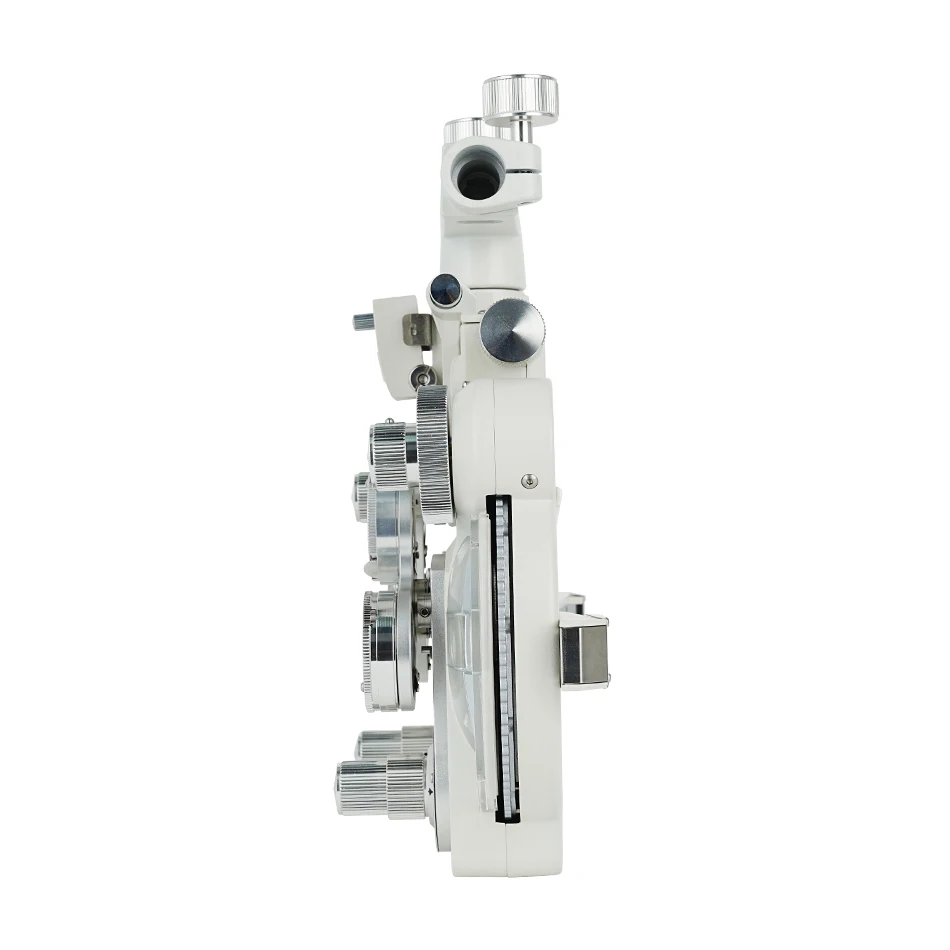

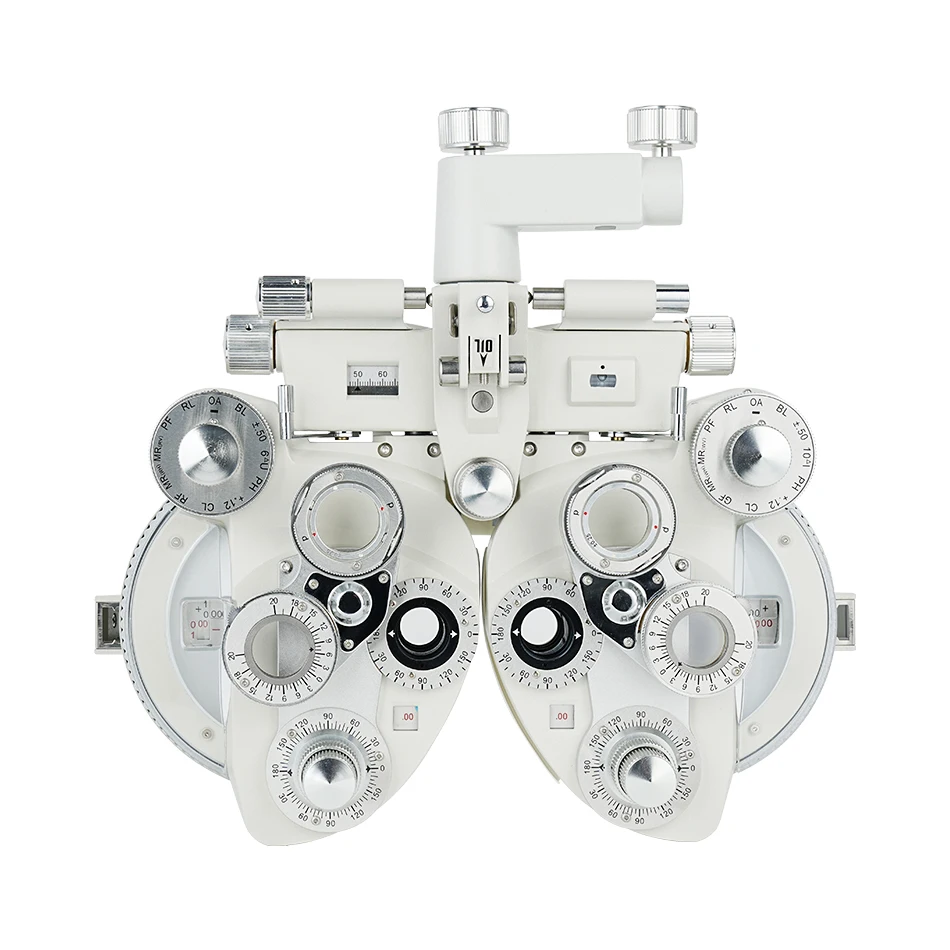

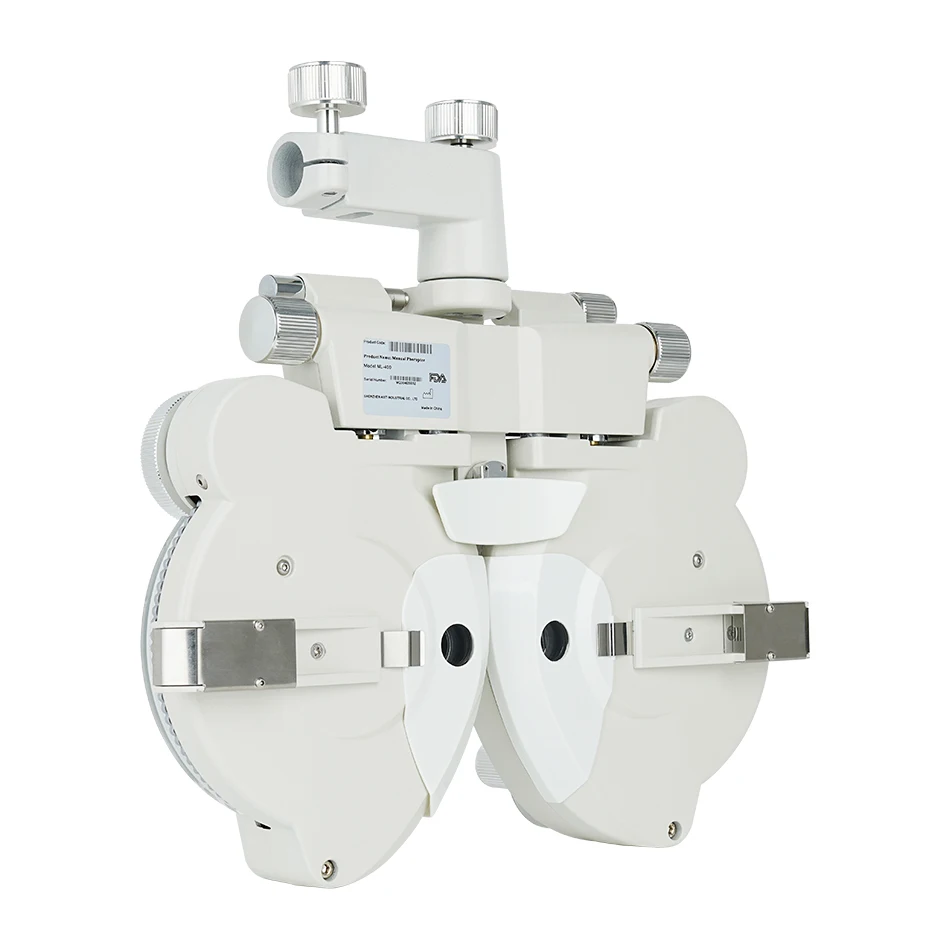

MWL400 Refractor I Ophthalmic Instrument for Optical View Testing | Vision Tester with Minus Cylinder Lenses I Manual Phoropter

Save 22% Save 22%
Original price $999.98
Original price $999.98 - Original price $999.98
Original price $999.98
Current price $780.00
$780.00 - $780.00
Current price $780.00
Color: Black

Experience precision and convenience with the MWL400 Refractor, featuring:

  1. Classic Design: Combines a timeless appearance with professional-grade technology for precise measurements.
  2. Anti-Reflection Coating: Ensures clear vision by coating all lenses to reduce glare and reflections.
  3. Manus Cross-Cylinder Lens: Enhances accuracy and reliability during examinations.
  4. New Leveling Mechanism: Ensures stability and accuracy in measurements.
  5. Fingertip Sphere Power Control: Allows easy and precise adjustment of sphere power.
  6. Innovative Convergence System Mechanism: Provides unique functionality for improved performance.
  7. Wide Range of Auxiliary Lenses: Offers versatility for various examination needs.
  8. Precision Machined: Manufactured to the finest tolerances for reliable results.
  9. Versatile Usage: Ideal for eye examinations in spectacles shops, hospital ophthalmology departments, and schools.



Sphere Power


+16.75 to -19.00 diopters


0.25 diopters


0.00 to -6.00 diopters(0.00 to -8.00 diopters with additional lens of -2.00 diopters)

Cylinder Power


0.25 diopters

Cylinder Axis

0 to 180°, 5°step

Cross Cylinder

±0.25 diopters

Rotary Prisms

0 to 20, 1 step

(O)-Open aperture (two positions)

(R)-Retinoscopic lens, +1.50D

(P)-Polarizing lens 45-left eye, 135-right eye

(WMV) or (RMV)-Maddox rod, vertical white-left eye red-right

(WMV) or (RMV)-Maddox rod, horizontal white-left eye red-right

Auxiliary Lens Dial

(RL)-Red lens

(+.12)-+0.12D sphere

(PH)-Pin hole

(10 L) or (6 U)-10 base-in-left eye

6 base-up-right eye

(Dissociating prisms)(±.50)-±0.50 fixed cross cylinder


PD Adjustment

48~75MM, 1MM steps

Standard Accessory Lenses

wo-.12D and -2.00 cylinder lenses, two plano lenses for sealing front opening

Standard Accessories

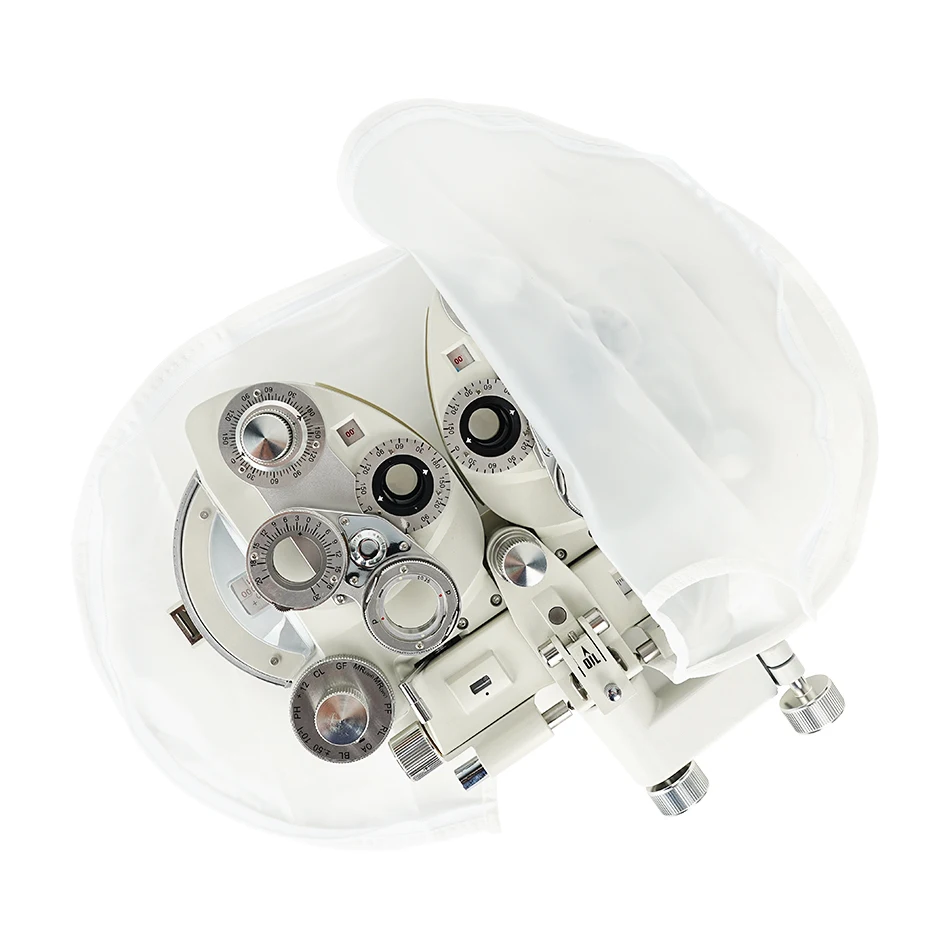

1 near point card with holder and reading rod, dust cover, face shield, accessory case for lenses



Net Weight

4.38 KGS
