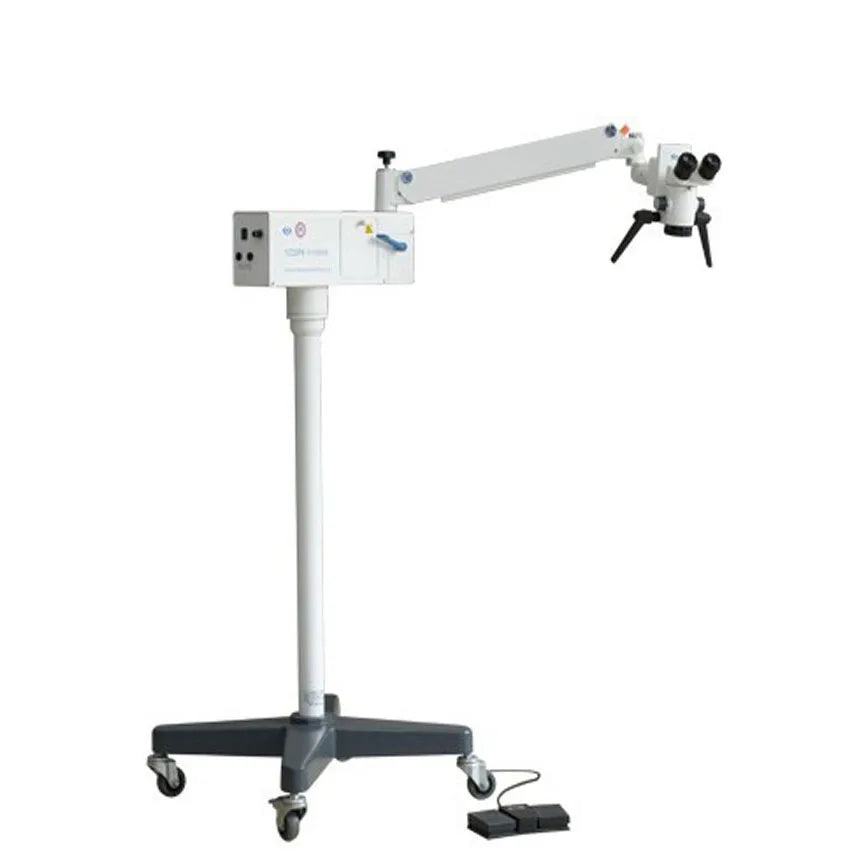

Ophthalmic Operation Microscope for Eye Surgery Operating I Model MYZ20P5

Save 12% Save 12%
Original price $3,900.00
Original price $3,900.00 - Original price $3,900.00
Original price $3,900.00
Current price $3,450.00
$3,450.00 - $3,450.00
Current price $3,450.00

The MYZ20P5 is a small-sized and portable ophthalmic operation microscope, and it can also be used in ENT and other micro-surgeries.

This is a simple coaxial illumination operation microscope for one man.It is portable,compact and applied in mobile hospital.

This microscope is manufactured with a pair of binocular eyepieces, three steps magnification, and red-reflex filter to meet most surgery requirements. This operating microscope offers clear image and large field of vision. A cold light source with quality halogen bulbs is used in the illumination system and it provides soft light, which is harmless to eye tissues.

A spring balance system is designed for the arm so that the microscope can move upwards and downwards, and stop at any desired position. You can easily and smoothly adjust magnification, focusing and inclination during the surgery. Multifunctional foot switch will help you improve the efficiency of your work.

  • Model Number : MYZ20P5
  • Theory : Stereo Microscope
  • Drawtube : BINOCULAR
  • Name : Operation microscope
  • Magnification : 3 steps
  • Pedal : yes
  • function : An intensifying red-reflex module

Technical Specification:

Eye piece Magnification 12.5x 16B
Objective Lens f=200mm
Working Distance 190mm
Magnification for Main Microscope 5.3x, 8x, 12x
Diameter of Field ∮37mm, ∮25mm,∮16.7mm,
Adjustable Diopter ±6D
Adjustable Range of Pupil Distance 50mm ~ 80mm
Maximal Resolution 100LP/m
Illumination Source 12V/100W, Medical cold-reflection Halogen Lamp
Illumination Type 6° 0 °Coaxial cold light source illumination
Coaxial Illumination ≥ 30000lx
Reaching Radius of Arm 870mm
Adjustable Vertical Range 700mm ~ 1100mm
Fine Focus Range 30mm
Input Voltage AC 220V ± 10% /50HZ ±1HZ, AC 110V±10%/60HZ ±1Hz
Power 120VA
Fuse T-type AC 250V T1.25A  AC 125V T2.5 A
Electrical Safety Standard Executive to GB 9706.1-2007, Class I
Packing Volume 0.2cbm, 1 cartons
Total Gross Weight 88lbs
