Universal Testing Machine I Optimize Your Testing with Our Environmental Test Temperature Climate Chamber

Save 17% Save 17%
Original price $14,480.00
Original price $14,480.00 - Original price $14,480.00
Original price $14,480.00
Current price $12,000.00
$12,000.00 - $12,000.00
Current price $12,000.00


Discover Our Advanced Environmental Simulation Test Temperature Humidity Climate Chamber. Designed to Assess Material Durability and Quality Across Various Conditions. Featuring Intuitive Controls, Programmable Settings, and Robust Safety Measures. Explore Our Range of Sizes and Customization Options

Features of the Environmental Simulation Test Temperature Humidity Climate Chamber:

  • Intuitive LED Touch Screen Interface
  • Precise PID Control of Temperature and Humidity
  • Programmable Settings for Both Temperature and Humidity (Up to 100 patterns, each with 999 segments)
  • Integrated Humidity Sensor for Accurate Readings
  • RS485/232 Output for Computer Connectivity
  • Compatible with Window Software
  • Optional Remote Fault Notification Capability
  • Viewing Window for Easy Monitoring
  • Built-in Thermostats to Prevent Overheating
  • Convenient Cable Ports (50mm diameter)
  • Data Storage Functionality via USB Flash Memory
  • Comprehensive Protection Features including Phase, Overheat, and Overcurrent Protection
  • Water Tank with Level Detector for Hassle-Free Operation
  • Adjustable Shelf for Flexible Test Setup
  • Optional Anti-Condensation Technology for Workroom
  • User-Friendly Three-Color LED Indicator Lamp for Clear Status Display


  • Capacity: Available in 80L, 150L, 225L, 408L, 500L, 800L, and 1000L (Optional sizes and custom-made options available)
  • Performance:
    • Control Methods: Balanced Temperature Humidity Control System (BTHC) with PID Intelligent Adjustment
    • Temperature and Humidity Range: -70°C to 150°C; 20% to 98% Relative Humidity (R.H)
    • Accuracy: ±1.0°C, ±2% R.H / ±0.5°C, ±2% R.H
    • Resolution: ±0.1°C, ±0.1% R.H / ±1°C, ±3% R.H
    • Heating Rate: ≤3°C/min
    • Cooling Rate: Average 1°C/min
  • Construction:
    • Internal Material: SUS#304 Stainless Steel
    • External Material: SUS#304 Stainless Steel or Antirust Processing Cold-Rolled Steel Sheet (Spray)
    • Insulation Material: Superfine Wool + Polyurethane Foam
  • Regulator:
    • Cooling Mode: Mechanical Binary Refrigeration
    • Compressor: Closed Compressor (French Tecumseh or German Copeland)
    • Refrigerant: R23/R404A
    • Condensing Way: Air-Cooling and Water-Cooling
    • Humidifier: Stainless Steel Humidifying Tube
    • Airflow Way: Broadband-Type Forced Air Circulation
  • Controller:
    • Operate Interfaces: Korea TEMI 880 LCD Touch Screen
    • Memory Capacity: 120 groups, each program with 100 segments
    • Input: PT100 or T Thermocouple
    • Communicate Interface: RS-232
    • Subsidiary Function: Upper and Lower Alarm; Self-Diagnosis; Alarm Display (Fault Cause); Time Sequence Protection (Automatic Turn On or Turn Off)
  • Water Supply:
    • Water Supply: Circulating Water Supply
    • Water Tank: Built-In Hand Type (30kg Capacity)
    • Water Quality: Resistance > 500Ω.m
  • Standard Configuration:
    • One Observe Window (Double Hollow Toughened Glass)
    • One Test Pattern D50mm (On the Left)

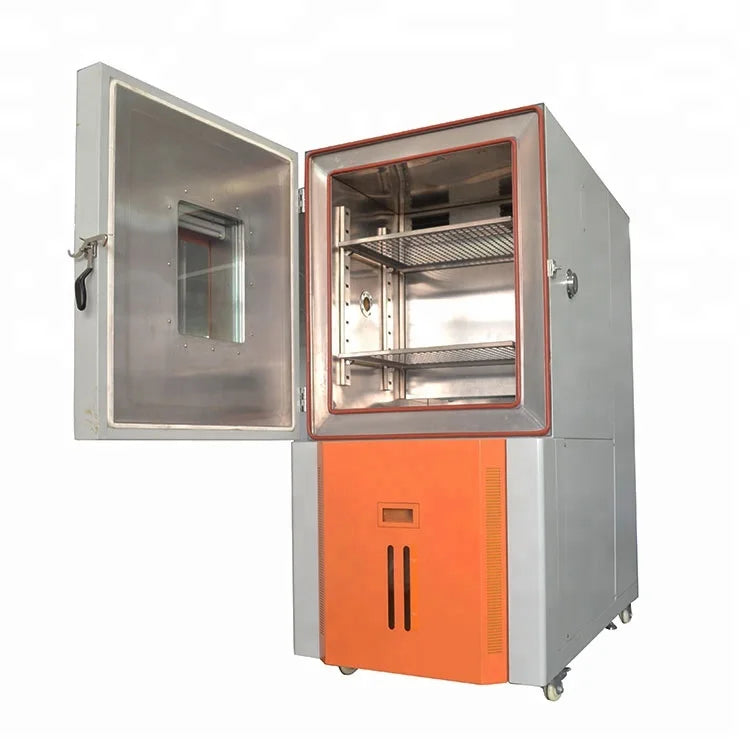

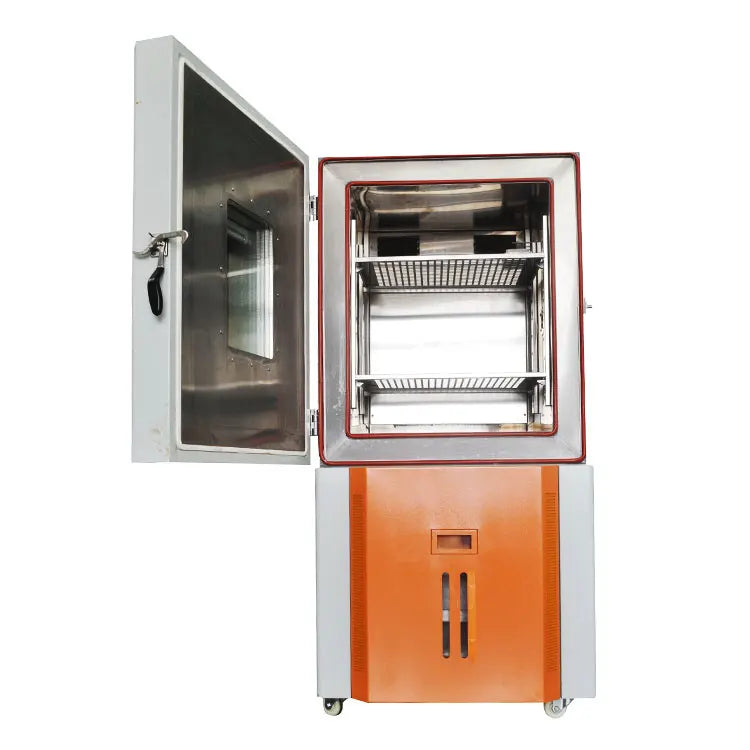

    • Two Layers Sample Frame
    • One Floodlight (Fluorescent Lamp)
    • One Water Feeding Tank
  • Safety Features:
    • Power Leakage Protection
    • Dry Heating Protection
    • Water Protection Over-Temperature Protection Switch
    • Temperature Deviation Alarm
    • Compressor Overpressure Protection
    • Overload Protection
    • Water Shortage Protection
    • Phrase Shortage Protection
  • Power Supply: 220VAC ±10% 50/60Hz & 380VAC ±10% 50/60H

  • Power : Electronic, 380V/220V AC ±10%50/60Hz
  • Name : Environmental test chambers
  • Inside Dimension : 80L~1000L (be customized)
  • Temperature range : -70℃~150℃
  • Humidity Range : 20%~98%R.H (10%~98%R.H / 5%~98%R.H)
  • Cooling Rate : Average 1°C/min
  • Resolution : ±0.1°C, ±0.1%R.H / ±1°C, ±3%R.H
  • Operate Interface : Korea TEMI 880 LCD touch screen
  • Heating Rate: : ≤3°C/min
  • Warranty Period : 18 months
