Surface Roughness Tester Metal Surface Roughness Gauge I high accuracy and fast testing speed
Unit price/ per

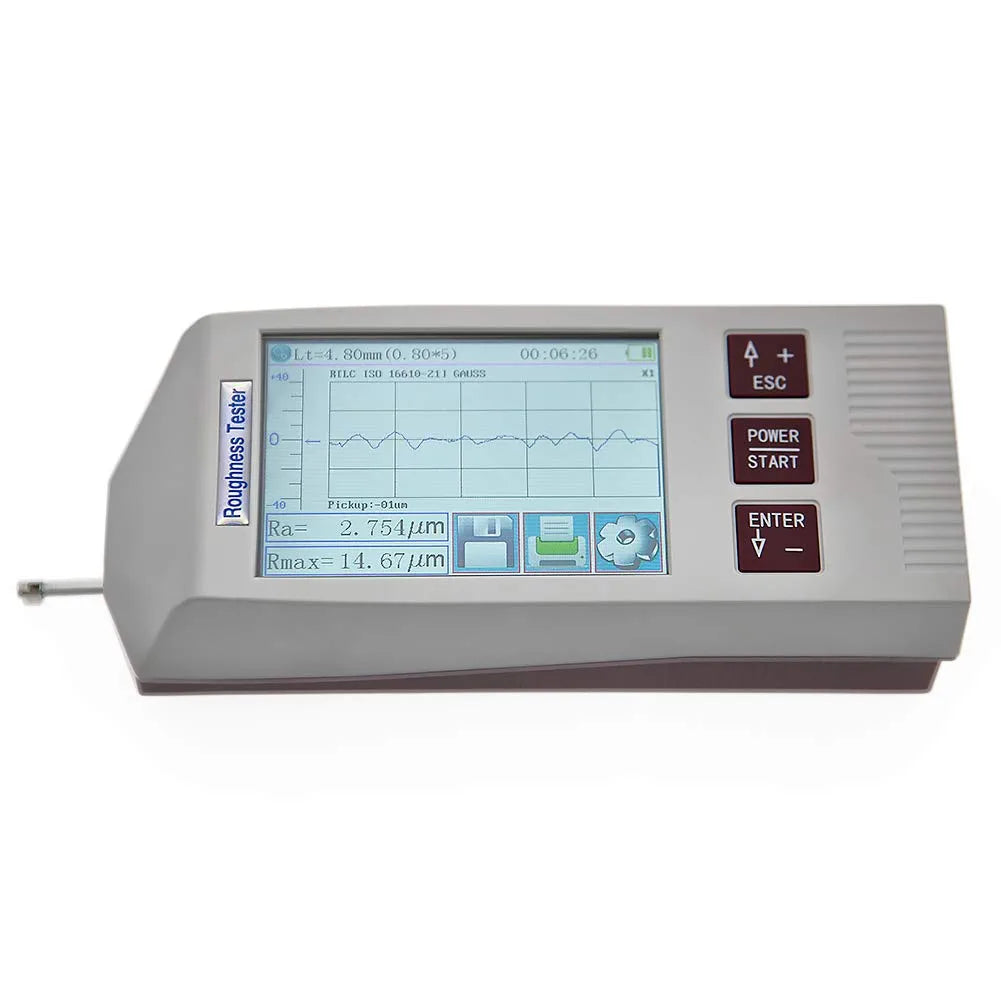

This portable Surface Roughness Tester allows surface roughness measurement both on metal and non-metal workpieces. It is suitable for machining and manufacturing, quality control, inspection departments, especially for measurement on large and heavy workpiece, assembly line on site. The AMT211 is a Non Destructive Testing instrument, damage won’t be caused when testing piece.
The Surface Roughness Tester AMT211 complies with international standards ISO, DIN, ANSI, JIS. Users-friendly system and intuitive menu navigation, Multi-direction measurement such as lateral and upsid.

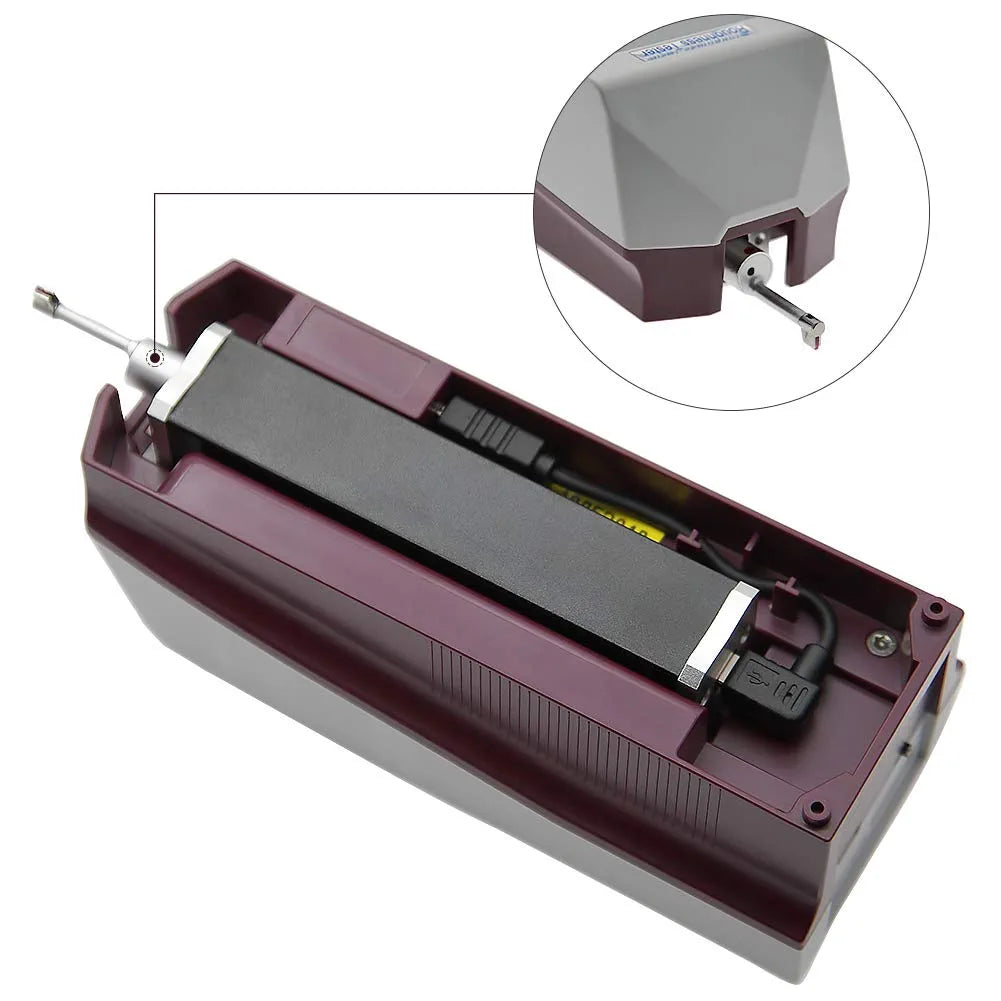

Sensor can work in the meter, also can work independent through 1.0m length cable (Max can be 3m).
Affordable Touch screen & button operational Surface Roughness Tester. Roughness parameters: Ra ,Rz, Rq, Rt, Rp ,Rv, R3z, R3y, Rz(JIS), Rs, Rsk, Rsm, Rku, Rmr, Ry(JIS), Rmax, RPc, Rk, Rpk, Rvk, Mr1, Mr2, resolution 0.001 micron. With bluetooth, also can by app to connect with mobile phone.
Calculation results, assessed profiles, bearing and amplitude curves can be displayed. DSP chip controlled achieves high accuracy and fast testing speed, easily connected to PC & Printer
