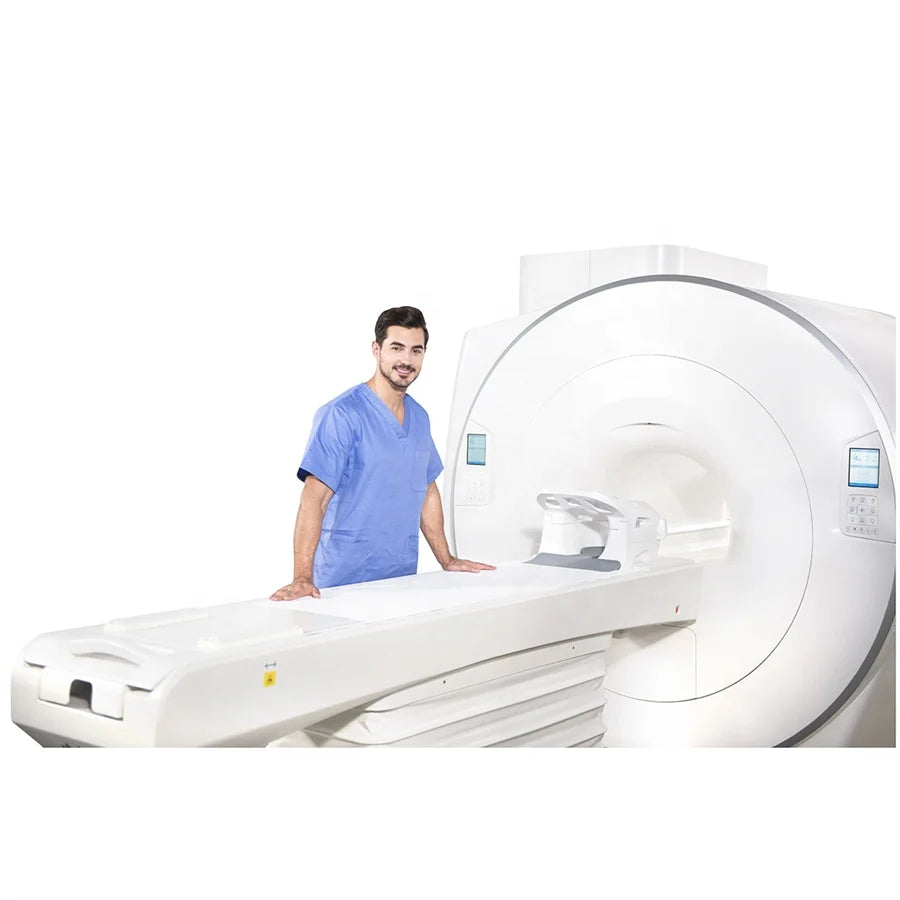

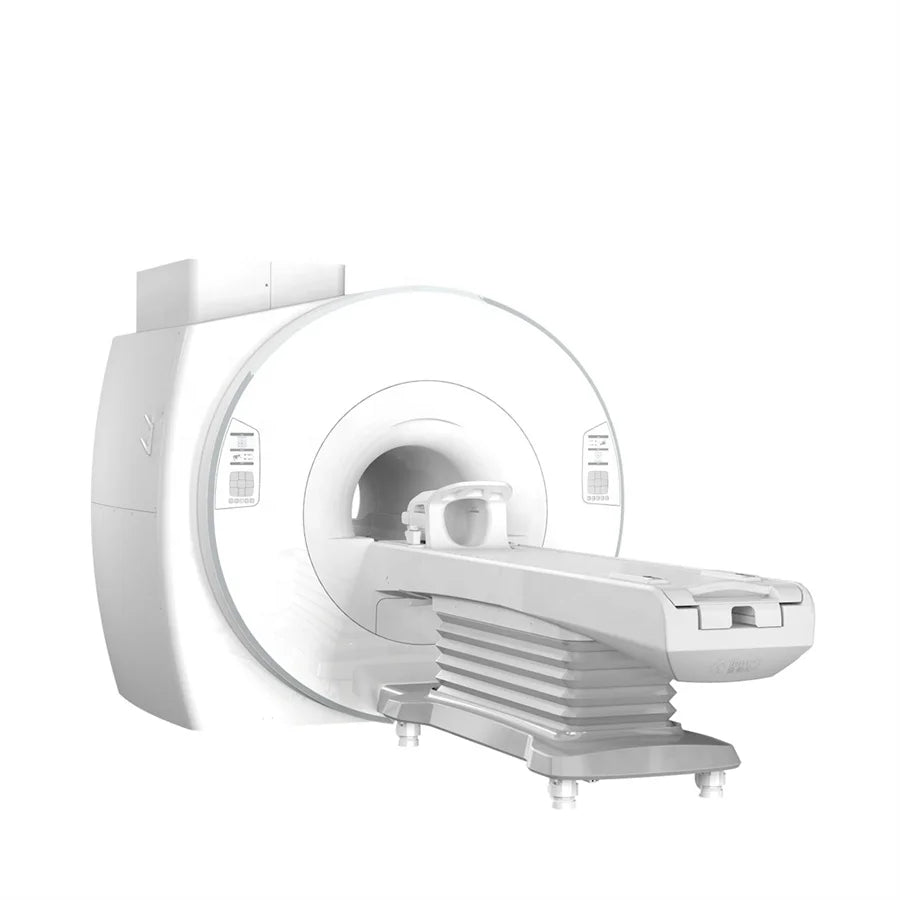

🧠 1.5T Open MRI Scanner – 16 Channel Quantum Magnetic Resonance Analyzer for Advanced Medical Imaging
The 1.5 Tesla Quantum Magnetic Resonance Imaging (MRI) Scanner with 16 RF channels is engineered for precision diagnostics, superior imaging quality, and patient comfort. Featuring MUSIC (Multi-Segment Imaging Combination) technology, this open MRI system combines flexibility, speed, and high-resolution scanning to meet the demands of modern clinical environments.
MUSIC allows up to 66-channel integration and supports 16 independent RF channels simultaneously—within a single scan and field of view. This drastically enhances image clarity, reduces scan time, and eliminates the need for patient repositioning during multi-segment imaging.
🧲 Magnet System & Stability
-
Long-Term Magnetic Stability: ≤0.125 ppm/h
-
Field Homogeneity (V-RMS):
-
50cm DSV: ≤0.75 ppm
-
30cm DSV: ≤0.05 ppm
-
10cm DSV: ≤0.002 ppm
-
-
Wide Patient Aperture: 600mm for enhanced comfort and access
⚙️ Gradient System
-
Type: Single Non-Resonant
-
Max Amplitude (X/Y/Z): 40 mT/m
-
Max Slew Rate (X/Y/Z): 133 mT/m/ms
📡 RF Transmit & Receive System
-
Max Output Power: 20 kW
-
Independent RF Receiving Channels: 16
-
MUSIC RF Coil Options Include:
-

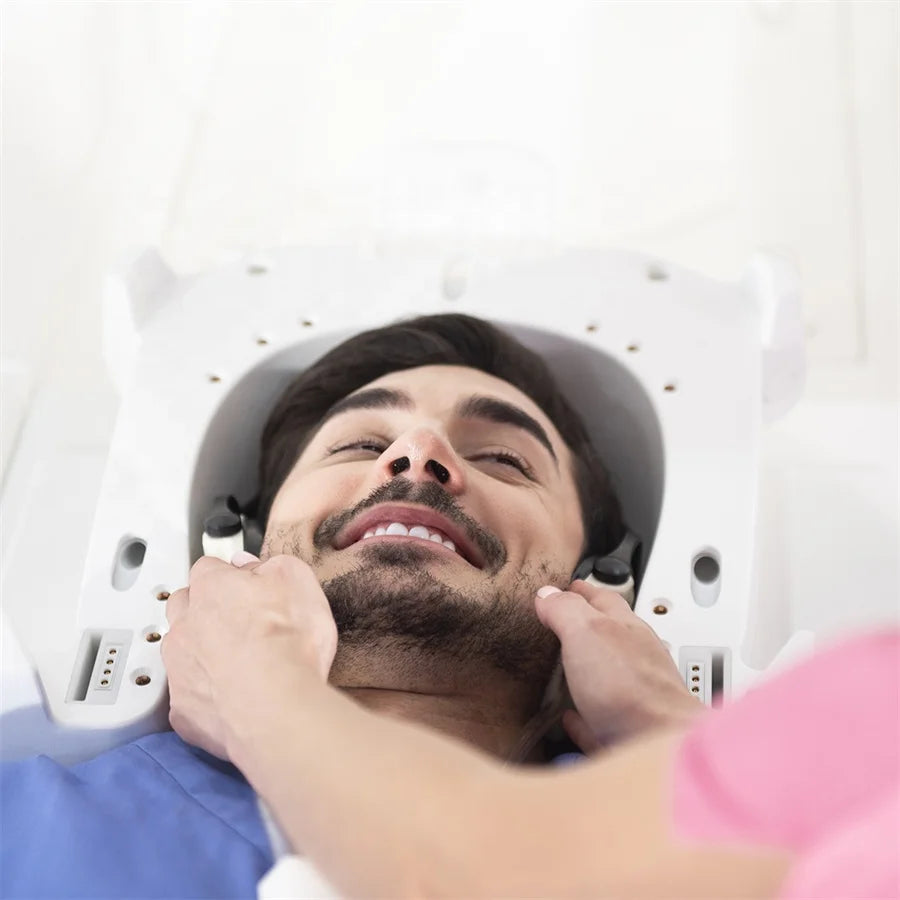

Head-Neck Coil: 16 Channels
-
Spine Coil: 18 Channels
-

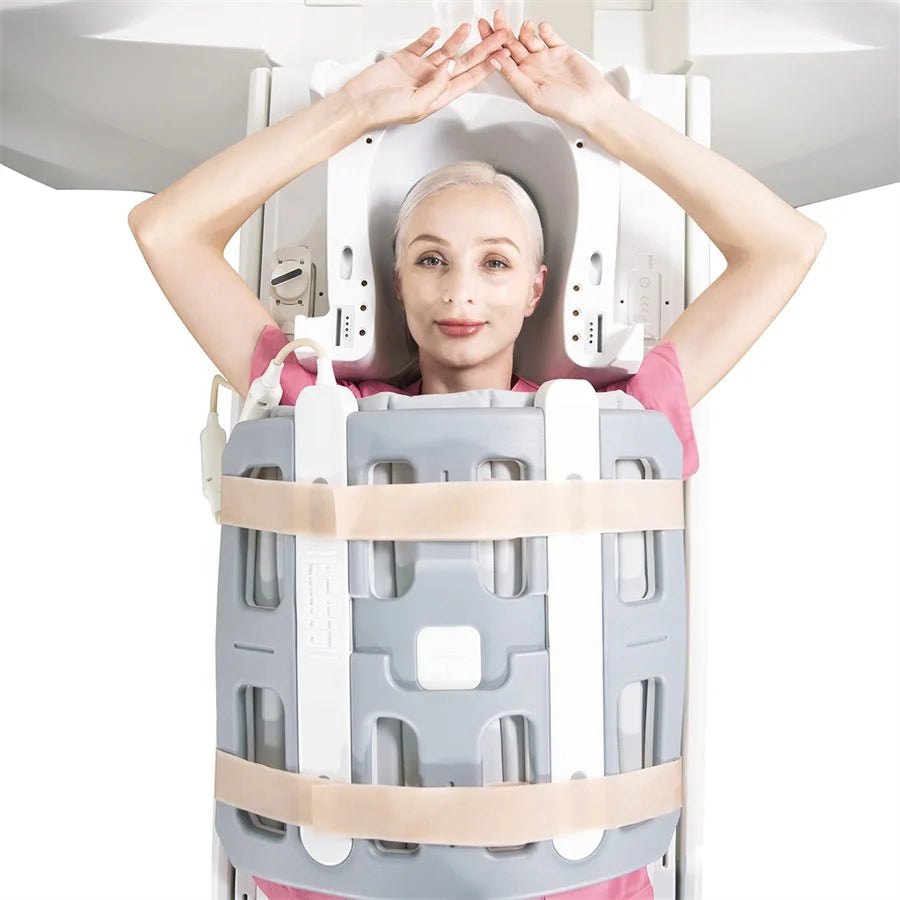

Body Coil: 8 Channels
-

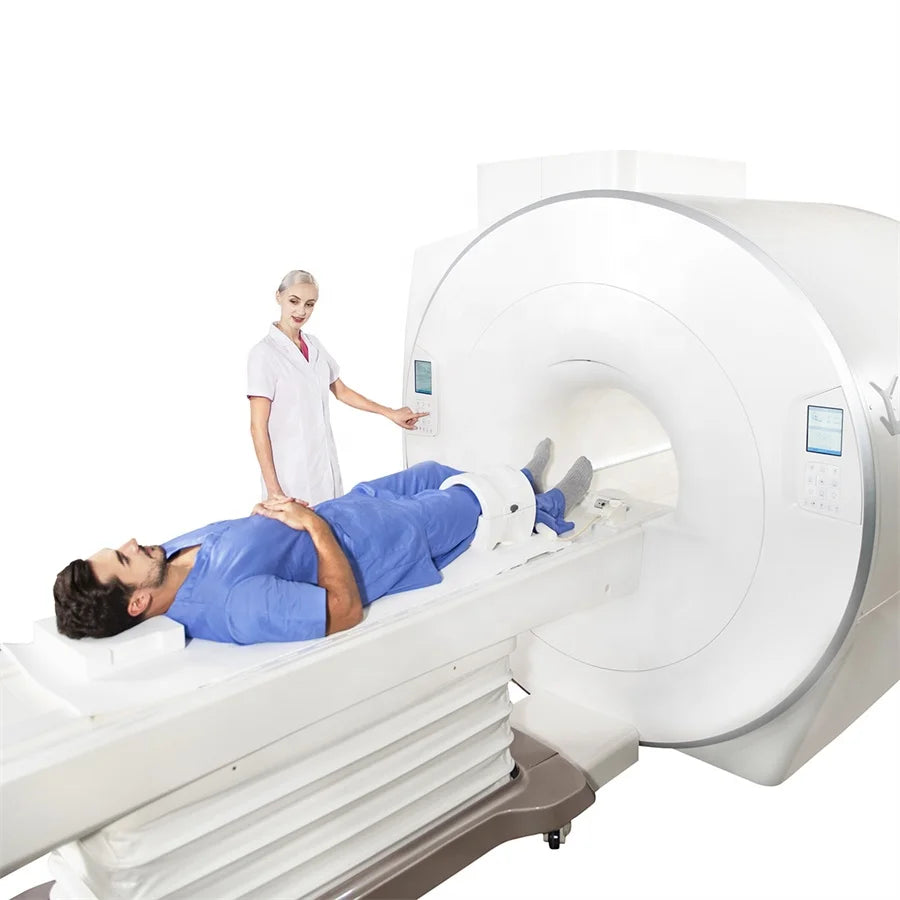

Knee Coil: 8 Channels
-
Shoulder Coil: 4 Channels
-

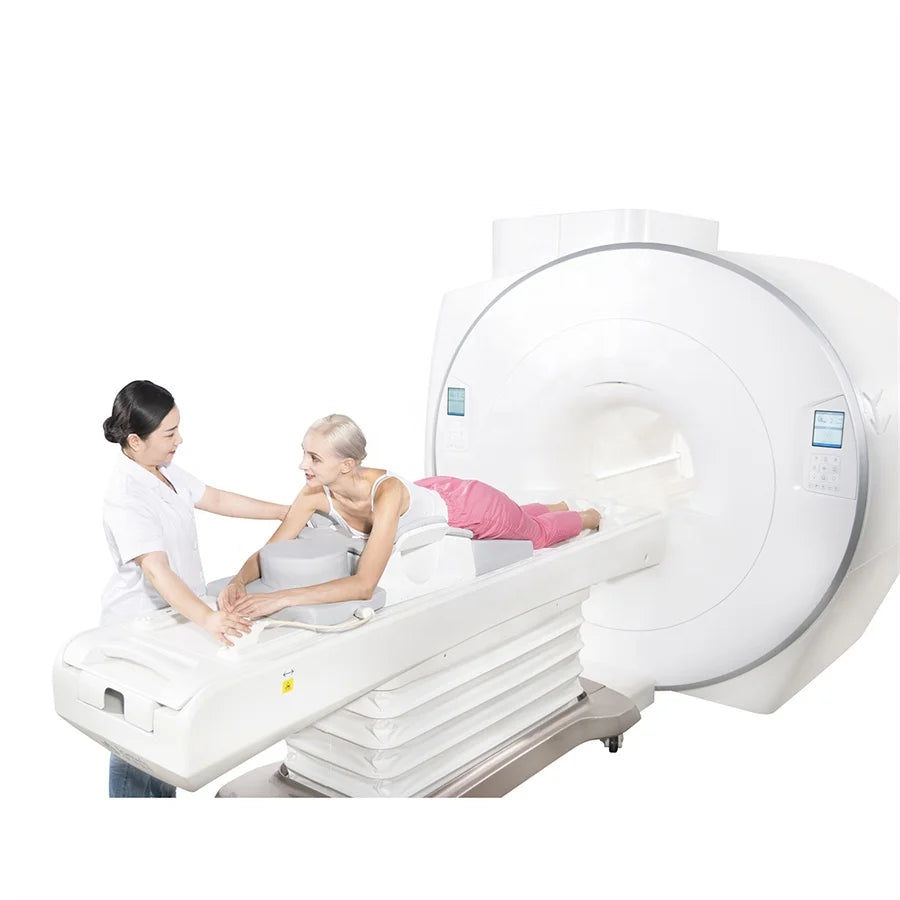

Optional Coils: Wrist, Ankle, Breast, and Flexible Coils (4–8 Channels)
-
🧬 Imaging Sequences & Technology
-
Pulse Sequences Supported: SE, GRE, EPI, IR, MRA, MRV, DWI, Neural Imaging
-
Tornado Technology: Actively eliminates motion artifacts
-
Advanced Coverage: Full-body scans without patient repositioning
-
Rapid Scan Capabilities: High efficiency for both outpatient and inpatient diagnostics
🏥 Ideal For:
-
Hospitals and Diagnostic Imaging Centers
-
Neuroscience and Orthopedic Clinics
-
Research Institutions
-
Facilities Requiring High Patient Throughput
Revolutionize your imaging workflow with the 1.5T Open MRI with Quantum Resonance Analyzer—where high-resolution meets high-efficiency.
