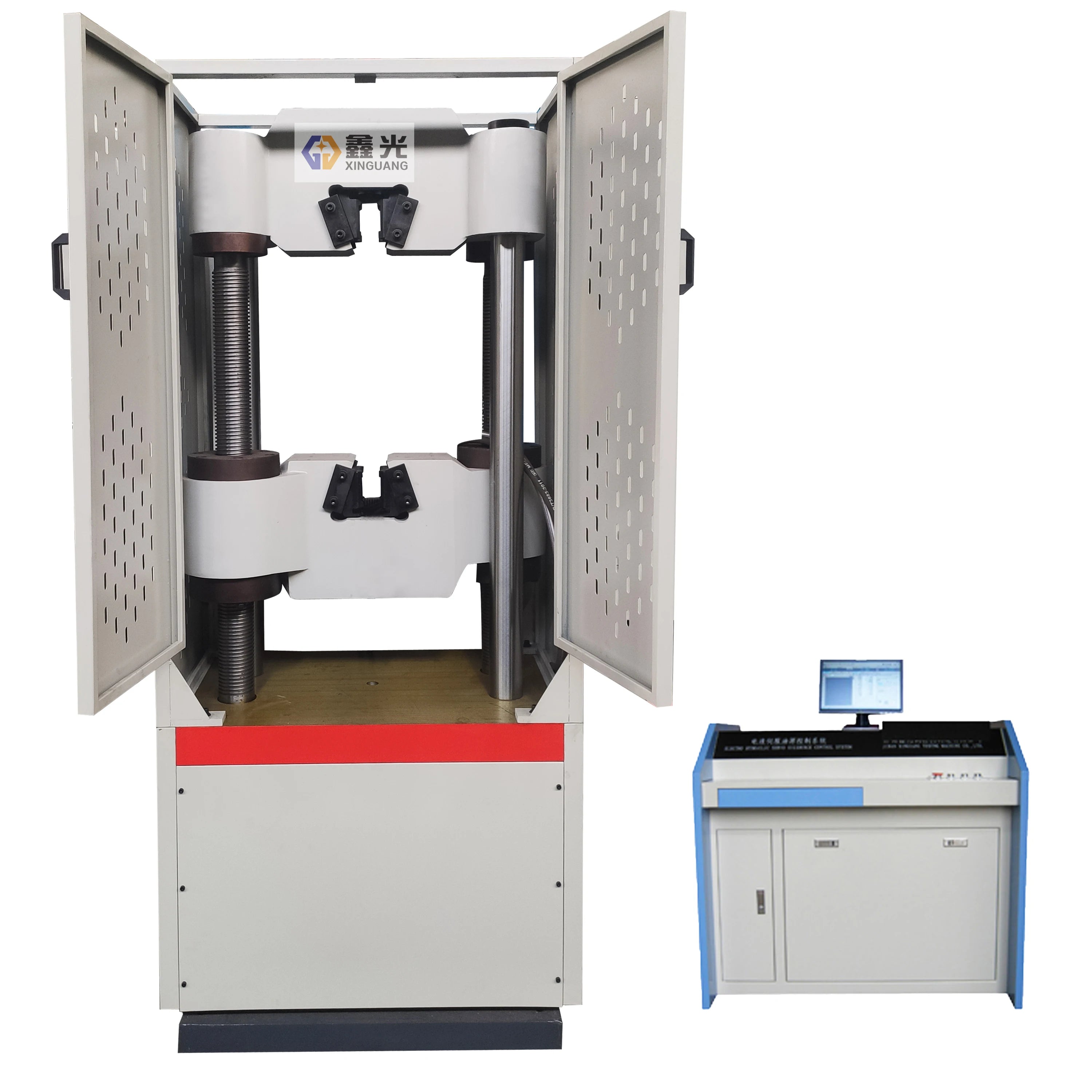

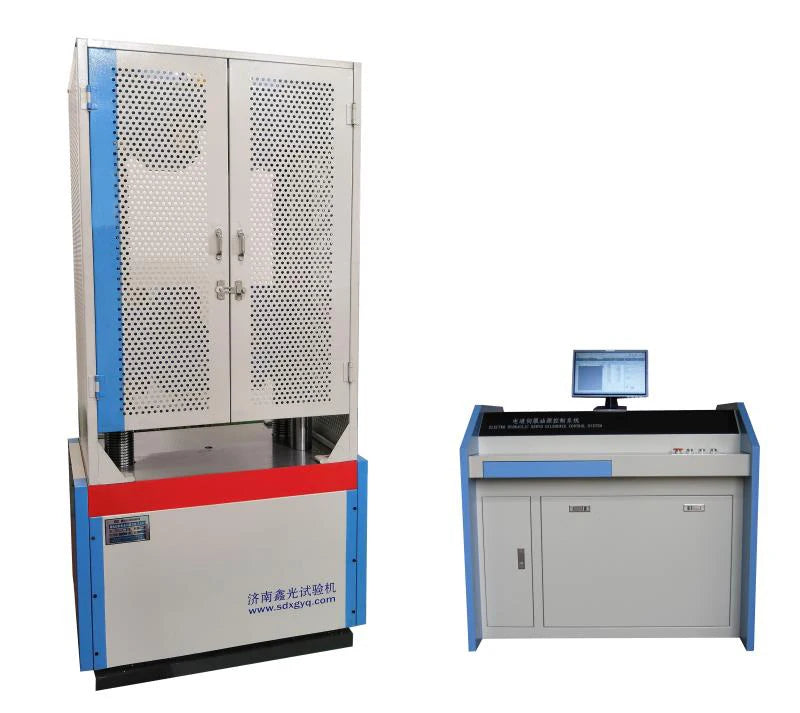

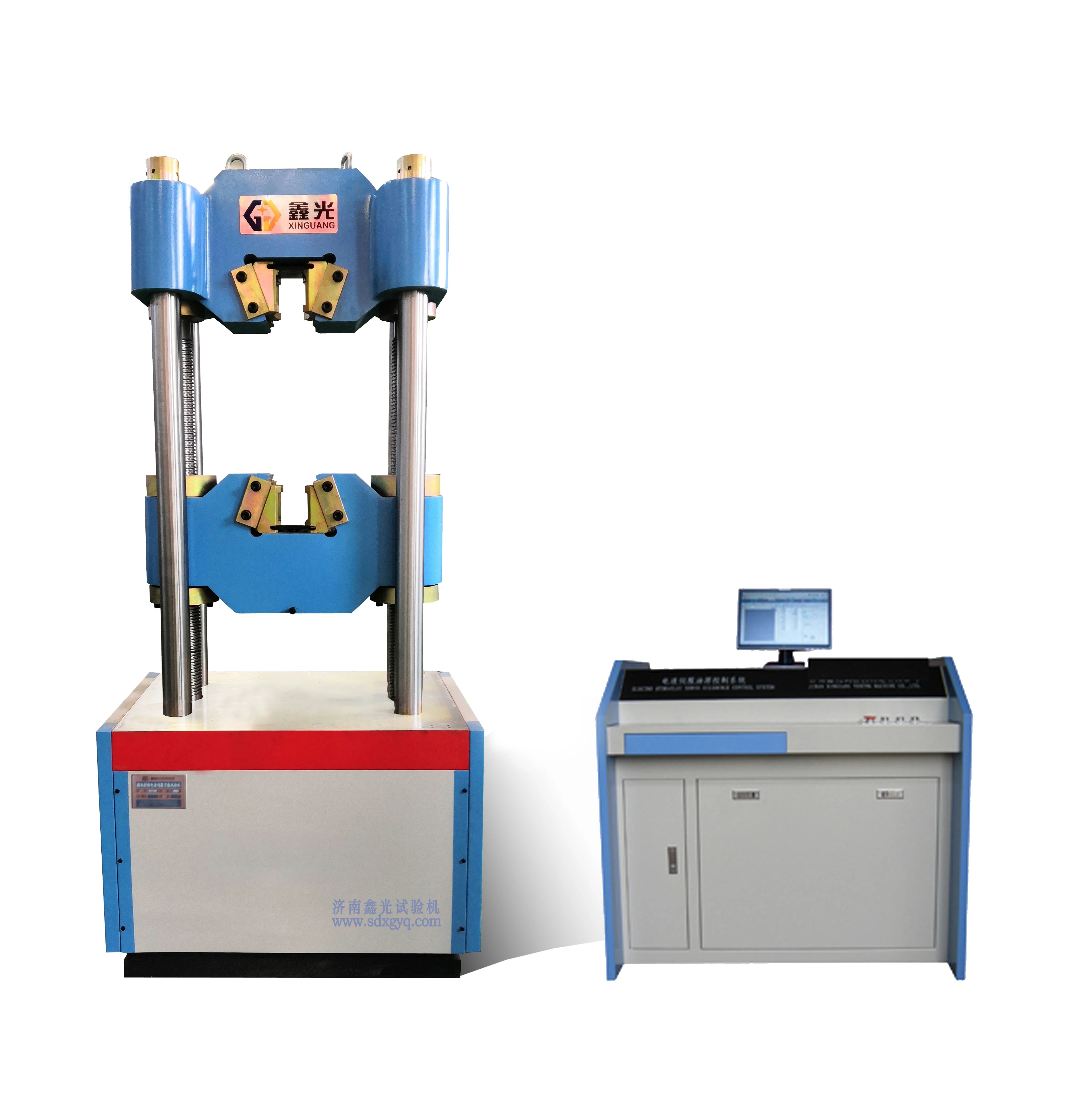

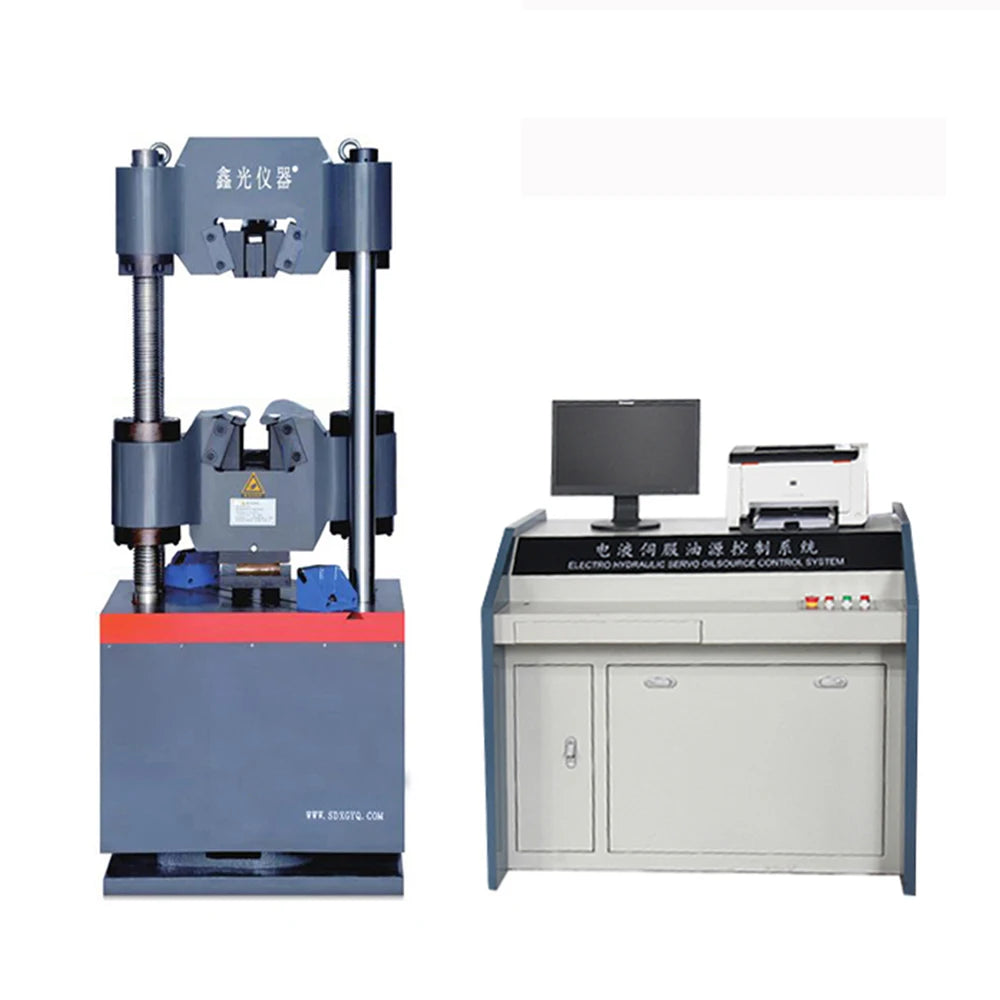

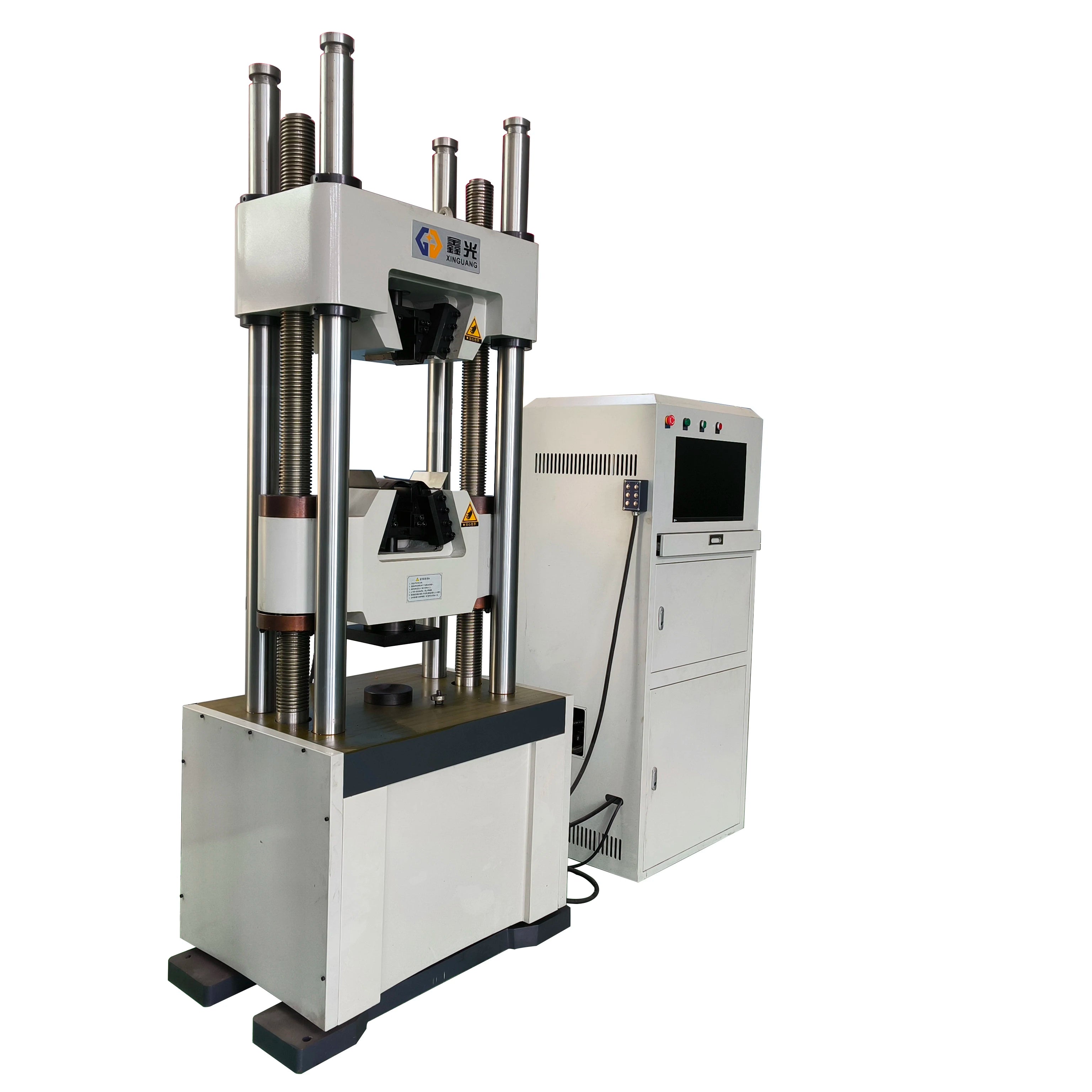

2000kN New High-End Electro-Hydraulic Servo Universal Testing Machine - Precision & Performance

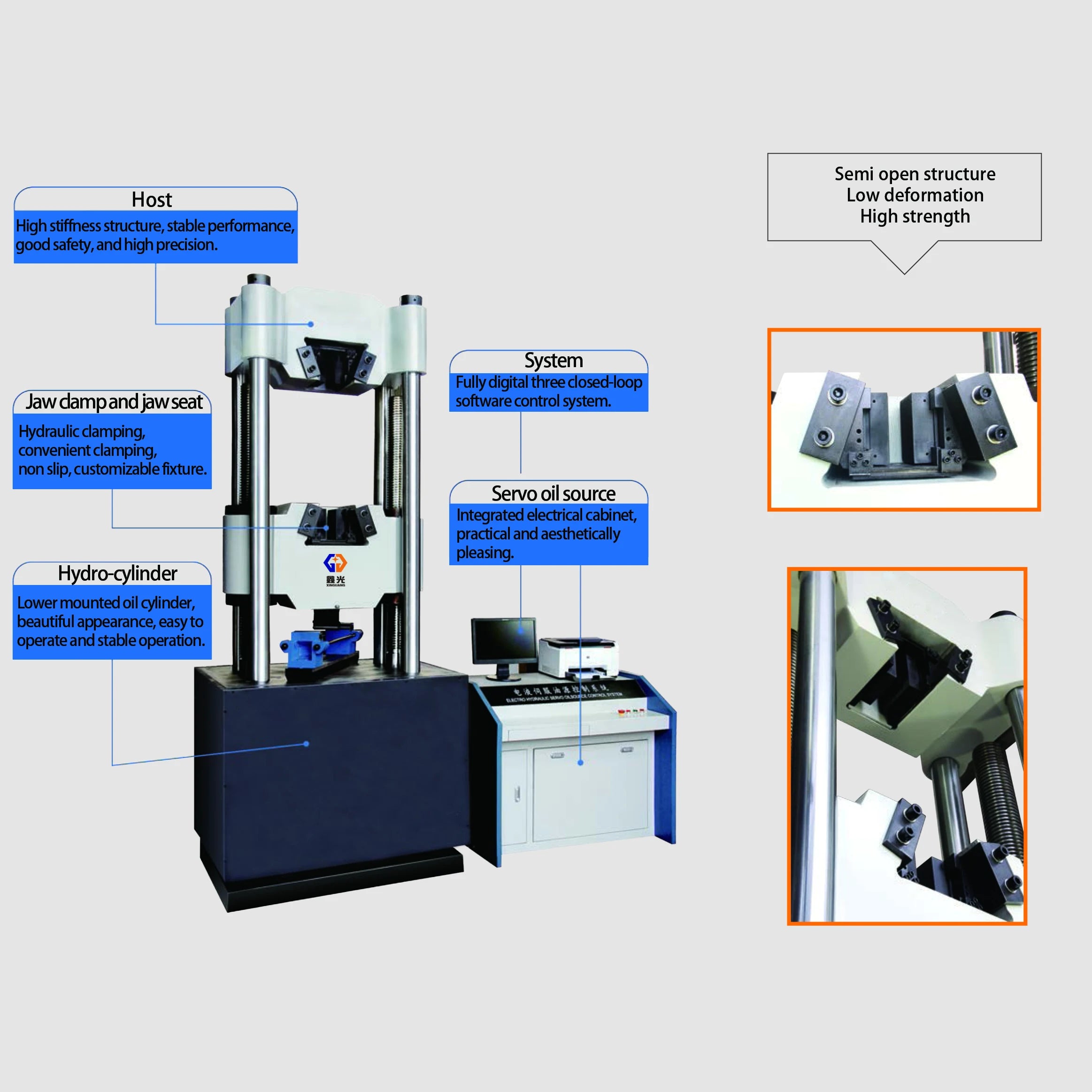

Our 2000kN high-end electro-hydraulic servo universal testing machine is designed for unparalleled precision and performance. This microcomputer-controlled testing machine features a cylinder-mounted main unit and advanced control and display functions. It is ideal for conducting tensile, compression, bending, and shear tests on both metals and non-metals.
Key Features:
- Advanced Microcomputer Control: Ensures precise and reliable testing operations.
- Versatile Testing Capabilities: Suitable for tensile, compression, bending, and shear tests.
- Wide Application Range: Perfect for use in metallurgy, construction, light industry, aviation, aerospace, materials science, universities, research institutions, and laboratories.
This testing machine complies with international standards for tensile testing of materials and metals at room temperature, ensuring accurate and consistent data processing and test results.
- Warranty : 1 year
- Power : Hydraulic
- Maximum test force : 2000kN
- Test force measurement range : 20-2000 kN
- indicating accuracy : ±0.5%
- Stroke : 250mm
- Maximum piston movement speed : 50mm/min
- Displacement measurement resolution : 0.01 mm
- Max tensile testing space : 900mm(customized)
- Maximum compressed space : 900mm(customized)
- Clamping thickness of flat specimen : 0-35 mm
- Clamping thickness of circular specimen : 35-70mm
