2L Laboratory Glassware Solvent Filtration Apparatus Solvent Filtration Assembly Glass Filtration Vacuum Apparatus
Solvent filter is a regular device of chemistry lab , it is indispensable special equipment for HPLC analysis . It can remove the impurities that affecting the life of chromatographic column and detection accuracy , to protect the chromatographic column chromatograph it plays an important role , and widely used in laboratory . The effect of degassing is obvious . According to the test requirements , using different kinds of solvent filter membrane , and match with oil free diaphragm vacuum pump to remove impurities , clarify filtration , improve the filtering efficiency and analysis accuracy , to strengthen the effect of degassing effect . This device lined with microporous membrane filter , can be used for chemical analysis , instrumental analysis , sanitary inspection , pharmaceutical industry , biological products and pesticide liquid filtration , petroleum , environmental monitoring , to monitor and remove the particles and bacteria in the liquid .
Mainly used in filtration of aqueous phase , organic phase and corrosive liquid , particularly recommended for HPLC mobile phase , there is a degassing effect to ensure the clean of mobile phase , prevent the blockage of HPLC liquid road . It can also be used for sterility test , aseptic filtration , aseptic filtration of heat sensitive material
|Solvent filter(1L)||300ml he filter bowl,1000ml The triangle fluid bottle, The core filter head, The clamp, Dust cover, Rubber hose,Hose linker||set|
|Solvent filter(2L)||500ml he filter bowl,2000ml The triangle fluid bottle, The core filter head, The clamp, Dust cover, Rubber hose,Hose linker||set|
|Solvent filter(1L PTFE)||300ml he filter bowl,1000ml The triangle fluid bottle, The core filter head, The clamp, Dust cover, Rubber hose, Hose linker||set|
Filter include :

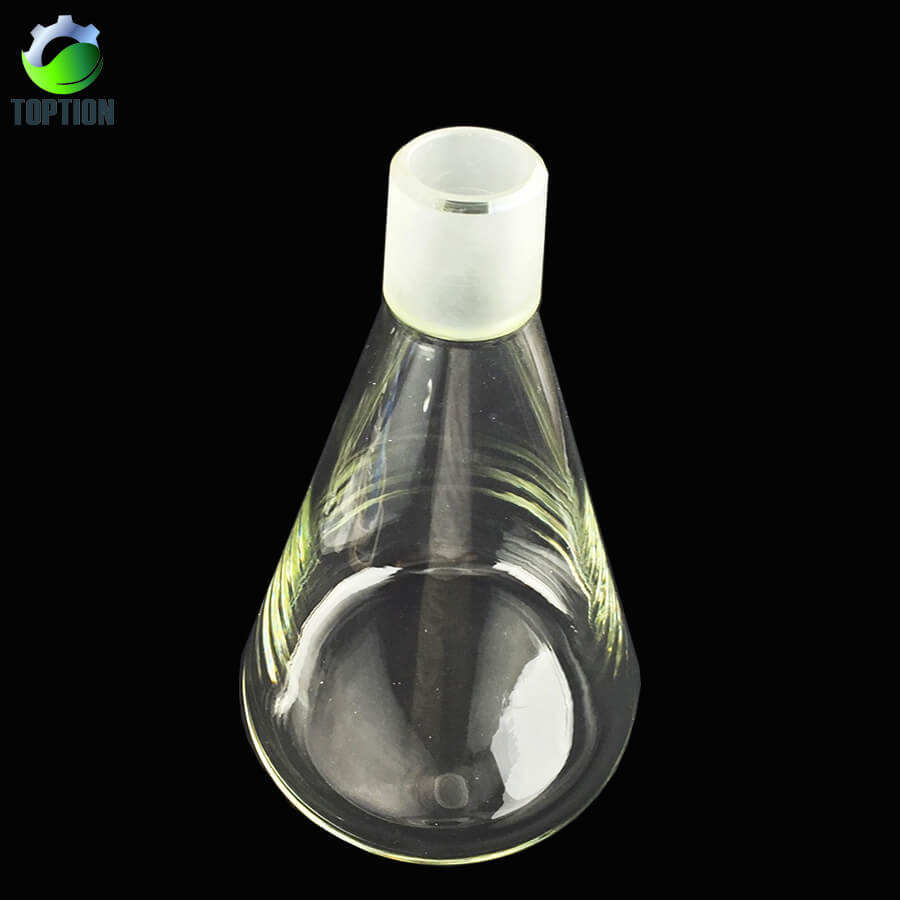

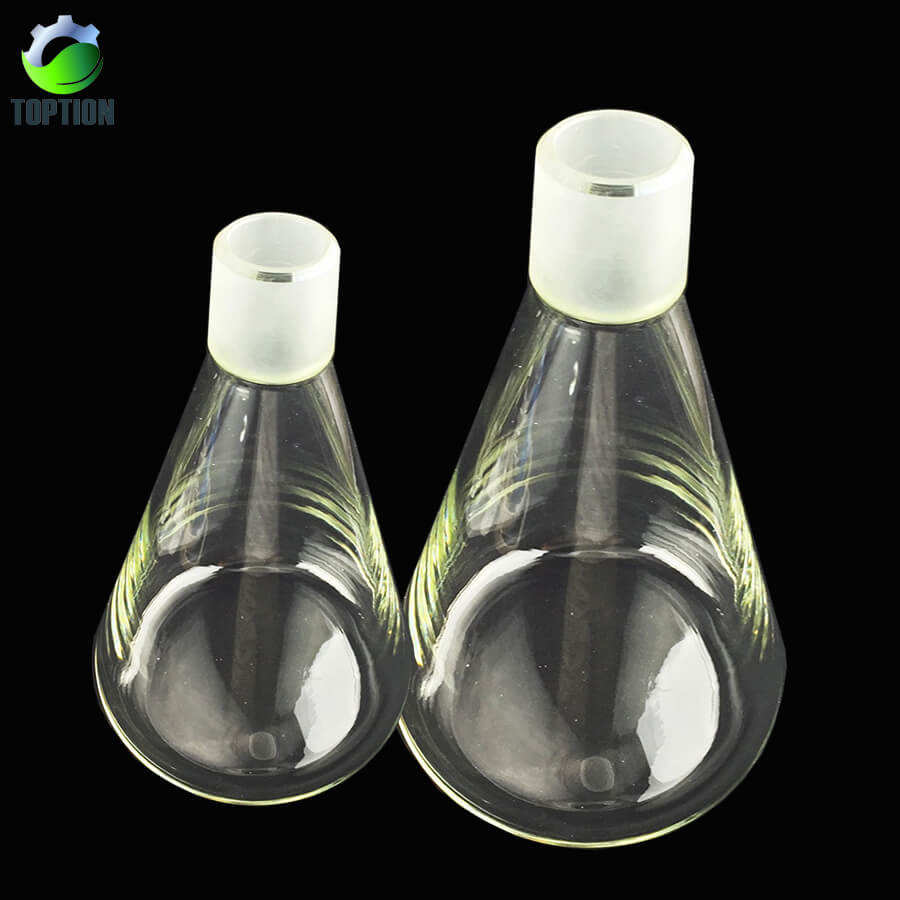

1.The triangle fluid bottle
2.The core filter head

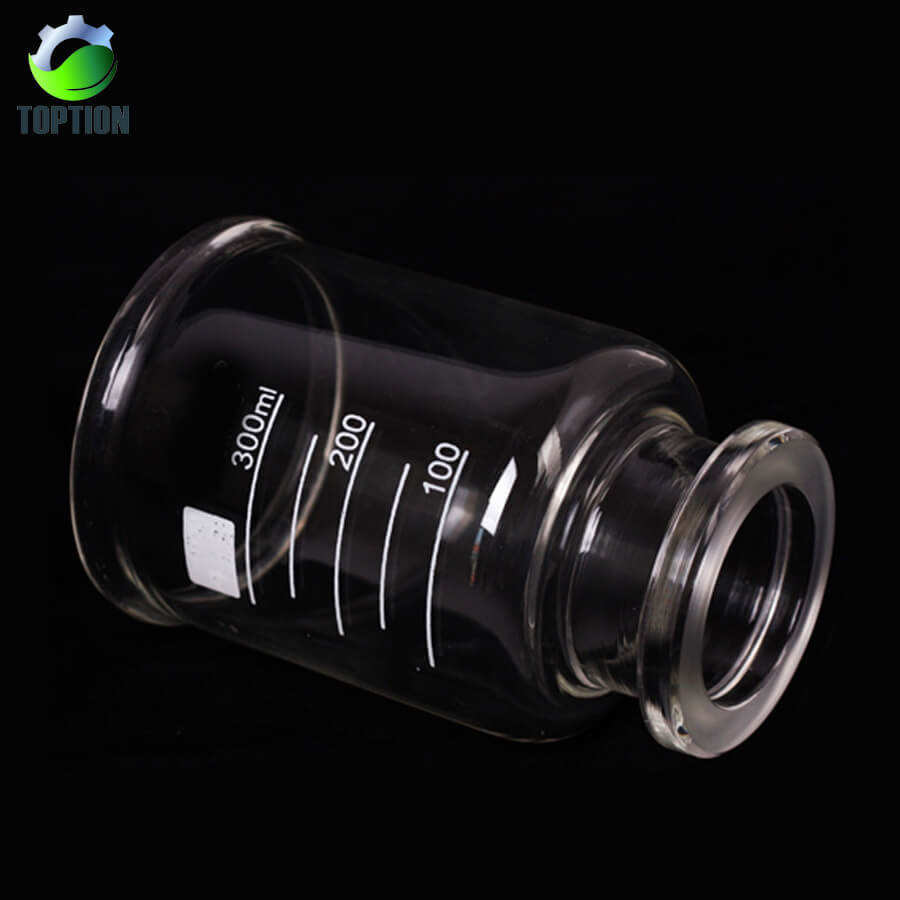

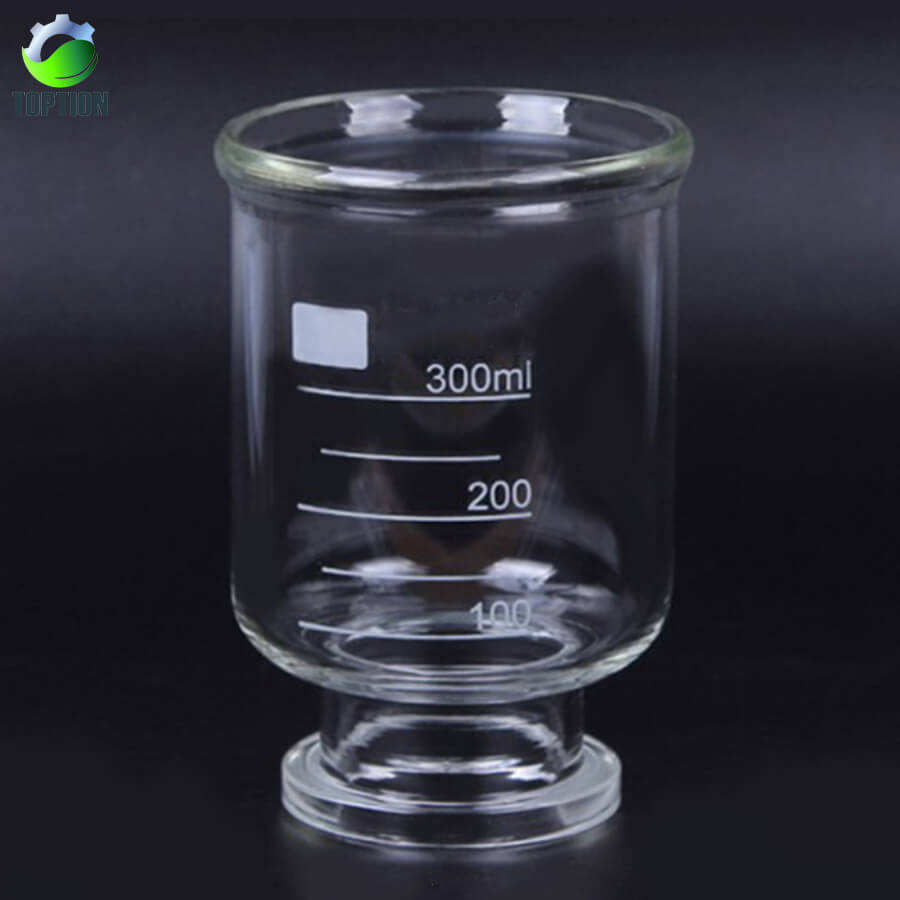

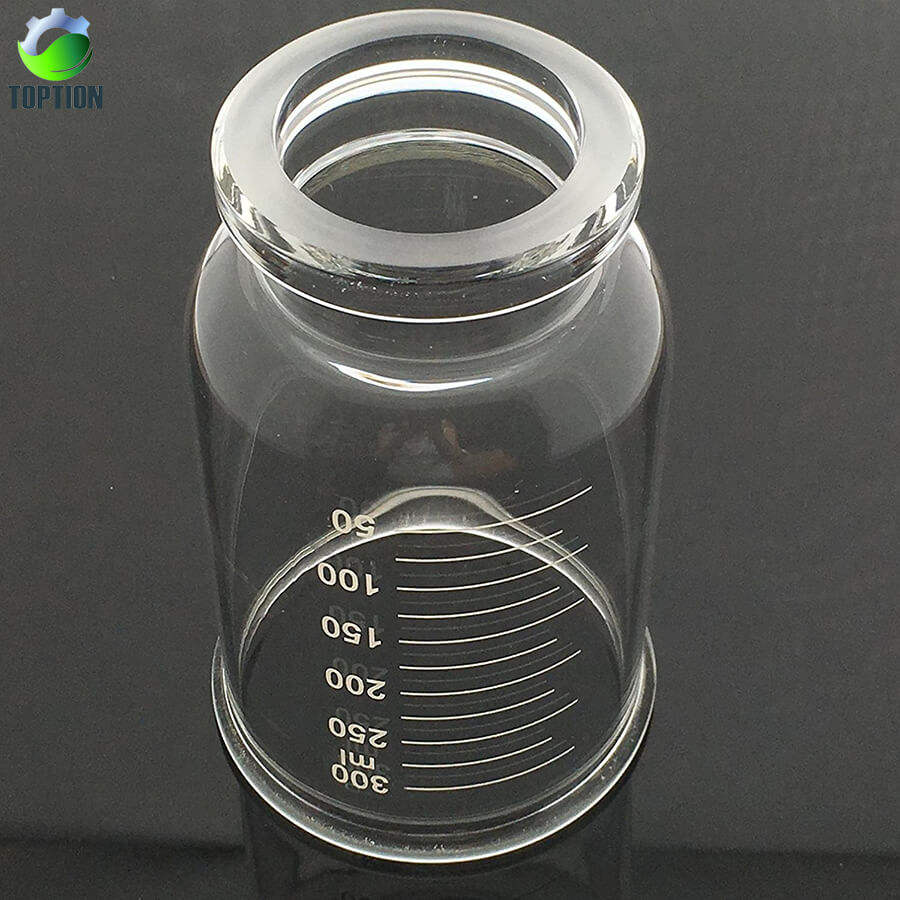

3.The filter bowl
1.This product is made of high-quality extra hard glass , no air bubble , sparking and crystal-clear . thickness is even
2.The performance of withstanding voltage and its leakproofness is very good , it can be used for sterilization at high temperature of 121℃ and high pressure
3.The PTFE type is acid and alkali resistant , Corrosion resistant , can filter all kinds of aqueous solution , the organic solution and corrosive liquids
4.The product flows faster , ground-glass is standard
5.It’s size agrees with the international standard size to fit for many foreign brands
Important To Note:
1.Before use to filter components for clean processing, generally available cleanser essence scrub, reoccupy clear water is rinsed repeatedly, and finally with distilled water wash standby.
2.When using, should pay attention to the filtration membrane flat out on screen central, made to prevent leakage.
3.This filter unit should not use hydrofluoric acid, hot concentrated phosphoric acid, hot or cold strong alkali solution filtration, lest cause corrosion or sand core damage.
