MHST60 Spectrophotometer | D/8 Color Matching & Opacity Scanner

by meubon
Save 8% Save 8%
$4,599.60
$4,599.60 - $4,599.60
$4,599.60
$4,250.00
$4,250.00 - $4,250.00
$4,250.00


 MHST60 Color Matching Spectrophotometer | Precision D/8 Color Analysis with Opacity & Strength Measurement

4

1

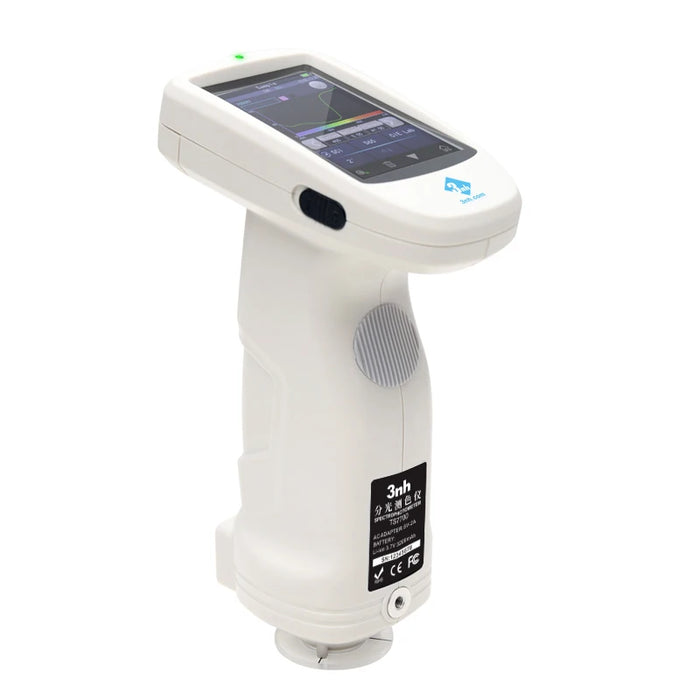

The MHST60 Spectrophotometer is a high-precision color matching and scanning instrument developed using 3nh’s advanced TS series core technology. Designed for laboratory-grade performance, it utilizes a double 26-group silicon photodiode array sensor and an imported whiteboard, ensuring rapid, consistent, and accurate color measurement.

With a D/8 optical geometry (diffused illumination, 8° viewing angle) and support for both SCI (Specular Component Included) and SCE (Specular Component Excluded) modes, the MHST60 delivers superior versatility for a wide range of applications. Its repeatability (ΔEab ≤ 0.025) and inter-instrument agreement (ΔEab ≤ 0.15) meet the most stringent quality control standards.

Ideal for industries such as plastics, paint, ink, textiles, printing, and ceramics, the MHST60 is also capable of handling fluorescent samples with UV-inclusive/exclusive light source options.

0

Key Features:

  • Optical Geometry: D/8 with SCI/SCE and UV inclusion/exclusion

  • Sensor: Dual 26-group silicon photodiode array

  • Wavelength Range: 360–780nm, 10nm interval

  • Reflectance Range: 0–200%

  • Apertures: 4 sizes – MAV: 8mm/10mm; SAV: 4mm/5mm

  • Repeatability: ΔE*ab ≤ 0.025; Spectral Reflectance ≤ 0.08%

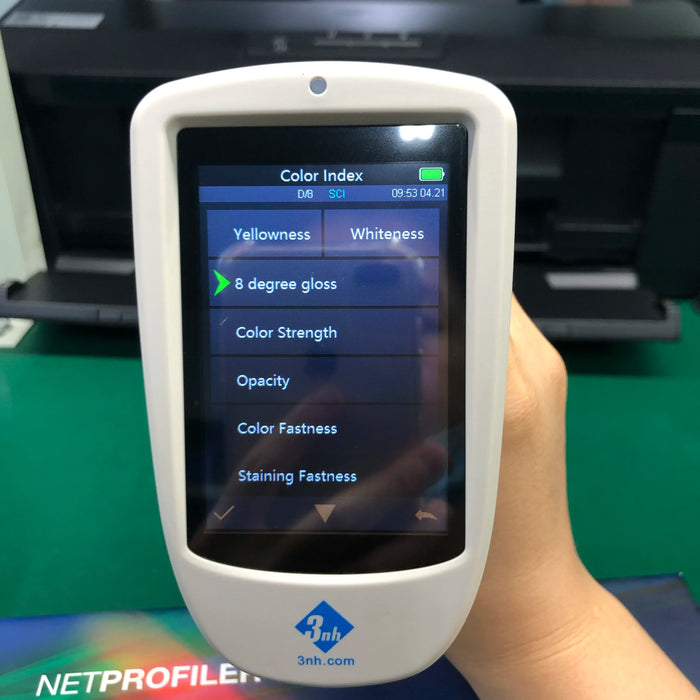

  • Display: 3.5” TFT LCD touch screen

  • Color Spaces Supported: CIE LAB, LCh, HunterLab, XYZ, LUV, and more

  • Color Difference Formulas: ΔEab, ΔEuv, ΔE94, ΔE00, ΔE CMC, etc.

  • Observer Angles & Light Sources: 2°/10°; 41 customizable illuminants

  • Connectivity: USB, Bluetooth 5.0; supports Android, iOS, Windows, Harmony OS

  • Battery Life: Up to 8,800 measurements per charge (Li-ion battery)

  • Measurement Speed: ~1.5 seconds per scan

  • Data Storage: Up to 30,000 samples + PC/APP mass storage support

  • Applications: Universal testing for color accuracy and quality control

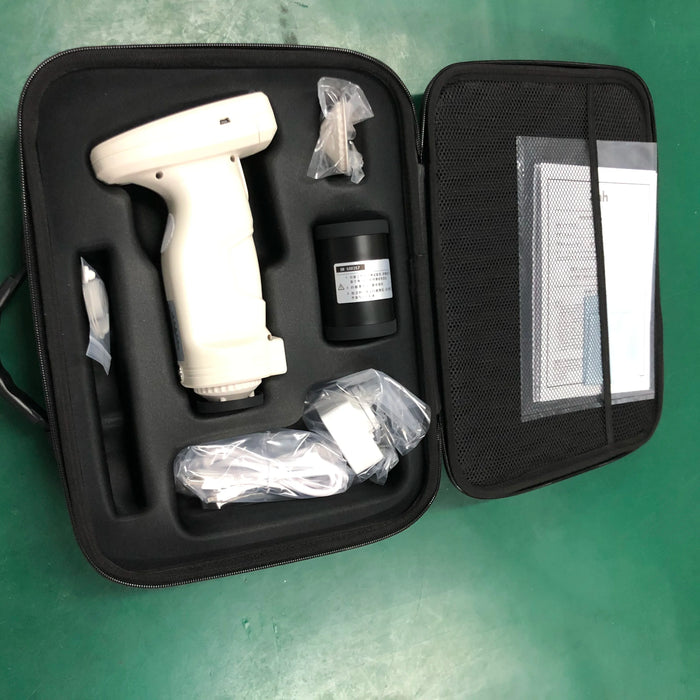

Included Accessories:

  • USB cable, power adapter, calibration plates, protective cover, multiple aperture options, wrist strap, user manual, PC software (downloadable)

Optional Accessories:

  • Micro printer, powder test box

Dimensions: 129mm × 76mm × 217mm
Weight: ~600g
Warranty: 1 Year
Model: MHST60
Power Supply: 5W, 110V/220V
Compliance: CIE No.15, ISO 7724-1, ASTM E1164, GB/T standards




  • warranty : 1 Year
  • brand name : 3nh
  • power : 5w
  • Voltage : 220V, 110V
  • Type : Testing machine
  • Application : universal testing
  • Measurement Geometry : D/8
  • Light Source : Combined full spectrum LED light source, UV light source
  • Sensor : Silicon photodiode array (double row 40 groups)
  • Wavelength Range : 360~780nm
  • Measured Reflectance Range : 0-200%
  • Measuring Aperture : 4 apertures: MAV:8mm/10mm;SAV:4mm/5mm;
  • Color Spaces : CIE LAB,XYZ,Yxy,LCh,CIE LUV,HunterLAB
  • Measurement Time : 1.5s
  • Specular Component : SCI&SCE
