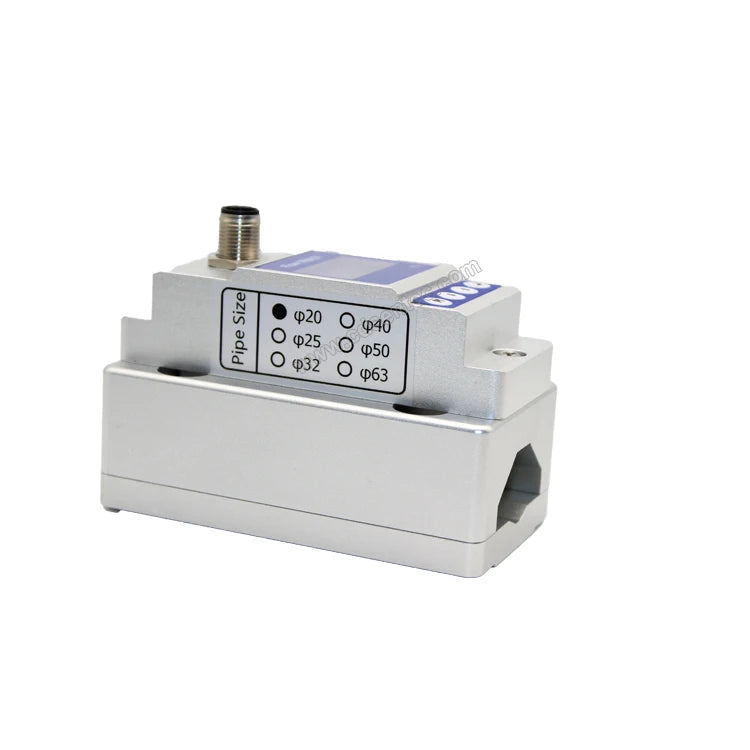

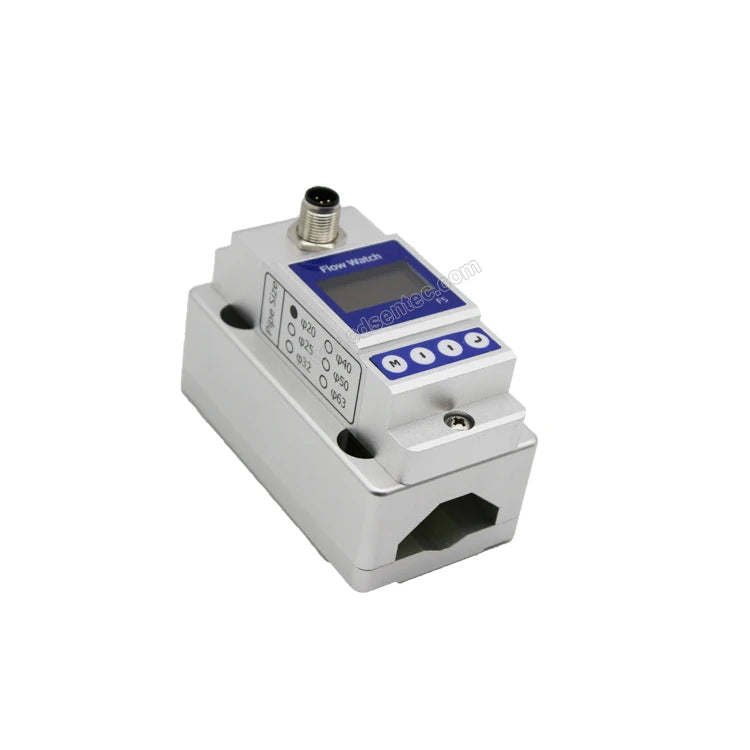

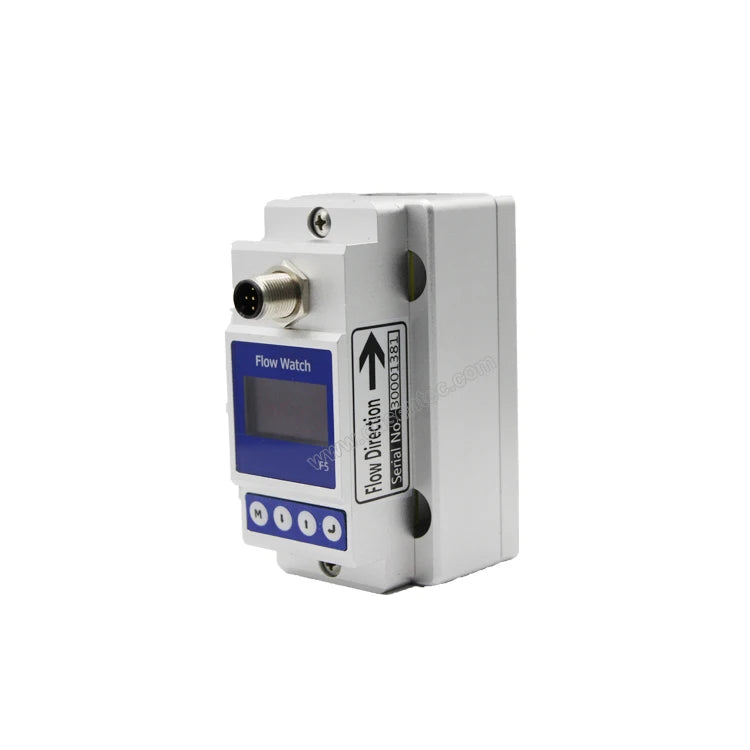

4-20mA RS485 Clamp-On Ultrasonic Flow Meter Transducer | External Snap-On Card Flow Sensor

Product Description:

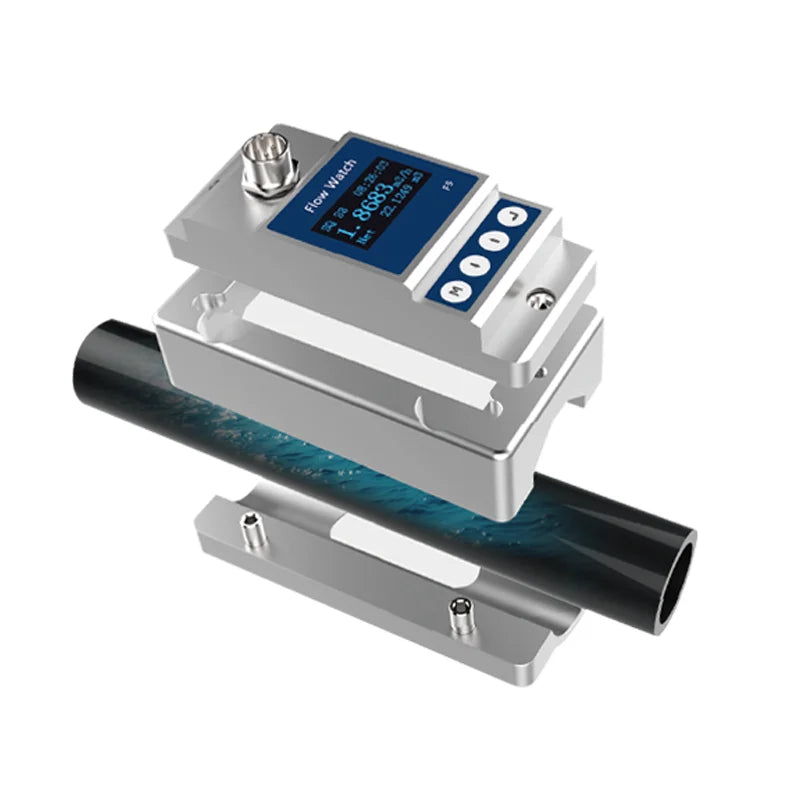

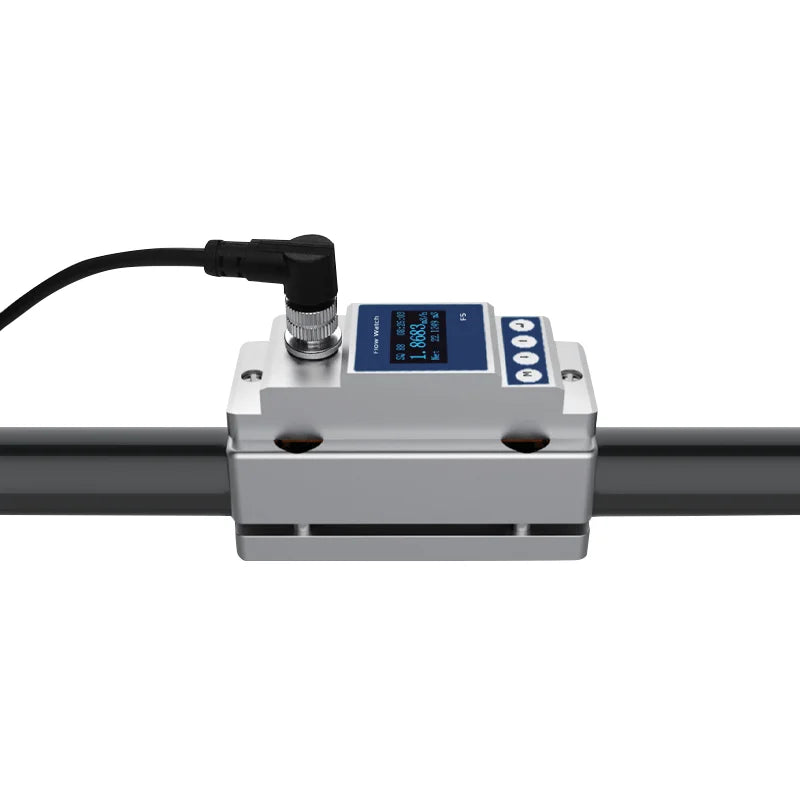

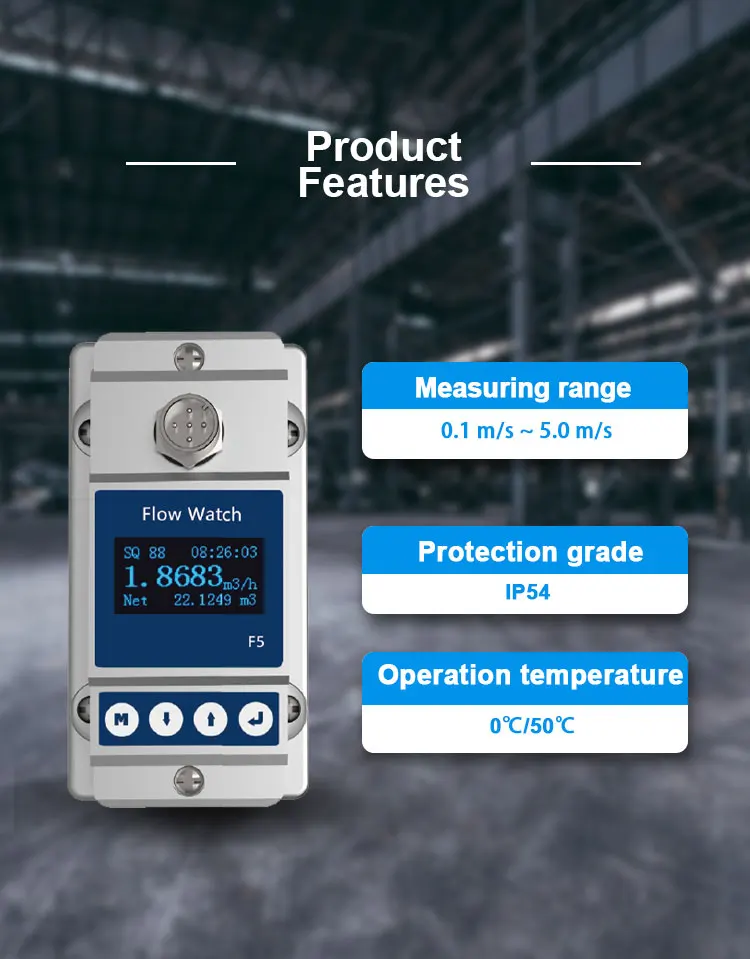

The 4-20mA RS485 External Card Flow Watch Snap Clamp-On Ultrasonic Flow Meter Transducer is engineered with a uniquely innovative structural design. Featuring a circular magnetic steel mechanism, it allows for quick and secure snap-on installation—completing setup and flow measurement in just 2–3 minutes.

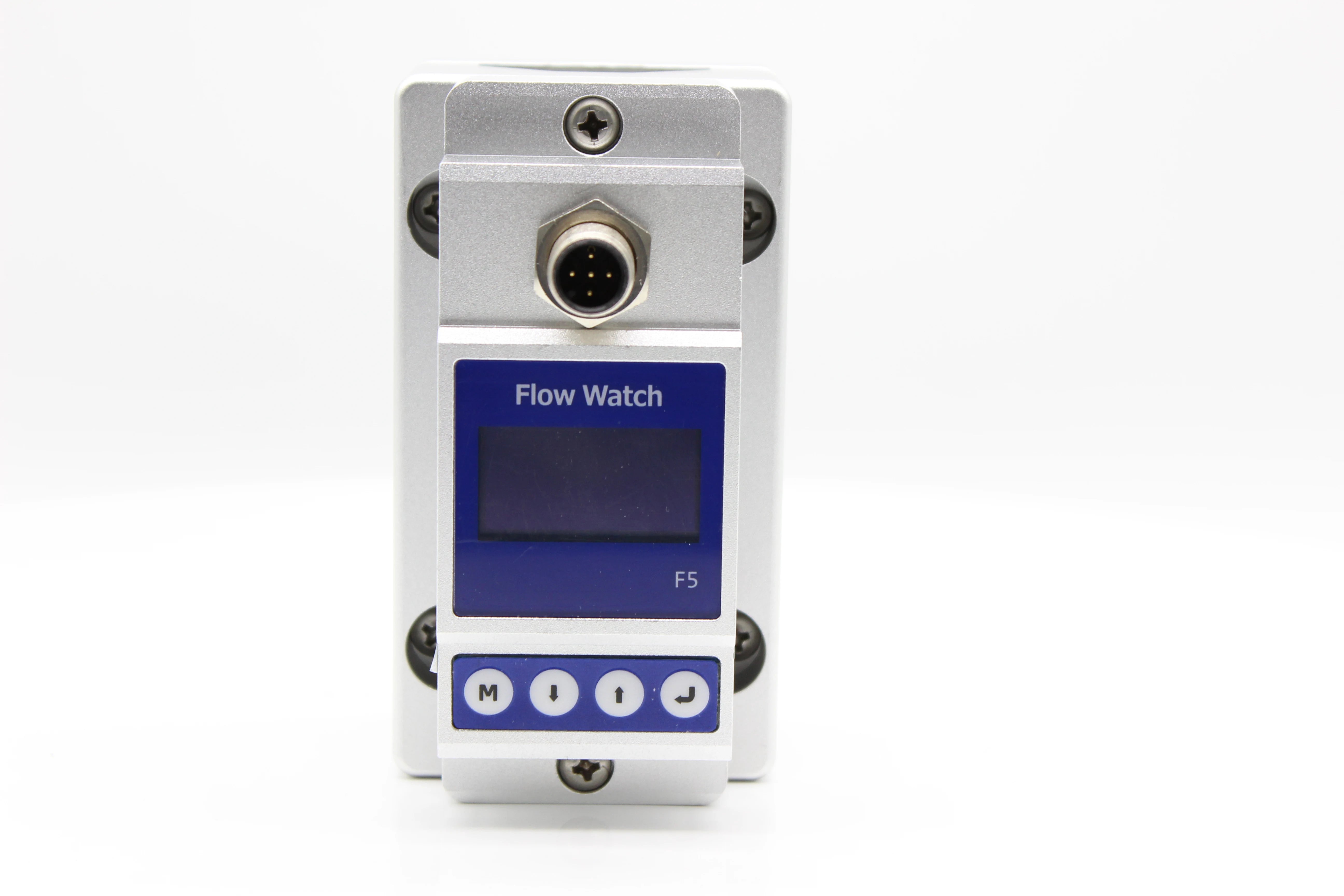

Equipped with a high-contrast OLED display, the unit ensures excellent visibility even in low-light environments. Designed for real-time flow monitoring and control, our model  is ideal for industrial production processes, helping improve product yield, reduce manpower requirements, and enhance operational efficiency.

This ultrasonic flow meter supports a wide range of pipe materials, including stainless steel, carbon steel, copper, and various plastics (PVC, PVDF, PPR, PPH, HDPE). It is also compatible with clean liquid media, such as acids, alcohols, chemical solvents, beverages, purified water, and even soft drinks like Coca-Cola water.

Specifications:

Performance:

• Flow Range: 0.1 m/s ~ 5.0 m/s

• Accuracy: ±2.0%

• Repeatability: 0.8%

• Pipe Diameter: DN15–DN50 (6 size options)

Output & Interface:

• Analog Output: 4–20mA, max load 600Ω

• Alarm Output: Optional OCT upper/lower limit alarm

• Communication: RS485 with Modbus protocol

Display & Controls:

• Screen: 128×64 OLED dot matrix display

• Keyboard: Four touch-sensitive buttons

• Units Supported: Cubic Meters (m³), Liters (L), US Gallons (GAL)

• Time Units: Per hour (/h), per minute (/min)

• Totalizer: 6-digit flow accumulator

• Flow Data Storage: Daily, monthly, and yearly accumulation

Power & Build:

• Power Supply: 24VDC

• Cable Length: 1.8 meters

• Material: Durable aluminum alloy housing

• Protection Rating: IP54

Environmental Specs:

• Ambient Temp: 0℃ – 50℃

• Medium Temp: 0℃ – 50℃

• Humidity: Up to 100% RH, non-condensing

• warranty : 12 month
• type : Variable Area Water Flowmeters, Variable Area Air & Gas Flowmeters, Variable Area Petrolum Flowmeters, Variable Area Oil Flowmeters
• Product Name : External card flow watch
• Measurement Liquid : different clean fluids
• Diameter : DN15-50
• Accuracy : ±2.0%
• Power supply : 24vdc
• Temperature : 0℃-50℃
• Output : 4-20mA, 600Ω maximum load
• Feature : Four touch buttons
• Communication Interface : RS485 supports Modbus communication protocol
• Protection class : IP54
