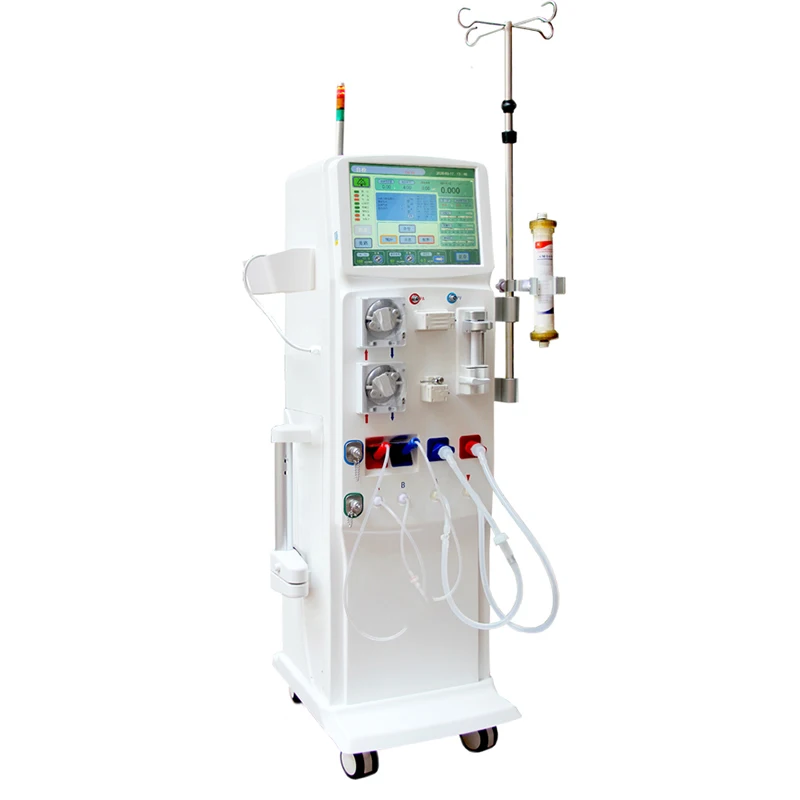

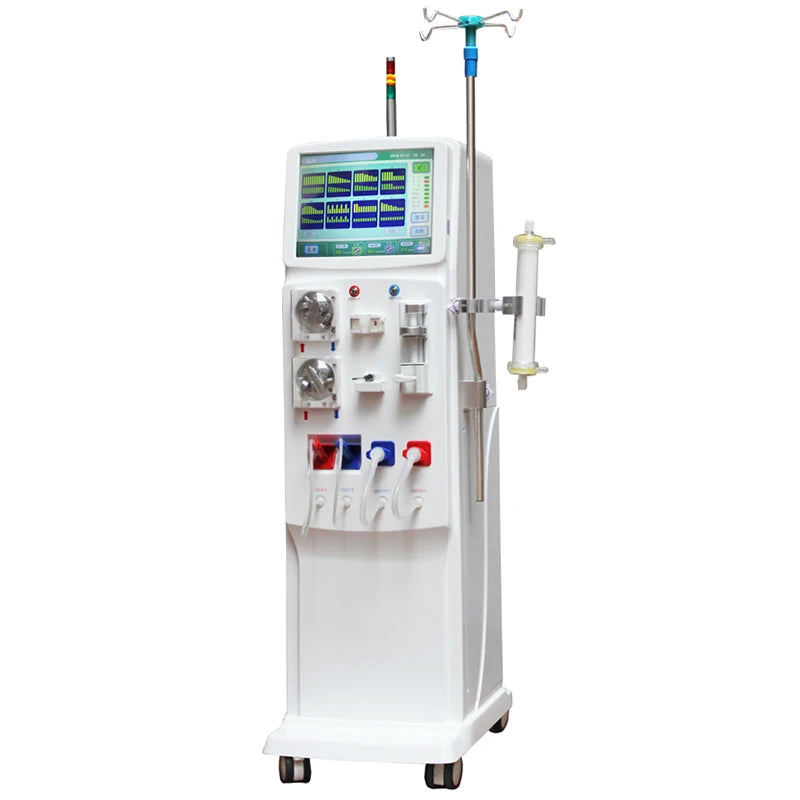

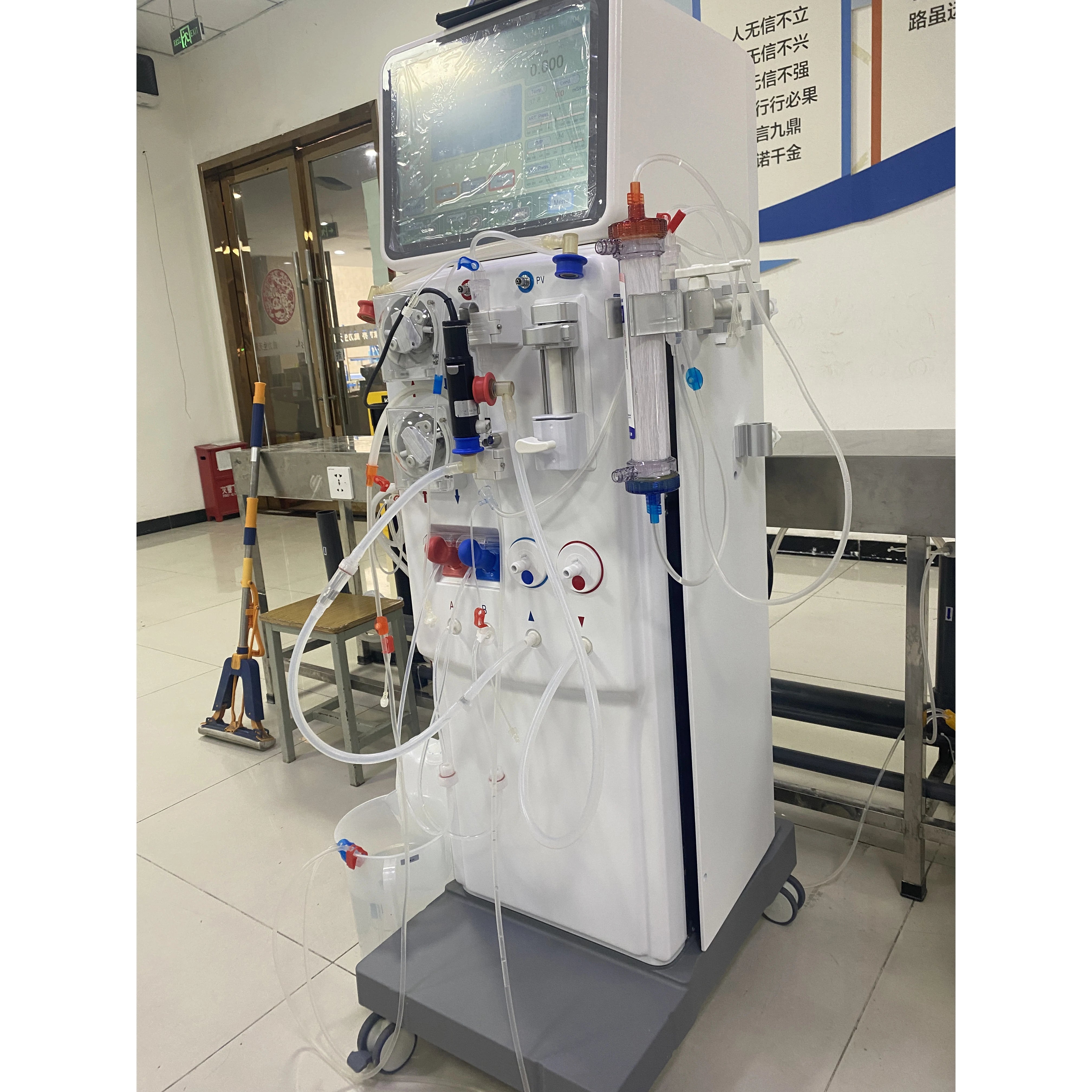

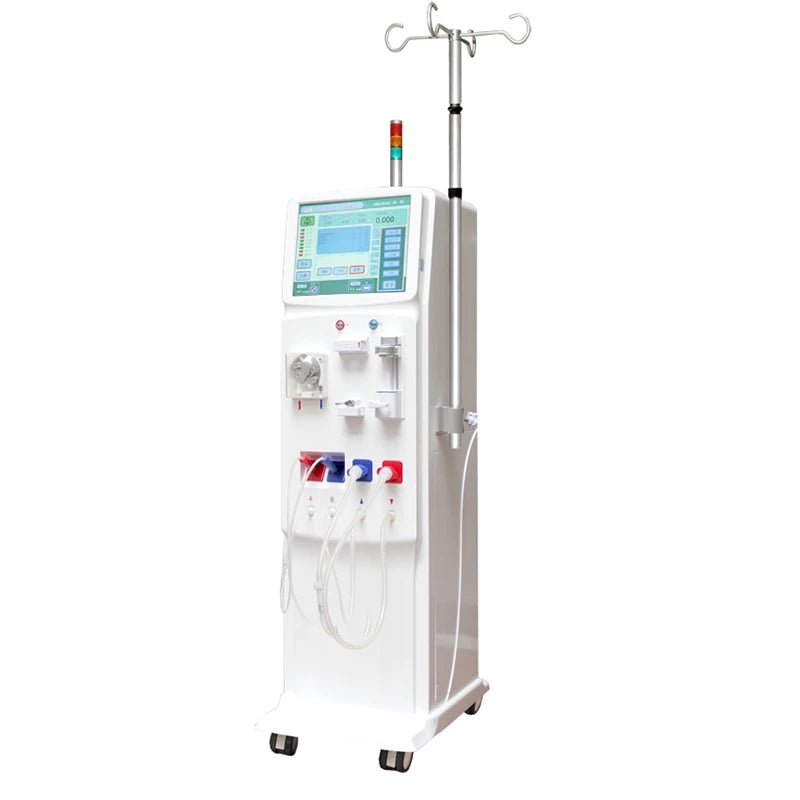

Double Pump Hemodialysis Machine – Advanced Medical Body Fluids Processing Unit
Engineered for precision and reliability, this Double Pump Hemodialysis Machine offers efficient and safe body fluid processing for clinical and hospital settings. Designed with high-performance features and user-friendly operation, it ensures optimal treatment outcomes for patients undergoing dialysis.
Key Features & Specifications:
-
Working Environment: Operates optimally at temperatures between 10°C to 30°C with relative humidity ≤70%.
-
Water Input Requirements:
-
Temperature: 5°C to 30°C
-
Pressure: 0.1MPa to 0.6MPa (15 PSI to 60 PSI)
-
-
Power & Battery:
-
Input Power: 1500W
-
Power Supply: AC220V, 50Hz/60Hz, 10A
-
Built-in Backup Battery: Up to 30 minutes of emergency operation
-
-
Dimensions & Weight:
-
Machine Size: 380mm (L) × 400mm (W) × 1380mm (H)
-
Base Area: 500mm × 520mm
-
Net Weight: 88KG
-
-
Flow Performance:
-
Flow Range: 0ml/h to 4000ml/h
-
Resolution: 1ml
-
Accuracy: ±30ml/h
-
-
Dual Blood & Spare Pump System:
-
Flow Range: 30ml/min to 600ml/min
-
Tube Diameter Compatibility: 6mm or 8mm
-
Resolution: 0.1ml
-
Precision: ±10ml or 10% of the reading
-
This hemodialysis unit is ideal for healthcare facilities seeking a reliable, accurate, and energy-efficient solution for patient dialysis care. With dual pumps and precise flow control, it supports stable and consistent therapy delivery.
