Technical Specifications:
1. The whole bed is made of rectangular and round steel tube2. Epoxy powder coated is resistant to corrosion3. Bed board is made of M/S sheet with punching holes. Thickness: 1.2mm4. Side rails are made of aluminum alloy which can be adjusted manually up and down with 3 positions.5. Mounted on dia.125mm castors with central brake.6. Backrest is adjusted by manual crank handle which is located at the end section of the bed. Adjustable angle: 0-70°7. Leg section is adjusted by manual crank handle which is located at the bed end. Adjustable angle: 0-35°8.Bed height is adjustable from 630-830mm by manual crank handle which is located at the bed end.
Product name |

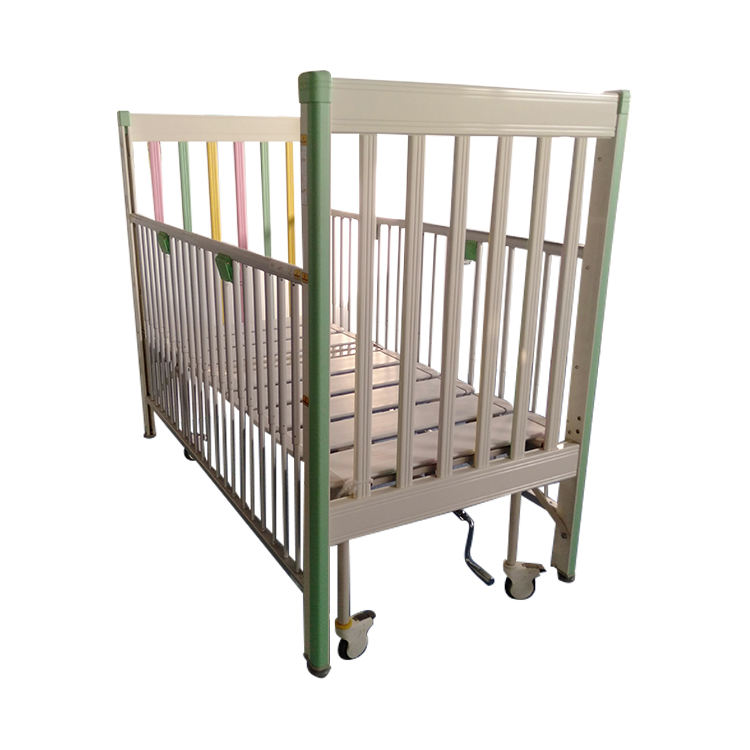

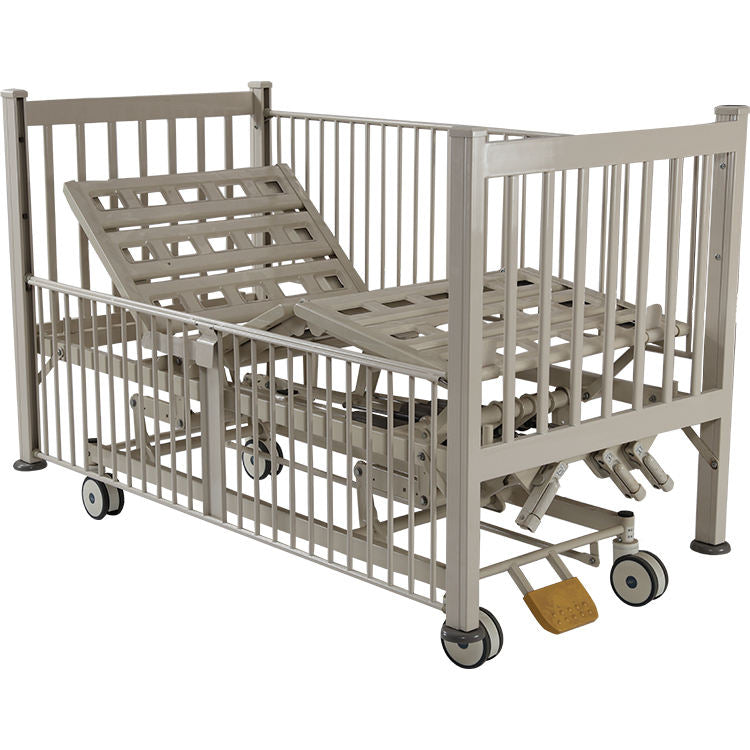

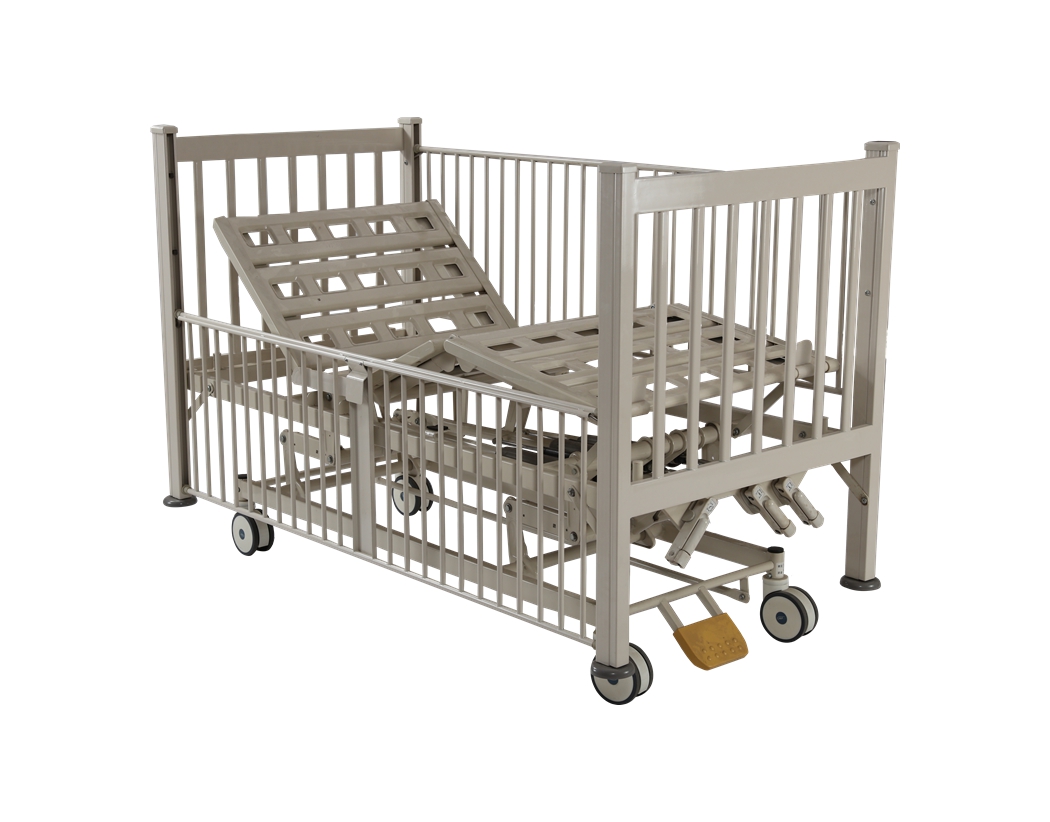

Pediatric Bed, Three Cranks Manual Hospital Child Bed |
Model |
Meubon |
Size |
L1600*W700*H630-830mm |
Function adjustable |
Manually |
Back section angle |
0-70° |
Leg section angle |
0-35° |
Bed Height adjustment |
630-830mm |
