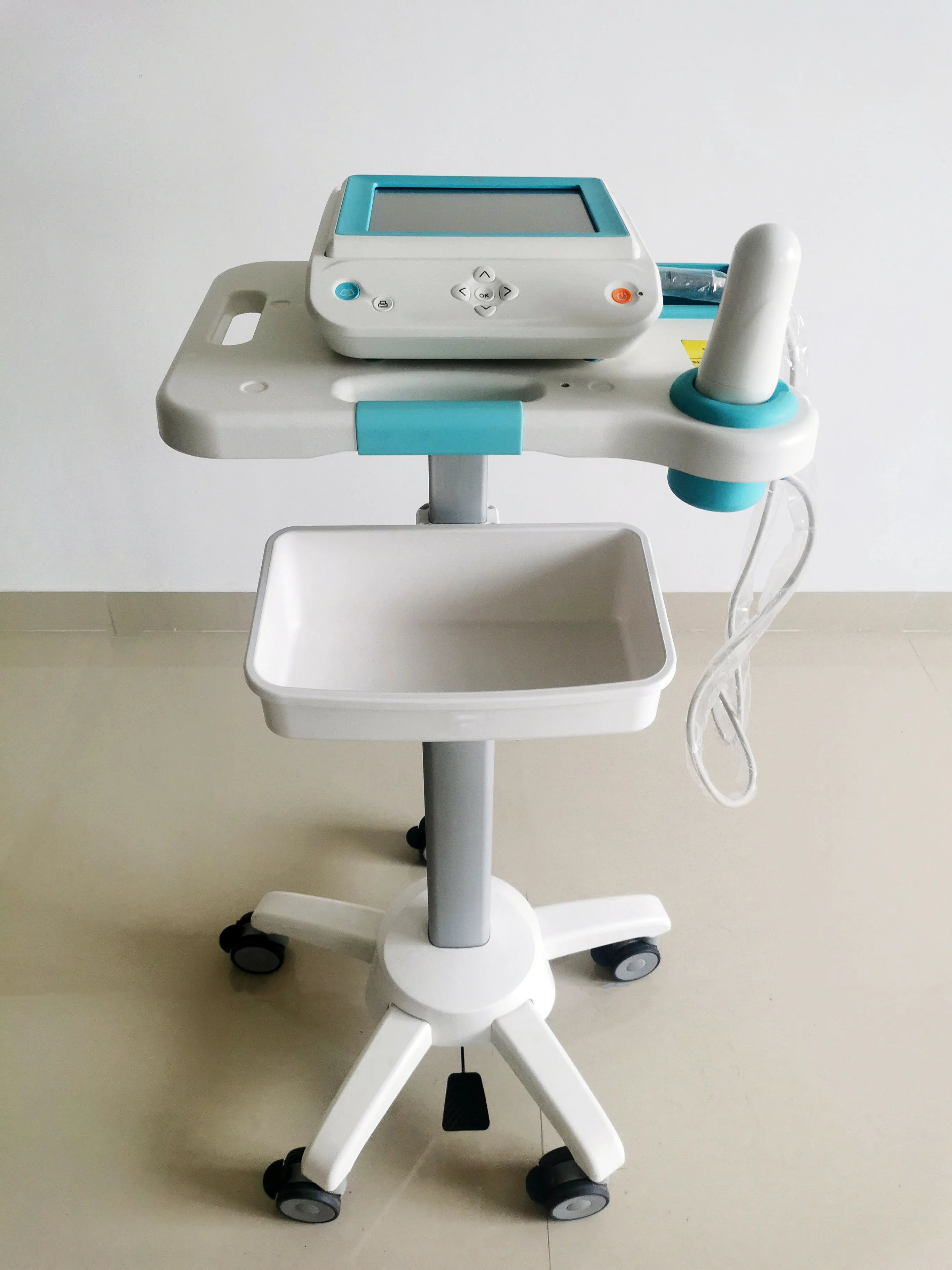

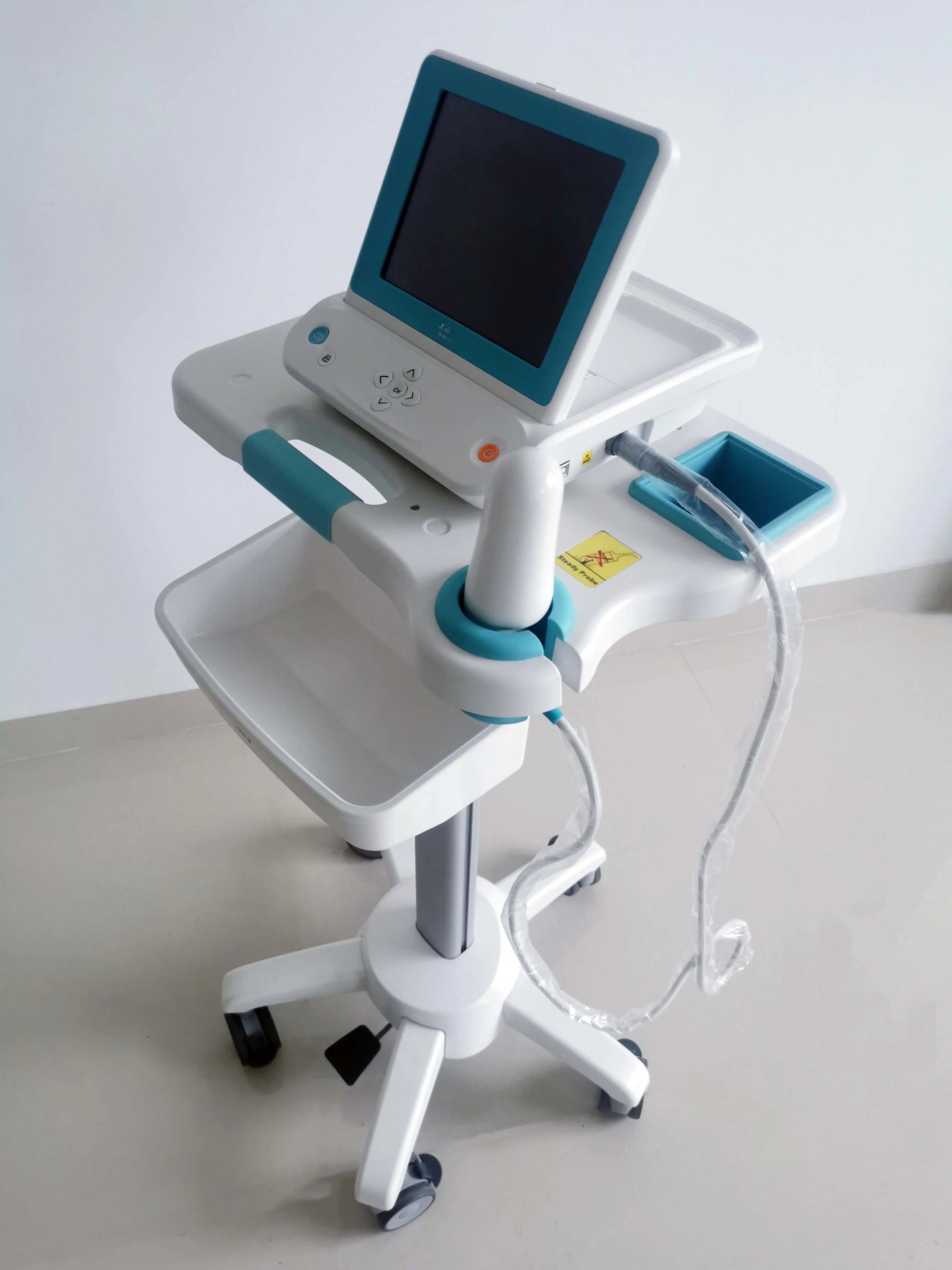

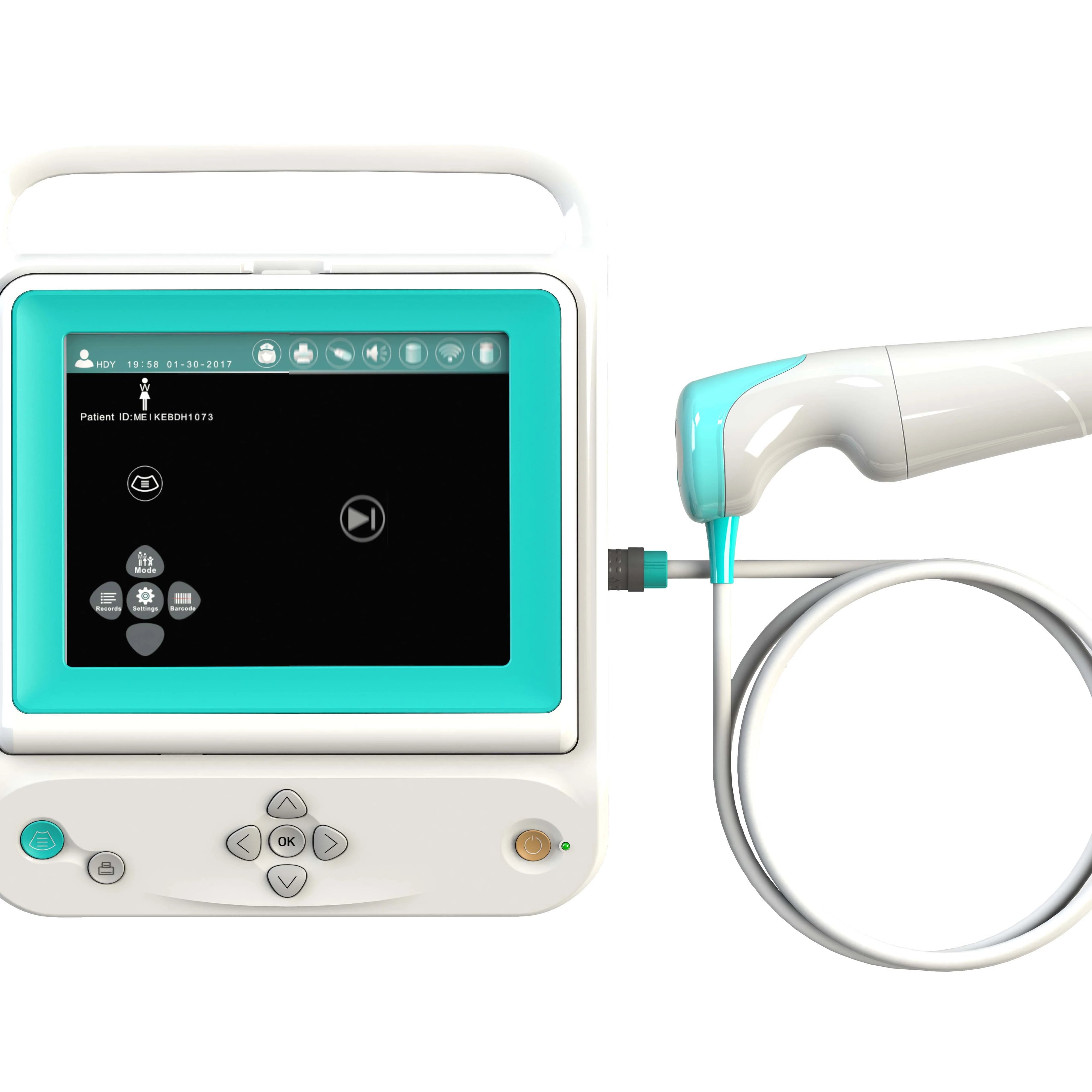

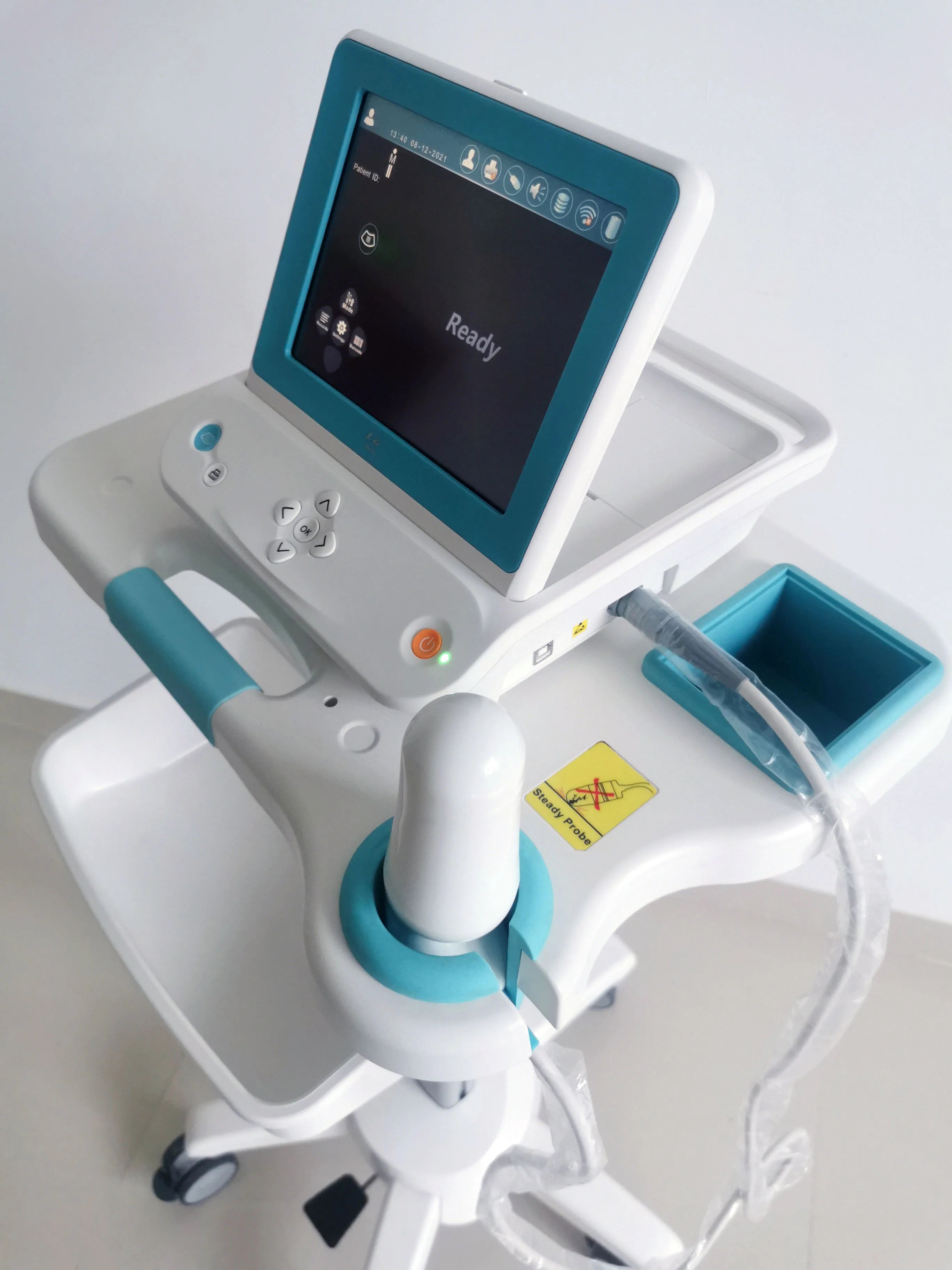

Portable Bladder Scanner – 3D Ultrasound Bladder Instrument for Medical Use
This high-performance bladder scanner is a non-invasive, real-time ultrasound system designed for accurate bladder volume measurement across a variety of patient profiles. Ideal for hospitals, clinics, and urology practices, this device simplifies diagnosis and monitoring of urinary retention, incontinence, and other bladder-related conditions.
🔧 Technical Specifications:
-
Transducer Frequency: 2.6 MHz
-
Scan Method: 3D Ultrasound Imaging
-
Scan Depth: Up to 2140 mm
-
Sway Angle: 95° ± 2°
-
Rotation Angle: 180° ± 2°
-
Scan Range: 0–999 ml
-
Measurement Accuracy: ±15%, ±15 ml
-
Display: 8.4" Color LCD TFT Screen
-
Power Supply: Rechargeable Battery and DC Charging
-
Patient ID Capacity: Up to 12 Digits
-
Scan Modes: Male, Female, Pediatric
🧠 Smart Imaging Modes:
-
Expert Mode: Displays real-time 3D ultrasound imaging for advanced diagnostic insight.
-
Easy Mode: Shows simplified bladder outlines for fast and user-friendly operation.
📍 Guided Positioning:
-
The scanner features an intelligent prompt system that notifies the user when the probe is correctly aligned with the bladder for optimal scan accuracy.
💾 Memory & Storage:
-
Customizable memory capacity supports storage of over 1,000 patient cases, ensuring convenient data tracking and patient management.
🔋 Battery-Powered Portability:
-
Lightweight and fully portable, this device is powered by a rechargeable battery—ideal for both bedside and mobile diagnostic use.
- Model Number : MHSLPU07
- Power Source : Electricity
- Warranty : 1 Year
- Material : Plastic
- Shelf Life : 10 years
- Product name : Bladder instrument
- Transducer freq : 2.6MHZ
- Scan method : 3D
- Scan depth : 2140mm
- Sway angle : 95°+2°
- Rotate angle : 180°+2°
- Display screen : 8.4" Color LCD TFT screen
- Power supply : Battery
- Scan range : 0-999ml
