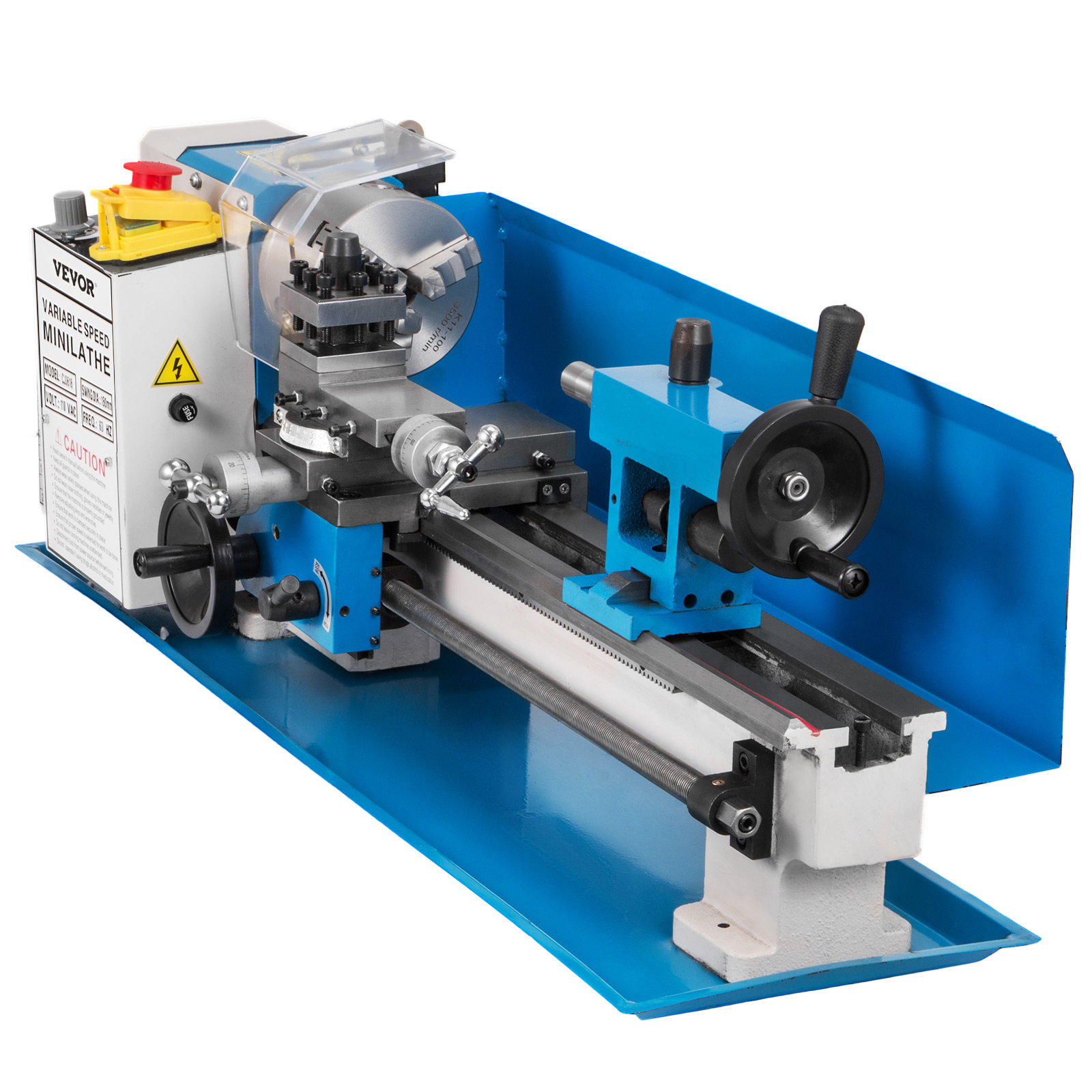

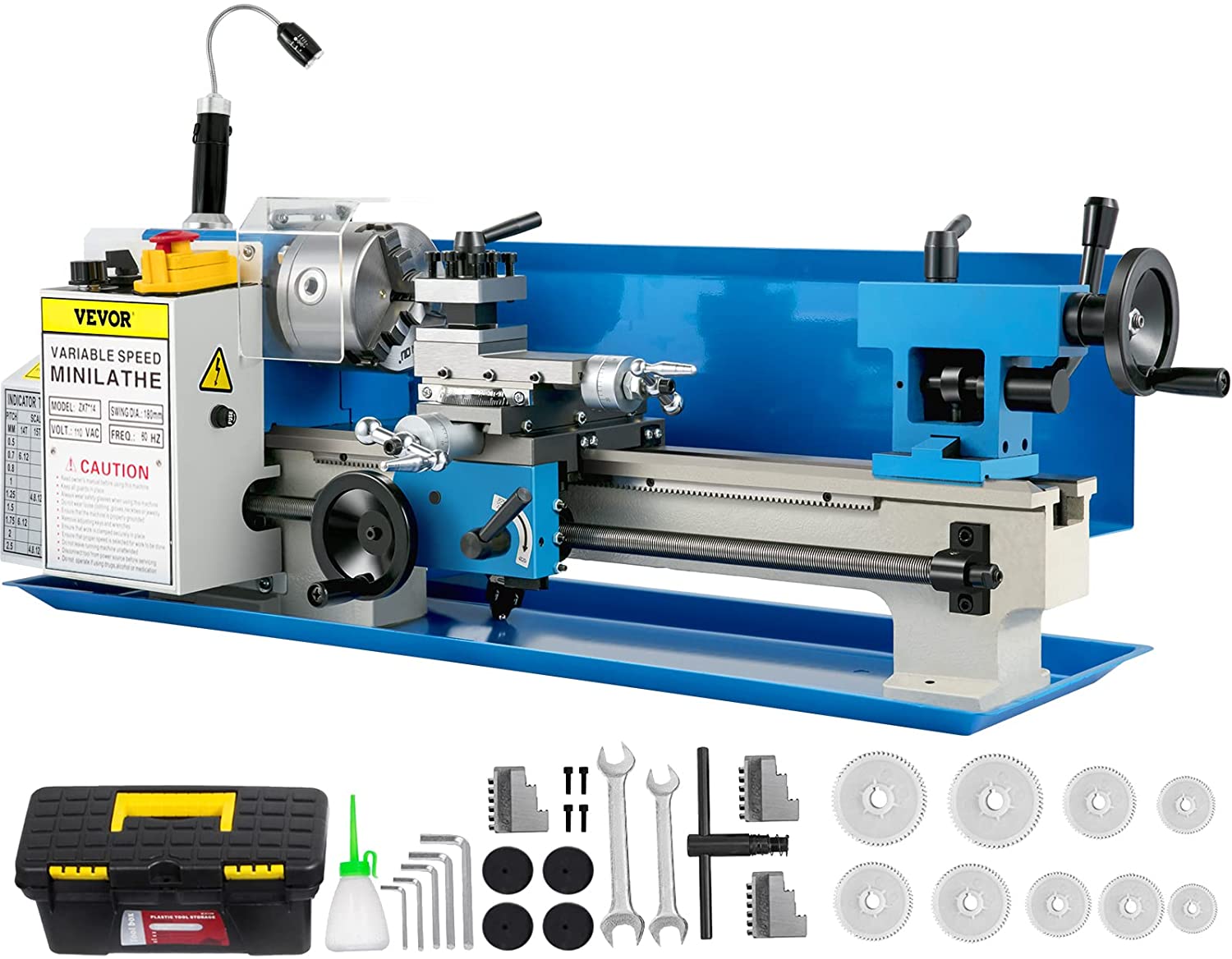

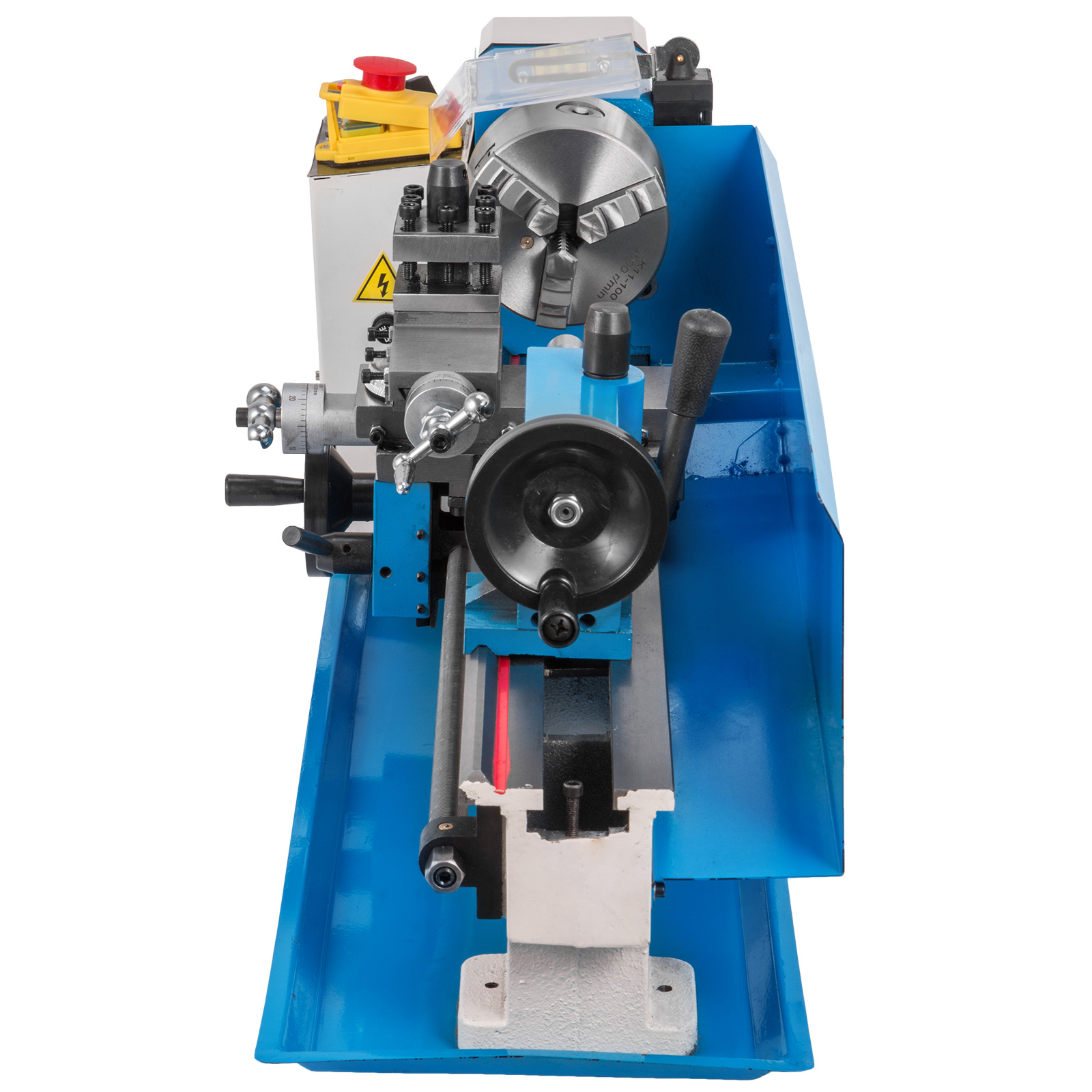

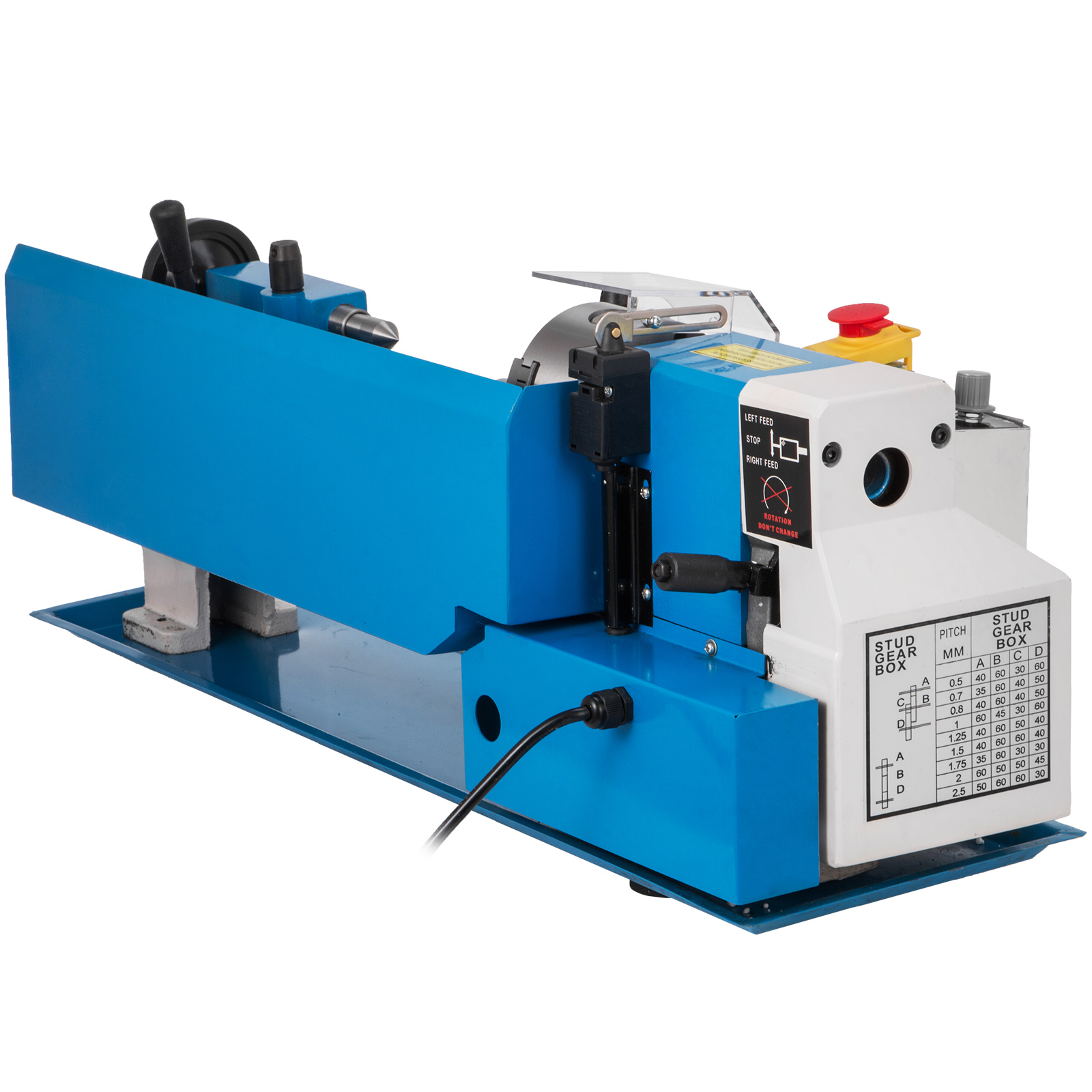

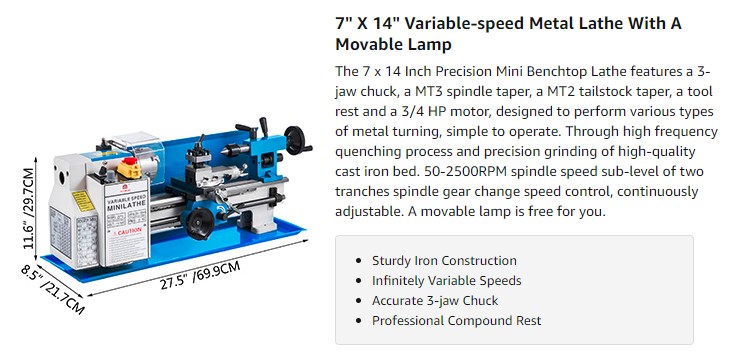

CNC Multifunctional Vertical Lathe Mini Metal Lathe Machine I 550w Strong power I 350mm Processing distance

by meubon
Save 14% Save 14%
Original price $1,160.00
Original price $1,160.00 - Original price $1,160.00
Original price $1,160.00
Current price $1,000.00
$1,000.00 - $1,000.00
Current price $1,000.00

DIY Woodworking Polishing Punch Tools Grinding Cutting Machine Mini Manual Lathe
Variable Speed Gear
Plastic Nylon
Spindle Taper
Tail Stock Taper

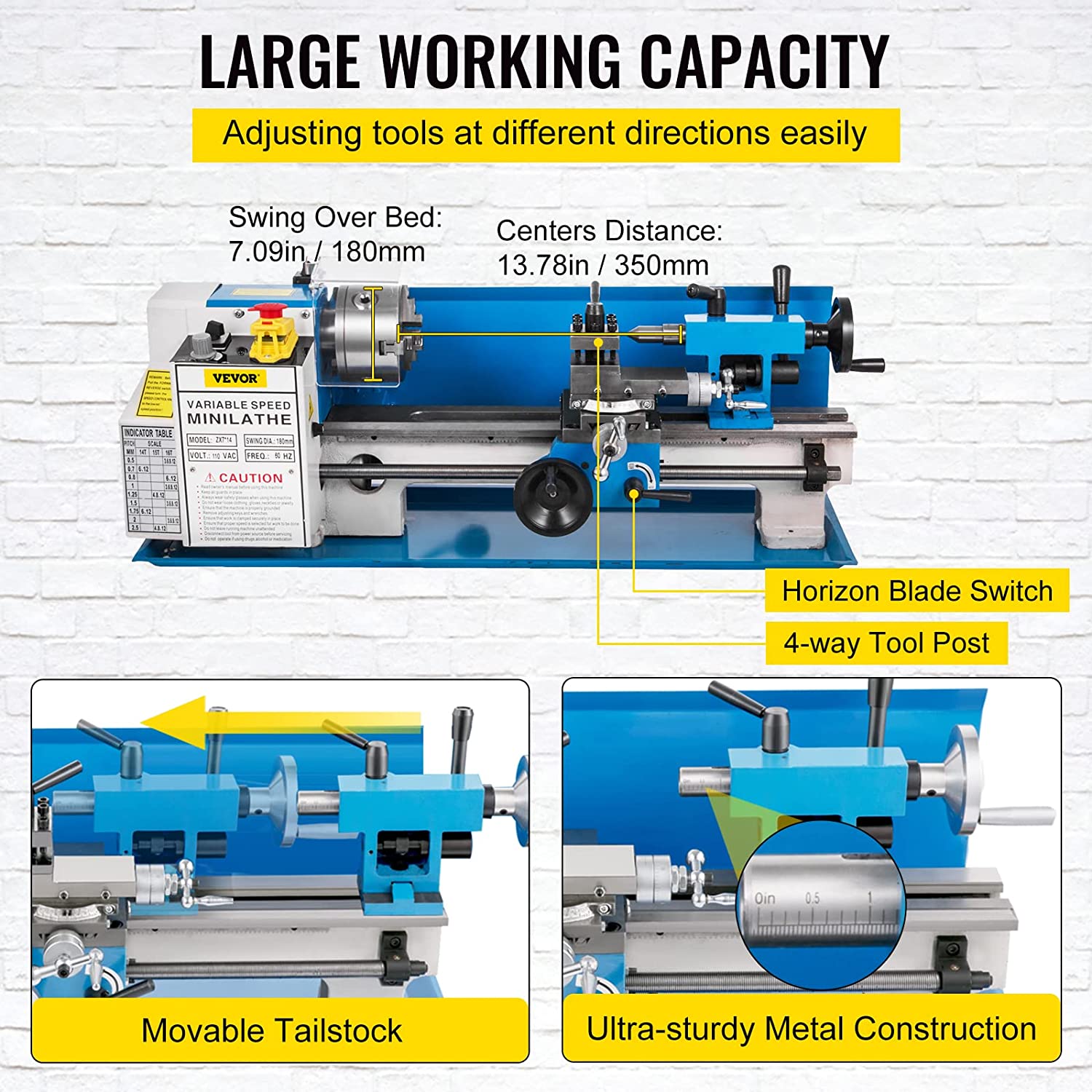

Distance Between Centers
14" (350mm)
Swing Over Bed
7" (180mm)
Chuck Diameter
3.93" (100mm)
Spindle Bore
0.8" (21mm)
Cross Slide Travel
2.56" (65mm)
Top Slide Travel
1.38" (35mm)
Range of Metric Threads
0.5-2.5" (12-52 T.P.I Range of Imperial Threads)
Spindle Accuracy
0.0004" (0.01mm)
Spindle Speed
100-2500 RPM Infinitely Variable
Power Of Motor

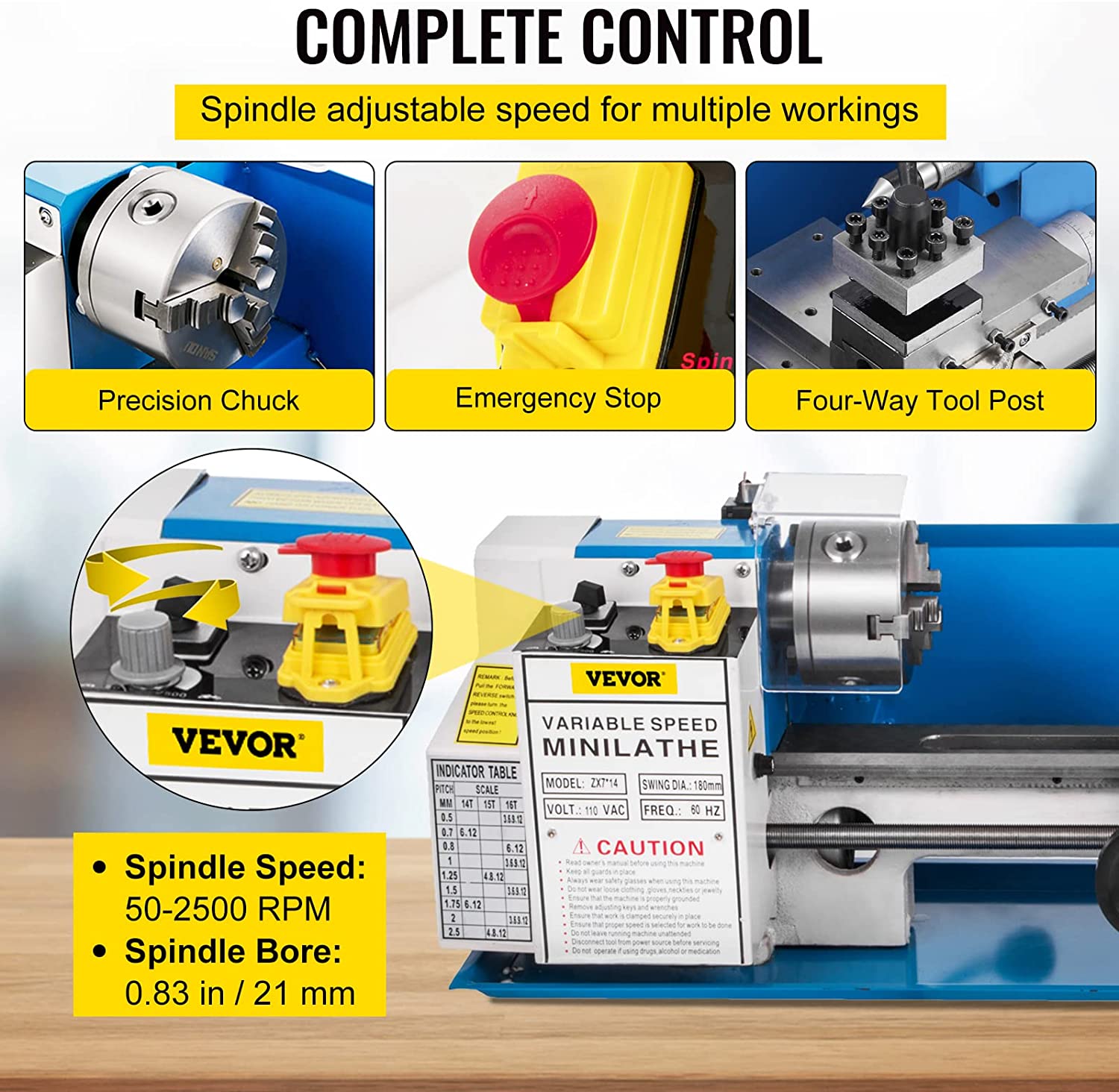

* Open the switch to start the operation, do not need to worry about not touch the boot to bring security risks, emergency
shutdown, just take the red cover to shut down, very safe.
* Telescopic sets with scale, you can intuitively see the length of the telescopic handle scale, precise scaling can be digitally standardized, but also lateral movement.
* By adjusting the speed switch can control the spindle speed 100 to 2500RPM.

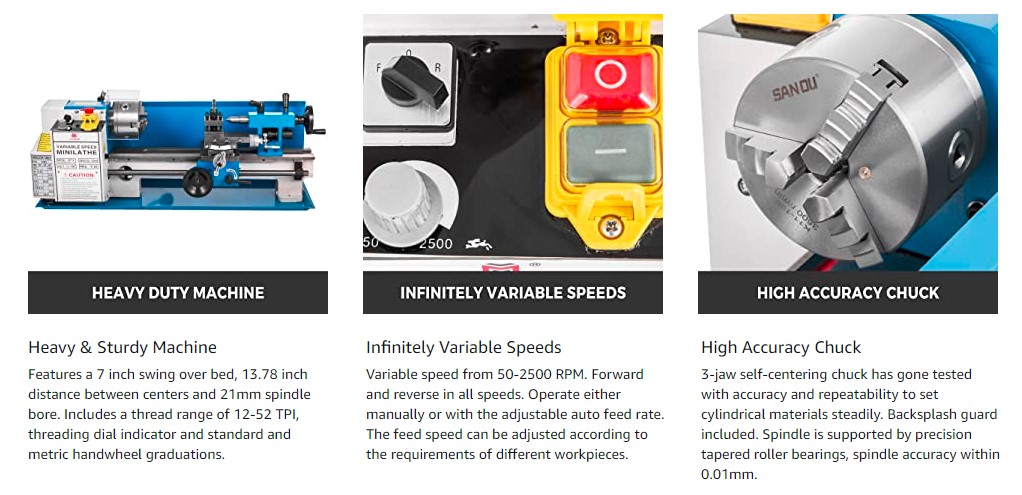

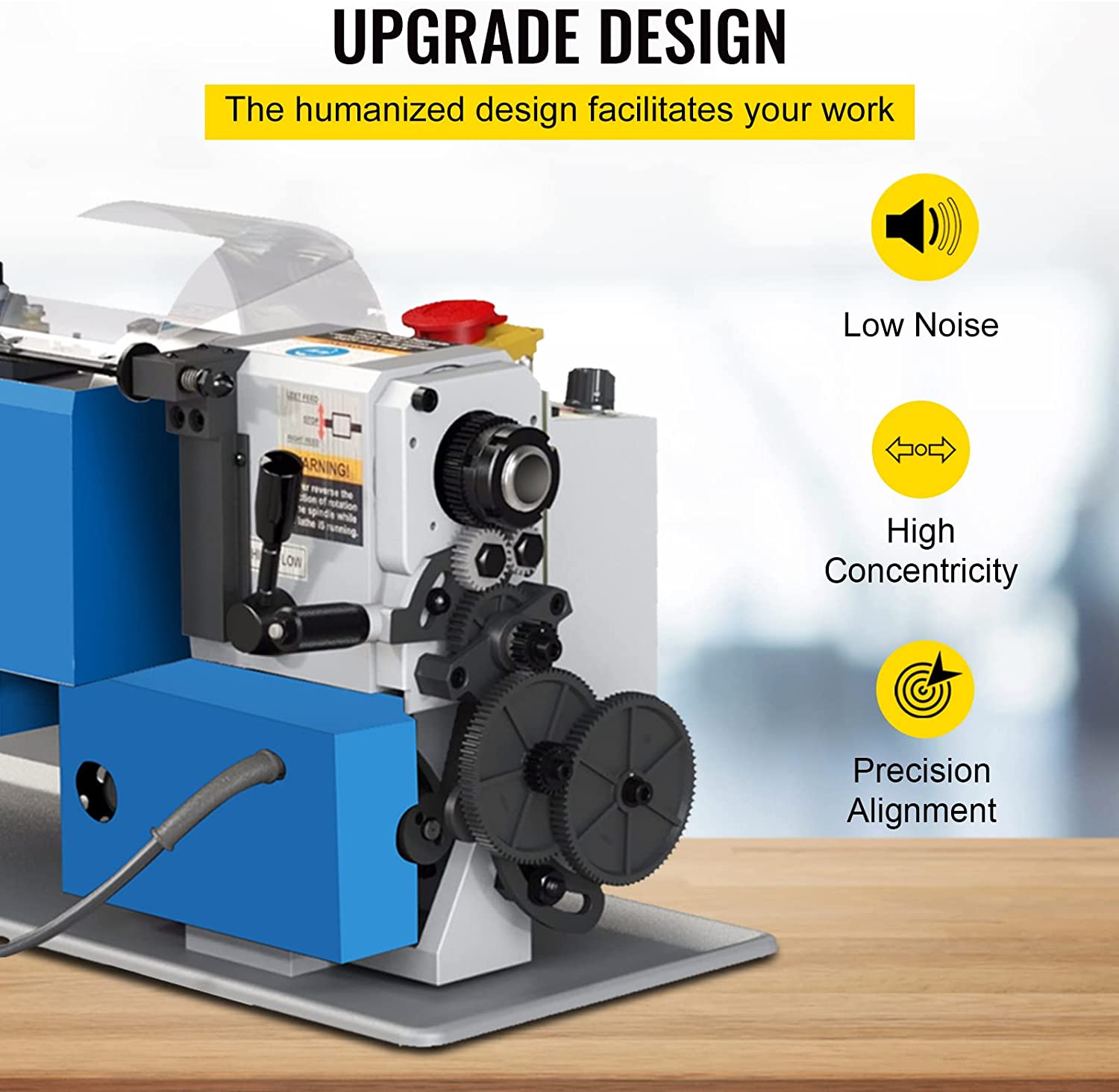

* Machine is equipped with all-metal gears, power strong, wear-resistant, durable, more accurate rotation. In particular, the
thread is more accurate.

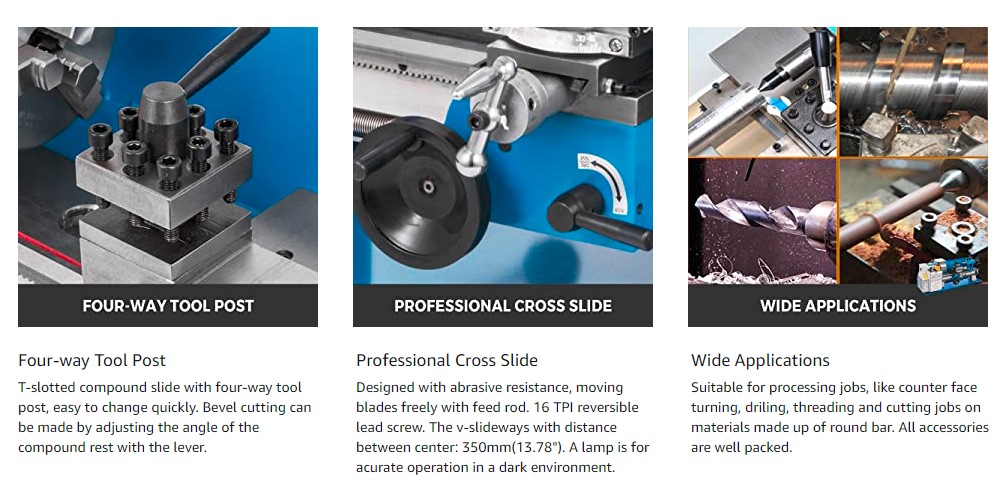

* Machine using four-way rotating turret, which can be four common turning.
* Large slide mobile handle, small slide mobile handle, bed saddle mobile handle, tailstock mobile handle, tailstock telescopic cover, tailstock side of the moving position of the scale, the operation more accurate, more professional performance.

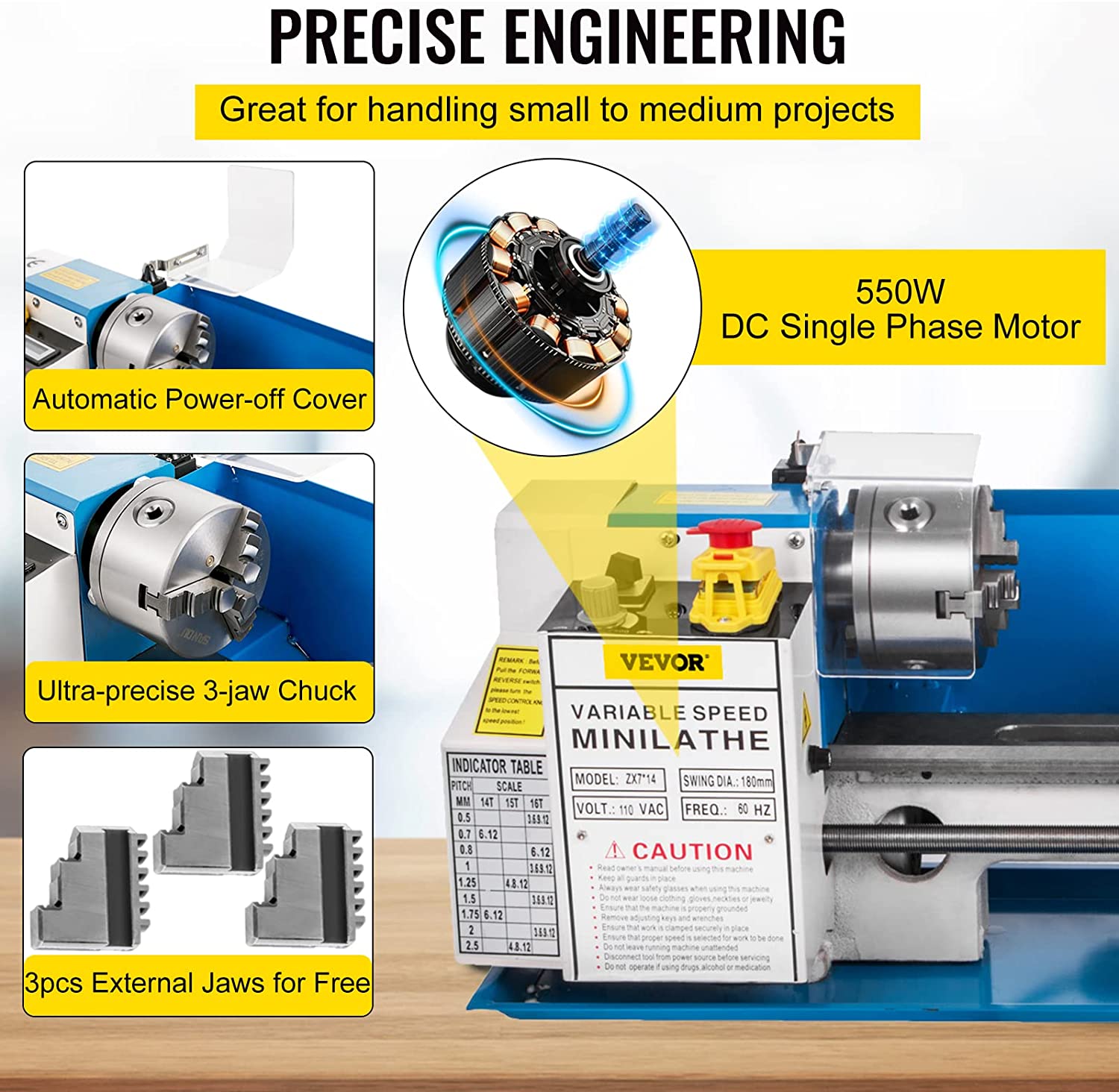

* This machine DC motor drived.
* The spindle speed readout is infinitely variable from 100 to 2500RPM.
* Spindle speed adjusted by MCU.Rotary direction"F"or"R"changed by key.
* The feed can be adjusted according to the requirement of different workpieces.

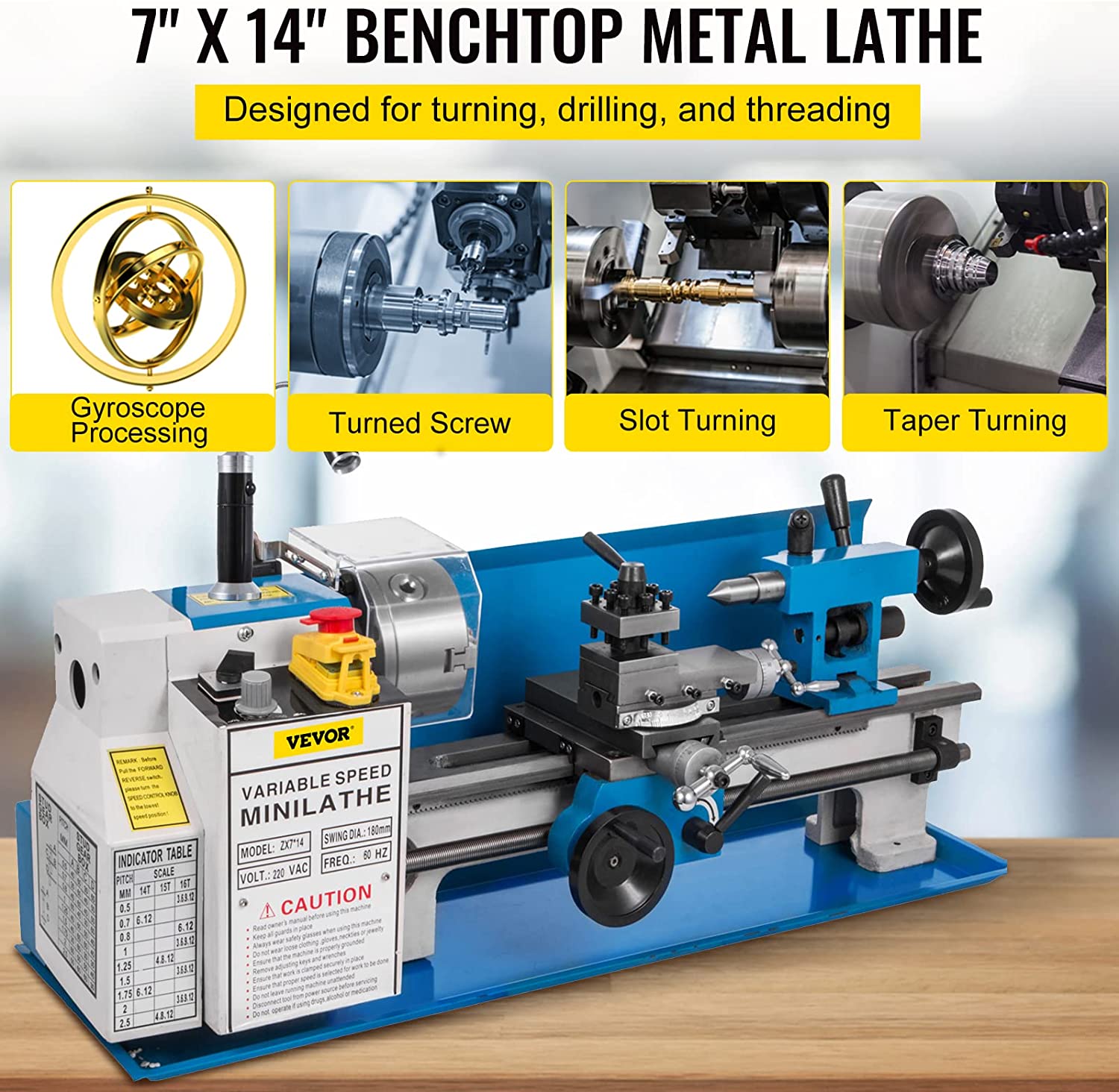

* This can be used as mini precision parts processing, sample processing, and modeling works.
* 550w strong power, 350mm processing distance, DIY processing of metal, wood.
* With high precision, can turn out the standard qualified works.
* Bed saddle tail scale precision, feed more precise fine-tuning, telescopic sleeve scale practical.
* Automatic tool, Infinitely variable, professional tool post.
