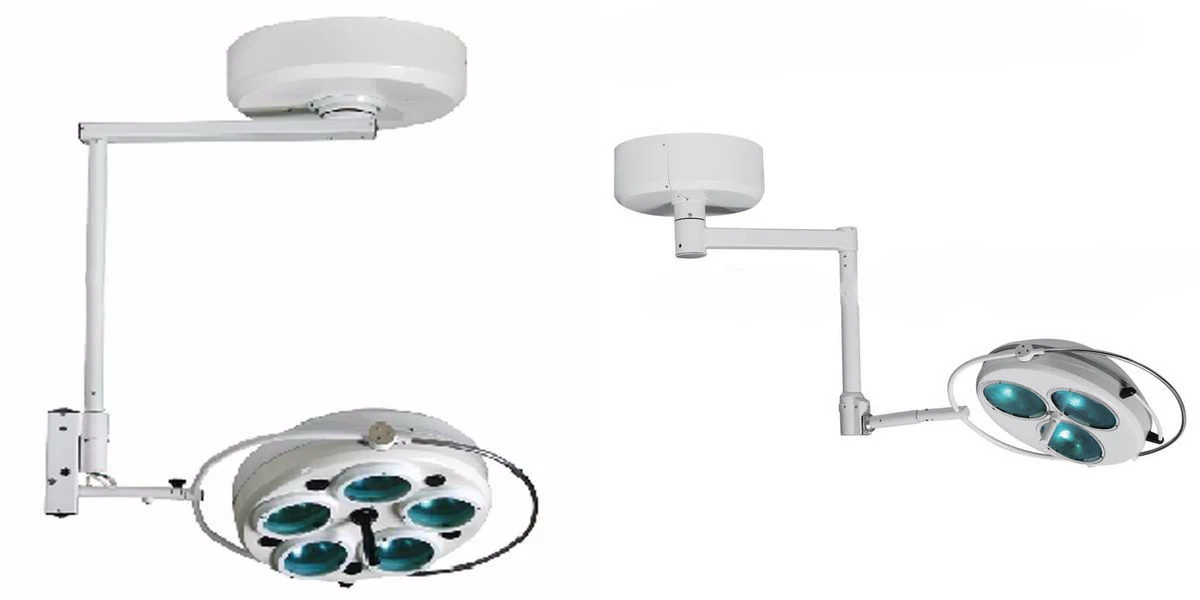

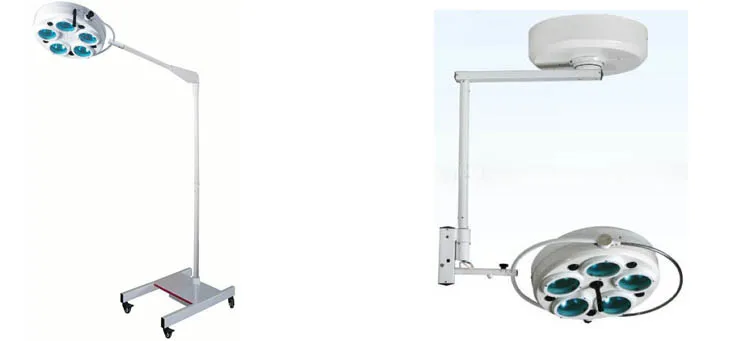

Dental Surgical Light I Mobile Medical Operation Shadowless Lamp
Mobile Operation Shadowless Lamp
Characteristics:
1. 24 Volt of extra low voltage rated for shadowless lamp;
2. soft luminous beam and easy focusing adjustment
3. broad acting extent as required by actual clinical requirement.
4. operating principle
In this shadowless lamp, a set of Luminescent lights arranged in annular chimney will synchronously illuminating in various directions and focusing on a certain point within the specified focal range so that the well-balanced, uniform, bright and shadowless illumination can be attained within the operation required space.
Reflected light will be treated with the combination of color filter and heat-absorbing devices.
Specifications:
Power Supply |
AC 220V±4V,50Hz±1Hz |
Input Power |
150VA |
Light Power |
25W |
Illumination |
not less than 60000Lx |
Color temperature | 4000±500K |
Temperature rises | not more than 10℃ |
Cartridge fuse | RF φ5×20/1A(for connection to power supply network) |
Overall Dimensions | 114cm×67cm×30cm |
Normal Operating Conditions: | |
Ambient Temperature | 10℃-30℃ |
R.H Limitation | ≤80% |
Barometric Pressure Range | 860hPa~1060hPa |
Power Supply | ~220V±4V |
Frequency |
50Hz±1Hz |
- Power Supply : AC 220V±4V,50Hz±1Hz
- Input Power : 150VA
- Light Power : 25W
- Illumination : not less than 60000Lx
- Color temperature : 4000±500K
- Temperature rises : not more than 10℃
- Ambient Temperature : 10℃-30℃
- Overall Dimensions : 114cm*67cm*30cm
