Digital Vaginal Endoscope – HD Video Kernel Colposcope for Gynecological Exams
Medical Endoscope Vaginal Video Kernel Colposcope – HD Digital Imaging for Cervical Examination
Overview:

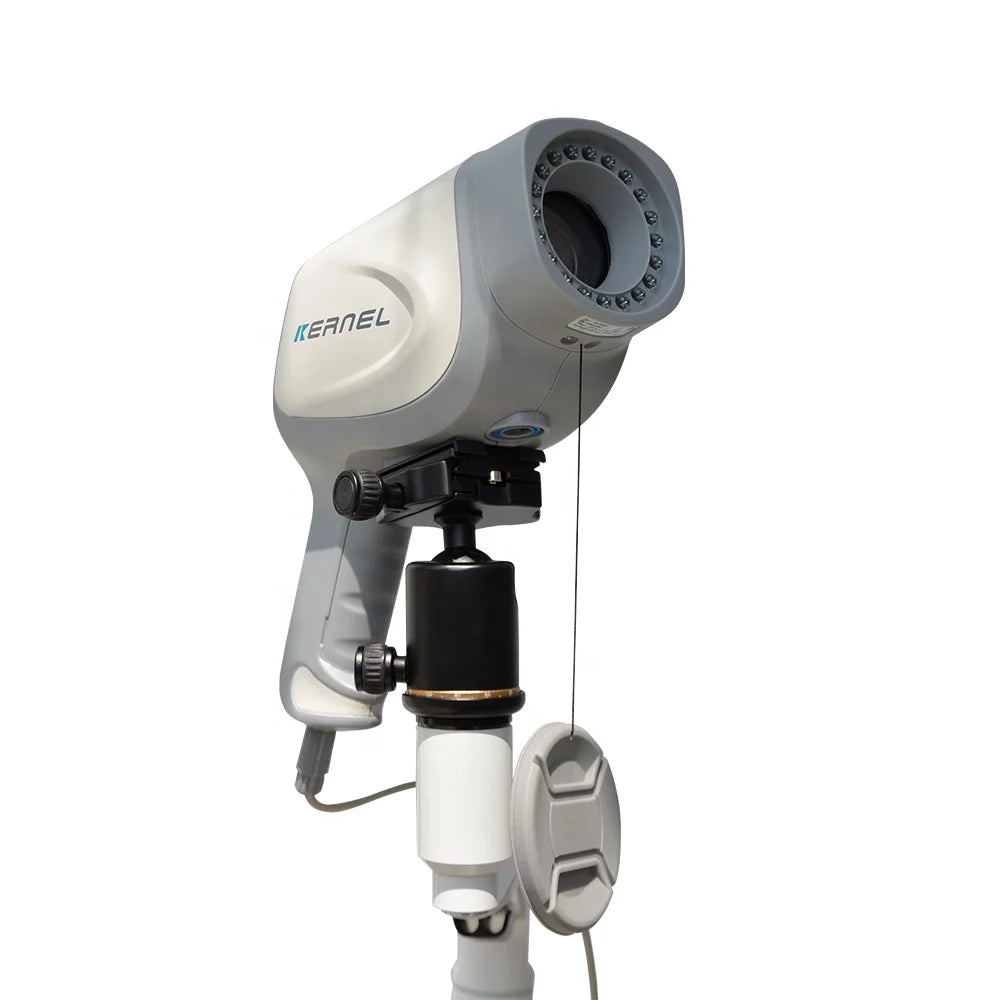

The Kernel Video Colposcope is a high-definition digital medical endoscope designed for gynecological examination and cervical cancer pre-screening. Equipped with a powerful 3.27MP Sony CCD camera, optical zoom, green filter, and intelligent software, this colposcope delivers crystal-clear imaging to assist clinicians in accurately identifying abnormalities in the cervix.
Ideal for use in hospitals, gynecology clinics, medical universities, and telemedicine programs, the device is engineered for precision, efficiency, and user comfort. It supports multiple languages and offers powerful image capture, reporting, and case management tools.
Key Features:
🔍 High-Resolution Imaging:
-
3.27 Megapixel Sony 1/2.8” CCD sensor
-
Delivers detailed, sharp images for enhanced diagnostic accuracy
-
20x optical zoom and 16x electronic zoom with autofocus

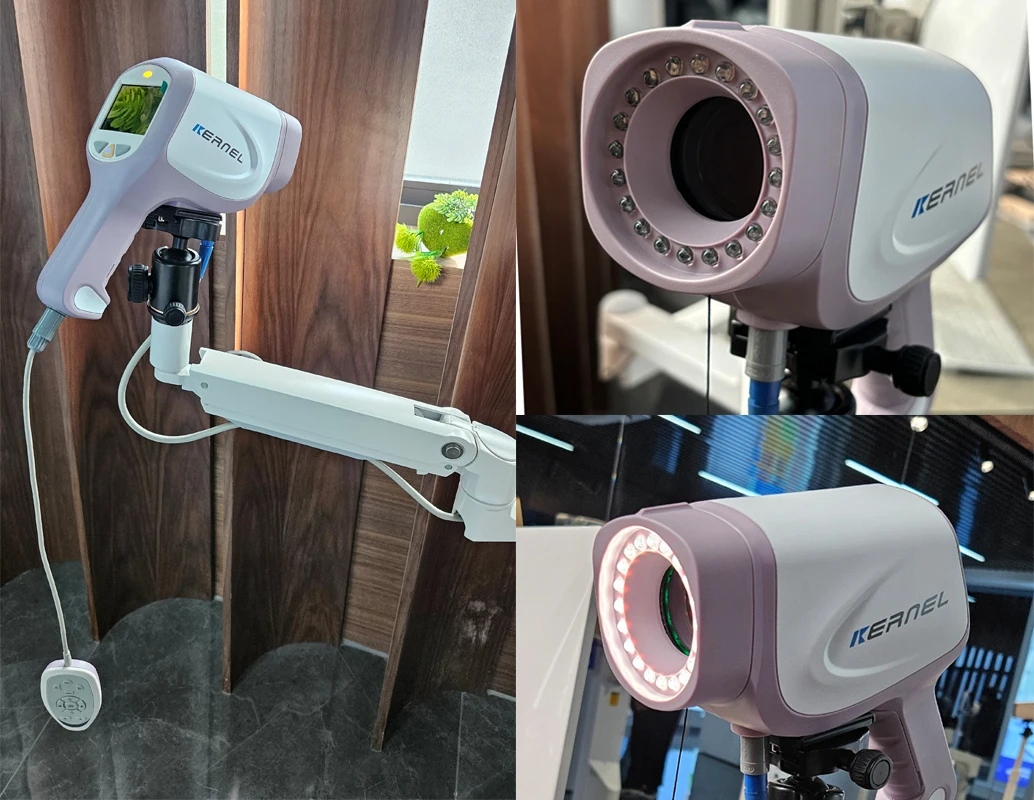

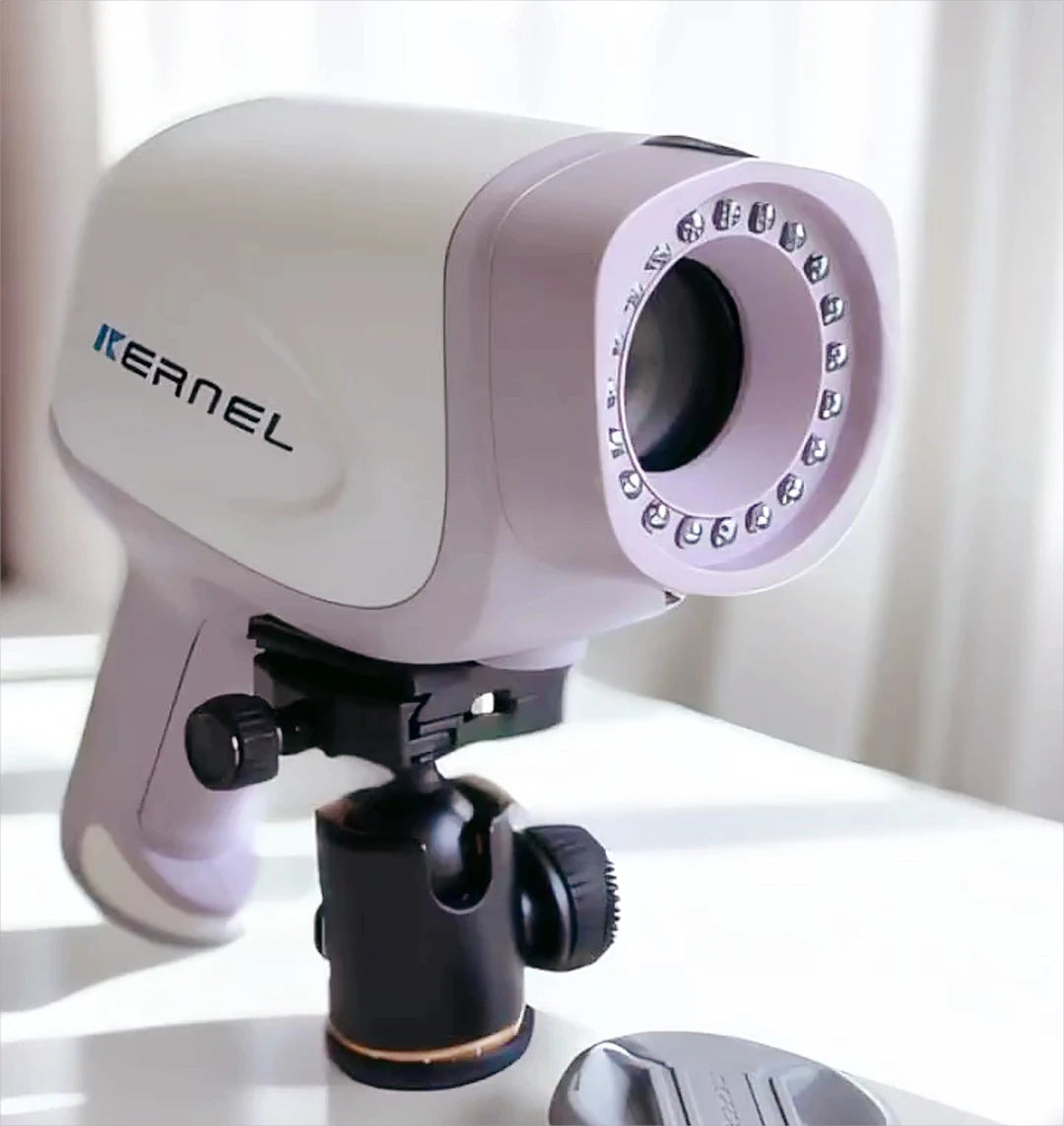

💡 Adjustable LED Illumination:
-
20 groups of adjustable LED lights
-
Manual green filter with 4 levels for improved blood vessel visibility

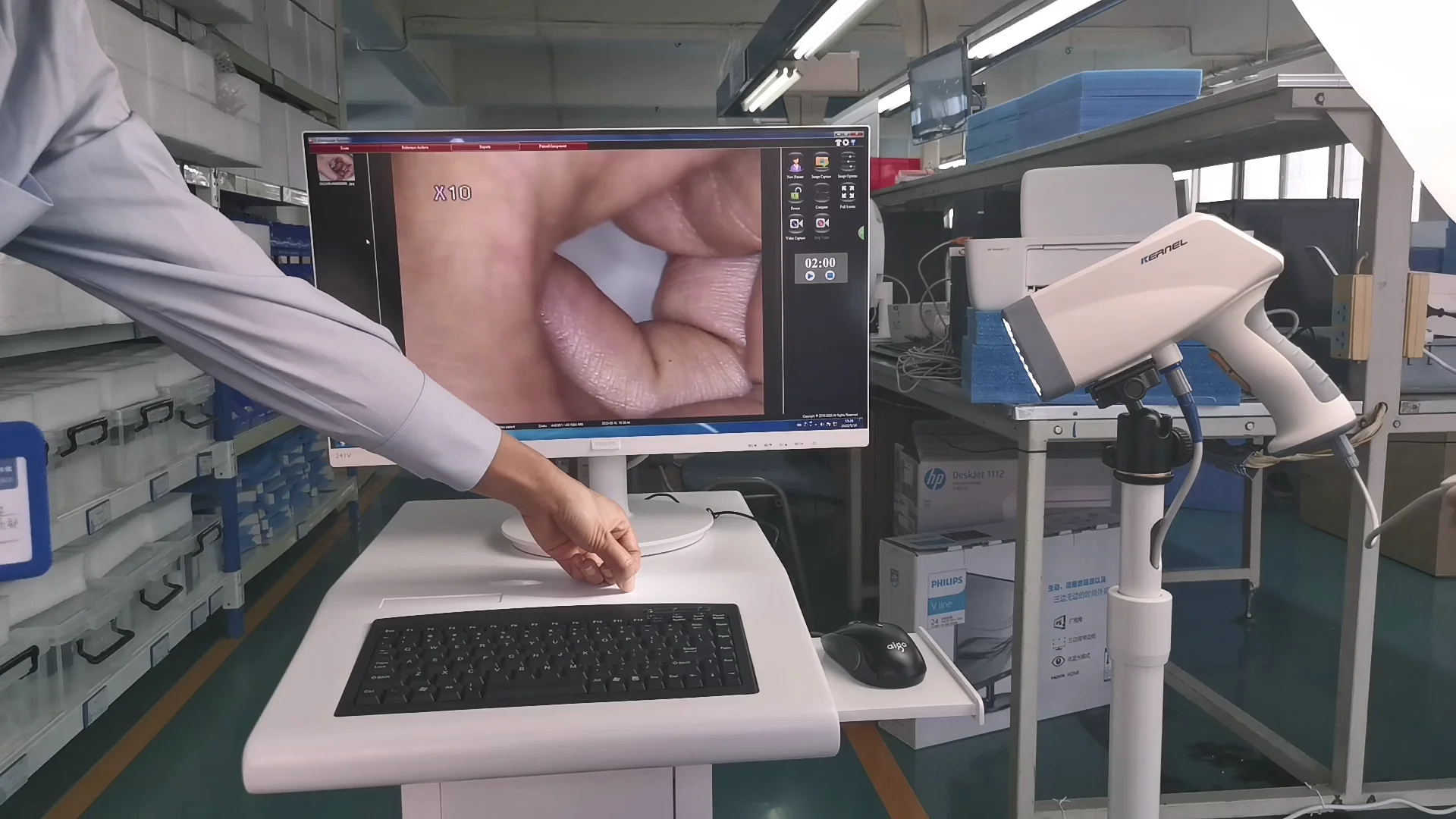

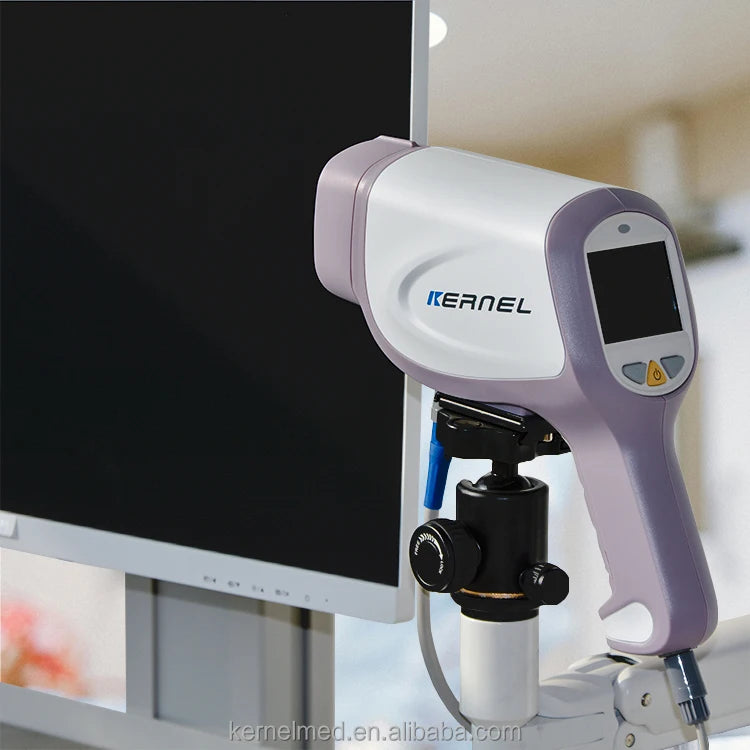

🖥️ Ergonomic LCD Viewing:
-

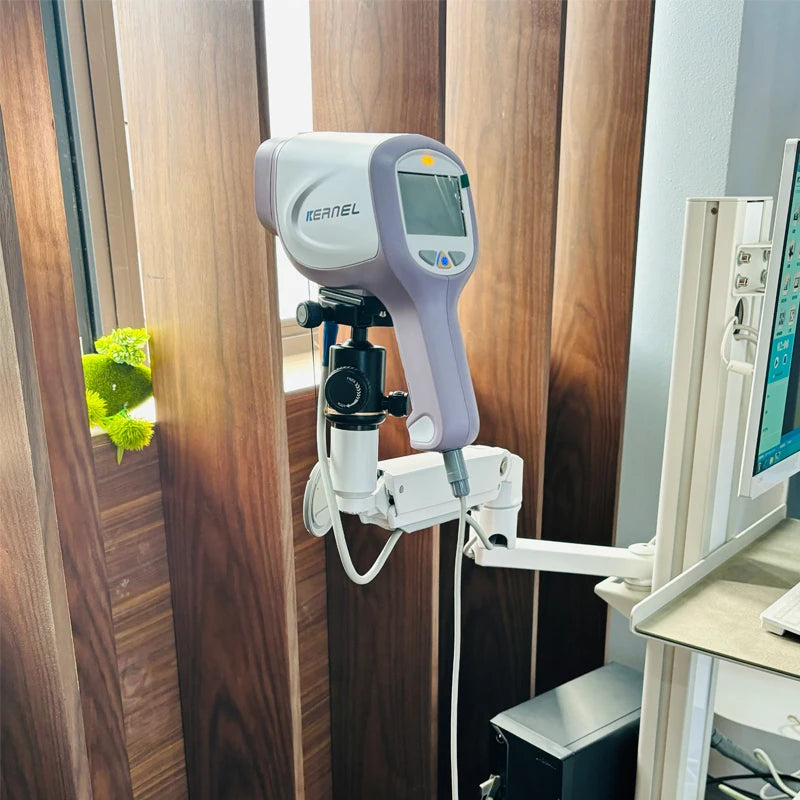

Built-in 2.5” LCD screen
-
Can be connected to TV, laptop, or desktop monitor
-
Offers forward-facing screen for easier viewing and operation
🕹️ Remote-Controlled Operation:
-
Remote handle for zoom, filter, brightness, and focus adjustment
-

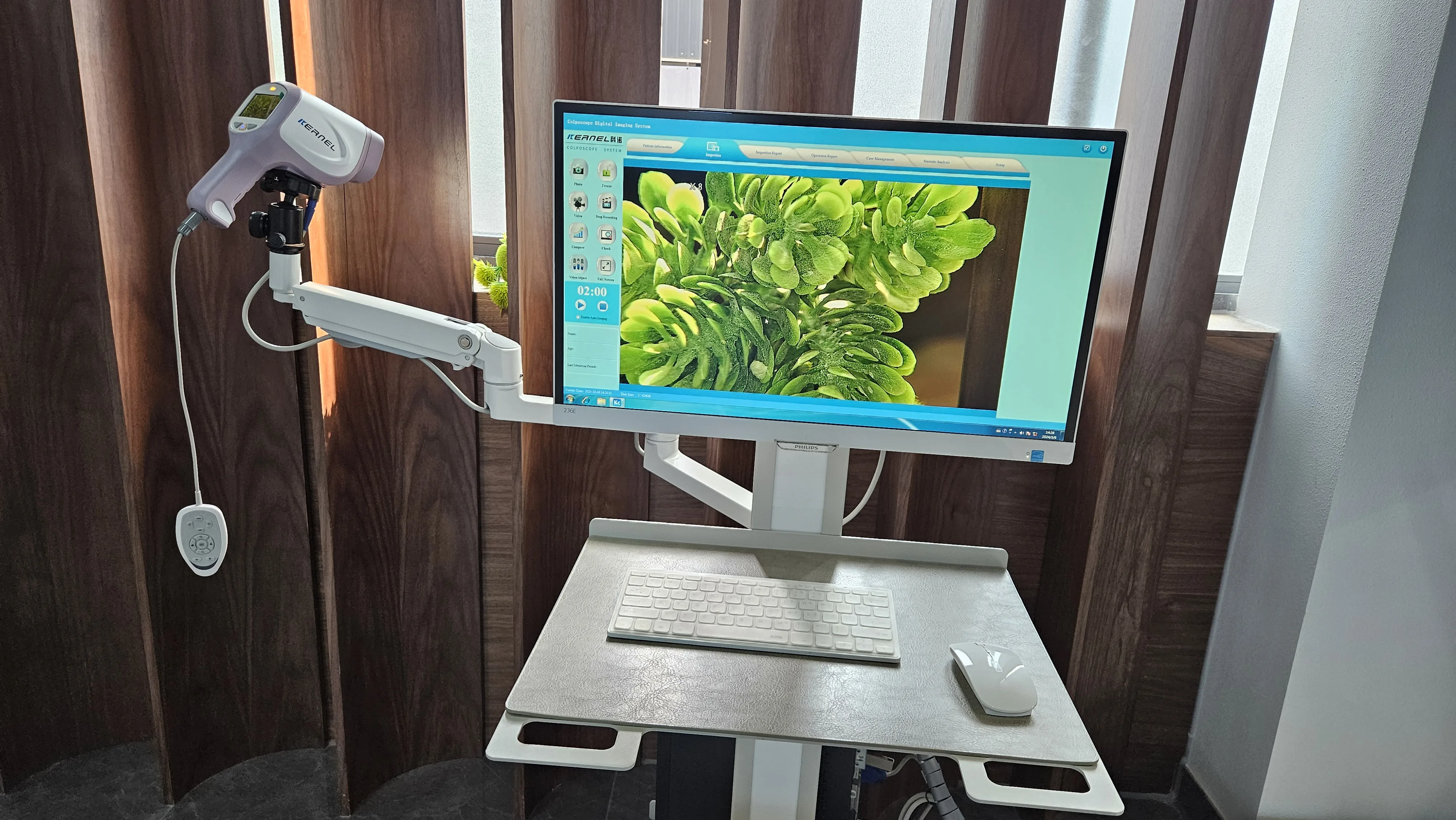

Smooth PTZ movement with adjustable-height trolley for clinical convenience
🧠 Smart Diagnostic Software:
-

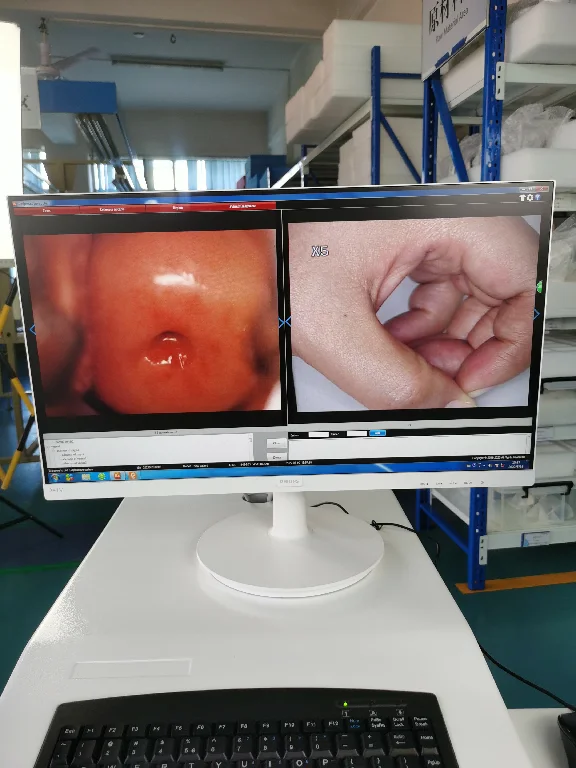

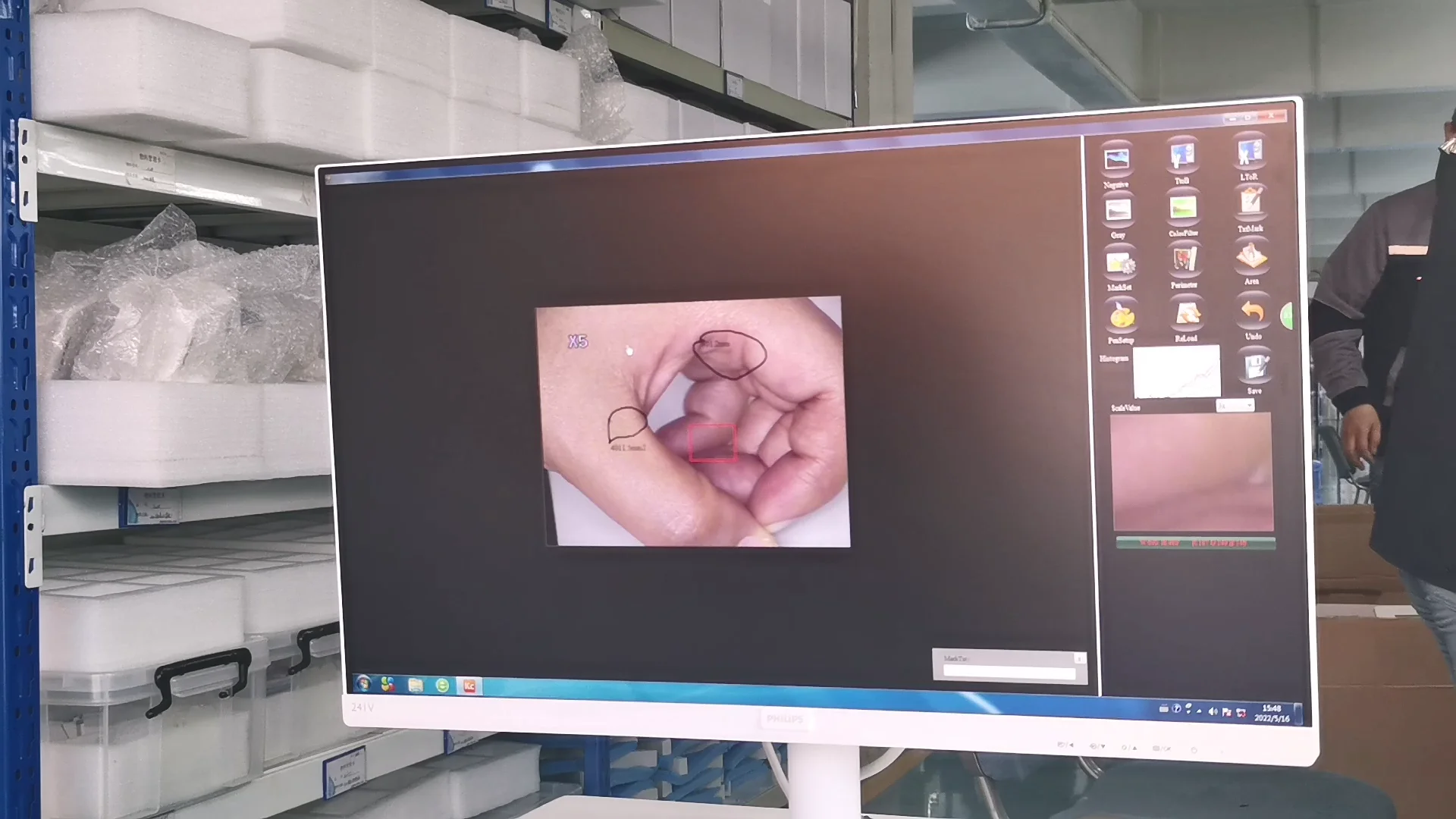

Supports image comparison, marking, zoom, negative imaging, and area measurement
-
Collect up to 100 images per session
-
Acetate timing, perimeter calculation, and real-time image editing
-
Includes foot switch for hands-free image capture
📊 Advanced Case Management:
-
Built-in clinical database with up to 175 editable diagnostic terms
-
RCI (Real-time Cervical Index) system for objective assessment
-

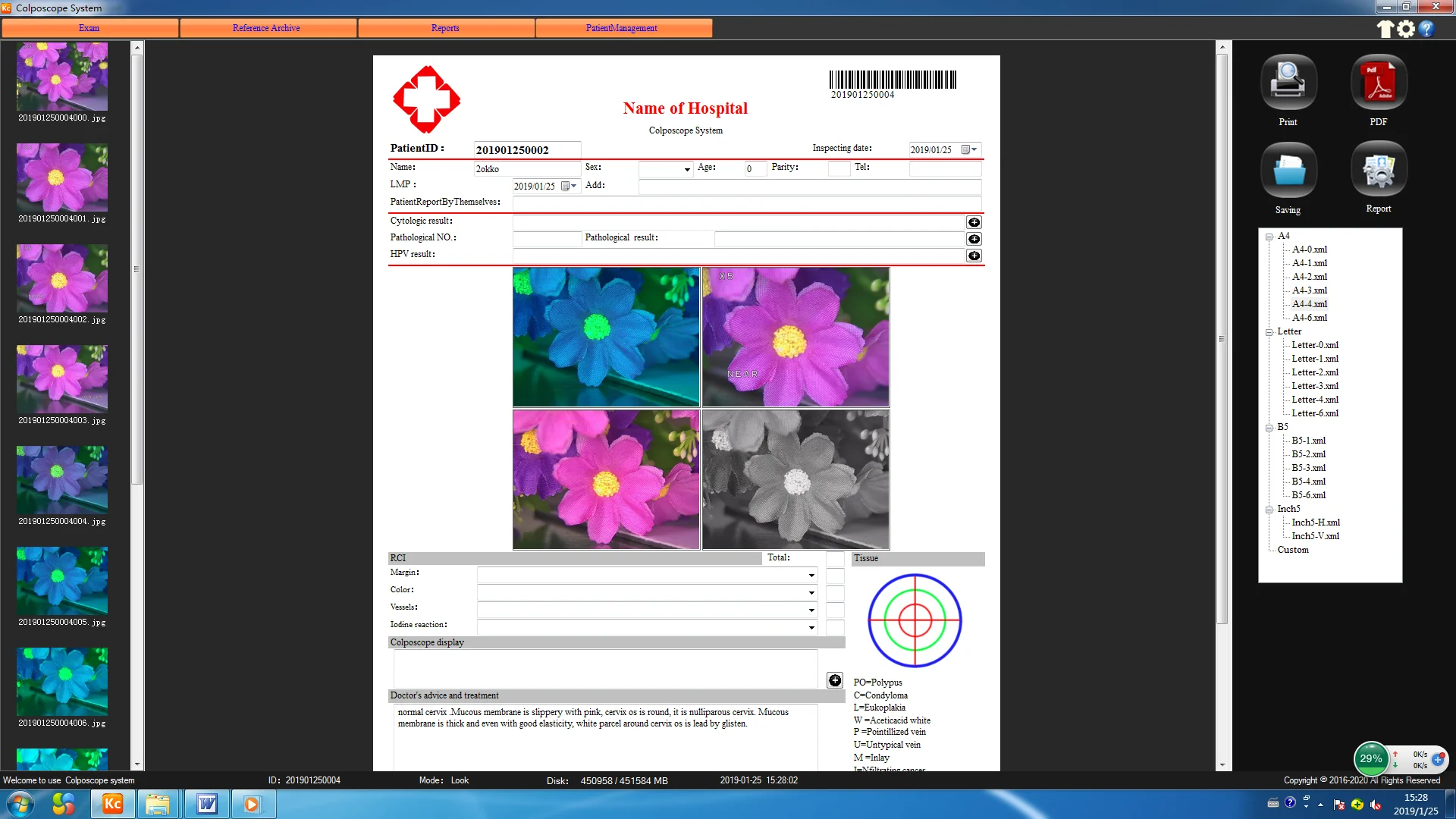

19 customizable report templates – exportable in PDF format
-
Searchable by name, case number, barcode, DOB, or exam date
-
Supports full patient data entry, review, and re-examination
🌐 Multi-Language Interface:
-
Available in English, Spanish, Russian, French, Vietnamese, Chinese, Turkish, and Italian
Technical Specifications:
-
Sensor: Sony 1/2.8” CCD
-
Effective Pixels: 3,270,000
-
Zoom: 20x Optical, 16x Electronic
-
Focus: Manual & Auto (150–500mm range)
-
Resolution: 854x480 (Live) / 550TV lines
-
Depth of View: 50mm | Working Distance: 30cm
-
Signal Output: S-Video (PAL/NTSC)
-
SNR: ≥50dB
-
Light Source: LED (adjustable), with manual green filter
-
Display: 2.5" Mini LCD
-
Operating Noise: ≤40 dB
Included in the Package:
-
Medical Endoscope Vaginal Video Kernel Colposcope
-
Power Supply and Foot Switch
-

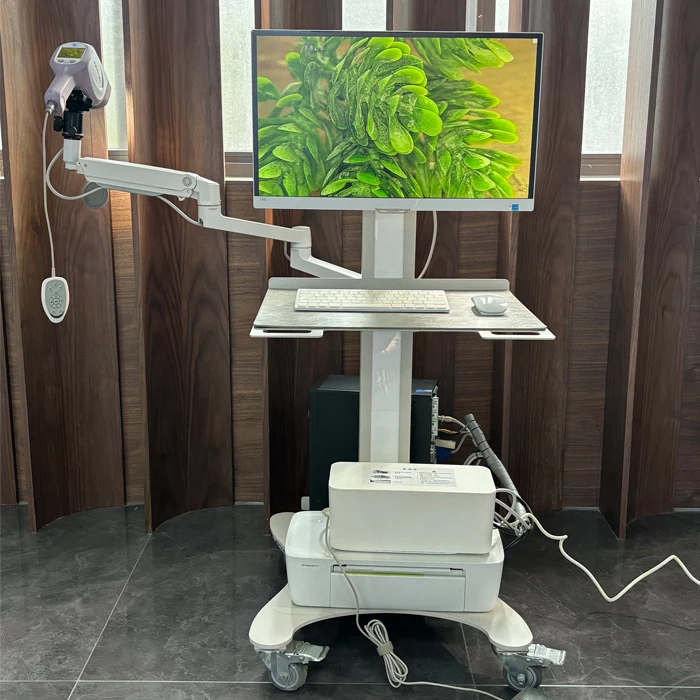

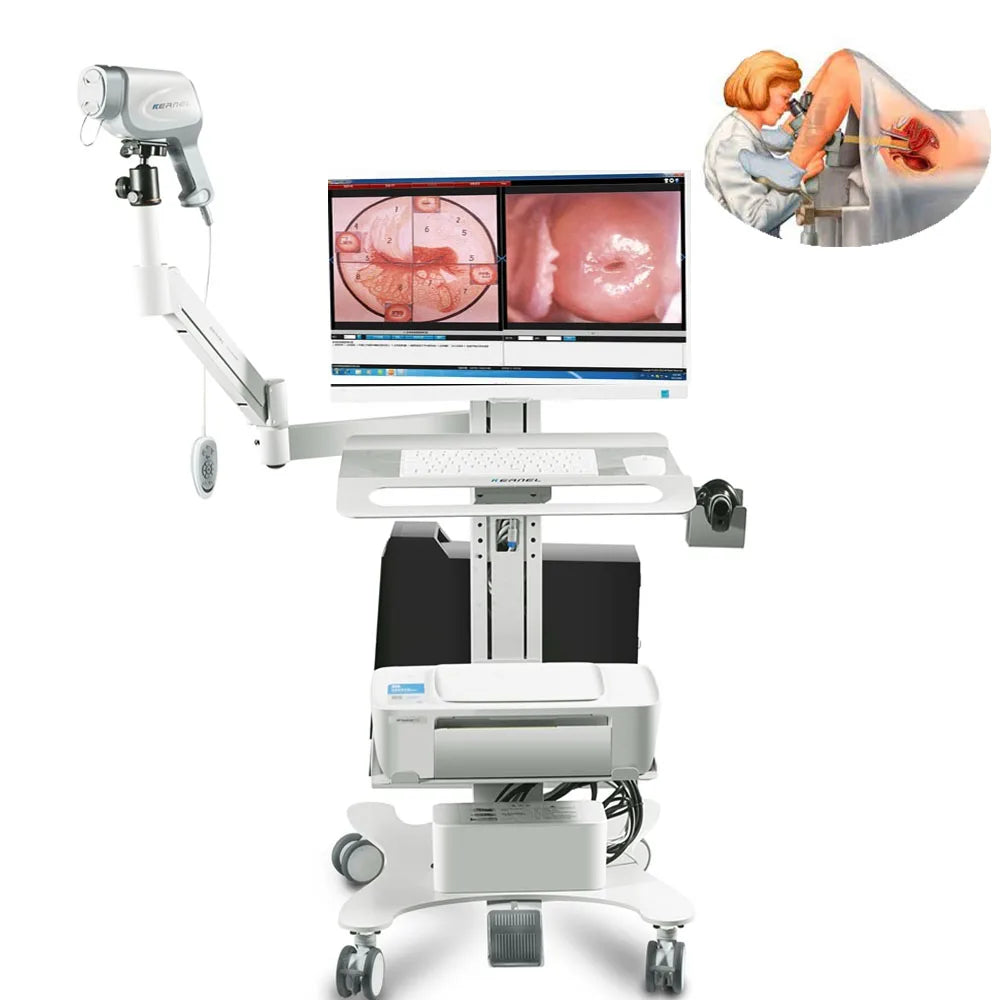

Adjustable Five-Wheel Medical Trolley
-
LCD Viewing Screen
-
Bracket and Accessories
-
User Manual
Benefits:
✔ Reduces exam time by up to 50% with fast autofocus
✔ Clear and stable imaging, even during zoom and adjustments
✔ Built with premium SONY components and ergonomic controls
✔ Ideal for OB/GYN practices, forensic documentation, and academic use
✔ Backed by a 1-Year Warranty
Trusted Worldwide:
Our colposcope is trusted by professionals in hospitals, sexual assault advocacy centers, forensic units, and gynecology clinics globally. Known for reliability and accuracy, Kernel stands behind each device with exceptional build quality and dedicated customer support.
