Economic XRF Gold Precious Metal Analyzer I X-ray Gold

Economic XRF Gold Precious Metal Analyzer I X-ray Gold Spectrometer I Jewelry Metal Testing Machine I DX-600

by meubon
Save 37% Save 37%
$26,997.00
$26,997.00 - $26,997.00
$26,997.00
$16,999.00
$16,999.00 - $16,999.00
$16,999.00




DX-600 is integrated an industrial computer with industrial motherboard & multi-point hand touch, providing best operation experience.It is designed exactly to security standards with active radiation protection, high voltage protection and X-ray tube overheating protection. Warm-up and anti interference procedure is controlled by the program, to reduce the interference by the reflected X-ray and the spectrums, to add the accuracy and stability.Optional colors for different elements will help to distinguish the interested elements clearly and conveniently. When the testing is over, the testing report will be shown timely.

Application:


Fast, precise and non-destructive metal testing for jewellery retailers, jewellery manufacturers, precious metal refineries, pawn shops, government quality inspection departments, banks, laboratories and tertiary institutions.

Features



1.Element measuring range:Au,Ag,Cu,Pt,Pd,Ir,Cd2.Measuring accuracy:0.1%3.Testing specimen:solids,liquids,and powders4.Light tube overheating protection5.High voltage overvoltage protection6.Actual focus:ϕ 5mm7.Built-in industrial computer and touch screen8.Install radiation protection device,proactively protect operator safety9.Program-controlled preheating and anti-radiation interference.ensure stable and accurate test results

Specification
Voltage
AC100-240V,50hz
Packing dimension
560*530*510mm
Machine dimension
410*500*430mm
Chamber size
306*248*124mm
Rate power
<150W
Weight(N/G)
33KG/45KG
Detector
Proportional counter tube
Built-in computer
Built-in industrial computer
High voltage
0-50KV/0-1mA
Light Tube
50KV/1mA
Collimator
ϕ2.5mm
Noise
≤50dB
Temperature
-11℃～46℃
Humidity
<70%

Details Images

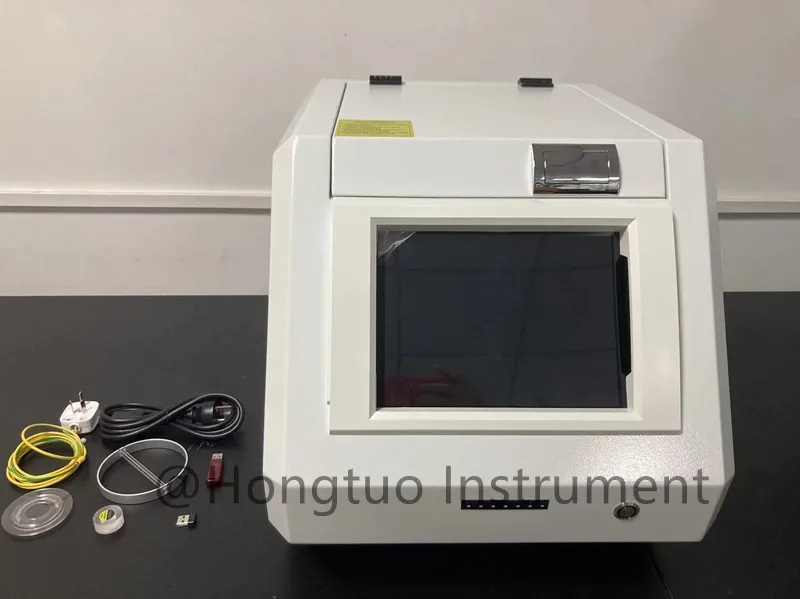

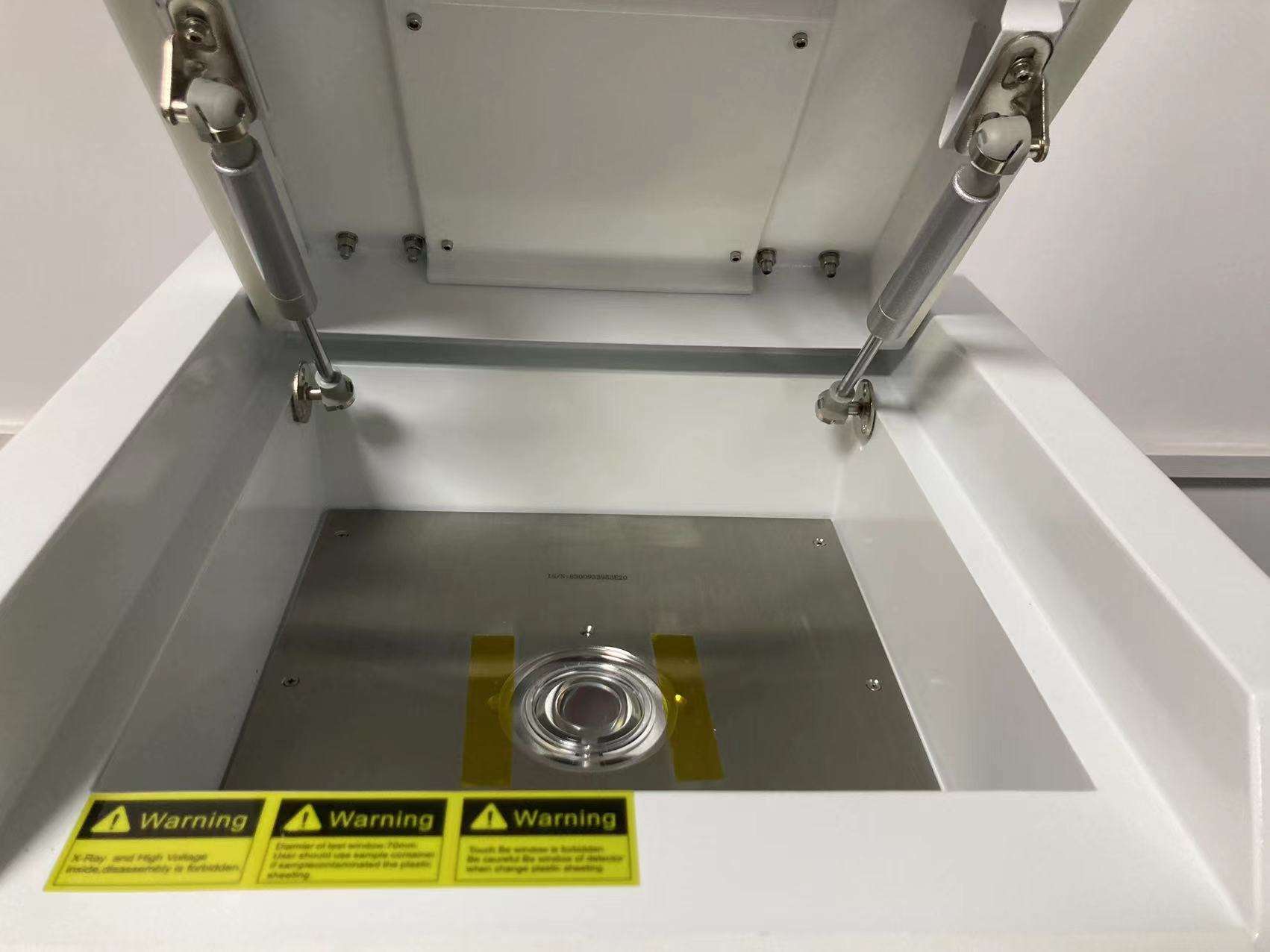

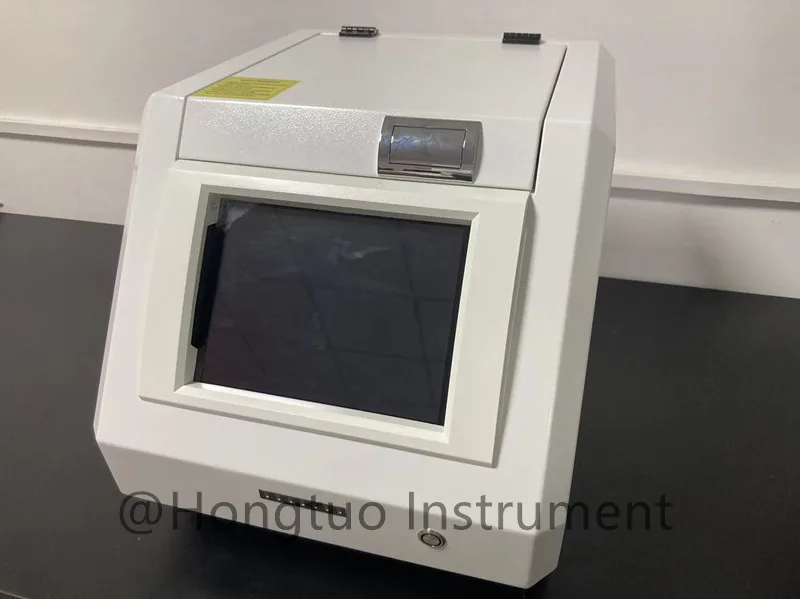

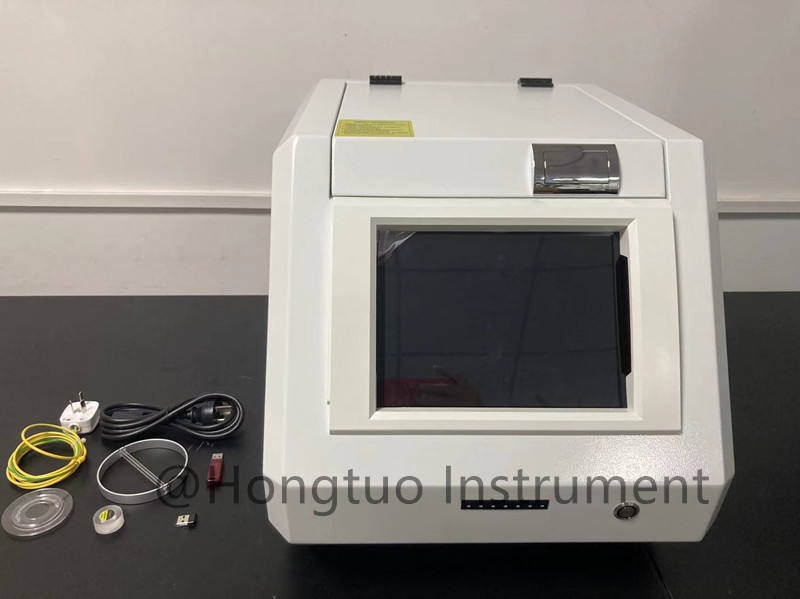

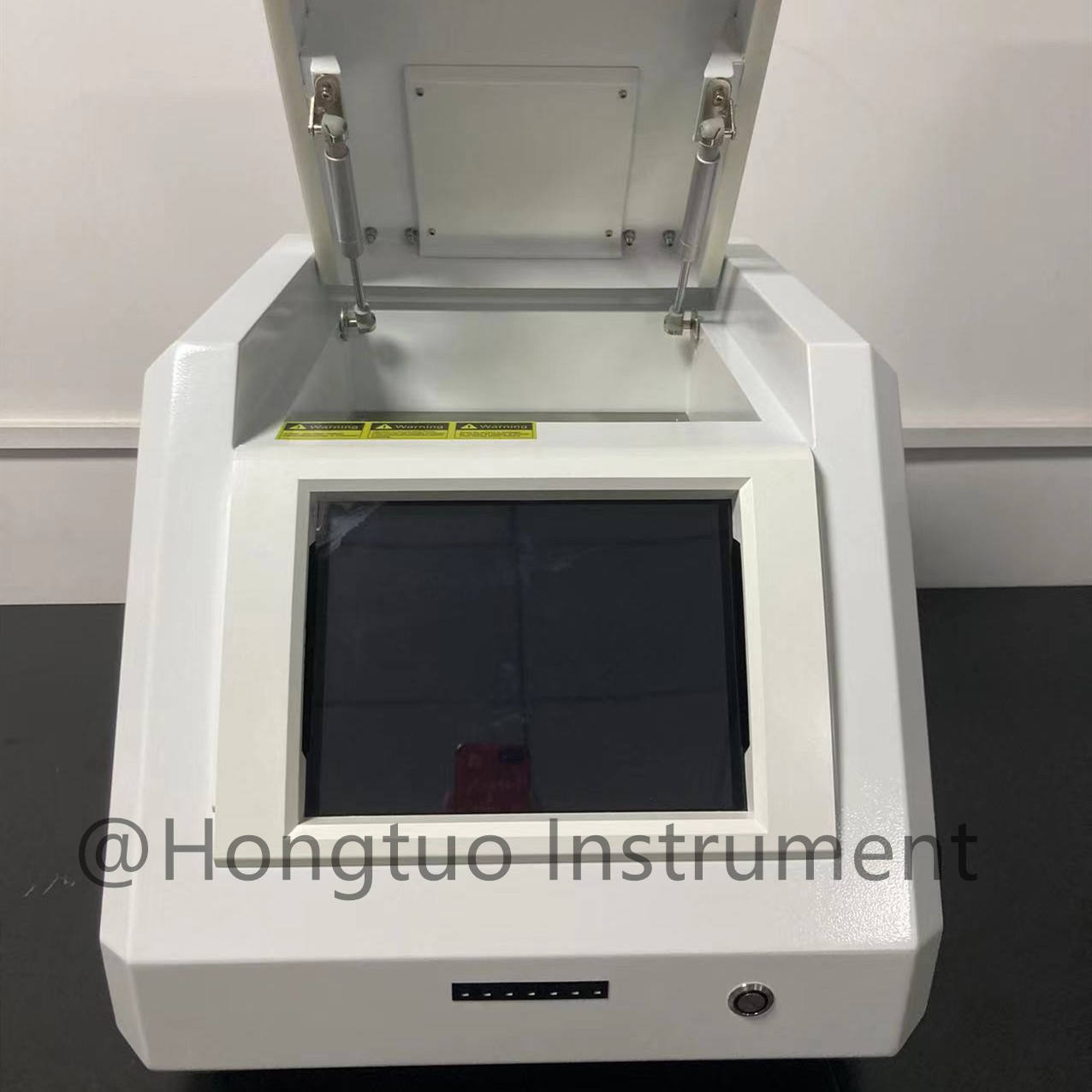

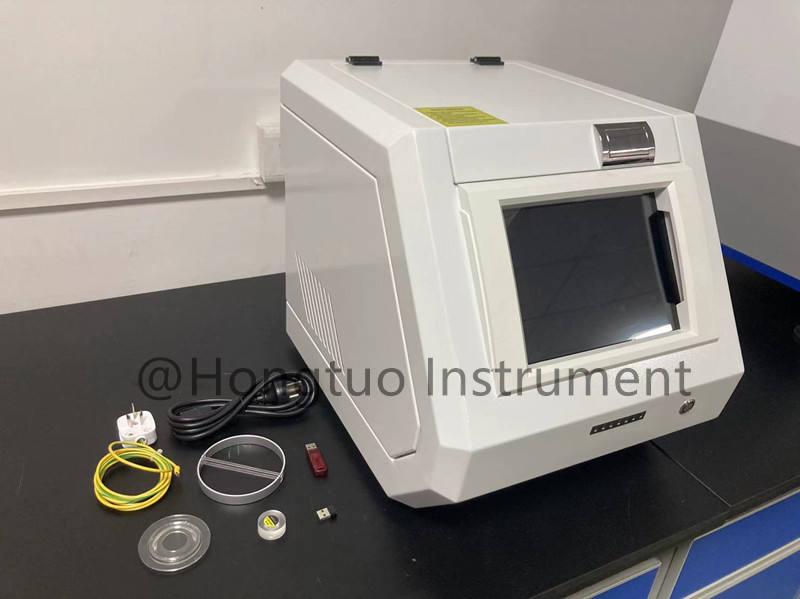

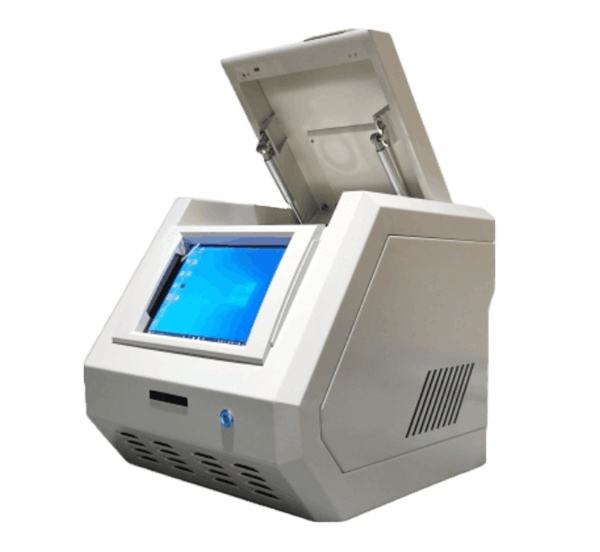

Economic XRF Gold Precious Metal Analyzer I X-ray Gold
Economic XRF Gold Precious Metal Analyzer I X-ray Gold
Economic XRF Gold Precious Metal Analyzer I X-ray Gold
