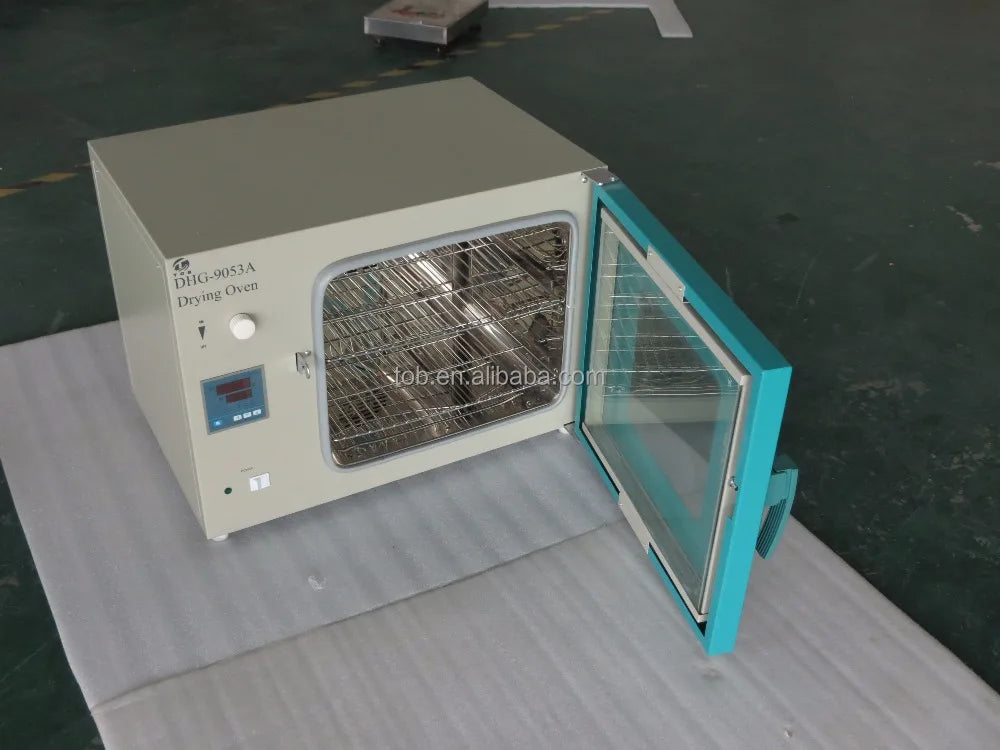

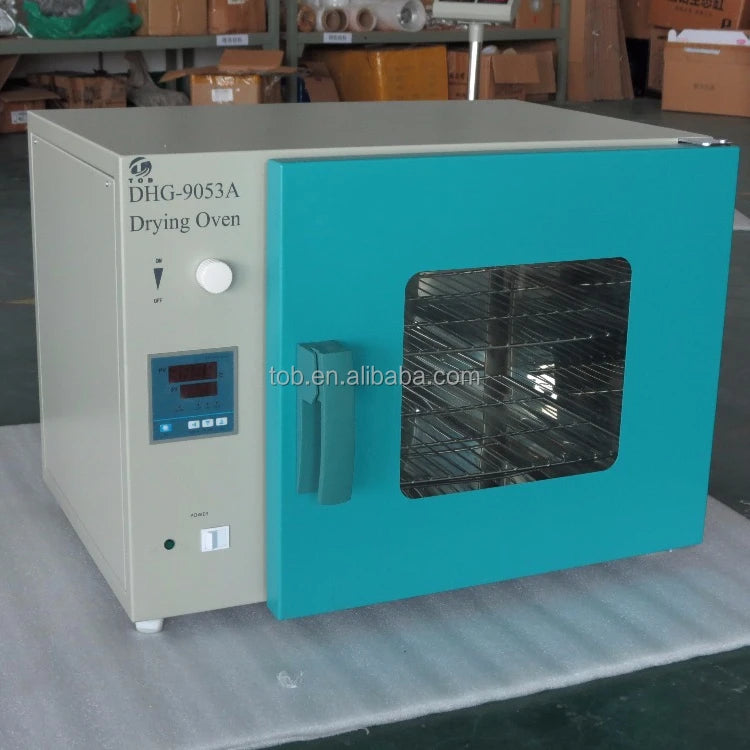

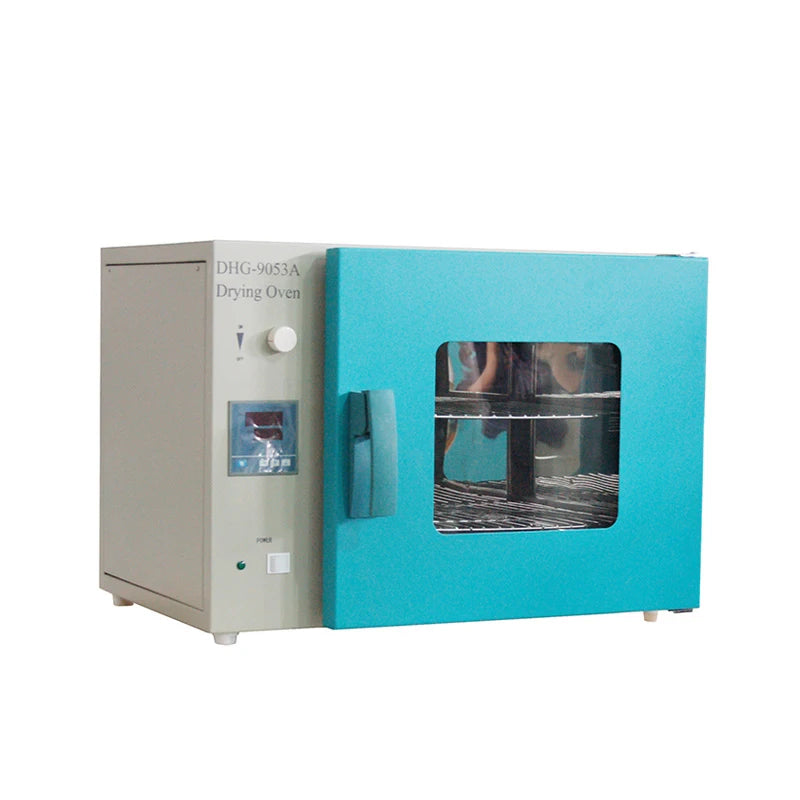

Electric Air Blast Drying Oven I Model DHG9053A

Save 4% Save 4%
Original price $1,200.00
Original price $1,200.00 - Original price $1,200.00
Original price $1,200.00
Current price $1,150.00
$1,150.00 - $1,150.00
Current price $1,150.00

Application and Characteristics  :

      Electric Air Blast Drying Ovens are used for a variety of applications like drying or tempering electronic components, material tests, in industrial and mining enterprises, laboratory, scientific research institute, etc for drying, baking and wax-melting, sterilization, etc.

  • The inner material is stainless steel, easy cleaning. the shell is made of high quality steel, beautiful and innovative.
  • Temperature control is microcomputer intelligent digital technology controller with over-temperature alarm and digital display meter.  high-precision temperature control.
  • Hot air circulating system consist of air blower and suitable air flue, continuous operation at high temperature, improve temperature uniformity.
  • Independent temperature limit alarm system, it will be automatically interrupted if over the limit temperature, so as to guarantee the safe of experiment and operation without any accident.(Optional)
  • Have RS485 interface which could connect the recording instrument and computer, can record the change of temperature and humidity parameters. (optional)

 Technical parameters:

Source voltage

220V 50HZ




One Year limited warranty with lifetime support

Work box size(L*W*H)


Oven size(L*W*H)


Temperature range


Temperature resolution


Temperature fluctuation

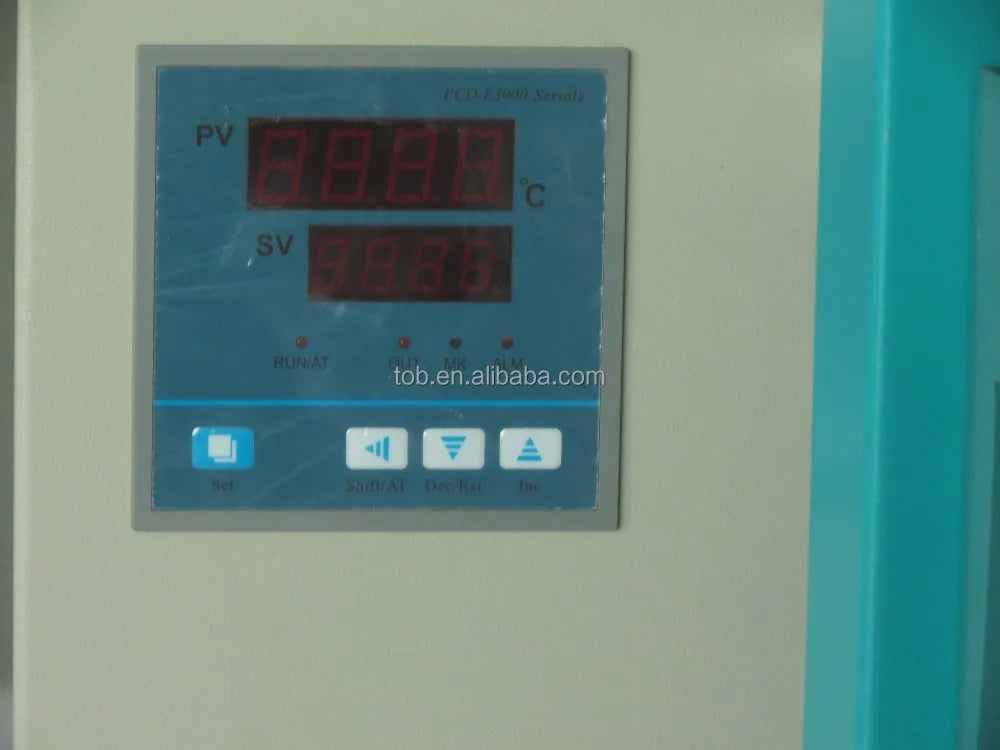

Temperature controller

30 segment programmable temperature controller.

Self tuning function. The timing time can up to 9999 minutes


A grade PT100 Platinum resistance

Heat pressure layer

High quality insulation system, inner box, inner shell,ultra-fine glass fiber,

Aluminum foil aluminum reflector, air - interlayer from inside to outside.

Observe window

The box door are provided with double-layer tempered glass observation window,

can observe the test result easily

Heating mode

Electric heating. Nickel chromium alloy electric heater

Safety installation

With over temperature protection, grounding etc.

Wind duct

Forced air circulation channel, ensure that the studio uniform temperature;

air duct provided with a heater, temperature sensor

Adjustable air intake

The control box and outlet air quantity, the casing is provided with an exhaust

can close or adjust discharge mouth to change wind effect.



Timing range


  • Type : Vacuum Drying Equipment, Li-ion battery lab research equipment
  • Application : Chemicals Processing
  • Warranty : 1 Year, One Year Limited Manufacture Warranty with Life Time Support
  • Weight (KG) : 40
  • Warranty of core components : 6 Months
  • Core Components : Other
  • Related industry : Lithium ion battery
  • Machine name : blast drying oven dhg 9053A
  • Source voltage : 220V, 50HZ
  • Power : 750W
  • Temperature range : RT+10-250℃
  • Temperature resolution : 0.1℃
  • Temperature fluctuation : ±0.5℃
