Elevate Your Research with the NSEM5000 High-Resolution Field Emission Scanning Electron Microscope Featuring EBSD Technology

Experience the Cutting-Edge MSEM5000 High-Resolution Field Emission Scanning Electron Microscope, Ideal for Research

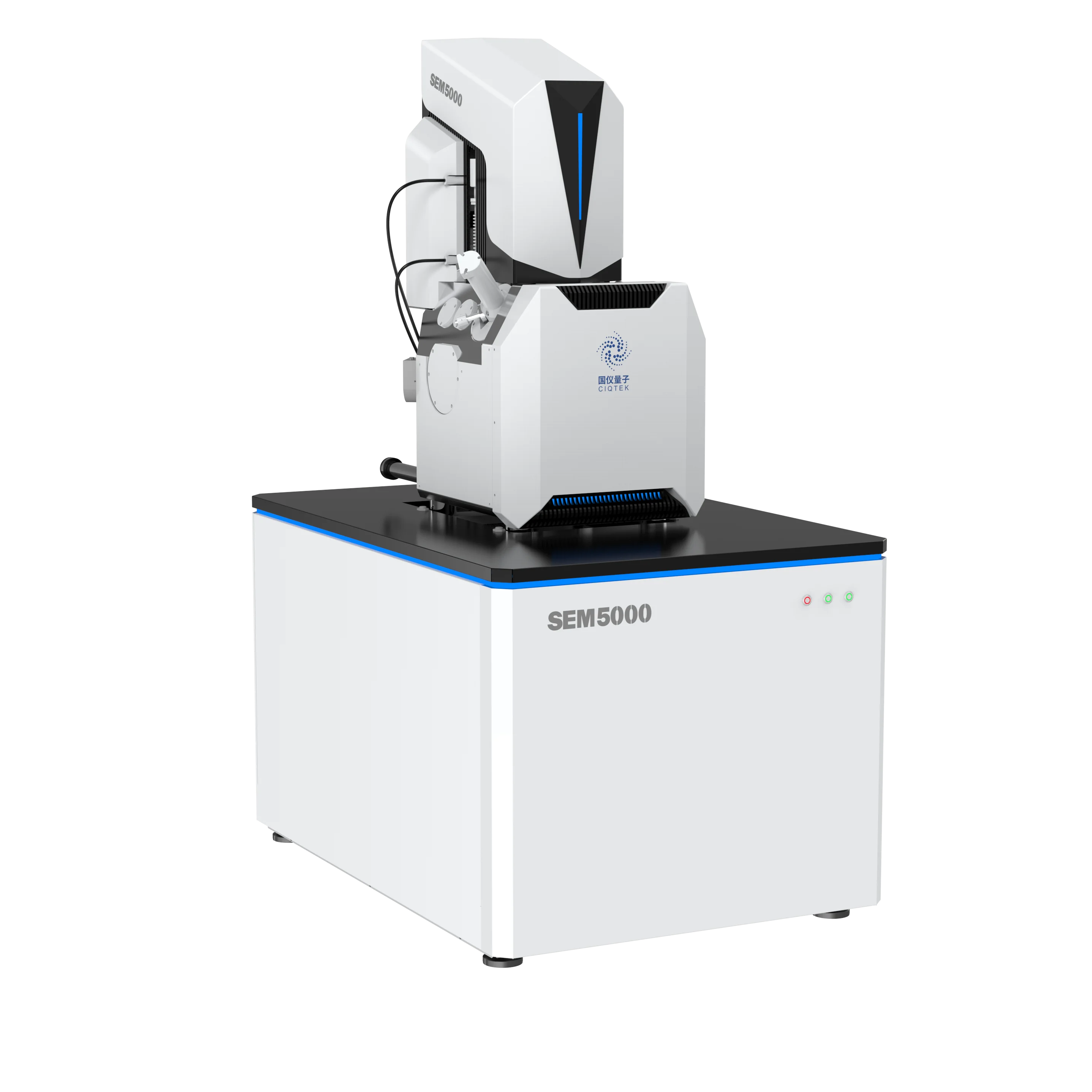

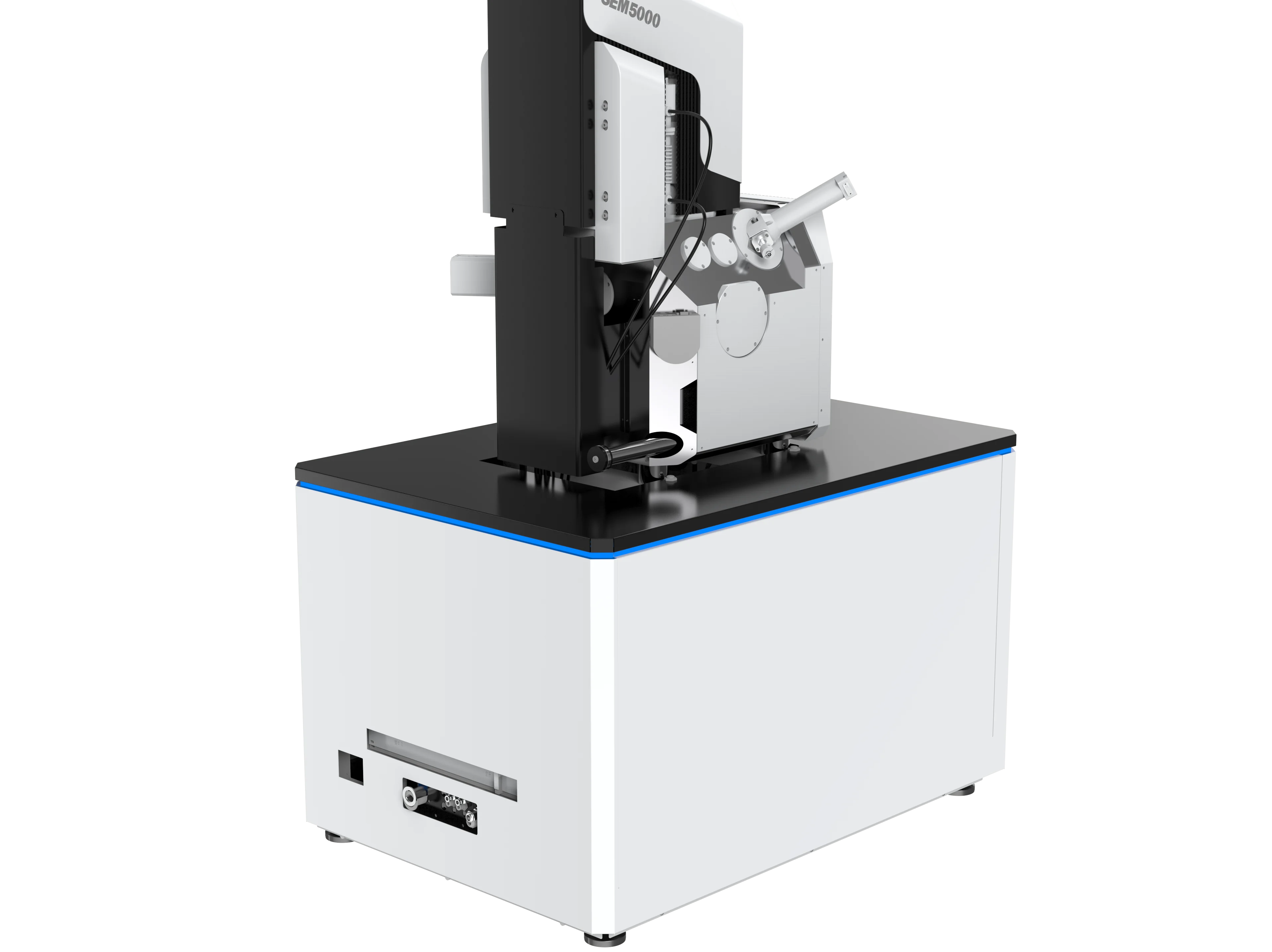

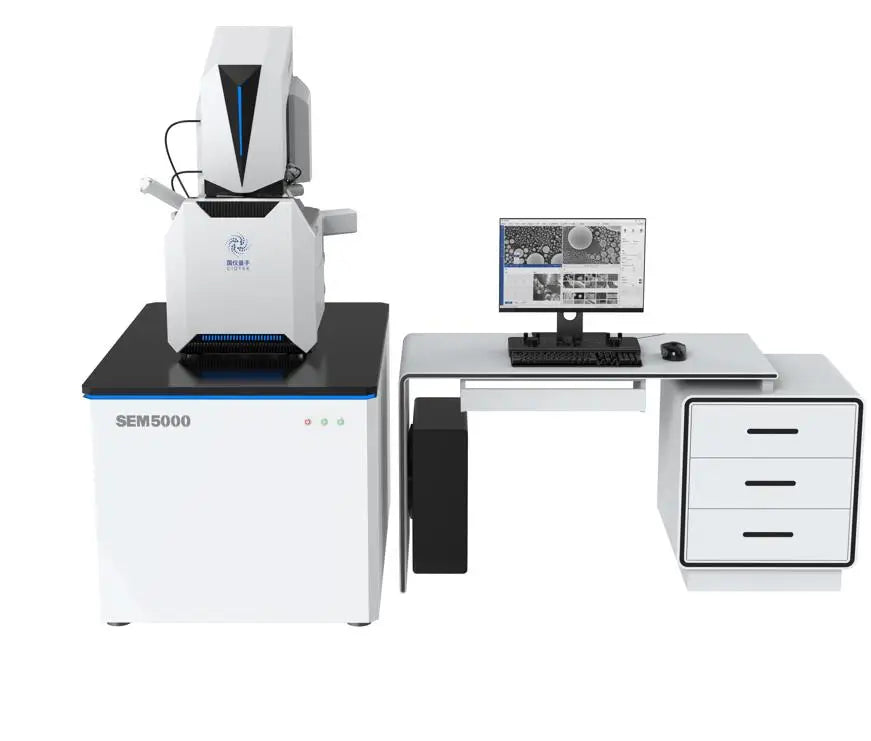

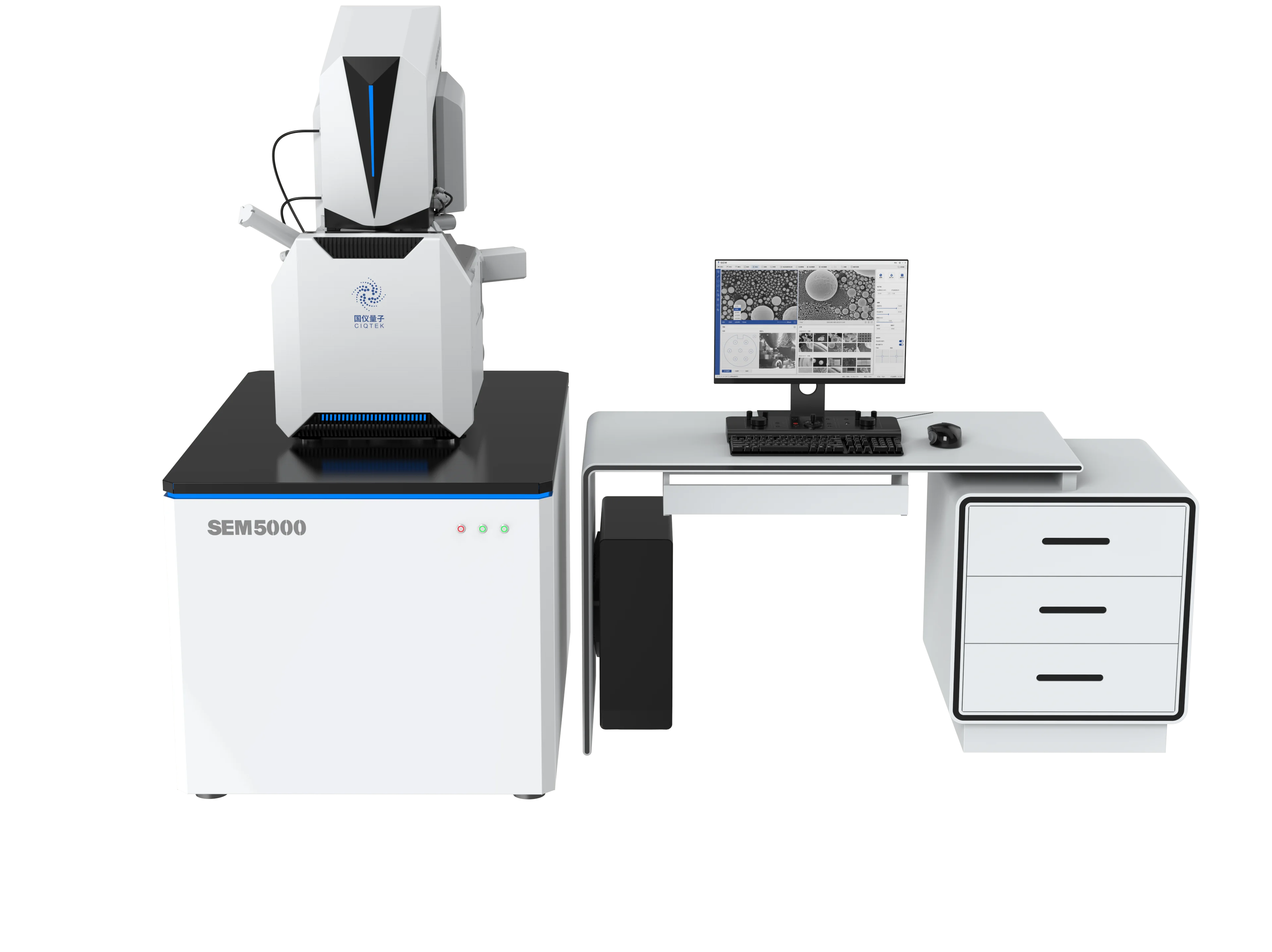

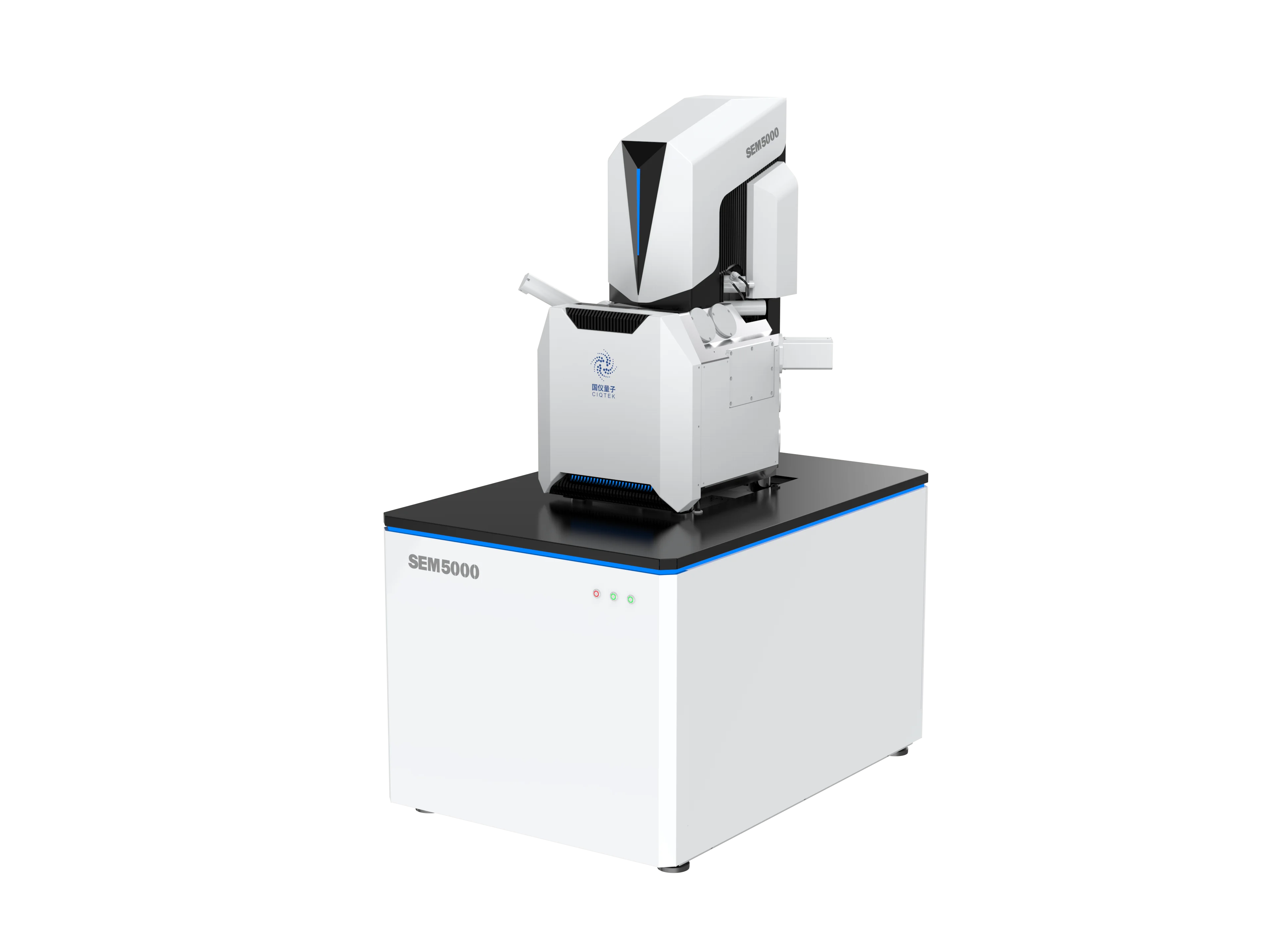

The MSEM5000 is a field emission scanning electron microscope offering unparalleled resolution and an array of features. Its advanced tube design, coupled with high-pressure tunnel technology (SuperTunnel) and low aberration MFL objective design, enables high-resolution imaging even at low voltages, making it suitable for examining magnetic samples.

Featuring optical navigation and flawless automatic functions, this microscope boasts a meticulously crafted human-computer interaction interface, ensuring optimized operation for users of all experience levels. Whether you're a seasoned researcher or a novice, you can swiftly initiate and complete high-resolution imaging tasks.

Key Parameters:

• Resolution:
  • 1.0 nm @ 15 kV (SE)
  • 1.5 nm @ 1 kV (SE)
  • 0.8 nm @ 30 kV (STEM)
• Accelerating Voltage: 20V~30 kV
• Magnification: 1~2,500,000x
• Type of Electron Gun: High brightness Schottky field emission electron gun
• Sample Environment: Room
• Vacuum System: Fully automatic control, oil-free vacuum system
• Camera Distance: Dual cameras (Optical navigation + in-chamber monitoring)
  • Distance: X: 120 mm, Y: 115 mm, Z: 50 mm, T: -10°~+90°, R: 360°
• Software: Language support for Chinese/English, OS: Windows
• Navigation: Optical navigation, gesture navigation
• Automatic Functions: Auto brightness contrast, auto focus, auto astigmatism
