Enhance Accuracy: Force Gauge Vertical Test Stand for Precise Measurements I Model MBWLAEV

by MEUBON
Save up to 71% Save 18%
Original price $5,494.86
Original price $5,494.86 - Original price $15,619.50
Original price $5,494.86
Current price $4,500.00
$4,500.00 - $4,500.00
Current price $4,500.00

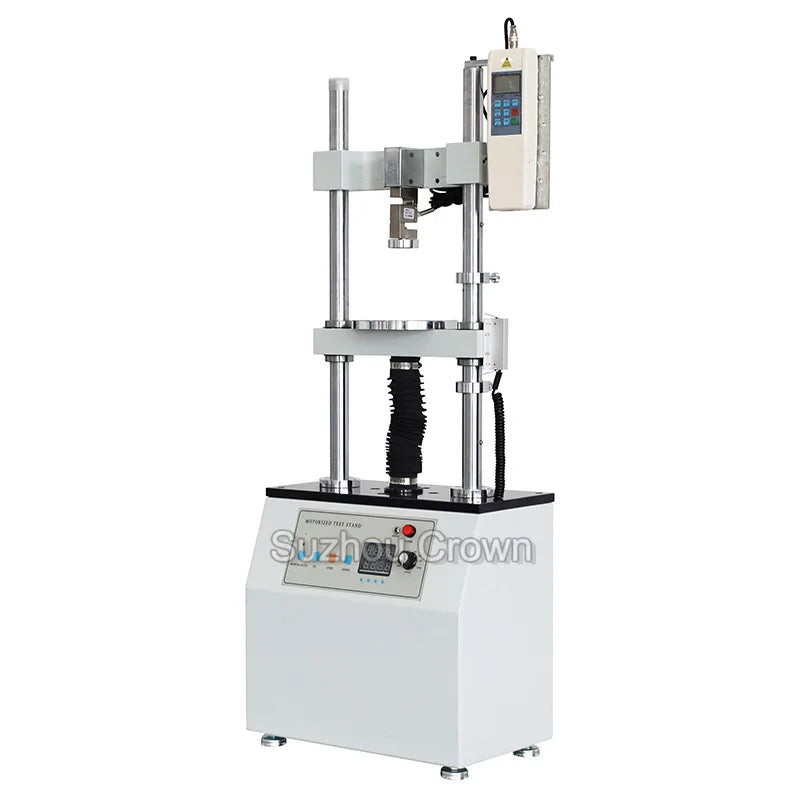

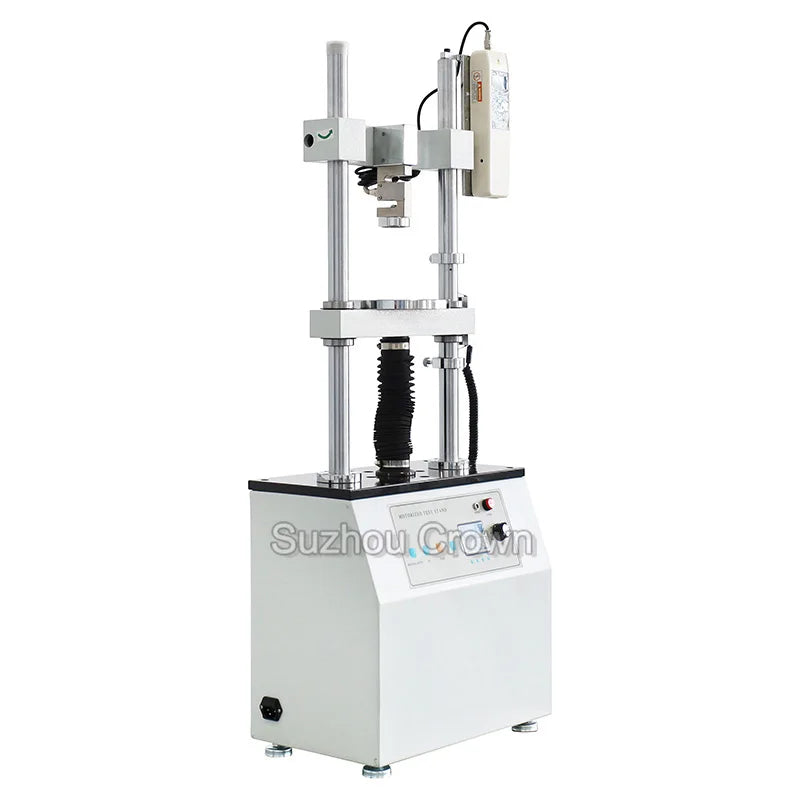

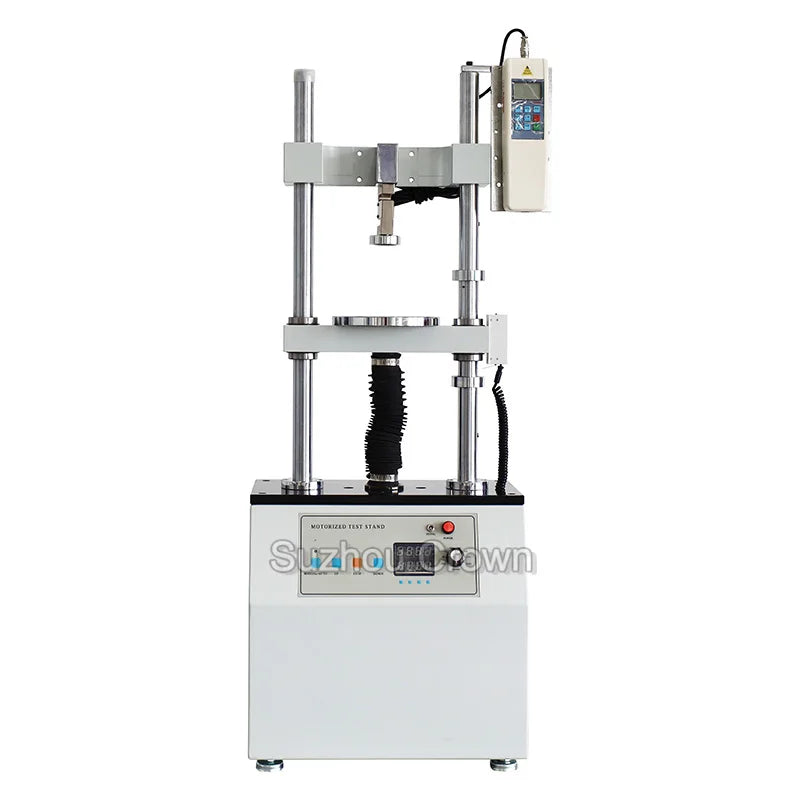

Introducing the Electric Vertical Pull-out Force Tester Machine: Elevate Your Testing Precision with Versatile Performance

This electric vertical tensile testing machine is engineered for push-pull load tests, plug-in force tests, and destructive testing. It finds extensive application across various industries including rubber and plastics, light industrial textiles, building doors and windows, composite materials, wires and cables, auto parts, power machinery, and scientific research institutions.

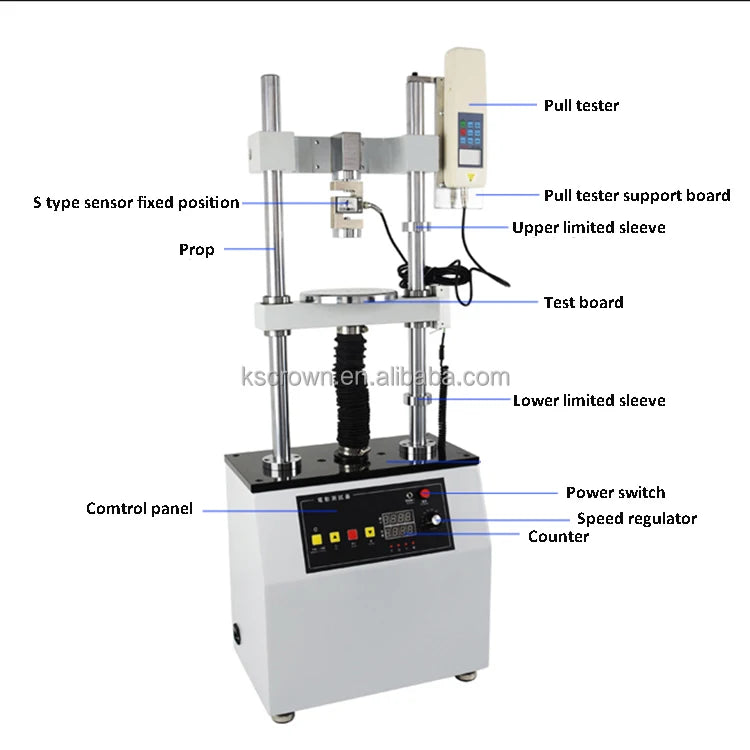

Features:

  • Double Pole Structure: Ensures ease of use, excellent stability, and wide applicability.
  • Electric Loading: Allows for seamless stepless speed regulation and gear transmission.
  • Compact Design: Features a space-saving and sturdy transmission mechanism.
  • Simple Operation: User-friendly interface allows for easy operation and compatibility with various fixtures.

Specifications:

  • Maximum Load: 5000N
  • Effective Stroke: 220mm
  • Test Speed: 60~220 mm/min
  • Working Voltage: AC 220V
  • Dimensions: 400x250x1050mm
  • Net Weight: 120lbs

Experience reliable and efficient testing with the Electric Vertical Pull-out Force Tester Machine.

  • Warranty : 1 year
  • Model Number : MBWLAEV
  • Power : Electronic
  • Model : WL-AEV
  • Maximum load : 5000N
  • Effective stroke : 220mm
  • Test speed : 60~220 mm/min
  • Working voltage : AC 110V  220V
  • Dimensions(mm) : 400x250x1050
  • Net weight : 120LBS
