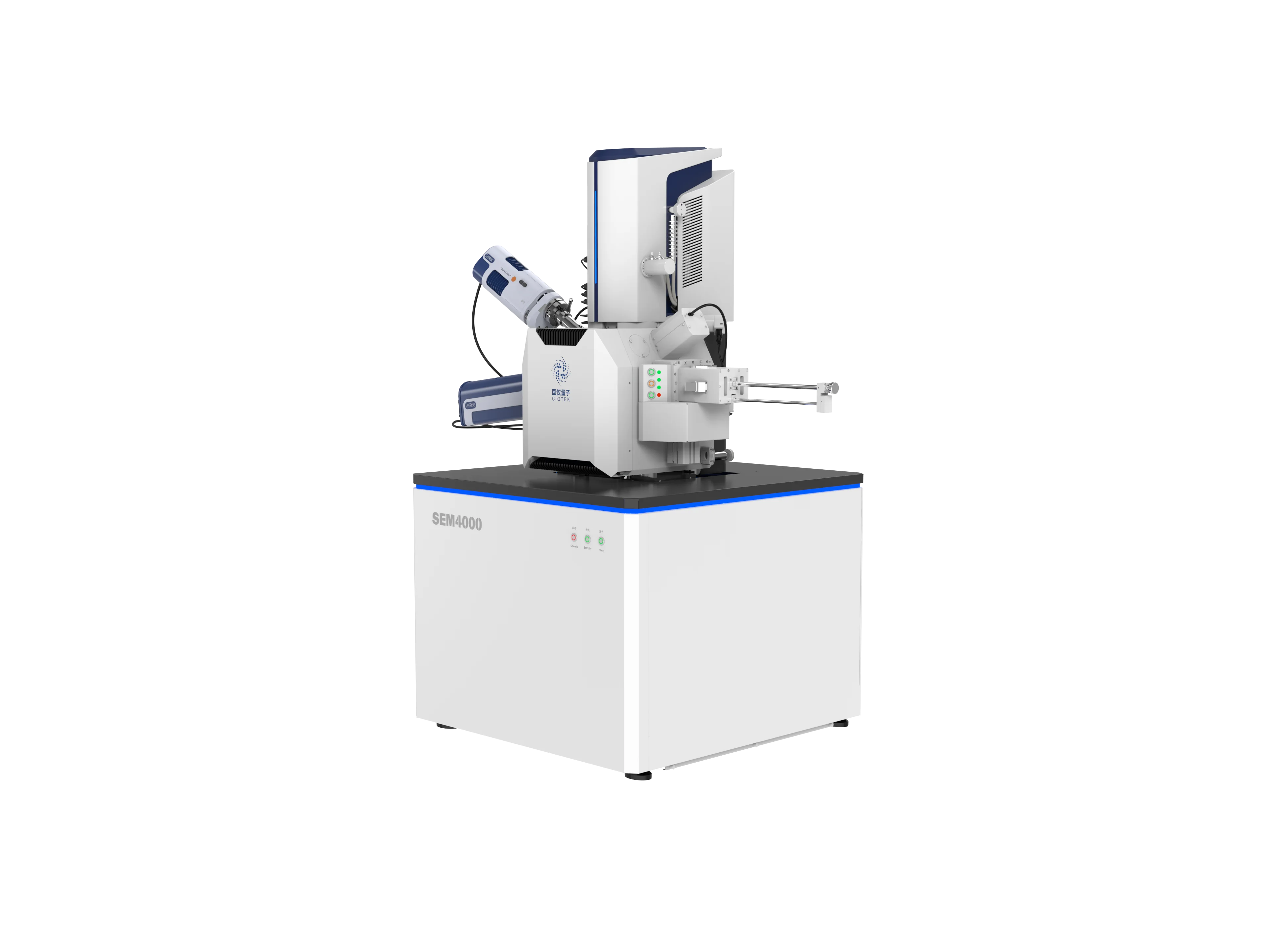

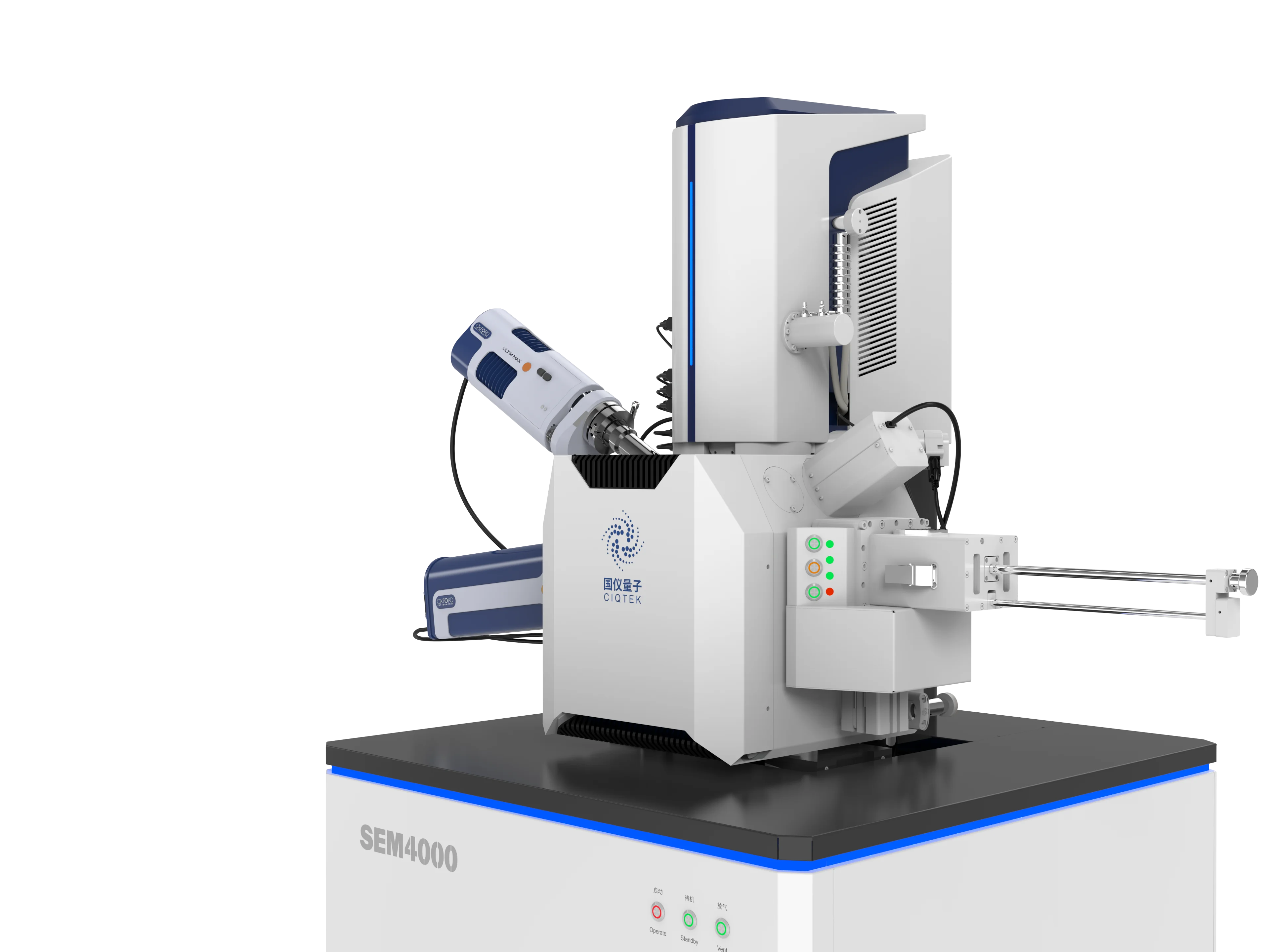

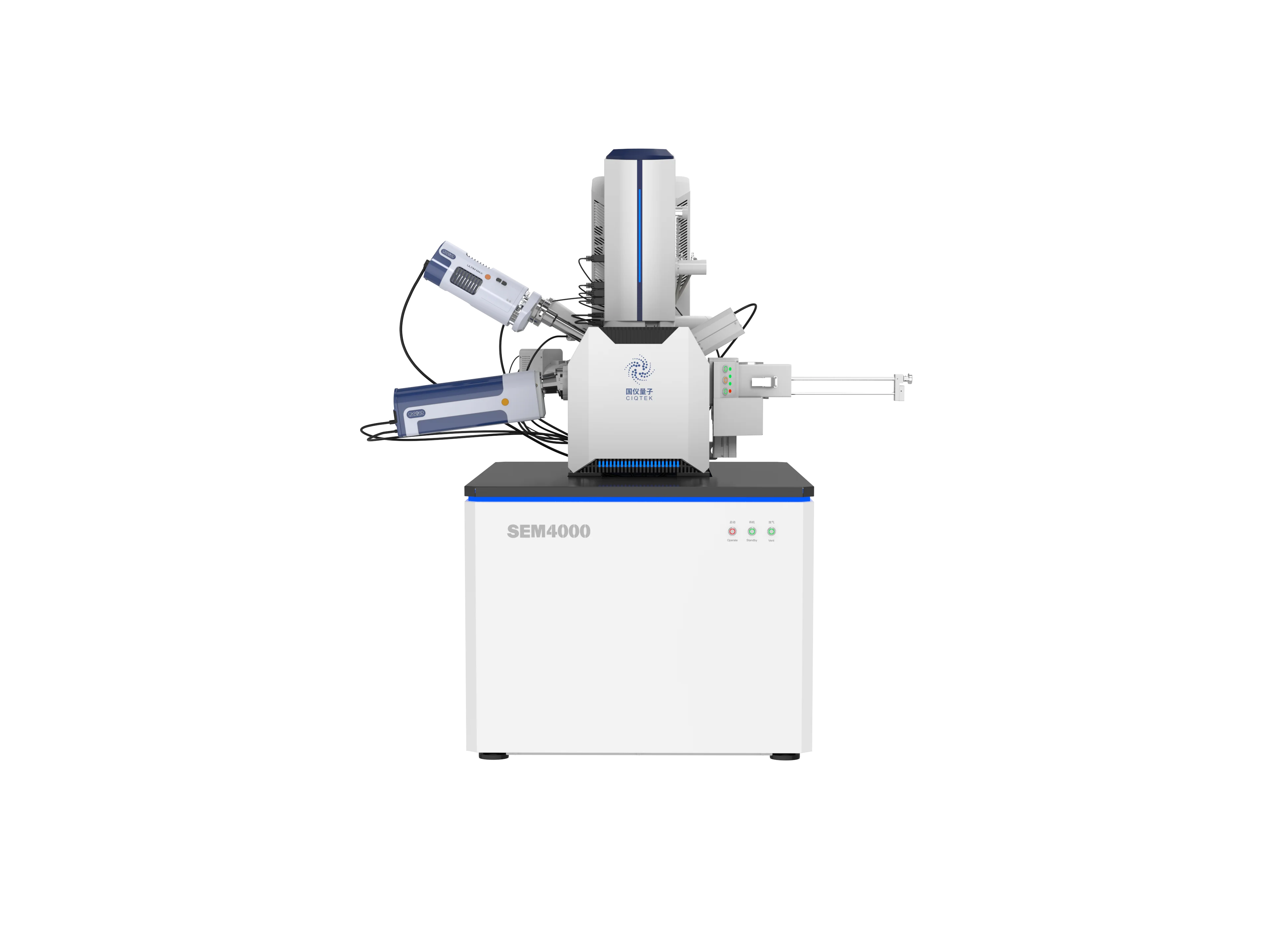

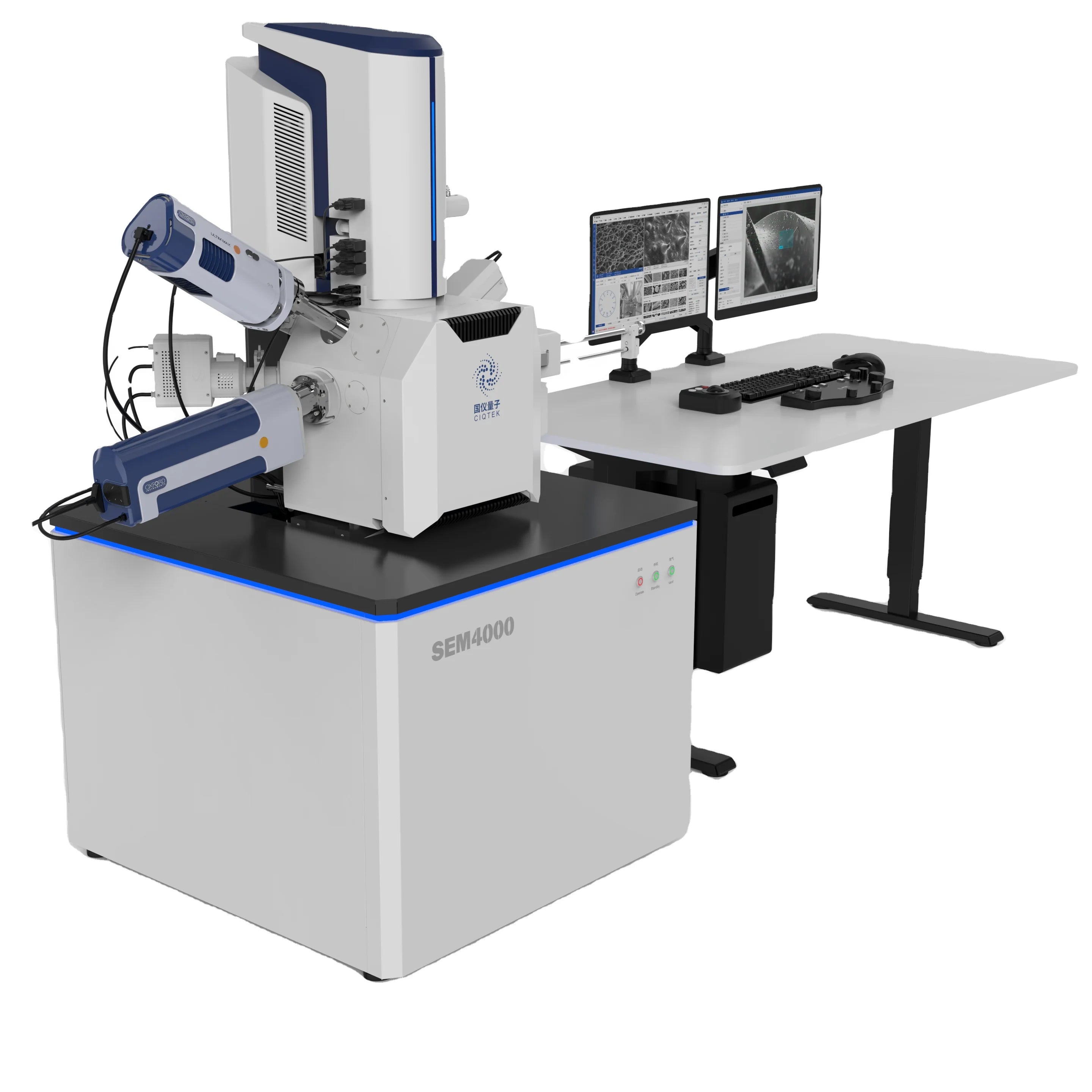

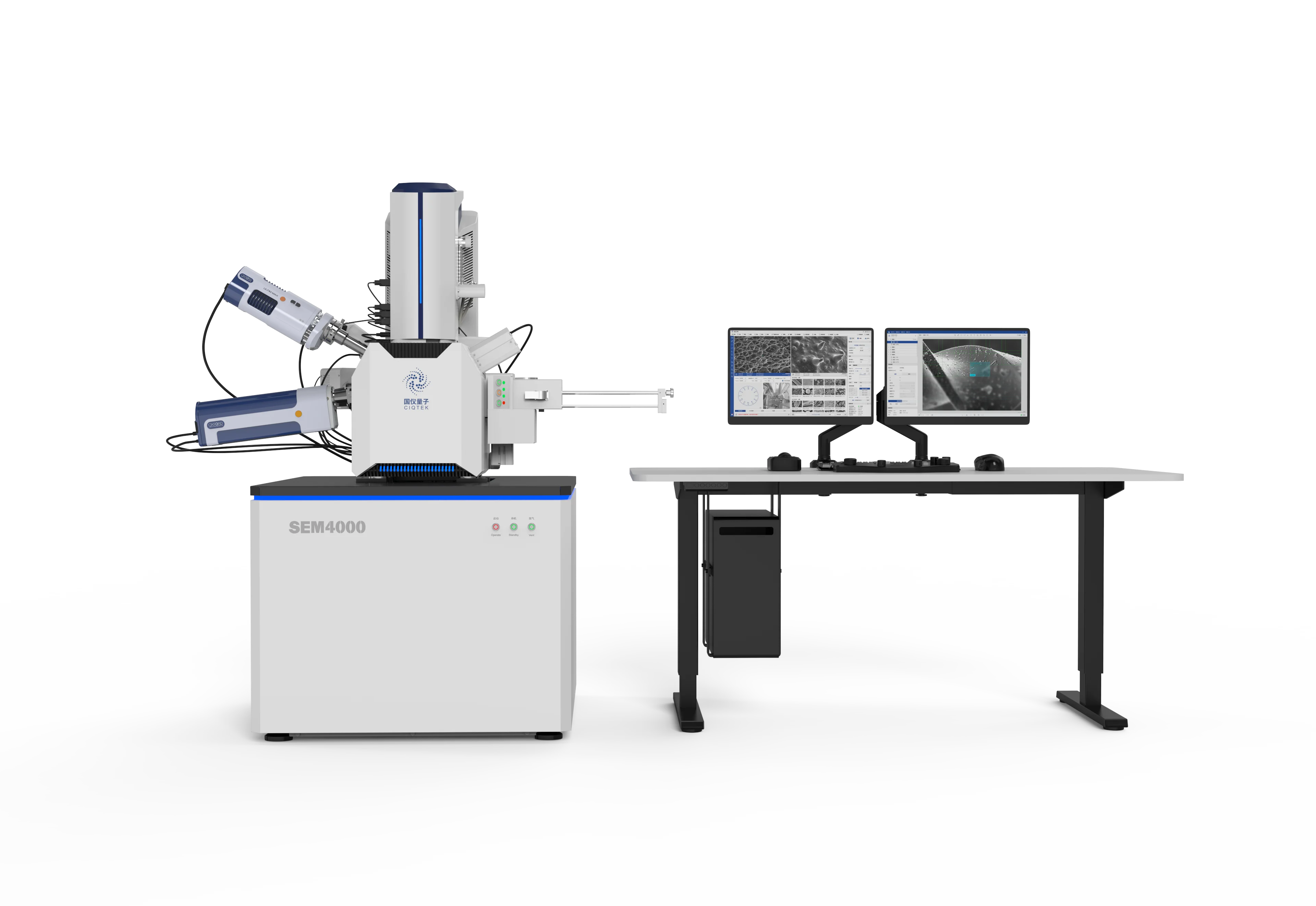

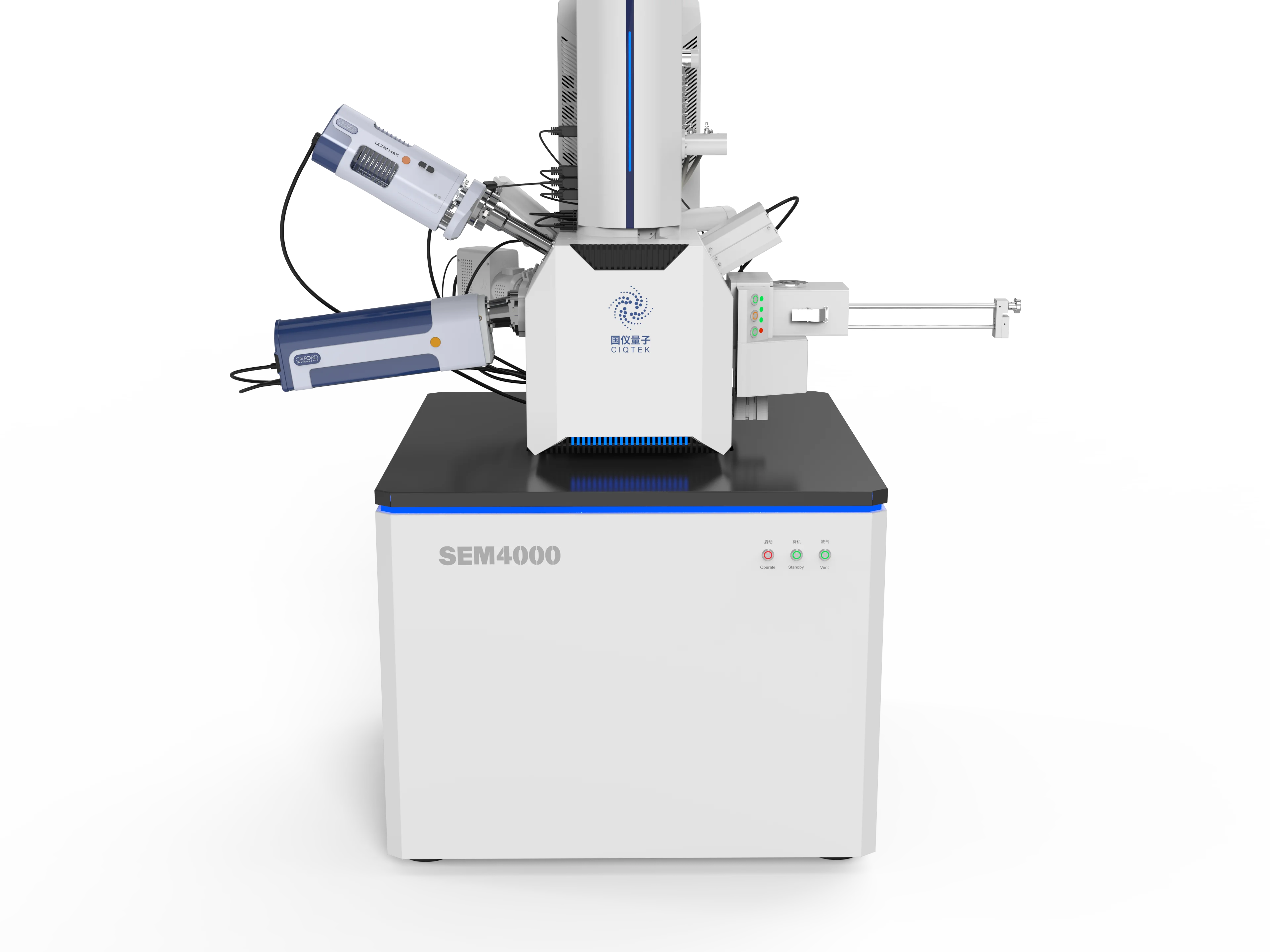

Experience the Cutting-Edge MSEM4000 High-Resolution Field Emission Scanning Electron Microscope, Engineered with a Leak-Free Magnetic Objective
Unlock unparalleled analytical capabilities with the MSEM4000, a thermal field emission scanning electron microscope boasting a high-brightness, long-life Schottky field emission electron gun. Its three-stage magnetic lens design, coupled with a large and adjustable beam current, excels in applications like EDS, EBSD, and WDS. Plus, it supports a low vacuum mode, enabling direct observation of weak or non-conductive samples. Equipped with standard optical navigation and an intuitive interface, your analysis work becomes effortlessly efficient.
Product Parameters:
- Resolution: 1 nm @ 30 kV (SE), 0.9 nm @ 30 kV (STEM)
- Accelerating Voltage: 200V~30 kV
- Magnification: 1~1,000,000x
- Type of Electron Gun: High brightness Schottky field emission electron gun
- Sample Environment: Room
- Vacuum System: Fully automatic control, optional low vacuum mode (Max 180Pa)
-
Camera Distance: Dual cameras (Optical navigation + in-chamber monitoring)
- Distance: X: 120 mm, Y: 115 mm, Z: 50 mm, T: -10°~+90°, R: 360°
- Software: Language support for Chinese/English, OS: Windows
- Navigation: Optical navigation, gesture navigation
- Automatic Functions: Auto brightness contrast, auto focus, auto astigmatism
