Gynecological O3 Treatment Ear Insufflation Equipment Oil Water Ozonated Machine Ozone Generator Medical Therapy
This smart portable ozone therapy device makes high pure ozone for ozone therapy applications.
It uses the latests Titanium electrode and quartz tube cells. and is driven by a safe low voltage---12V DC, which delivers super stable ozone output.
The users can choose ozone concentration from 10~99 ug/mL (mg/L) by adjusting the oxygen flow rate easily.
What's more, the size is so mini thus you can even travel with it any where.

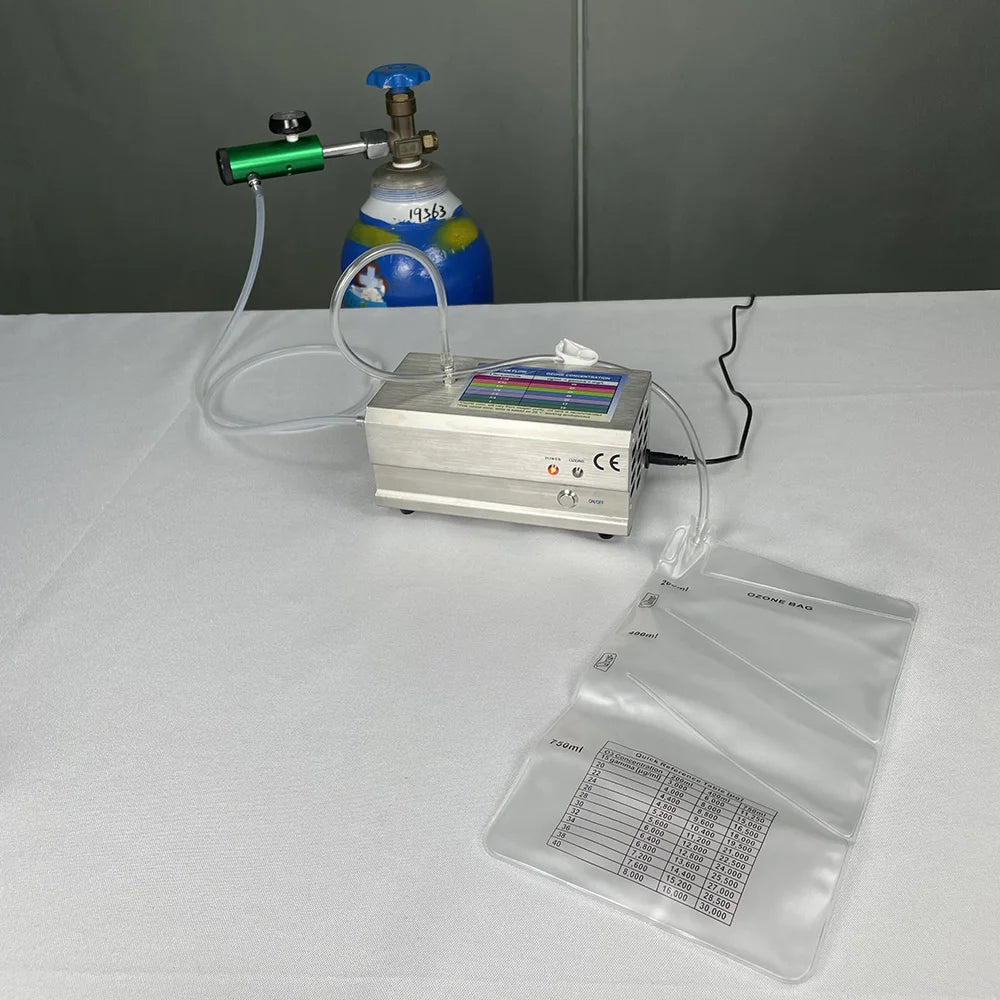

to ozone bag
oxygen cylinder --- oxygen regulator ---ozone machine ---ozone bag

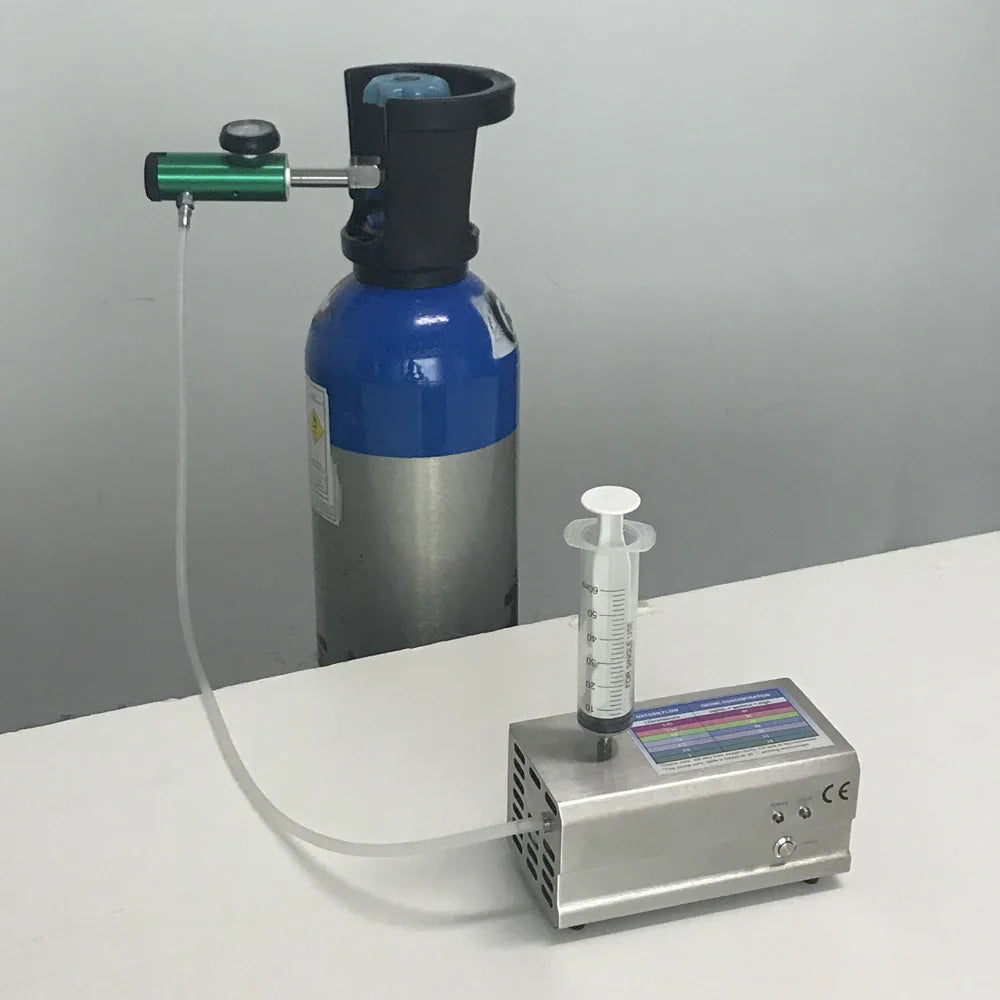

to syringe
oxygen cylinder --- oxygen regulator ---ozone machine ---syringe
Features:
1. Pure ozone is made, for medical use
2. Very easy to operate, users can use it at home every day
3. Very stable performance, very stable ozone ozone output
4. safety low power input, very low power consumption
4. ozone concentration is adjustable
5. 100% ozone resistance material
|
APSO0.2-D NP SPECIFICATIONS
|
|||
|
Model No.
|
APSO0.2-D NP
|
||
|
Ozone Concentrations:
|
10 ~ 99 ug/mL ( 1 ug/mL = 1 gamma = 1 mg/L ) Adjustable
|
||
|
Oxygen Source Requested:
|
1/32 - 1 Lpm pure oxygen flow rate
|
||
|
Connection of Ozone Outlet
|
Standard Lever Lock Connector with SS# 316 material
|
||
|
Cooling System
|
4000 RPM , 15CFM cooling fan
|
||
|
Ozone Module
|
Titanium electrode and pure quartz tube
|
||
|
Cell Life
|
> 10,000 hours
|
||
|
Input Voltage
|
110/230 V, 50/60 Hz (100-240V AC adaptor to 12V DC running)
|
||
|
Driving Voltage
|
12V DC
|
||
|
Rated Power
|
< 12 W
|
||
|
Product Size(L x W x H)
|
175 * 89 * 82 mm
|
||
|
Master Carton box
|
12 sets/ master carton box, 60*48*32 cm ; 17 kg
|
||
- Weight : 5lbs
- Power : 0.04
- Warranty : 1 Year
- Productivity : 500L/Hour
- Ozone concentration : 10~99ug/ml with oxygen source (adjustable)
- Operating oxygen flow : 0 ~ 4 L/min
- Ozone Module : 99.9% pure Quartz and Titanium Electrode
- Driving voltage : 12V DC (100-240V AC to 12V DC adaptor)
- Input Voltage : 110/230 V, 50/60 Hz
- Indicators : power and ozone
- Cooling system : 4000 RPM , brushless cooling fan
-
Master Carton box : 12sets / master carton box
