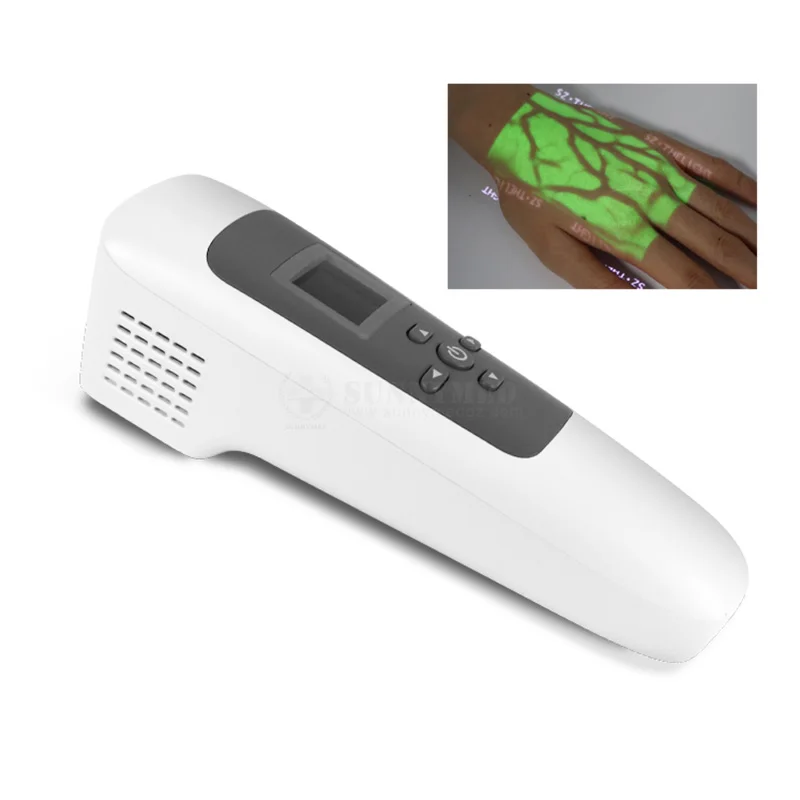

Portable Infrared Vein Finder – Handheld Medical & Veterinary Vein Viewer
Overview:
This Portable Infrared Vein Finder is a handheld vascular visualization device designed to help healthcare professionals accurately locate veins for intravenous access. Using advanced near-infrared (NIR) technology, it projects a real-time image of a patient’s vein pattern directly onto the skin, reducing failed IV attempts and improving patient comfort—especially for individuals with hard-to-locate veins.
Ideal for hospitals, clinics, emergency rooms, home care, and veterinary use, it enhances accuracy for nurses, doctors, and phlebotomists during blood draws, IV insertions, or vein access procedures.
Key Applications:
-
Intravenous injection and blood draw assistance
-
Suitable for adults, children, infants, and newborns
-
Veterinary use for animals of all sizes
-
Enhances visibility for hard-to-access veins
-
Clinical use in hospitals, clinics, or home visits
Main Features:

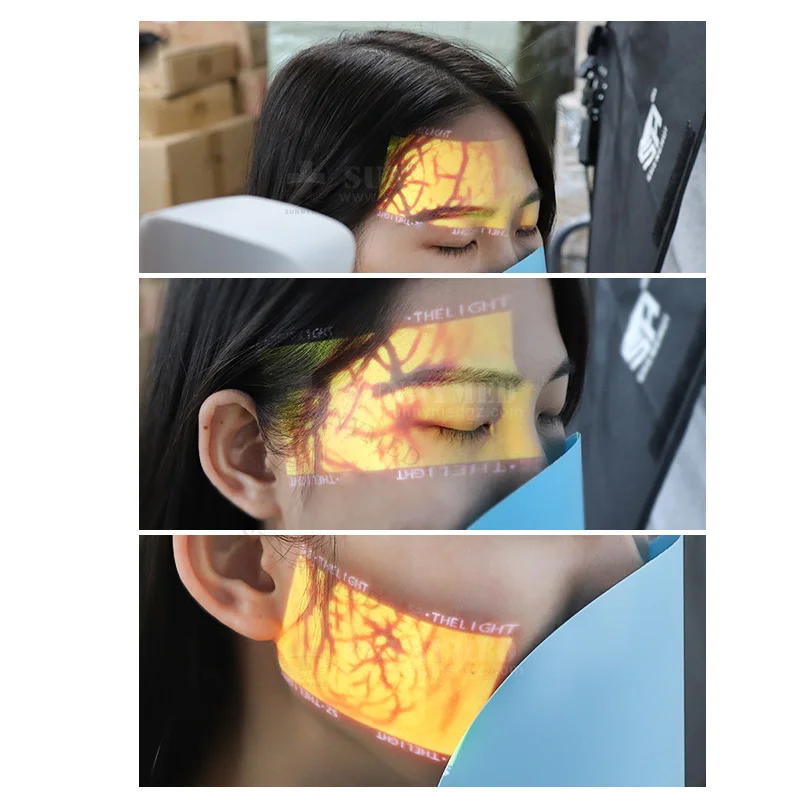

✅ Real-Time Vein Visualization:
Projects a clear image of veins using NIR light absorbed by blood but reflected by surrounding tissue.
✅ Adjustable Projection Sizes:
Four size options – Large, Medium, Small, Very Small – ideal for patients of all ages and sizes.

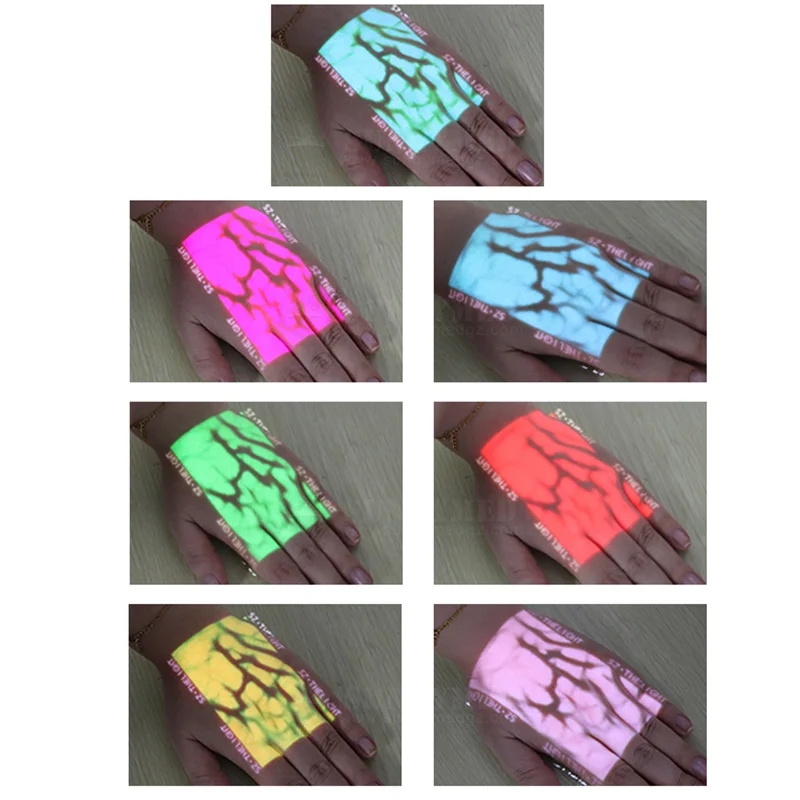

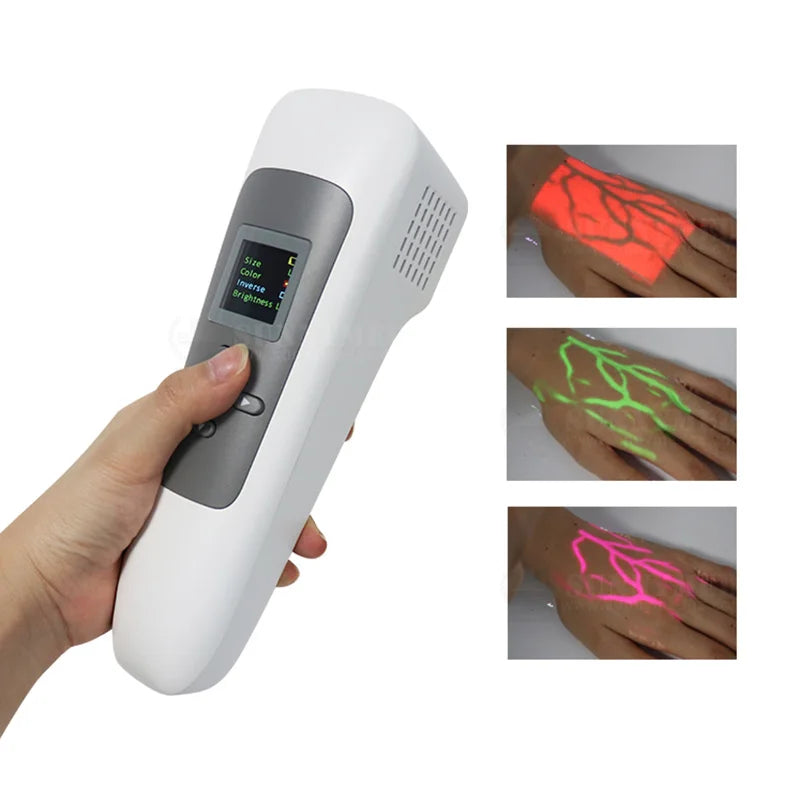

✅ 7 Projection Colors:
Black & white, green, red, purple, and their background variants for better contrast across skin tones.
✅ Multiple Modes:
Normal, Enhanced, and Depth Modes for different clinical needs.
✅ Brightness Control:
Four adjustable brightness levels for optimal visibility in any lighting environment.
✅ Inversion & Enhancement Modes:
Improves vein clarity and minimizes interference from arm hair.
✅ Lightweight & Versatile:

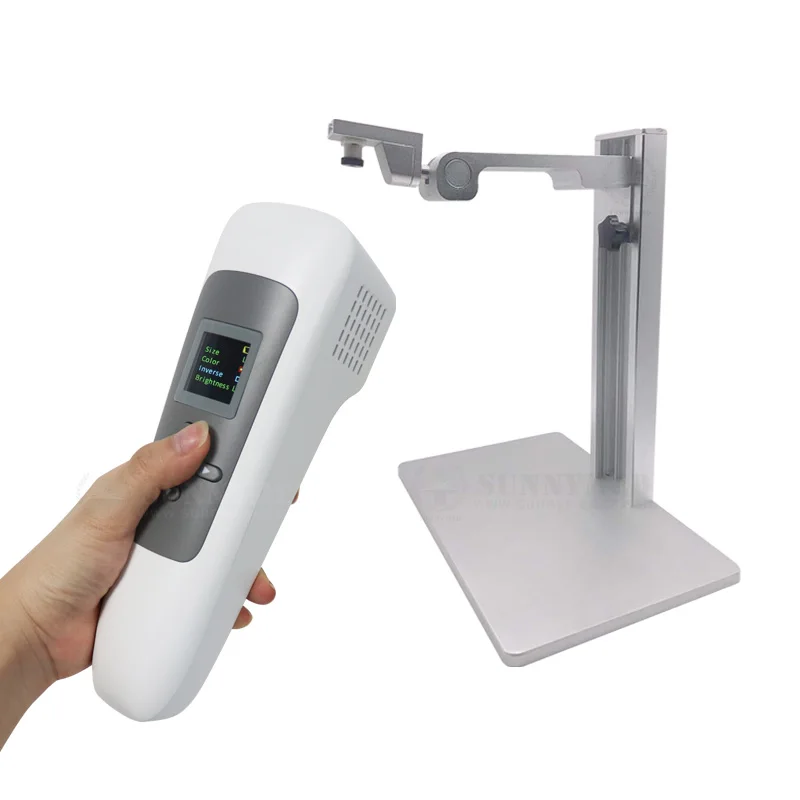

Use as a handheld, benchtop, or with an optional mobile stand for flexibility in clinical settings.
✅ Improves First-Attempt Success Rate:
Significantly reduces patient discomfort and increases satisfaction by up to 100%.
Technical Specifications:
-
Light Source: Near-infrared (850nm wavelength)
-
Projection Resolution: 854 x 480 pixels
-
Frame Rate: 60 frames/second
-
Detection Depth: Up to 8mm
-
Minimum Detectable Vein Diameter: ≥0.4mm
-
Projection Distance: Optimal at 20cm ± 2cm
-
Accuracy: ±0.5mm
-
Display: 0.96" OLED screen
-
Battery: 7.2V, 2200mAh | Runtime: ≥2.5 hours | Charging Time: 3 hours
-
Power Supply: AC 100–240V, 50/60Hz, DC 12V/2.5A
-
Dimensions: 220mm × 65mm × 65mm
-
Weight: 480g
-
Noise Level: ≤40dB
-
Sleep Mode: Auto sleep after 30 minutes of inactivity

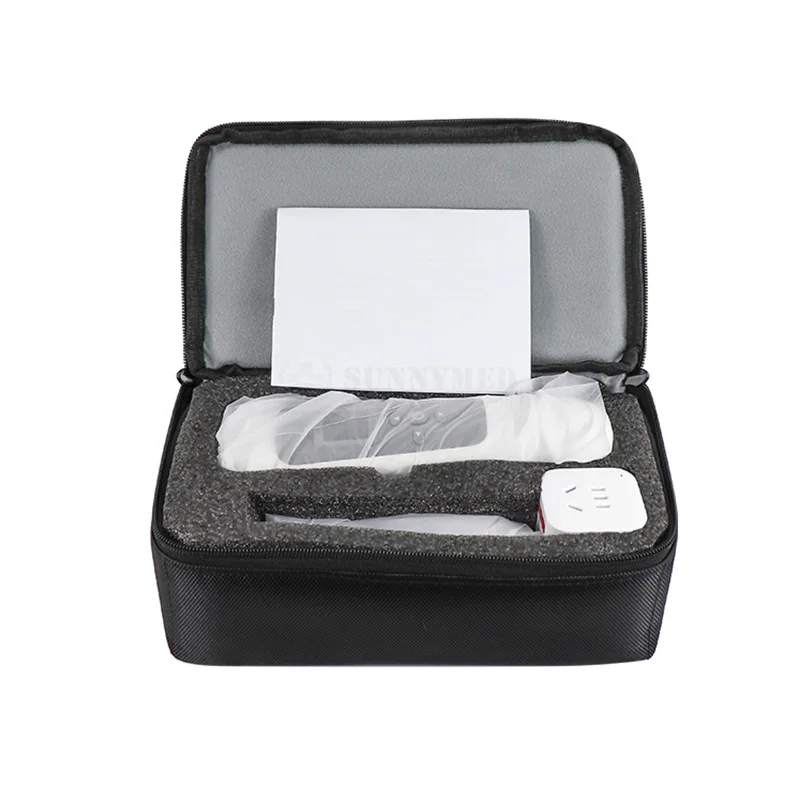

Package Includes:
-
1 × Vein Finder Unit (Model G090S)
-
1 × Power Adapter
-
1 × Carrying Case
-
1 × Bracket
-
1 × Benchtop Stand Holder
-
1 × User Manual

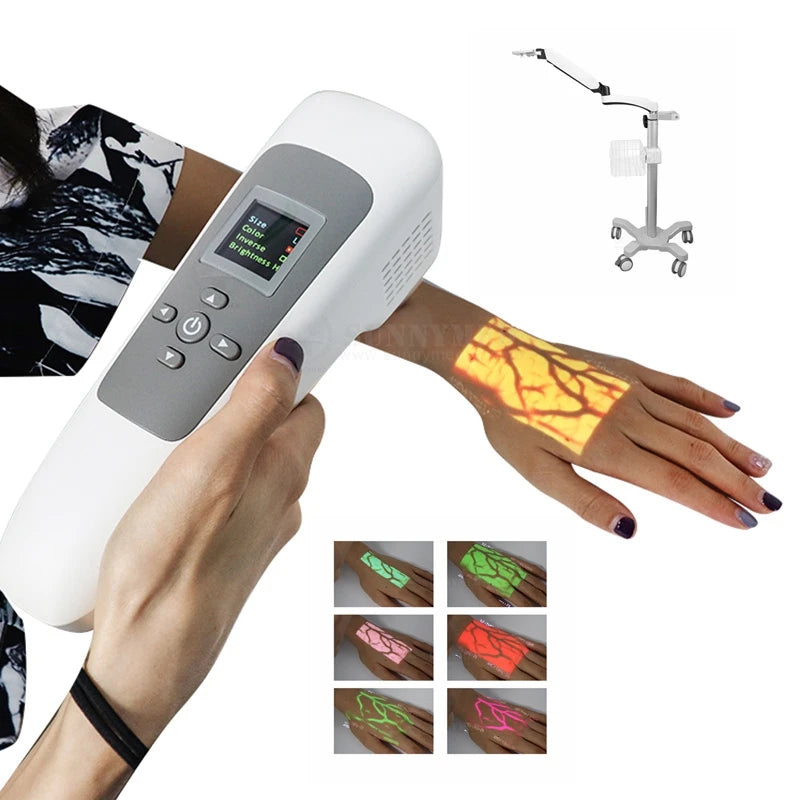

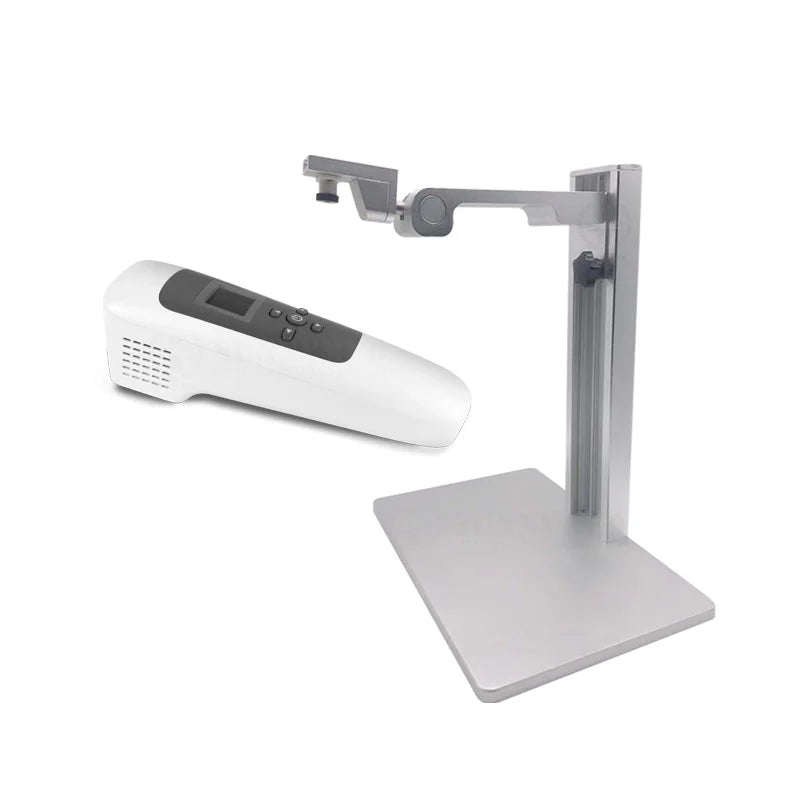

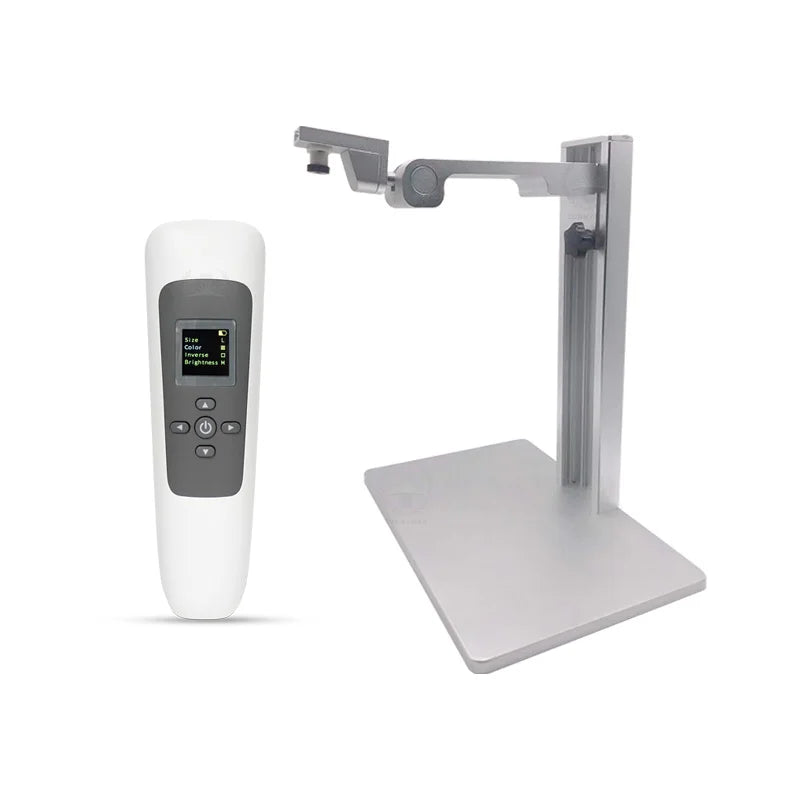

Optional: Mobile Stand for hands-free use.

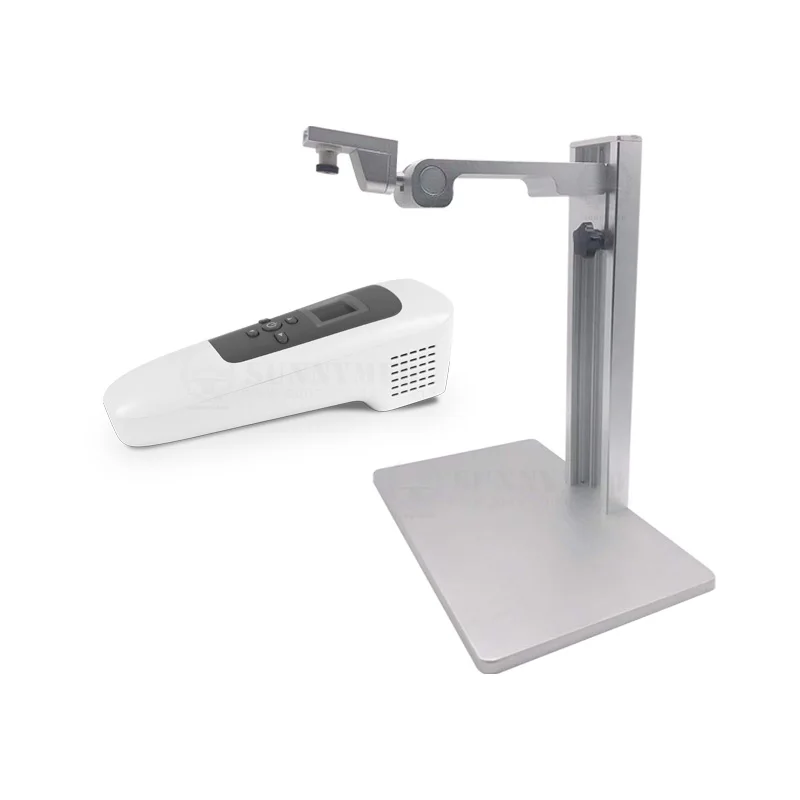

Fixed stand
