High Accuracy Handheld Ultrasonic Water Flow Sensor | Liquid Flow Meter Solution

by Meubon
Save 6% Save 6%
$1,800.00
$1,800.00 - $1,800.00
$1,800.00
$1,690.00
$1,690.00 - $1,690.00
$1,690.00

The High Accuracy Handheld Ultrasonic Water Flow Sensor is a full-featured, portable transit-time ultrasonic flow meter designed for fast, accurate, and non-invasive liquid flow measurement. Whether you're verifying the performance of another flow meter or conducting long-term data logging, this handheld device is the ideal solution.

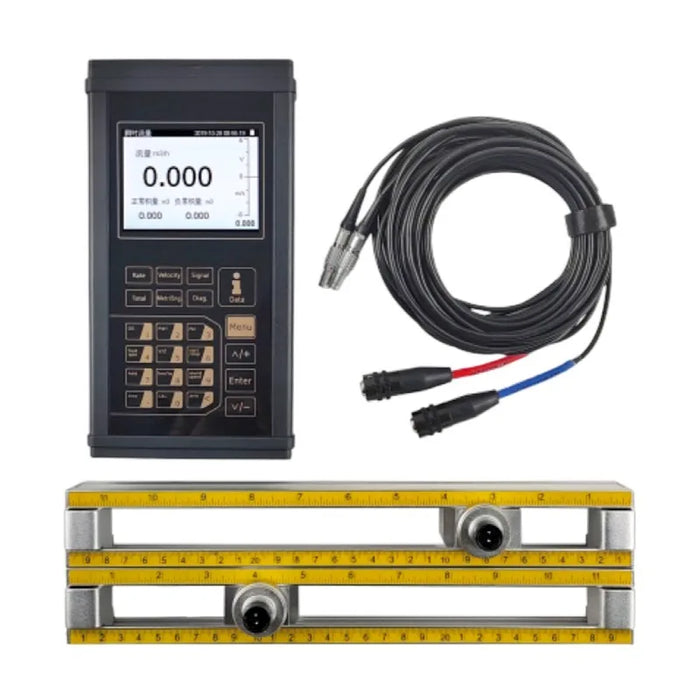

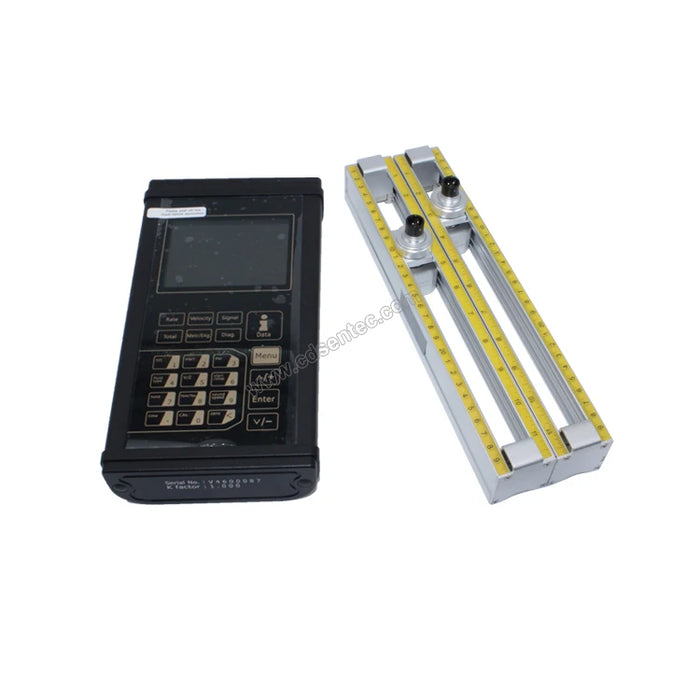

This model comes with clamp-on transducers, eliminating the need for pipe cutting or tapping—just clamp the sensors onto the outside of the pipe for instant readings. Designed for ease of use, portability, and flexibility, the device is perfect for temporary flow measurement across multiple sites. Its rugged design makes it suitable for use in various industrial and plumbing systems, helping verify pump, sensor, and valve performance with precision.

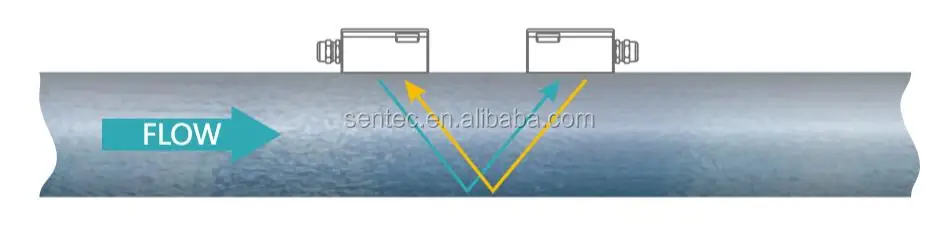

Measuring principle

Transfer time technical means the ultrasonic signal from the transducer is transmitted and received through the m oving liquid, there w ill be a difference between the upstream and downstream transit time, which can be u sed to calculate flow and velocity.

Specifications:

Performance:

  • Flow Range: ±0.03 ft/s to ±40 ft/s (±0.01 m/s to ±12 m/s)

  • Accuracy: ±1% of measured value

  • Fluid Type: Single-medium liquid

Pipe Compatibility:

  • Size: Clamp-on for 1" to 48" (25mm to 1200mm) pipes

  • Material: Compatible with carbon steel, stainless steel, PVC, and other dense materials

Functions & Outputs:

  • Analog Output: 4–20mA, max load 750Ω

  • Digital Communication: Modbus RS485

  • Data Storage: 16GB SD card included

Power & Operation:

  • Battery: Rechargeable 3000mAh lithium battery (16 hours continuous operation)

  • Measurement Interval: Configurable from 1 to 99,999 seconds

Display:

  • Screen: 240×128 backlit LCD for clear visibility

Environmental Conditions:

  • Operating Temperature:

    • Transmitter: -40°C to 60°C

    • Transducer: -40°C to 80°C (standard), up to 130°C (optional)

  • Humidity: Up to 99% RH, non-condensing

Durability:

  • Transmitter Housing: NEMA13, IP54-rated

  • Transducer: IP68-rated, fully encapsulated design

  • Cable Length: 5m (16ft) standard

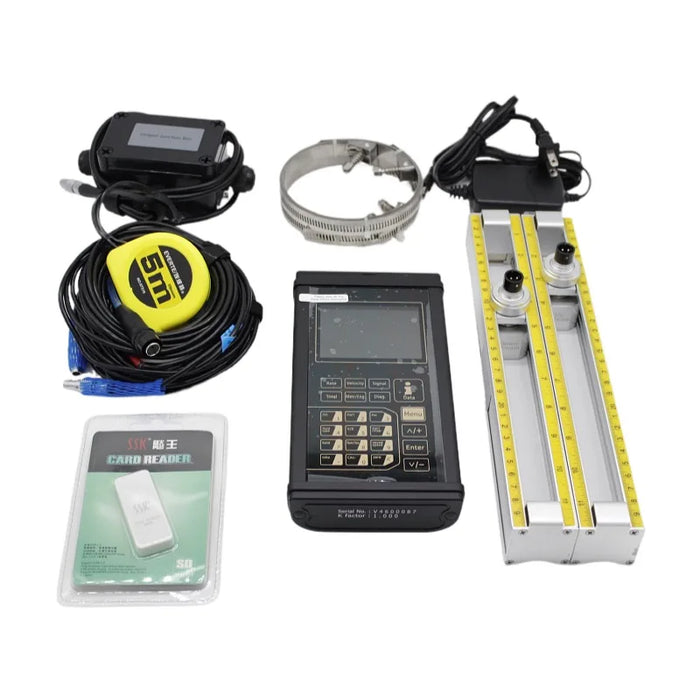

Accessories

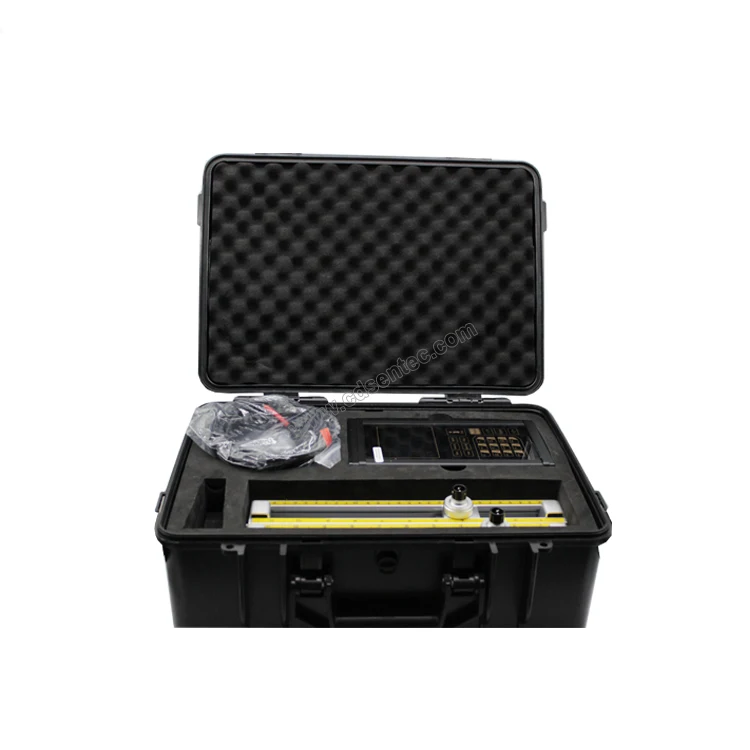

1. Carrying Case*1pc.

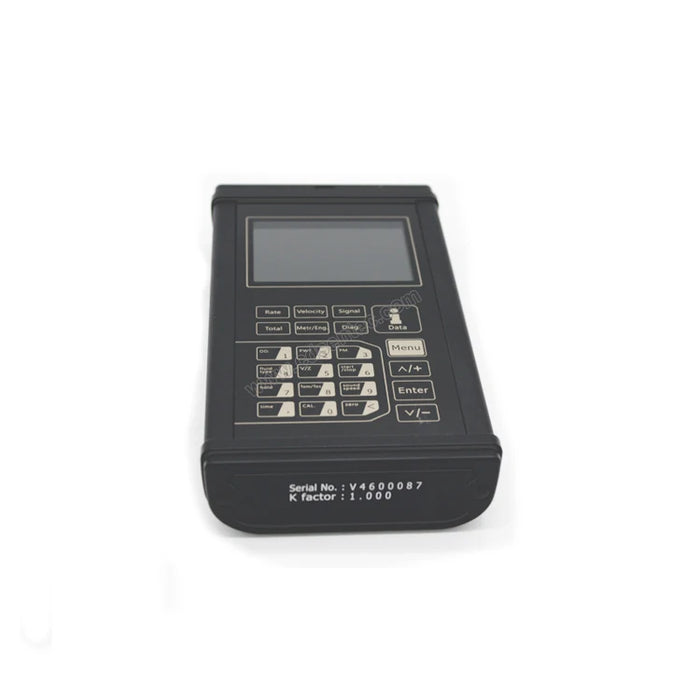

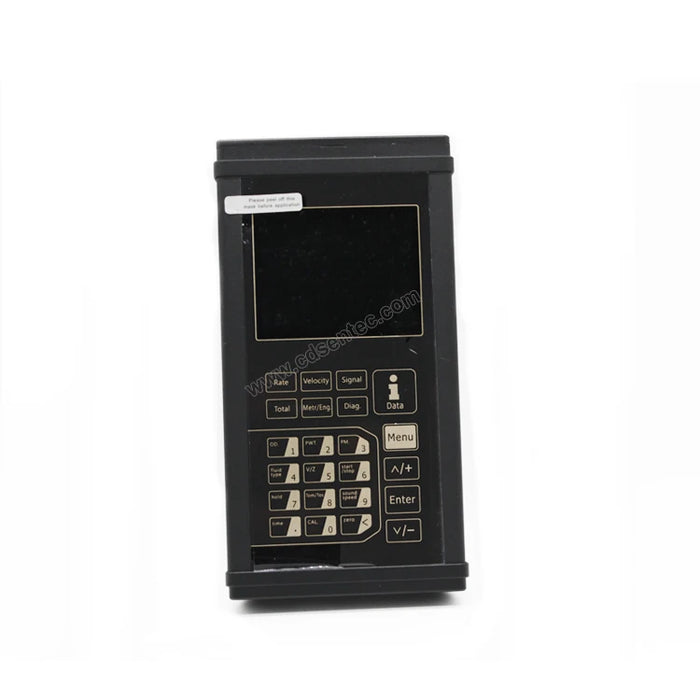

2. Transmitter (Electronic)*1pc.
3. Transducer (Sensor) *1 pair.
4. Mounting track*1 set, ST or DT
5. Pipe straps *2 pairs.
6. Coupling compound (Grease)*1 pc, Battery charge*1pc, Output cable*1pc and Tapeline*1
  • warranty : 12month
  • Measurement Range : 0~ 5m/s
  • accuracy : +/-1%
  • type : Variable Area Water Flowmeters, Variable Area Petrolum Flowmeters, Variable Area Oil Flowmeters
  • material : Stainless Steel
  • Medium : liquid
  • Connectivity : clamp-on
  • Product Name : insertion type ultrasonic flowmeter
  • Keyboard : 16 (4*4) Touch button
  • Range : 0~ 5m/s
  • Display : 20*2 dot matrix character backlit LCD display
  • Accuracy : 1%FS
  • Power supply : DC 10V ~36V | AC 10~24V
  • Ambient temperature : -10 ° C ~ 50 ° C
  • Output : 4~ 20mA, RS485, Modbus protocol or custom protocol
  • Name : insertion type ultrasonic flowmeter
