High-Quality Anesthesia Machine for Hospital Use - Medical Apparatus & Anaesthesia Instruments

Veterinary Hospital Anesthesia Machine

Product Parameters:

• Screen:
  • 10.4'' LCD Display Screen
• Mode:
  • Pneumatically powered and electrically controlled system
• Circuit:
  • Integrated breathing circuit standards
• Flowmeters:
  • 5 Tubes Flowmeters:
    • O2: 0.1~10L/Min
    • N2O: 0.1~10L/Min
    • Air: 0.1~10L/Min

• Safety Valve:
  • <12.5 kPa
• Respiratory Rate:
  • 1~99 bpm
• Oxygen Concentration in Mixed Gas (N2O/O2):

  • 21%

• Oxygen Flush:
  • 25~75 L/min
• PEEP:
  • 0 ~ 20 hPa
• Ptr:
  • -10 ~ 20 hPa
• IMV Frequency:
  • 1 ~ 20 bpm
• I/E Ratio:
  • 8:1 ~ 1:10, includes inverse ratio ventilation
• Tidal Volume:
  • 0 ~ 1500 ml
• Inspiratory Plateau:
  • 0~1 s
• O2 Concentration:
  • 21%~100%
• Maximum Safety Pressure:
  • ≤ 12.5 kPa
• Pressure Limit Range:
  • 0-6.0 kPa
• Ventilation Volume Alarm:
  • Lower: 0~12 L/Min; Upper: 18 L/Min
• Oxygen Alarm:
  • Alarms when oxygen supply from pipe or cylinders is lower than 0.2 MPa
• Relative Humidity:
  • No higher than 95%
• Ambient Temperature:
  • -15°C ~ +50°C
• Power Requirement:
  • ~220-240V, 50/60Hz, 40VA, well-grounded
• Atmospheric Pressure:
  • 860 hPa ~ 1060 hPa
• Operating Temperature:
  • 10 ~ 40°C
• Operating Humidity:
  • No higher than 80%

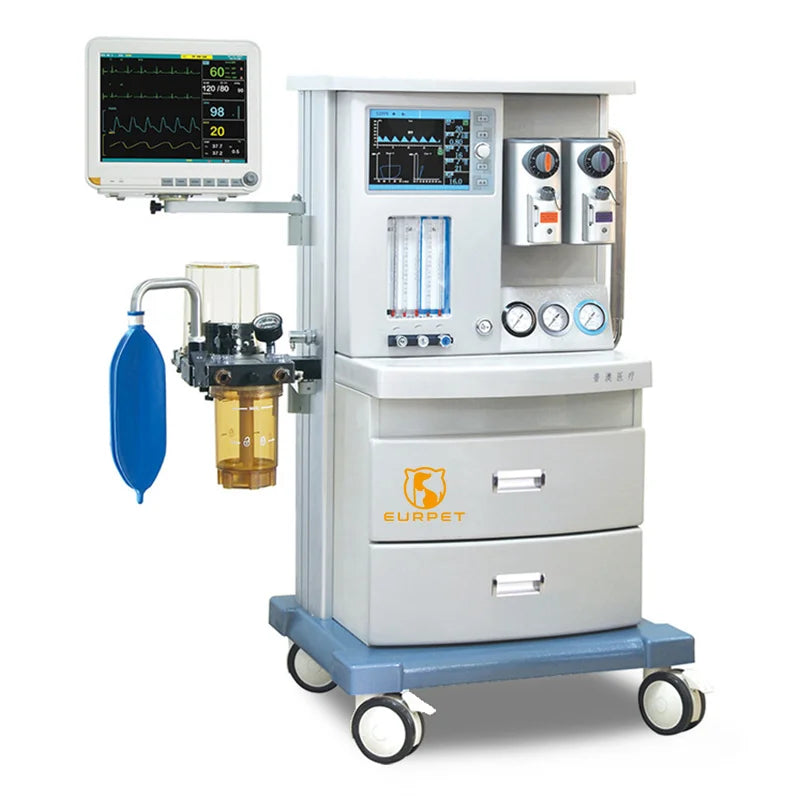

This Veterinary Hospital Anesthesia Machine is designed to provide precise and reliable anesthesia delivery for veterinary procedures. Featuring a 10.4'' LCD display screen and advanced safety features, it ensures high performance and safety in various clinical environments.

It is very beautiful, and it is very stable and reliability.

The function is very good and the performance cost is very high.

Stably deliver agent, automatic temperature-compensating .deliver accurate agent

Sophisticated delivery system, Stable, prompt, accurate

Various kinds of mounting types. Meet different anesthetic machine requirements.

It is used for veterinary hospital, veterinary clinic, animal zoo, farm department and so on

• Properties : Anatomy Appliances
• Material : 304 Stainless Steel
• Usage : Animal Healthcare
• Advantage : anticorrosion, anti acid rust
• Function : Body Healthy Check Veterinary Instruments
• Feature : Sustainable
• Application : Animal Hospital
