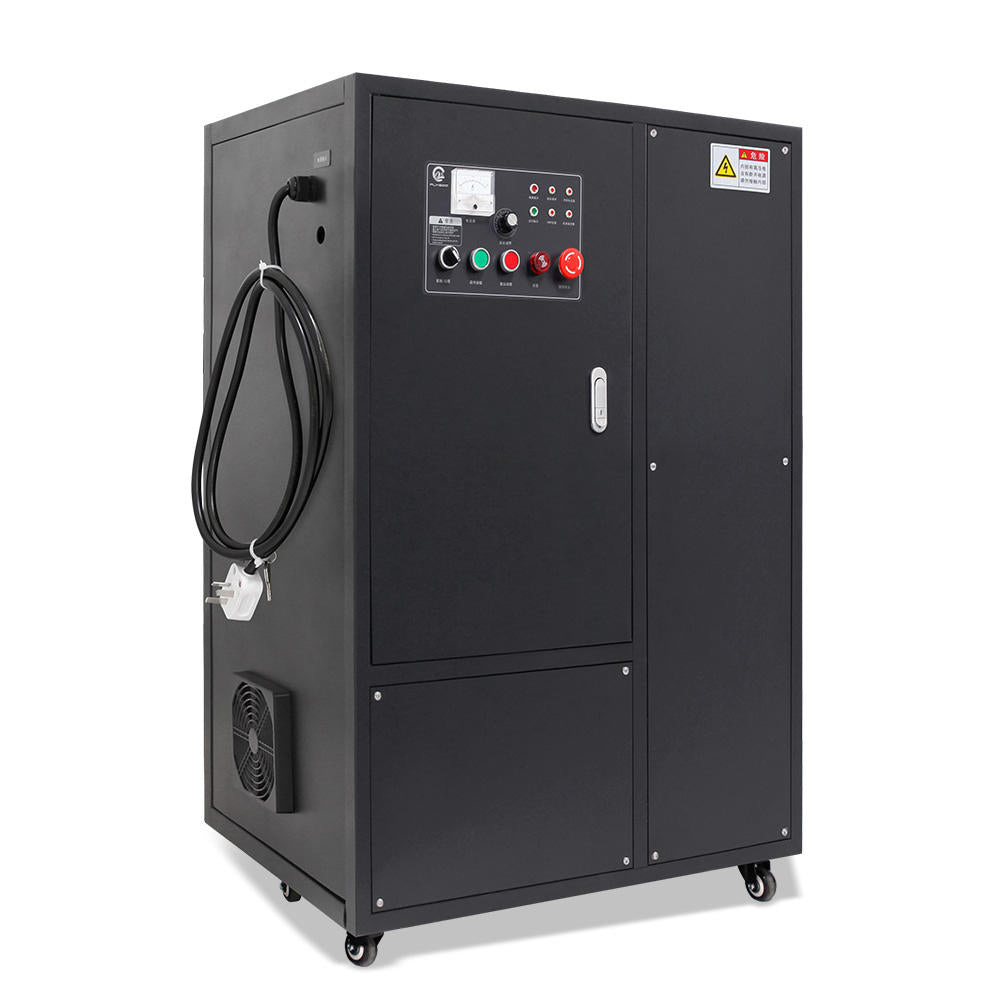

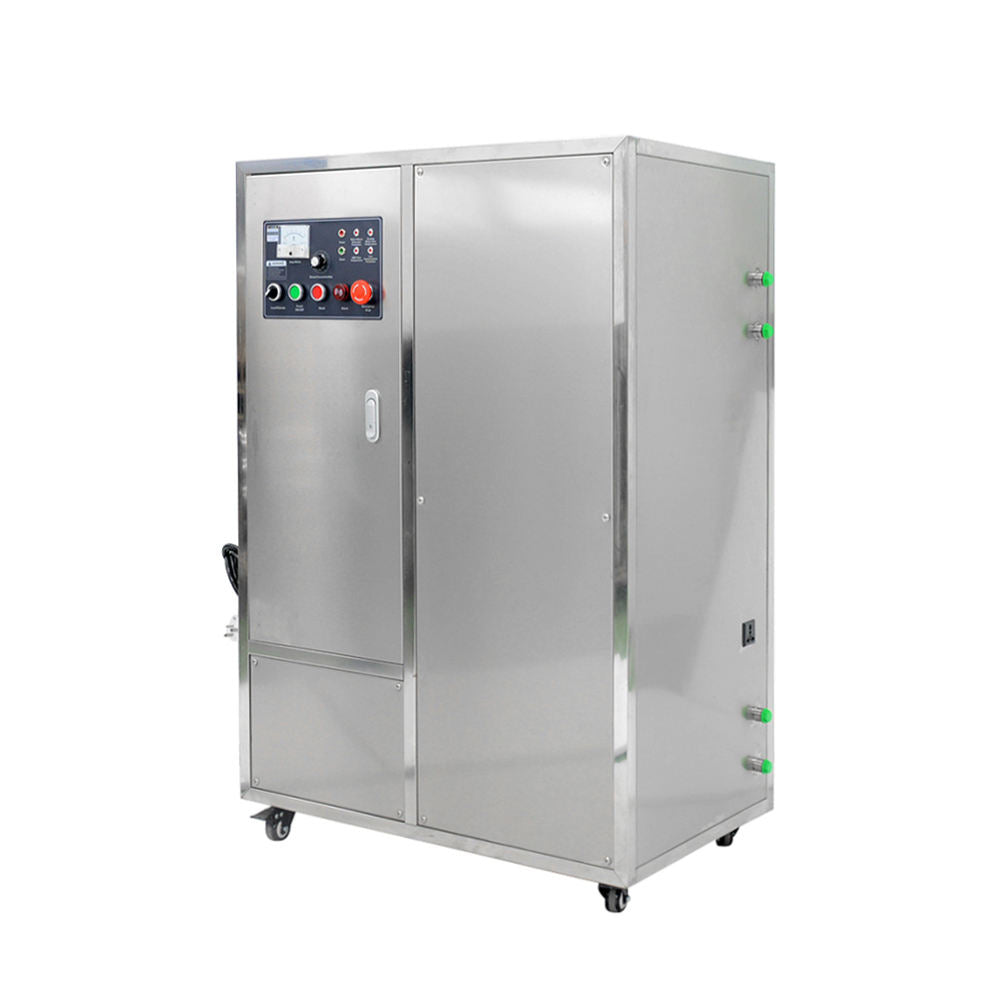

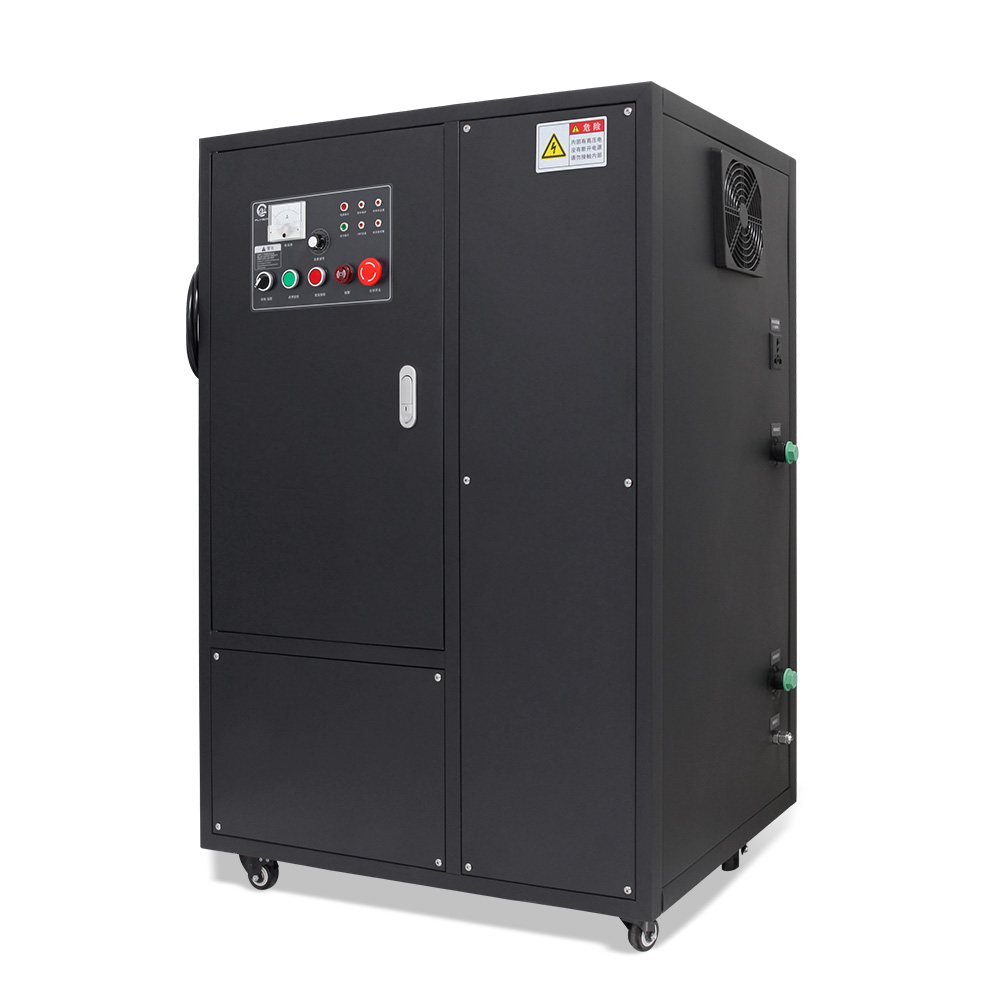

Industrial Ozone Generator 200 gr Water Purifier Swimming Pool Ozone Generator Water TreatmentÂ

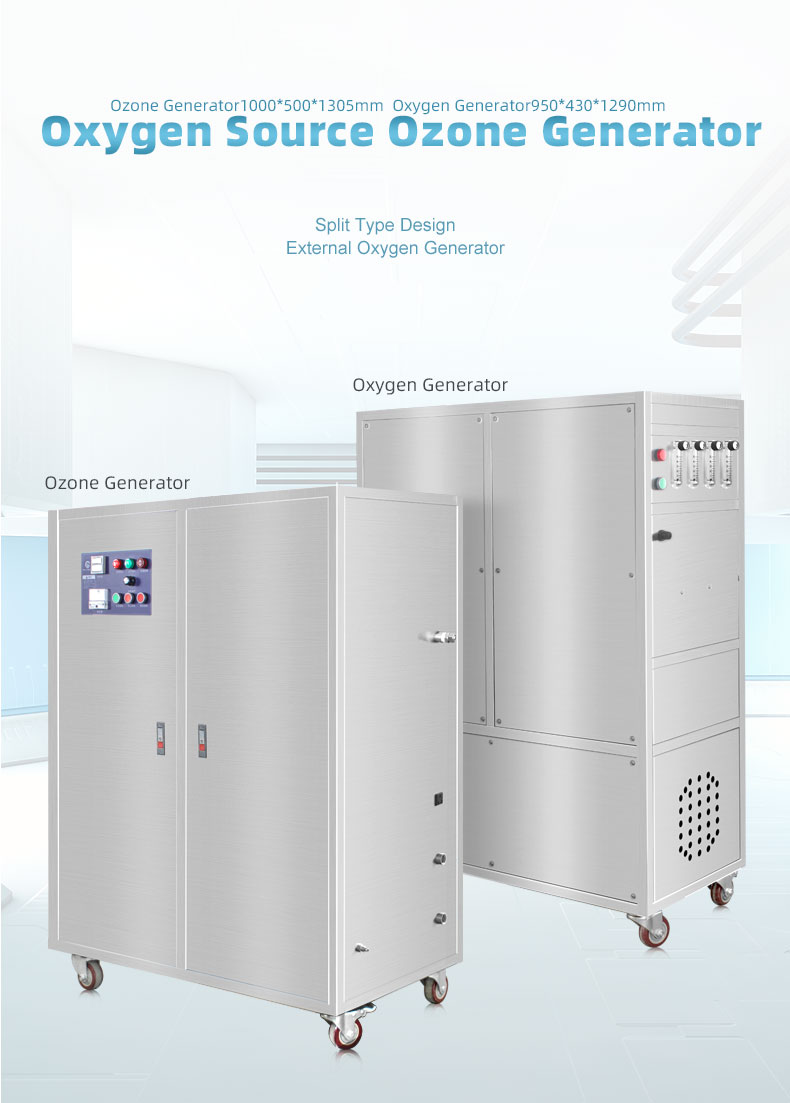

This series of unit utilize oxygen from the internal oxygen generator as gas source, and high concentration ozone is generated by the CD ozone generation technology. The equipment has integrated oil-free air compressor, filtering system, External PSA oxygen generator, condenser, multi-point malfunction monitoring system, etc.
PRODUCT SPECIFICATIONS
|
Model
|
FG-OF 150G
|
FG-OF 200G
|
FG-OF 250G
|
FG-OF 300G
|
|||
|
Ozone Output
|
150g/hr
|
200g/hr
|
250g/hr
|
300g/hr
|
|||
|
Power
|
3.4kw
|
4.5kw
|
5.5kw
|
6.5kw
|
|||
|
Gas Source
|
Oxygen
|
Oxygen
|
Oxygen
|
Oxygen
|
|||
|
Electric
|
220-240V/50,60Hz Single Phase
|
|
|
|
|||
|
Ozone Concentration
|
80-120g/m3
|
|
|
|
|||
|
Output Pressure
|
0.06-0.1Mpa
|
|
|
|
|||
|
Oxygen Concentration
|
90-94.4%
|
|
|
|
|||
|
Oxygen Flow Rate
|
30LPM
|
40LPM
|
50LPM
|
60LPM
|
|||
|
Size(L*W*H)
|
600*400*1280mm; 950*430*1290mm
|
|
1000*550*1550mm;800*1100*1200mm
|
|
|||
|
Weight
|
203kg
|
241kg
|
262kg
|
279kg
|
|||
|
Water Cooling System(22℃)
|
0.6-0.7m3/hr
|
0.6-0.7m3/hr
|
0.7-0.8m3/hr
|
0.7-0.8m3/hr
|
|||
|
Inner Air Compressor
|
Yes
|
|
|
|
|||
|
Application of water
|
80-150m3/hr
|
100-200m3/hr
|
120-250m3/hr
|
150-280m3/hr
|
|||
|
Warranty
|
1 Year
|
|
|
|
|||
Features

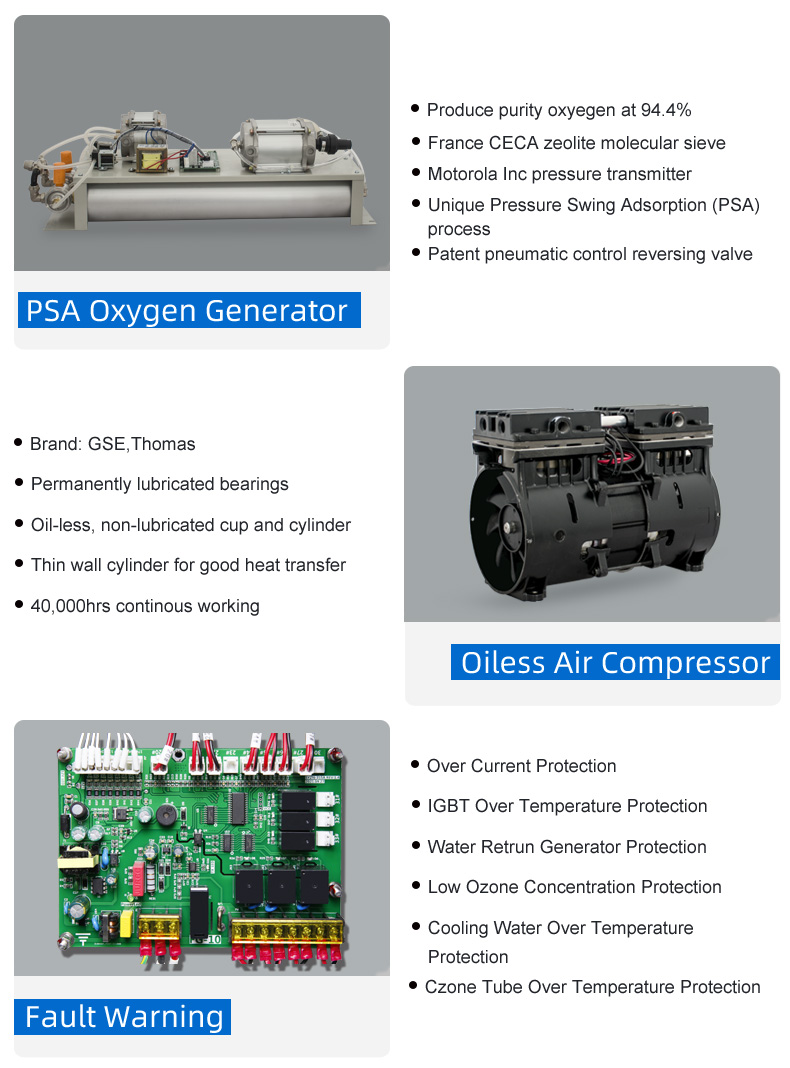

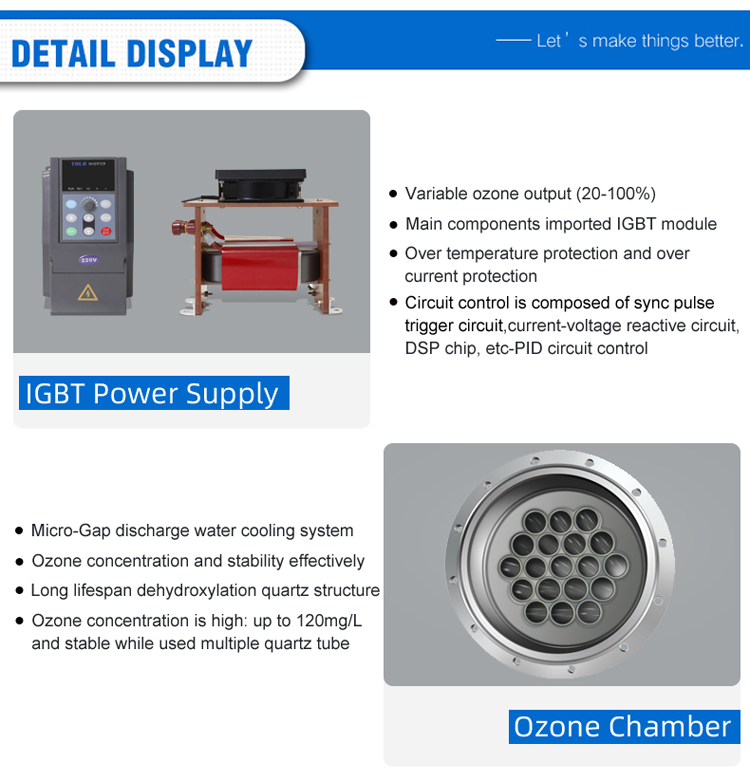

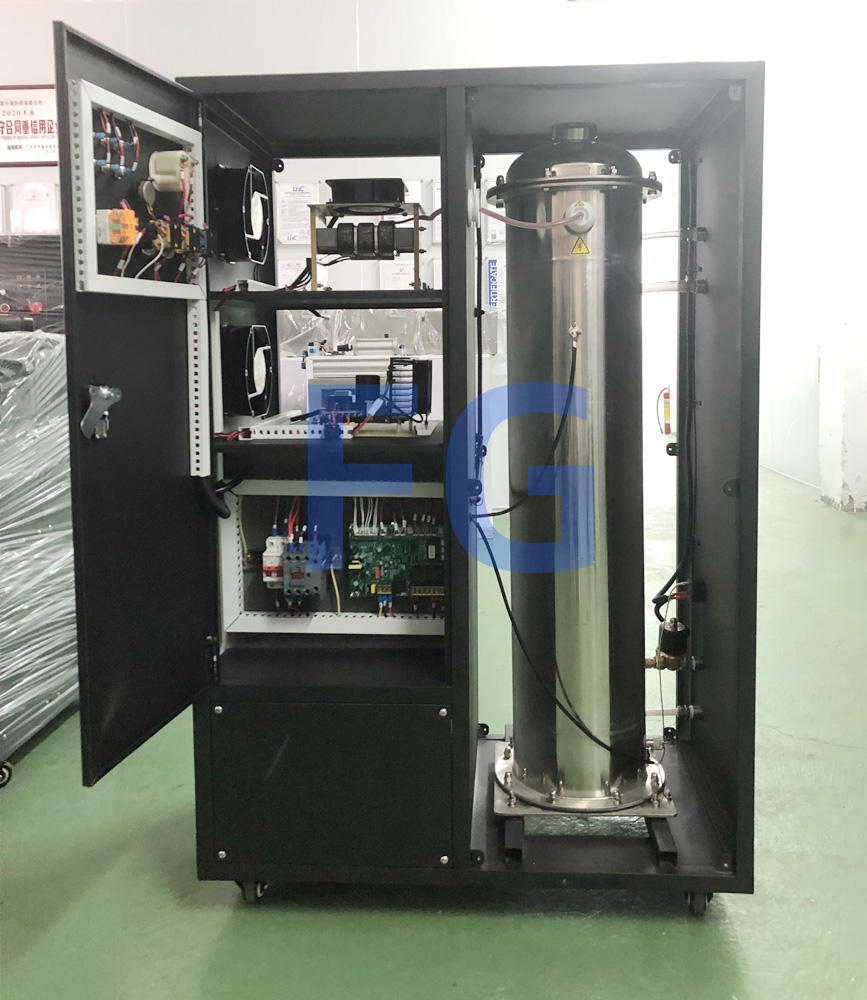

Detail Pictures

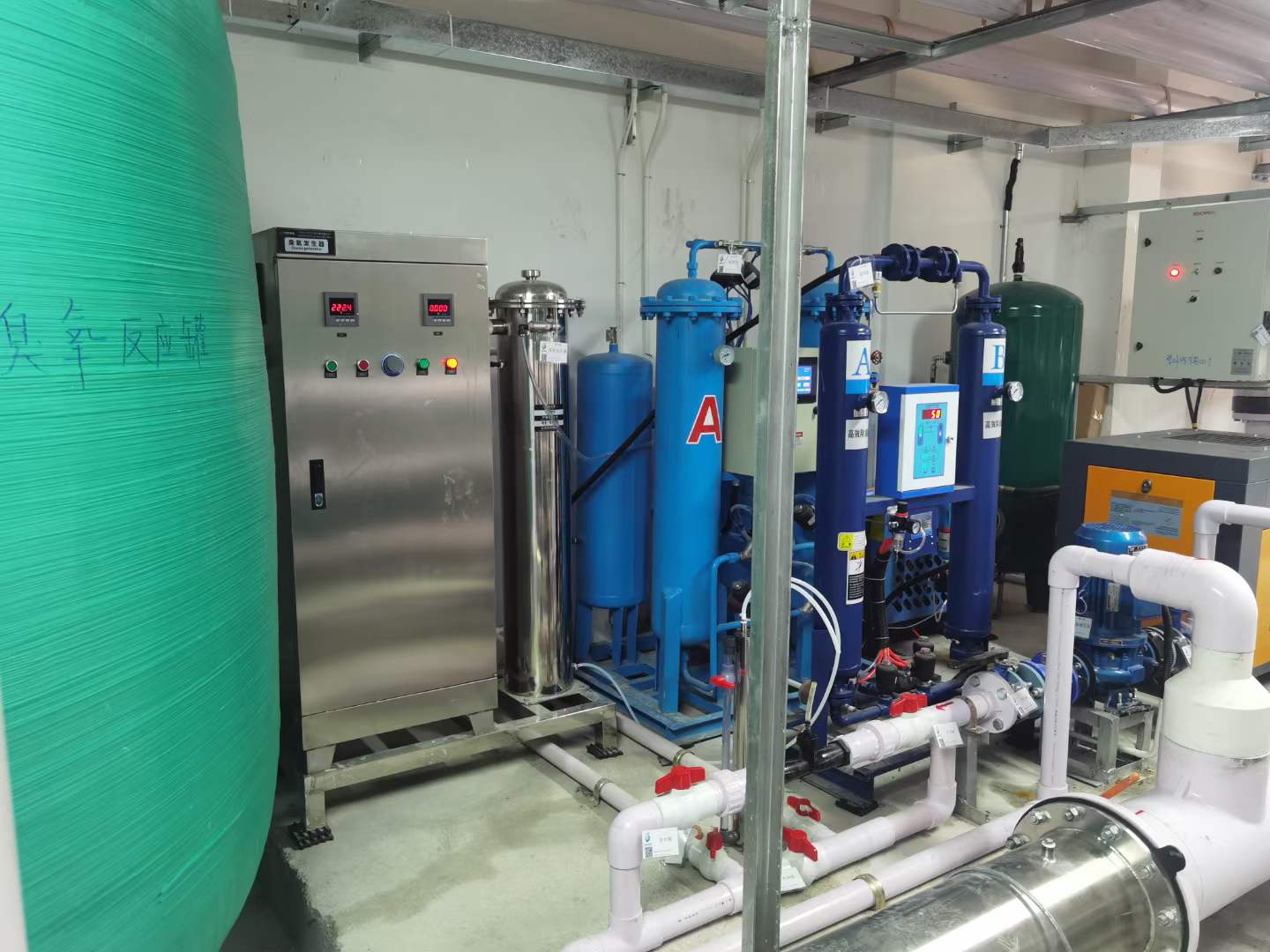

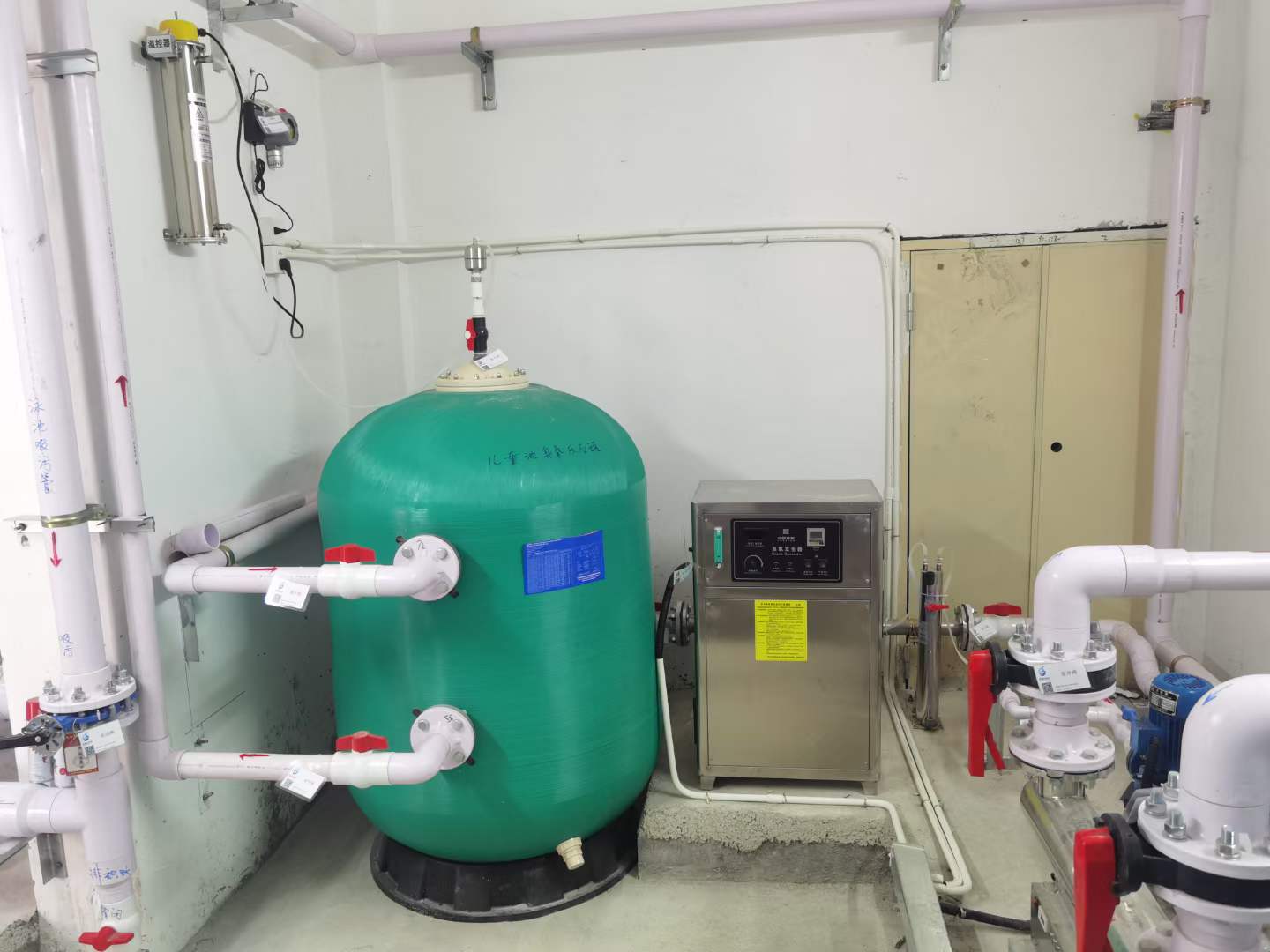

Application
