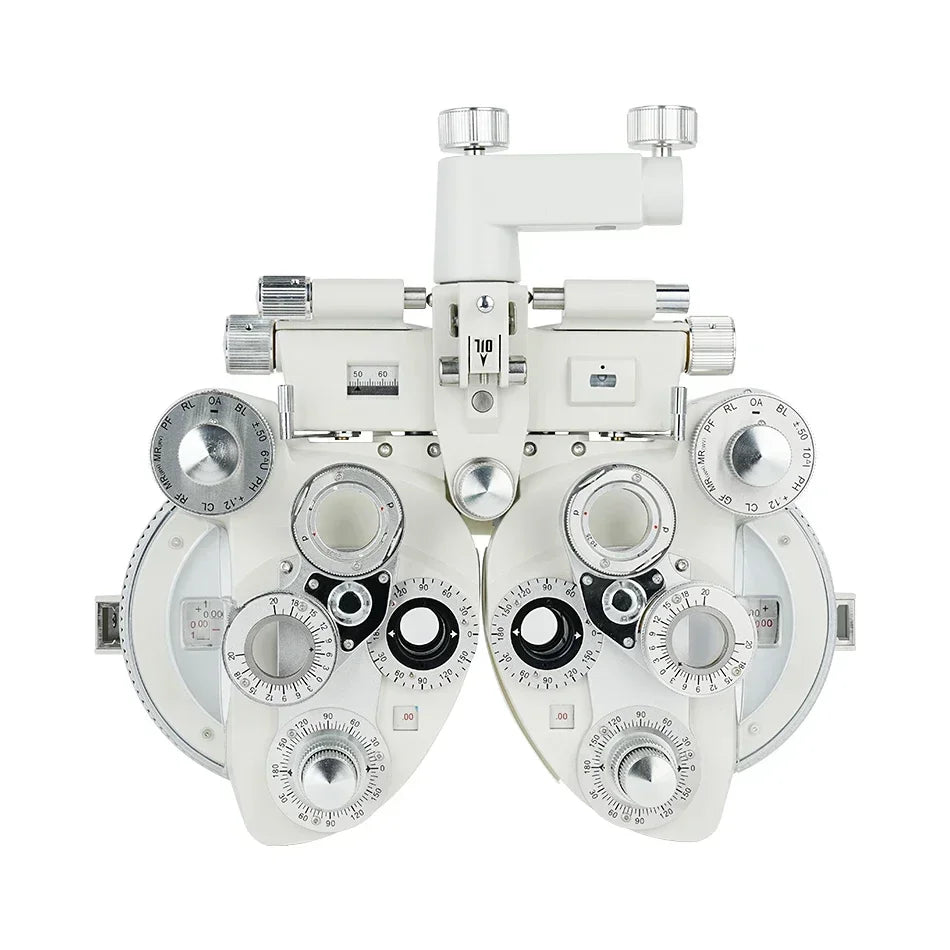

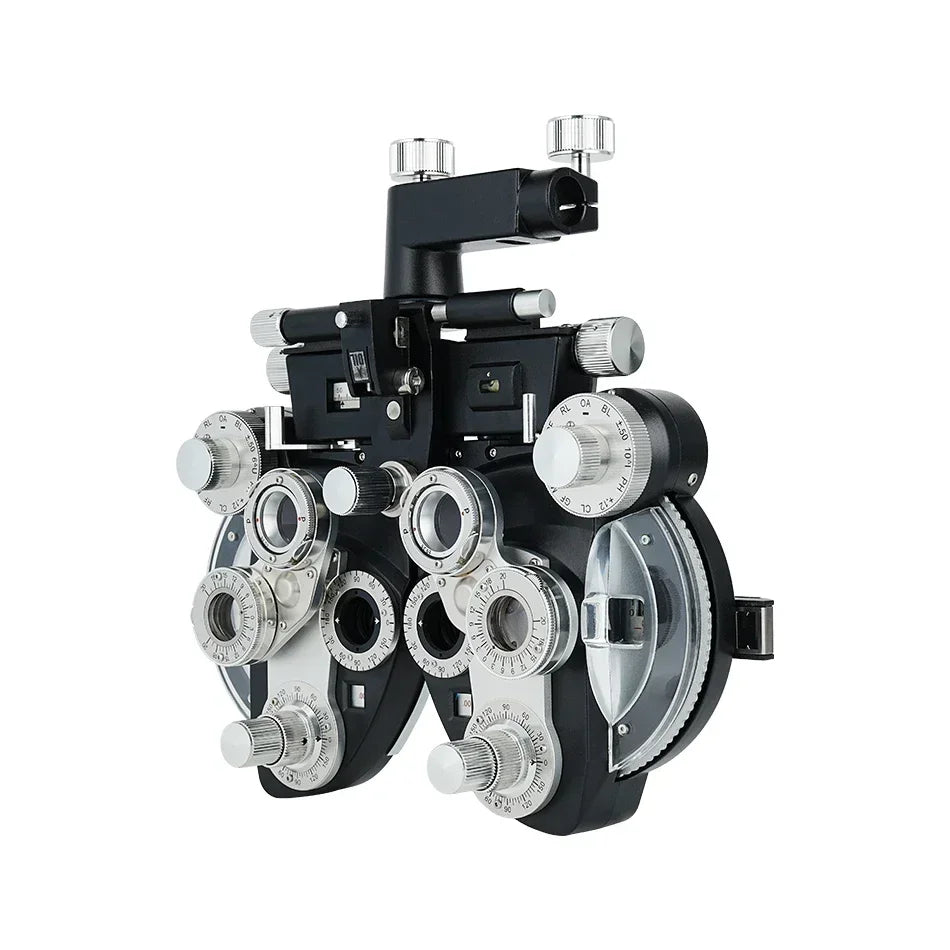

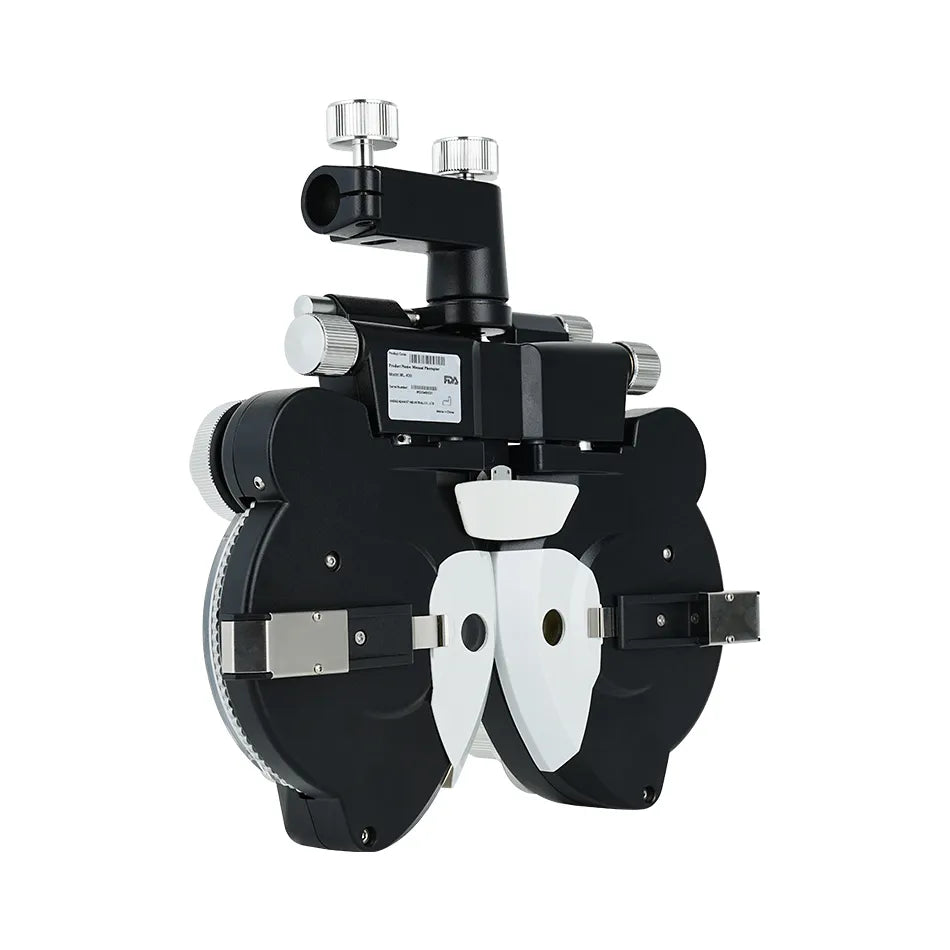

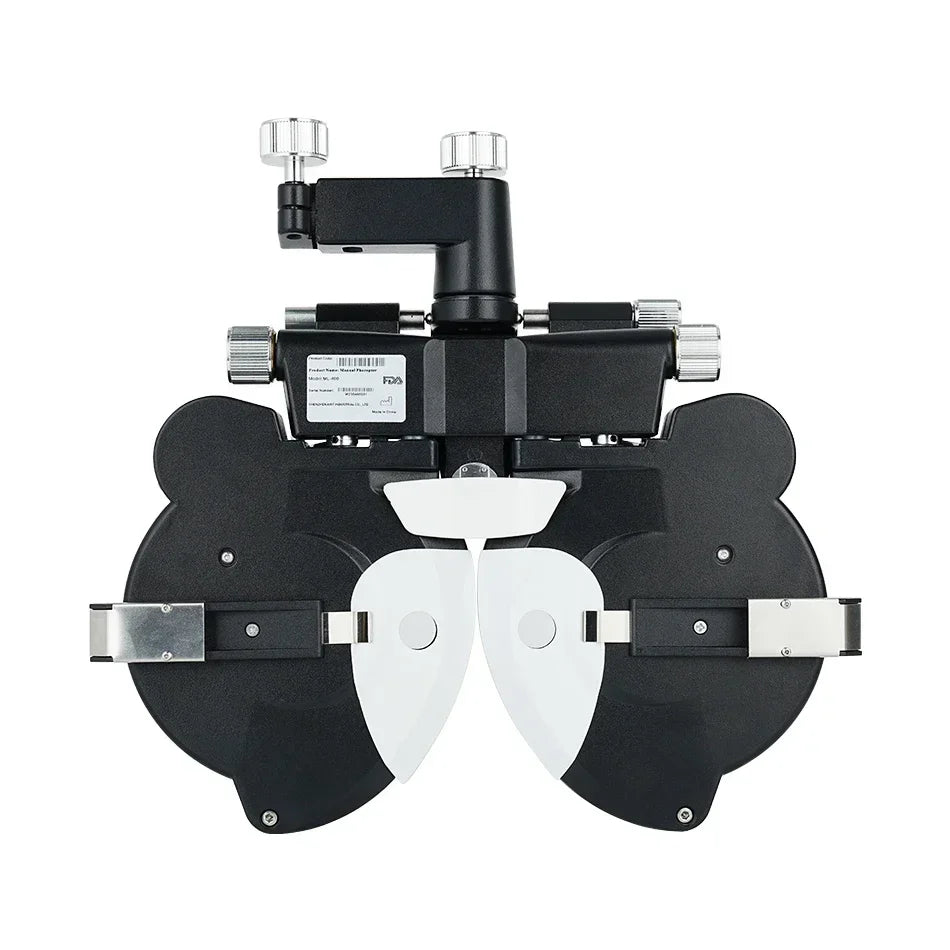

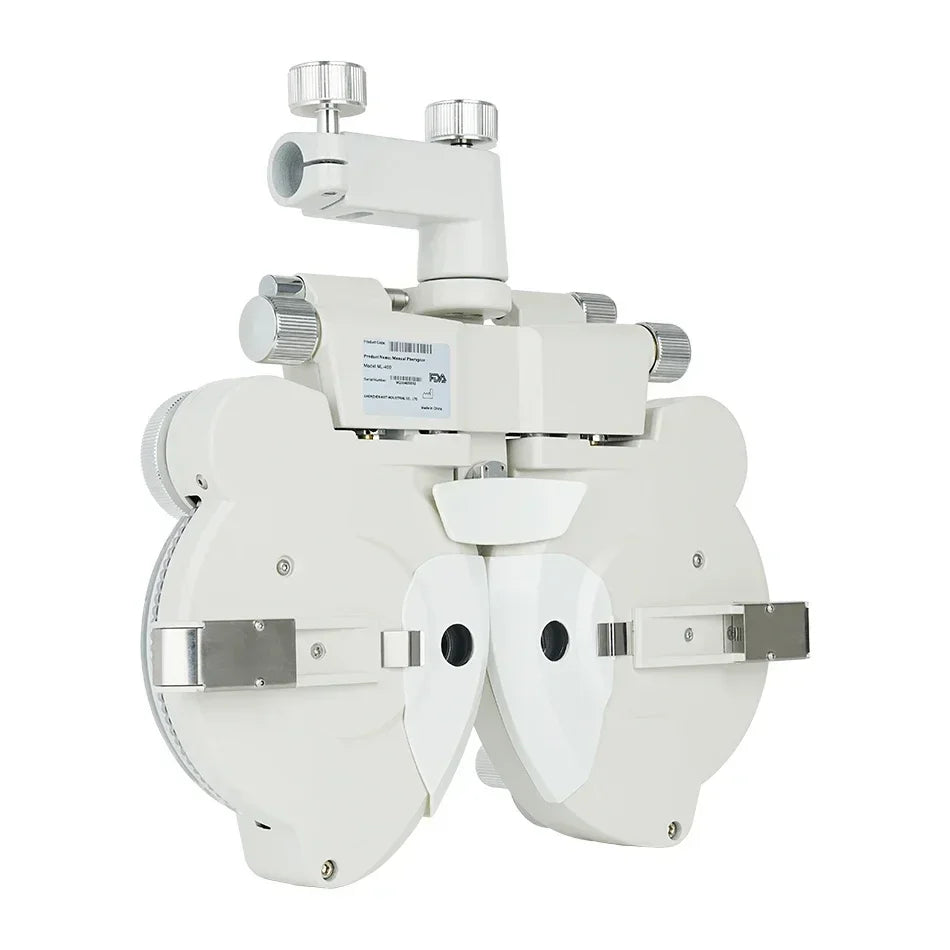

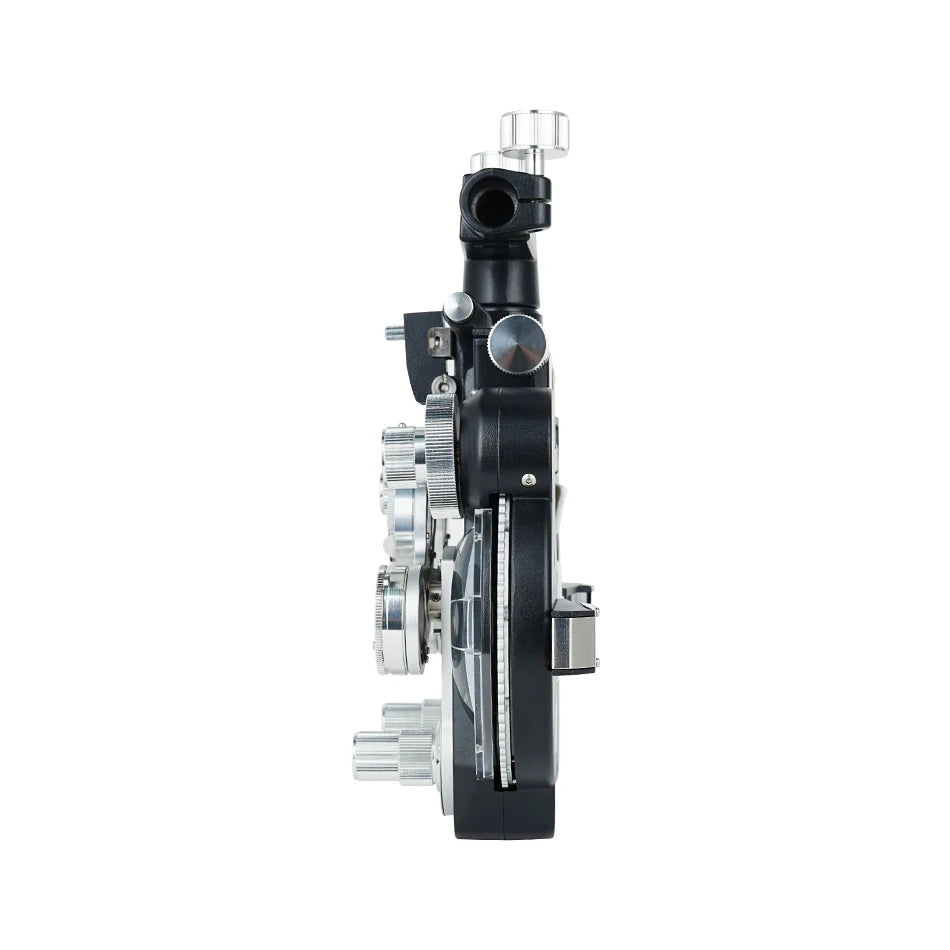

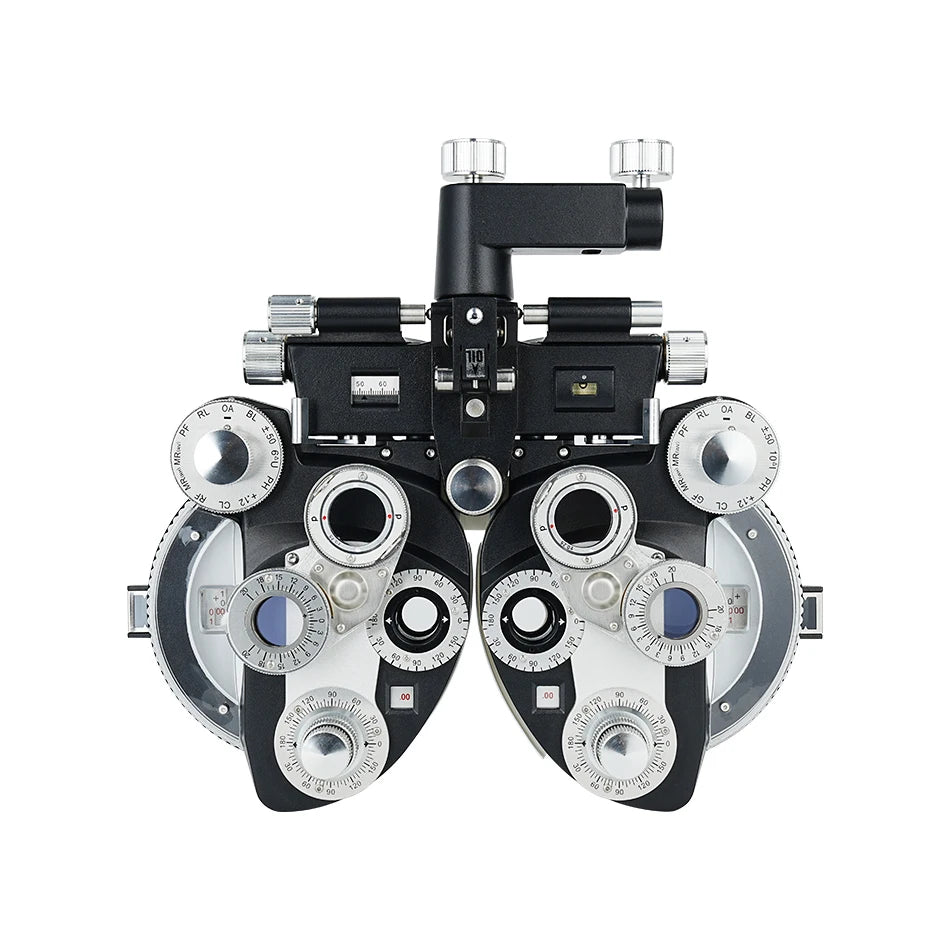

MWL400 Refractor I Ophthalmic Instrument for Optical View Testing | Vision Tester with Minus Cylinder Lenses I Manual Phoropter
Experience precision and convenience with the MWL400 Refractor, featuring:
- Classic Design: Combines a timeless appearance with professional-grade technology for precise measurements.
- Anti-Reflection Coating: Ensures clear vision by coating all lenses to reduce glare and reflections.
- Manus Cross-Cylinder Lens: Enhances accuracy and reliability during examinations.
- New Leveling Mechanism: Ensures stability and accuracy in measurements.
- Fingertip Sphere Power Control: Allows easy and precise adjustment of sphere power.
- Innovative Convergence System Mechanism: Provides unique functionality for improved performance.
- Wide Range of Auxiliary Lenses: Offers versatility for various examination needs.
- Precision Machined: Manufactured to the finest tolerances for reliable results.
- Versatile Usage: Ideal for eye examinations in spectacles shops, hospital ophthalmology departments, and schools.
Specifications
|
Sphere Power |
Range |
+16.75 to -19.00 diopters |
|
Step |
0.25 diopters |
|
|
Range |
0.00 to -6.00 diopters(0.00 to -8.00 diopters with additional lens of -2.00 diopters) |
|
|
Cylinder Power |
Step |
0.25 diopters |
|
Cylinder Axis |
0 to 180°, 5°step |
|
|
Cross Cylinder |
±0.25 diopters |
|
|
Rotary Prisms |
0 to 20, 1 step |
|
|
(O)-Open aperture (two positions) |
||
|
(R)-Retinoscopic lens, +1.50D |
||
|
(P)-Polarizing lens 45-left eye, 135-right eye |
||
|
(WMV) or (RMV)-Maddox rod, vertical white-left eye red-right |
||
|
(WMV) or (RMV)-Maddox rod, horizontal white-left eye red-right |
||
|
Auxiliary Lens Dial |
(RL)-Red lens |
|
|
(+.12)-+0.12D sphere |
||
|
(PH)-Pin hole |
||
|
(10 L) or (6 U)-10 base-in-left eye |
||
|
6 base-up-right eye |
||
|
(Dissociating prisms)(±.50)-±0.50 fixed cross cylinder |
||
|
(OC)-Occluder |
||
|
PD Adjustment |
48~75MM, 1MM steps |
|
|
Standard Accessory Lenses |
wo-.12D and -2.00 cylinder lenses, two plano lenses for sealing front opening |
|
|
Standard Accessories |

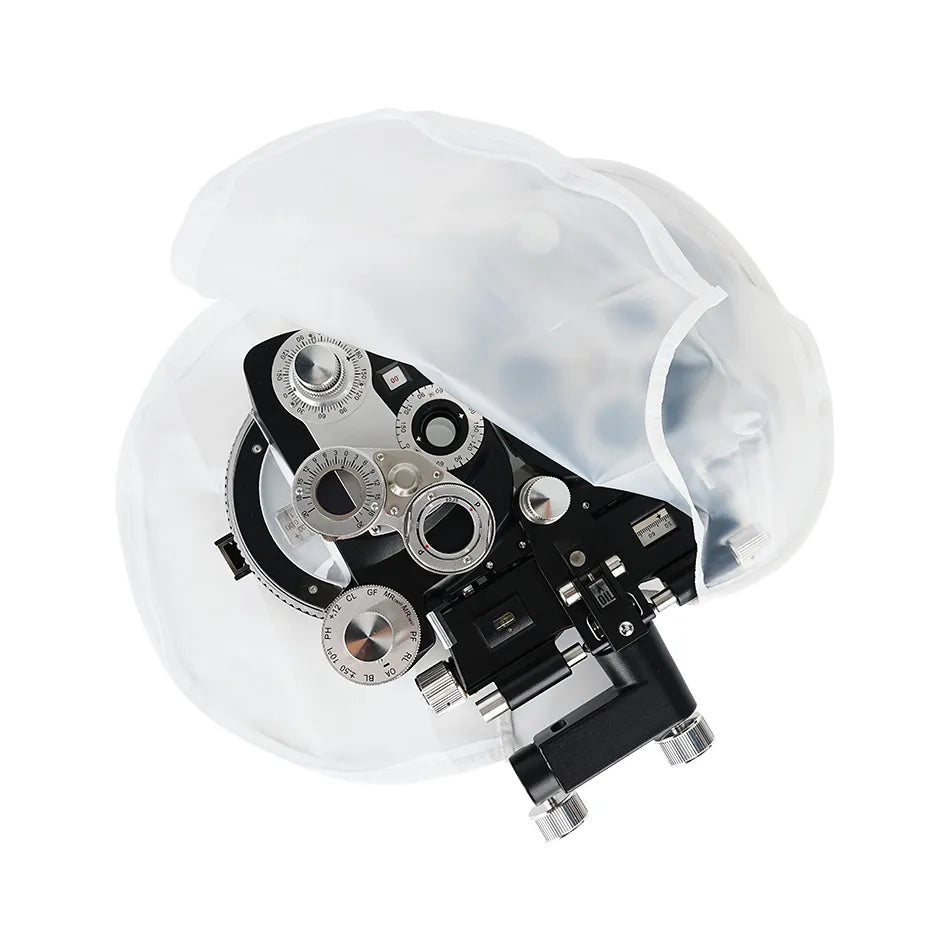

1 near point card with holder and reading rod, dust cover, face shield, accessory case for lenses |
|
|
Dimensions |
400*350*160MM |
|
|
Net Weight |
4.38 KGS |
|
