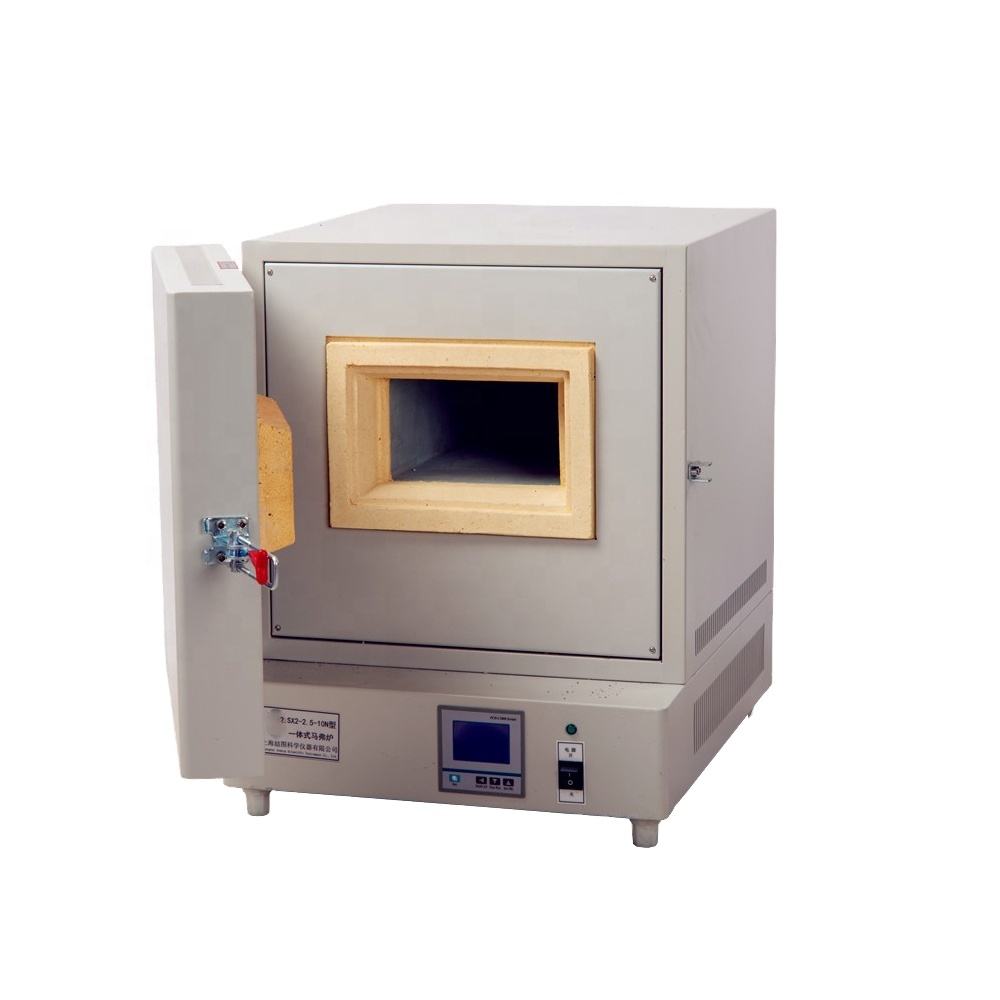

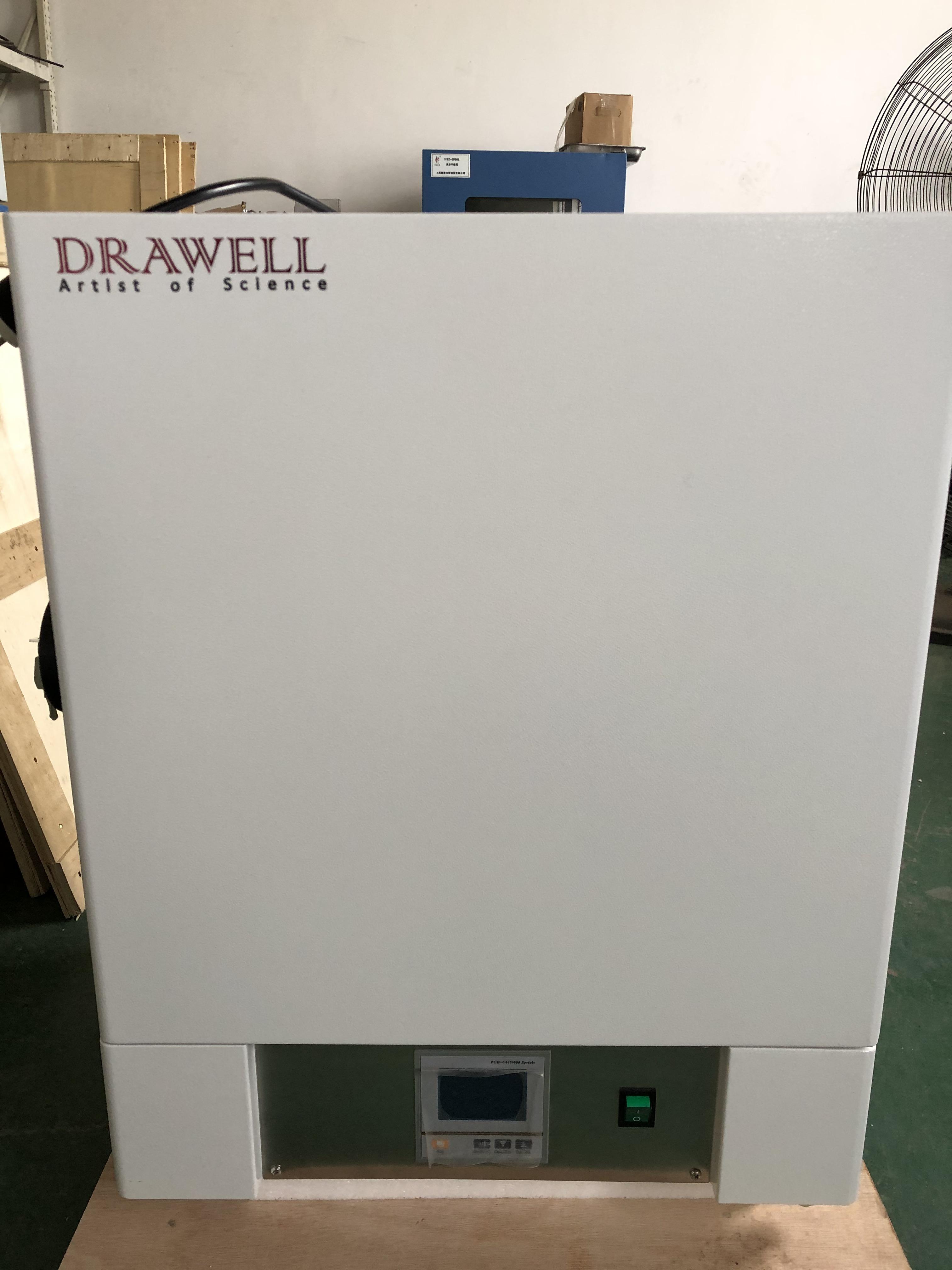

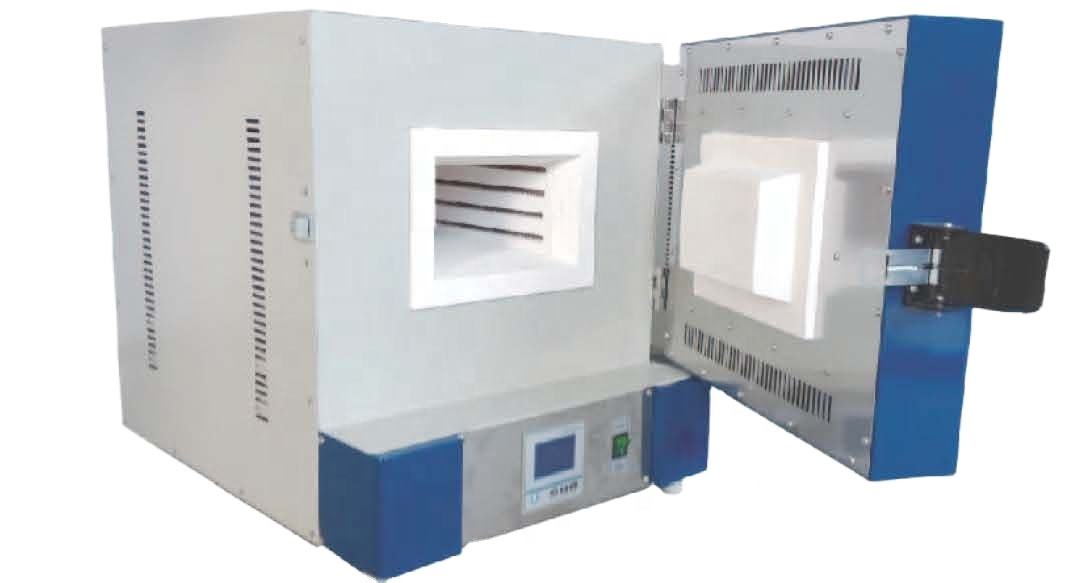

High Temperature Muffle Furnace
Muffle furnace is an essential equipment widely used in metallurgical laboratory for fusion experiment, heat treatment department for annealing, quenching and other high temperature places.
Features:

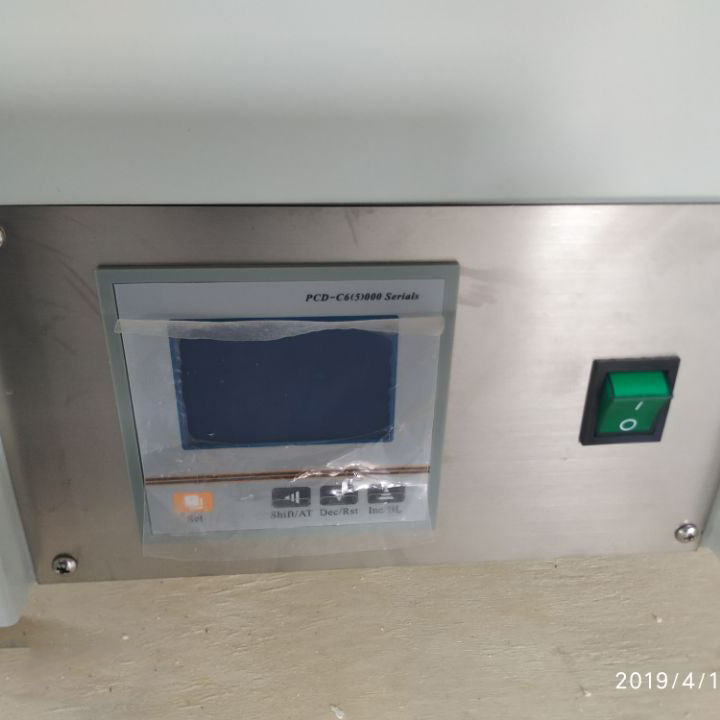

One piece design, several sets of data shows in a big LCD screen, easy operator with elegant appearance.
PID high precision temperature control, zero power loss.

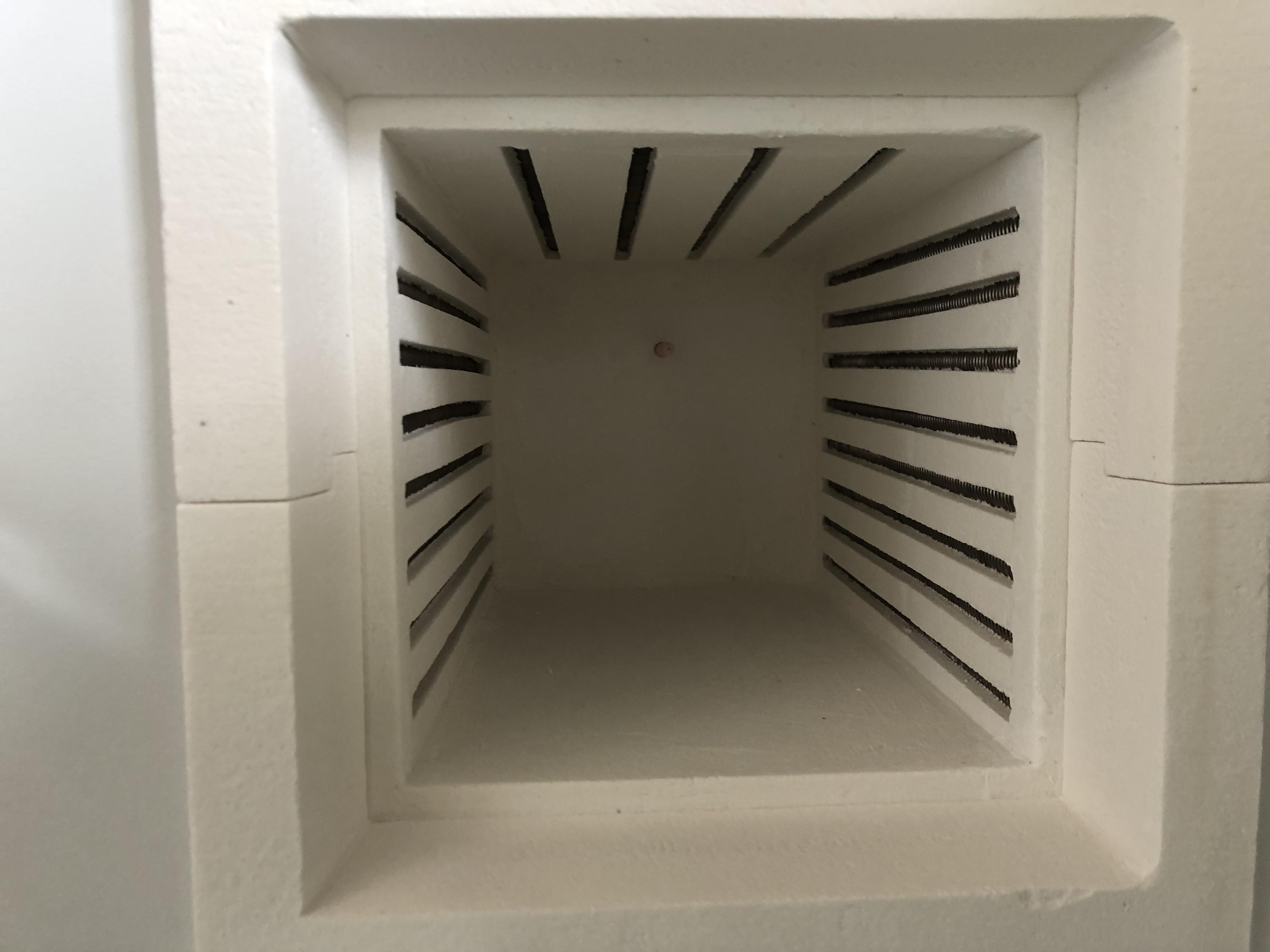

Imported HRE ultra temperature alloy heating element, long life and energy efficient.
Short temperature rising time, from indoor temperature to 1200℃ takes less than 30 minutes.

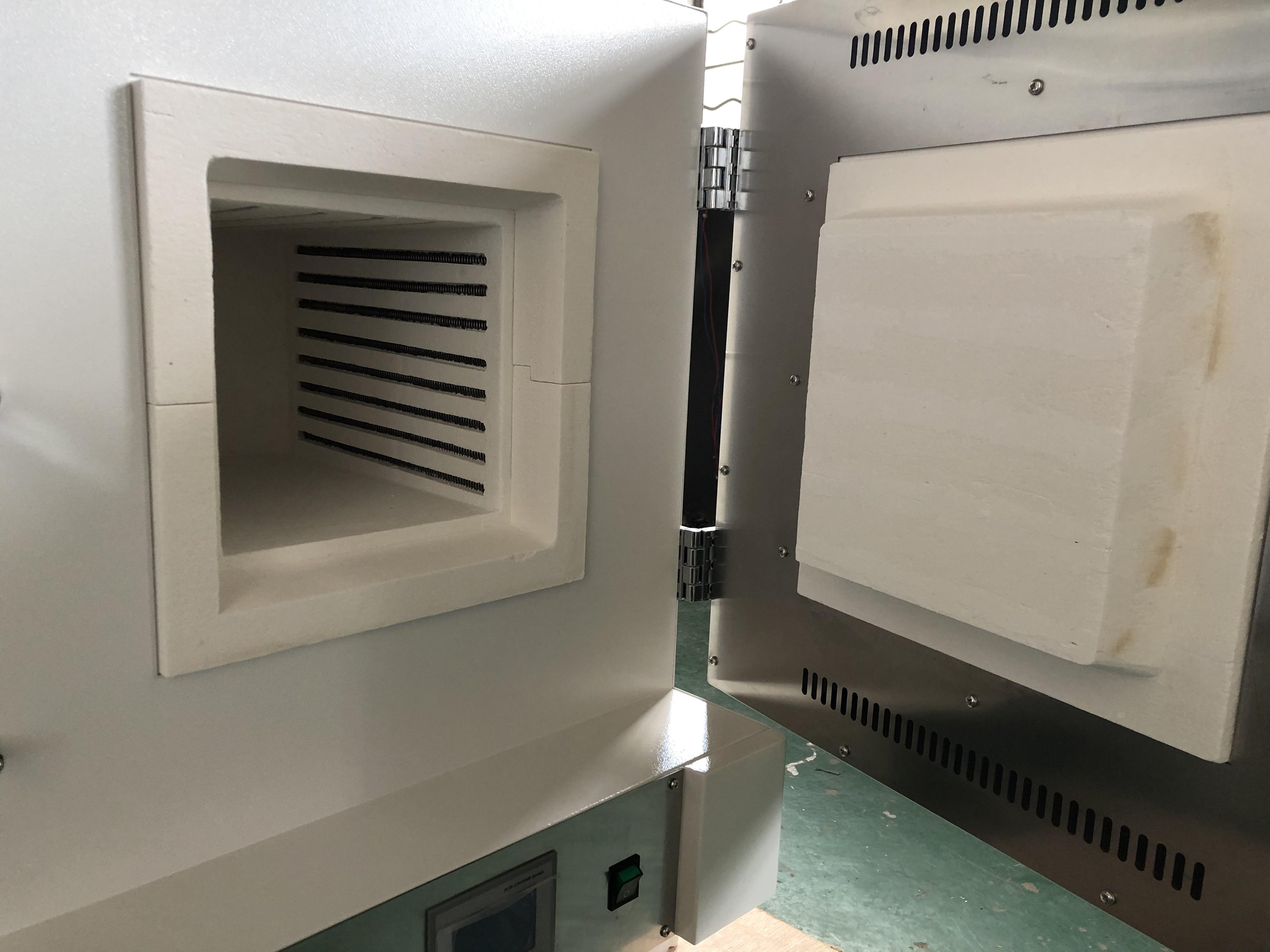

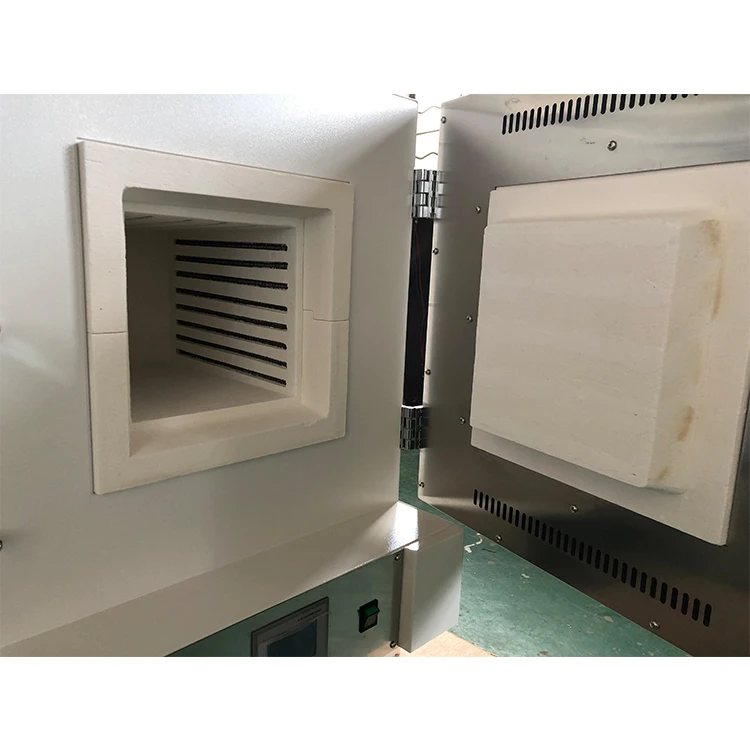

Little thermal pollution, new type ceramic fiber insulation material. When the temperature reaches 1000 ℃ and after asting 1 hour, temperature of the shell is not so hot (about 50 ℃)
Several temperature controllers for customers to choose.
Little temperature fluctuation after going into the hold mode (temperature precision ±1℃, temperature uniformity ±5 ℃). P type step multiplex temperature controller, rise and fall slope can be preset
Specifications:
|
Model |
1.5-10T/TP |
2.5-10T/TP |
4-10T/TP |
8-10T/TP |
16-10T/TP |
|
Power |
1.5KW |
2.5KW |
4KW |
8KW |
16KW |
|
Temperature rising time |
RT+10~1000 <30min |
RT+10~1000 <30min |
RT+10~1000 <30min |
RT+10~1000 <30min |
RT+10~1000 <40min |
|
Type of heating element |
Resistance wire |
Resistance wire |
Resistance wire |
Resistance wire |
Resistance wire |
|
Furnace dimension W×D×H(mm) |
120×200×80 |
200×300×120 |
200×300×200 |
300×400×300 |
400×500×400 |
|
Overall dimension W×D×H(mm) |
430×605×590 |
510×705×705 |
530×715×690 |
700×860×860 |
800×960×960 |
|
Nominal capacity |
1.9L |
7.2L |
12L |
36L |
80L |
|
Remarks: “T” Ceramic fiber furnace; “P” Intelligent program resistance furnace.
|
|||||
|
Model |
1.5-12T/TP |
2.5-12T/TP |
4-12T/TP |
8-12T/TP |
16-12T/TP |
|
Power |
1.5KW |
2.5KW |
4KW |
8KW |
16KW |
|
Temperature rising time |
RT+10~1200 <30min |
RT+10~1200 <30min |
RT+10~1200 <30min |
RT+10~1200 <30min |
RT+10~1200 <40min |
|
Type of heating element |
Resistance wire |
Resistance wire |
Resistance wire |
Resistance wire |
Resistance wire |
|
Furnace dimension W×D×H(mm) |
120×200×80 |
200×300×120 |
200×300×200 |
300×400×300 |
400×500×400 |
|
Overall dimension W×D×H(mm) |
430×605×590 |
510×705×705 |
530×715×690 |
700×860×860 |
800×960×960 |
|
Nominal capacity |
1.9L |
7.2L |
12L |
36L |
80L |
