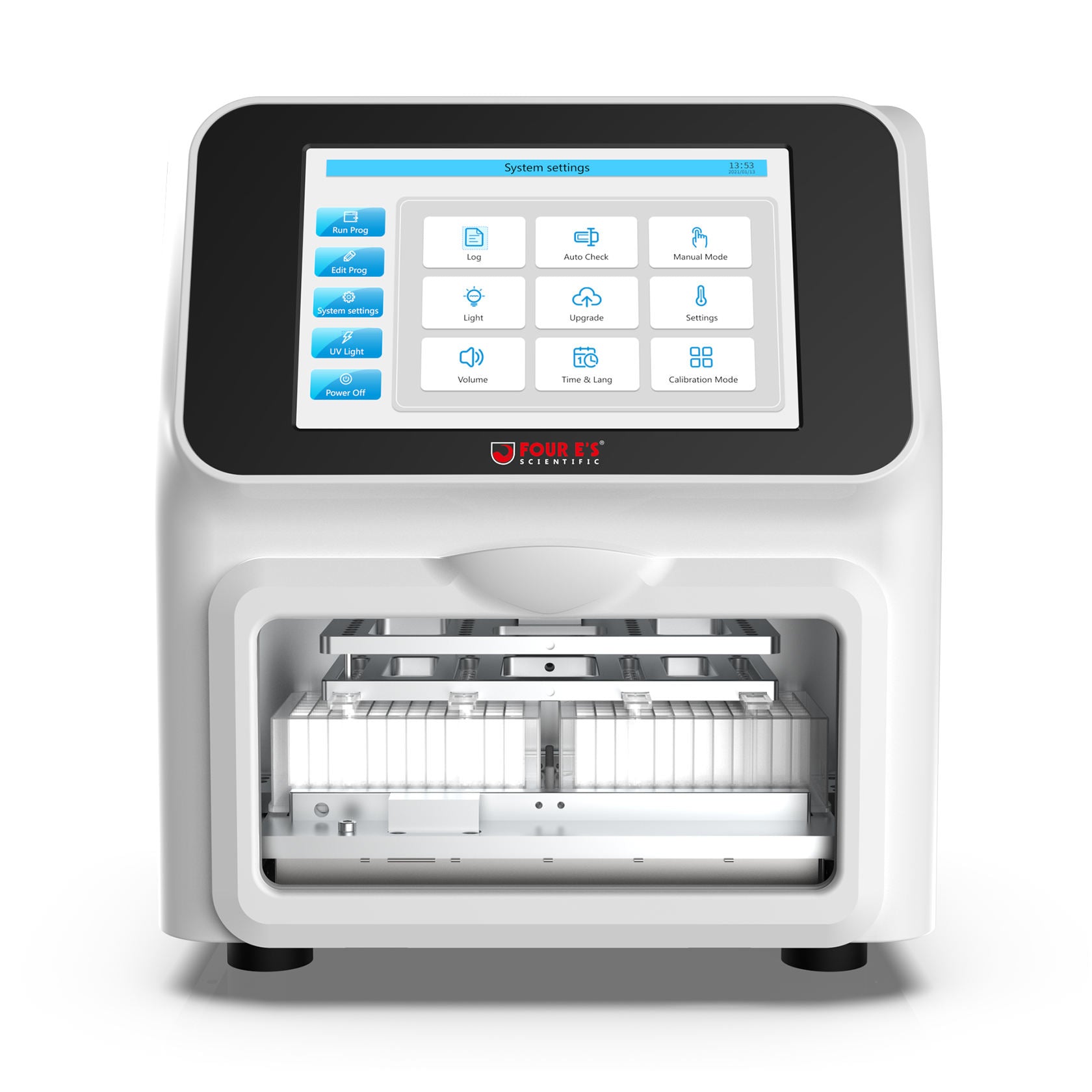

Features:
1. Compact & Lightweight: Help save your limited laboratory bench space.
2. Stable and Efficient: Automated processing avoids discrepancies and errors caused by manual operations and increases the efficiency

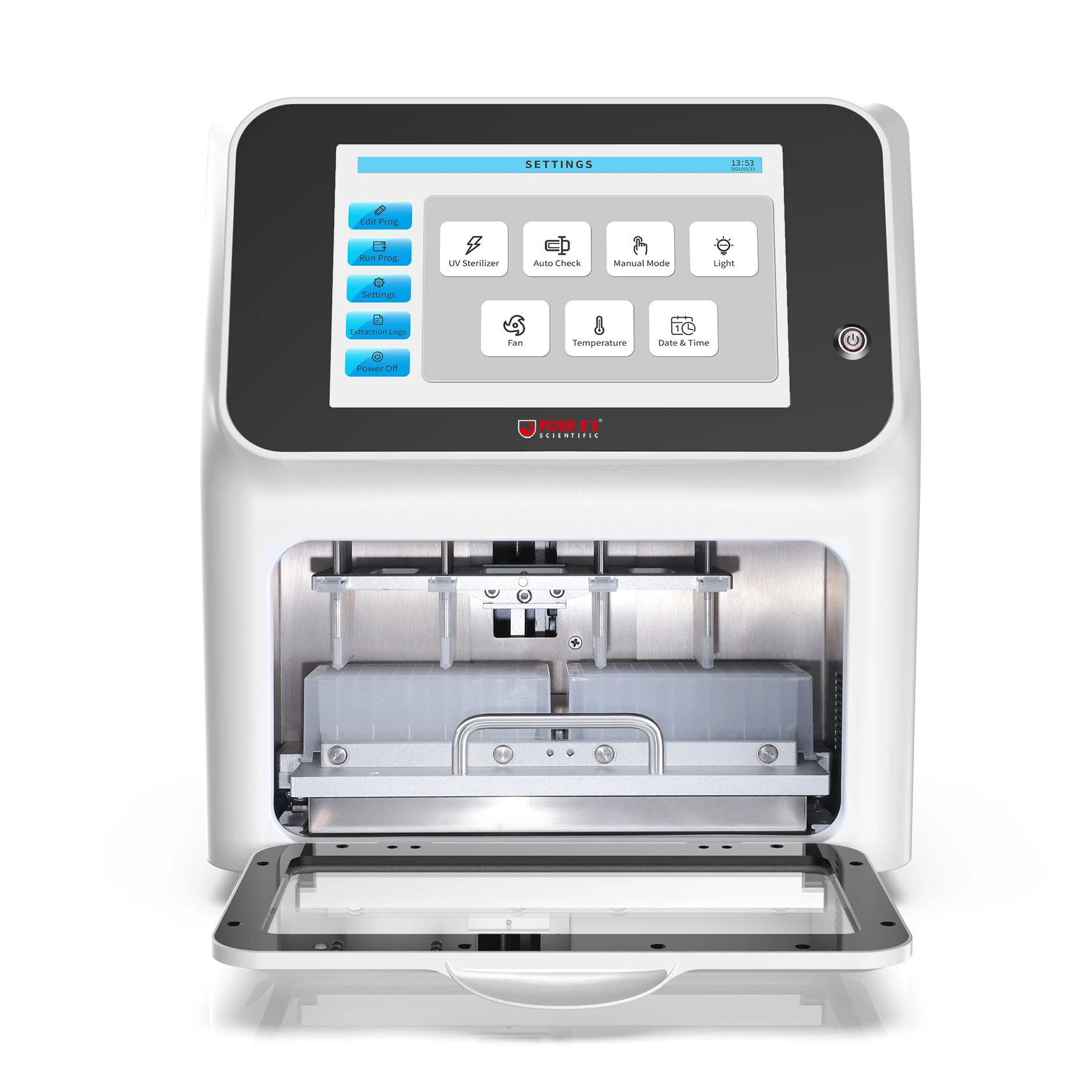

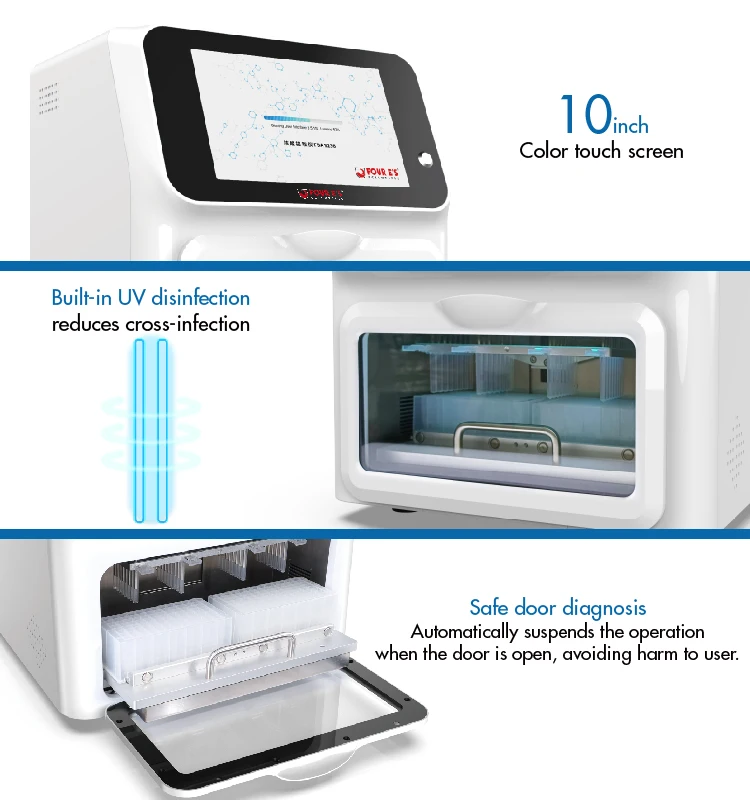

3. Ease of Use: A 10-inch color touch screen and user-friendly interface lets you easily set purification parameters

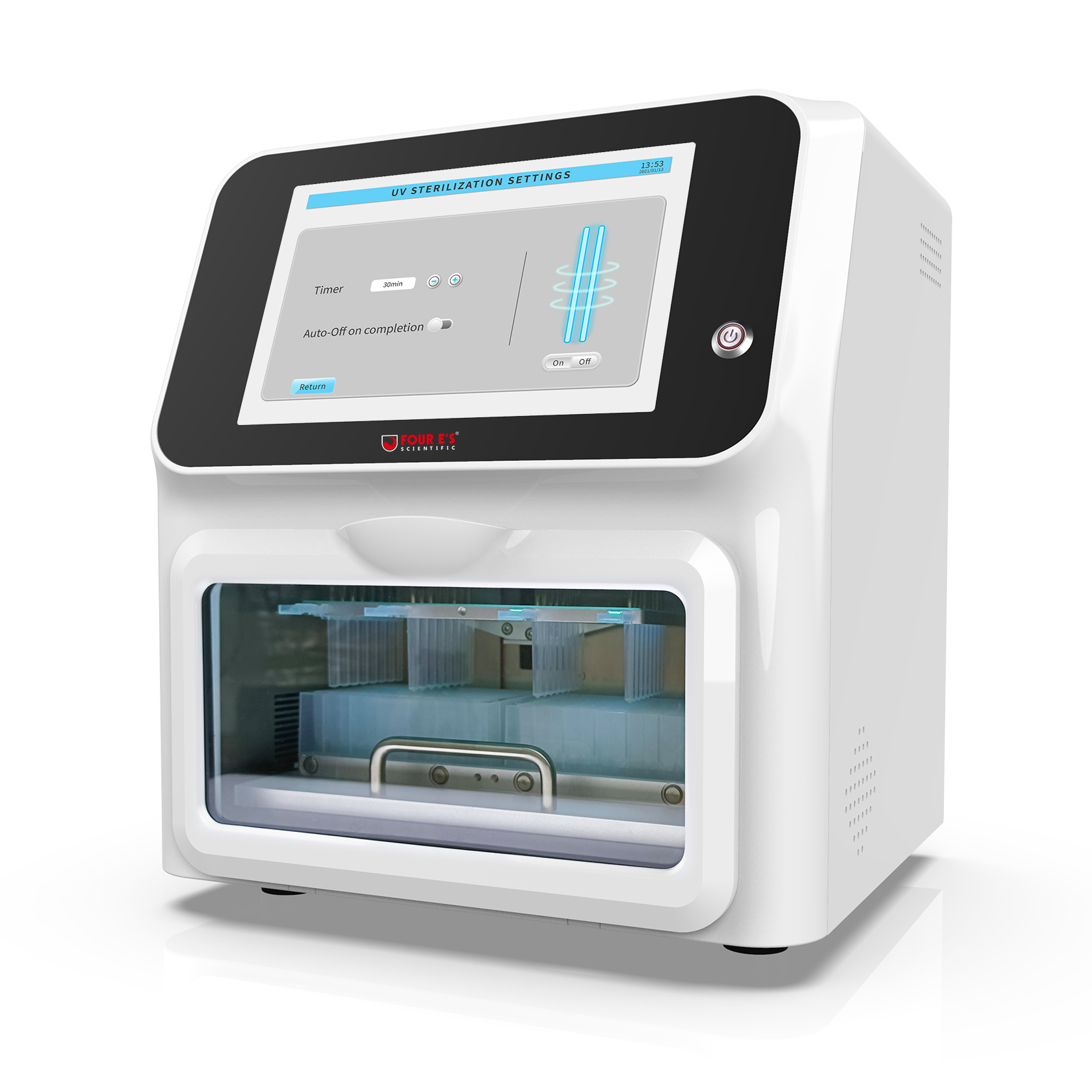

4. Contamination Control: Built-in UV disinfection lamp eliminates cross-contamination.

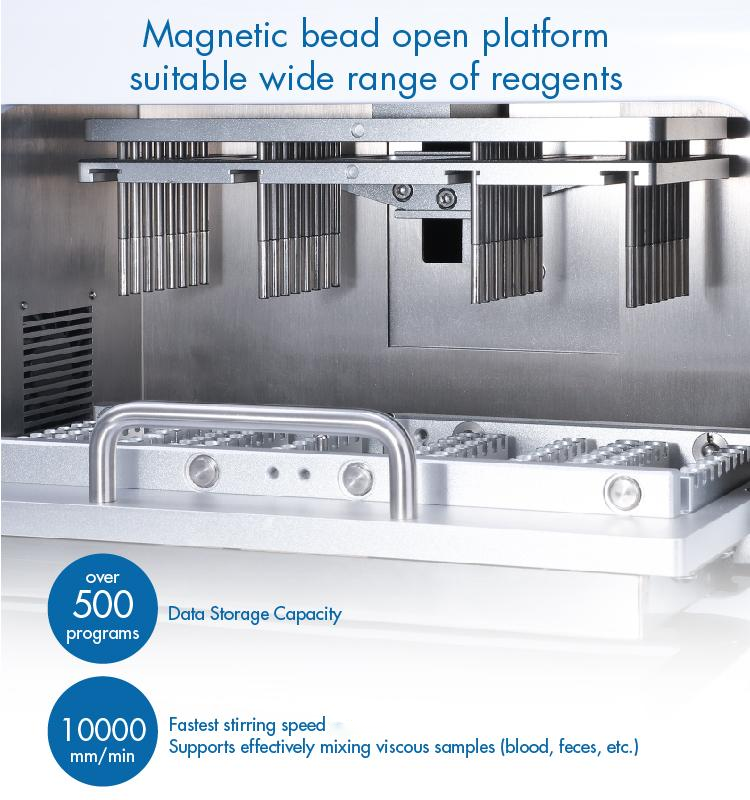

5. Advanced Stirring Technology: Stirring speed up to 10,000 mm/min enables effective mixing of samples with high viscosity (blood, feces, etc.).
6. Multi Heating Modules: Multiple heating modules with individual heating controls ensures temperature accuracy for lysis and elution.

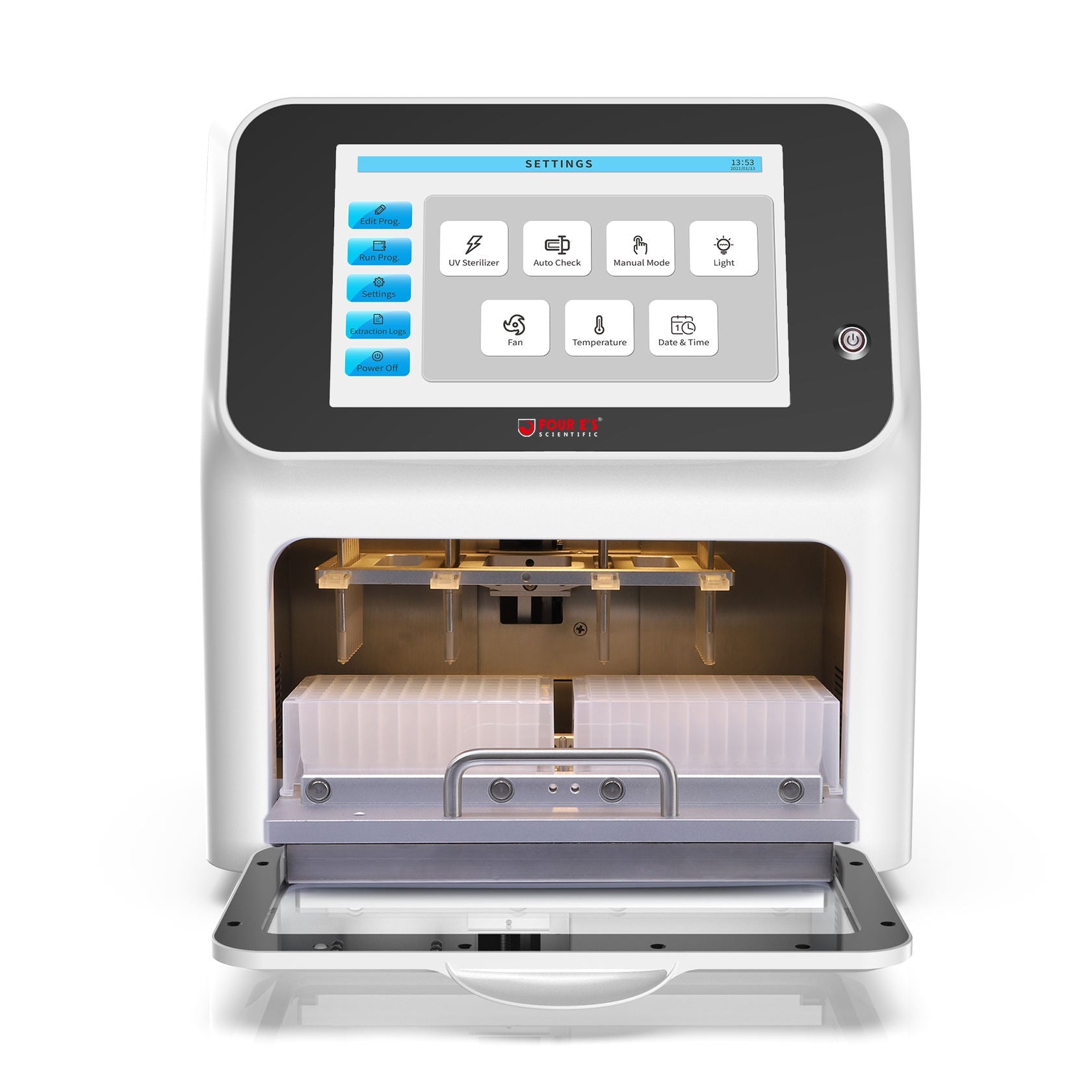

7. Safe and Reliable: The operation will automatically suspend once the safety door opens and only resumes after the safety door is shut, which provides better protection for users.
Specification
|

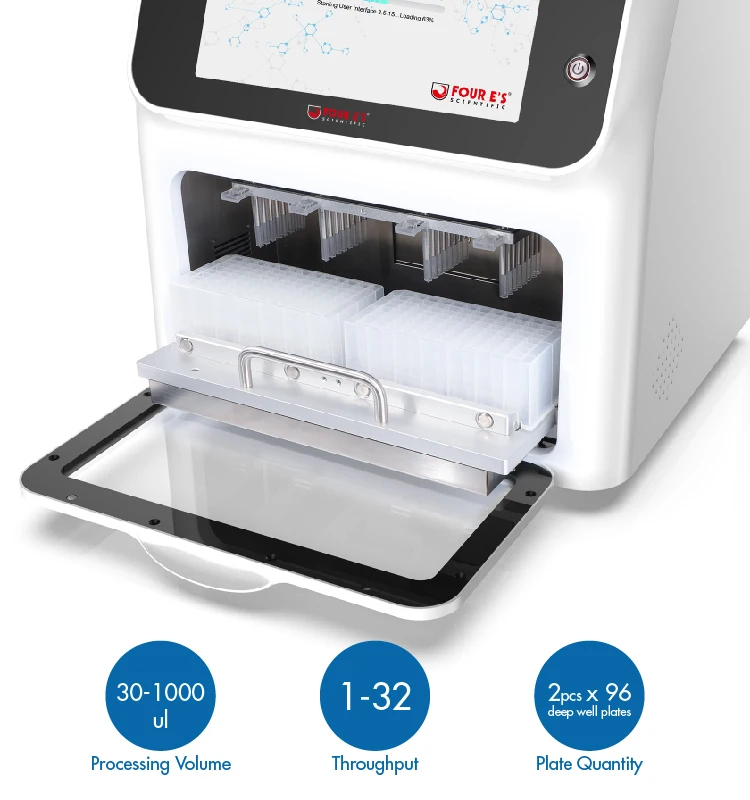

Volume Capacity
|
30-1000μl
|
|
Sample Quantities
|
1-32
|
|
Plate Quantity
|
2
|
|

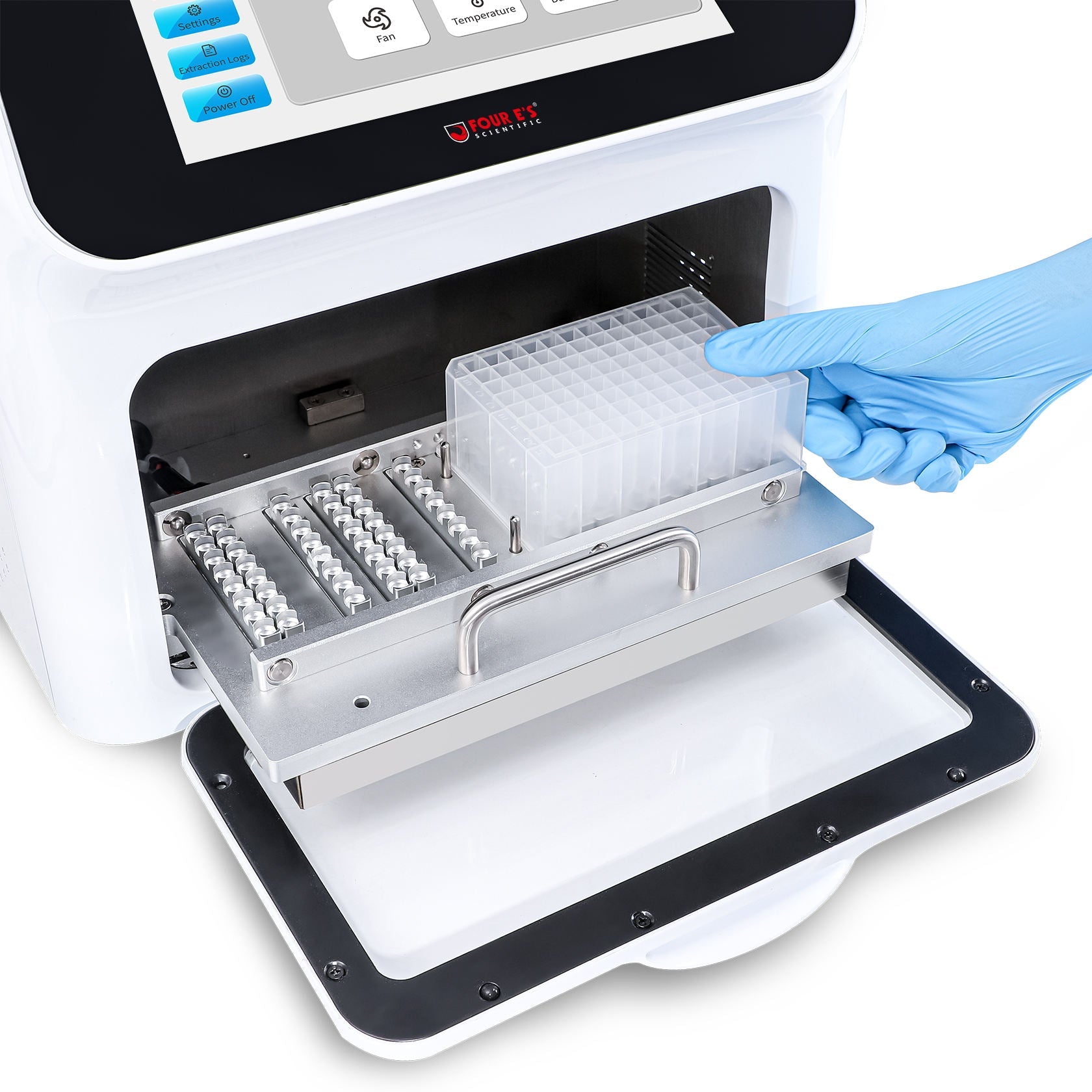

Plate Type
|
96-well deep-well plate
|
|
Reagent Type
|
Magnetic bead-based open-source reagents
|
|
Heating Temp.
|
Room Temp.~ 100℃
|
|
Purification accuracy
|
100 copy sample positive rate>95%
|
|
Mixing Intensities
|
Adjustable: 5 Levels
|
|
Magnetic Bead Recovery Rate
|
96%
|
|
Working Noise
|
＜50dB
|
|
Inter-well Purification Variation
|
CV<5%
|
|
Exhaust
|
Fan
|
|
Data Storage Capacity
|
＞500 programs
|
|
Display
|
10-inch color touch screen
|
|
Lighting
|
Yes
|
|
Contamination Control
|
UV light
|
|
Extension ports
|
1 USB port, 1 Ethernet port
|
