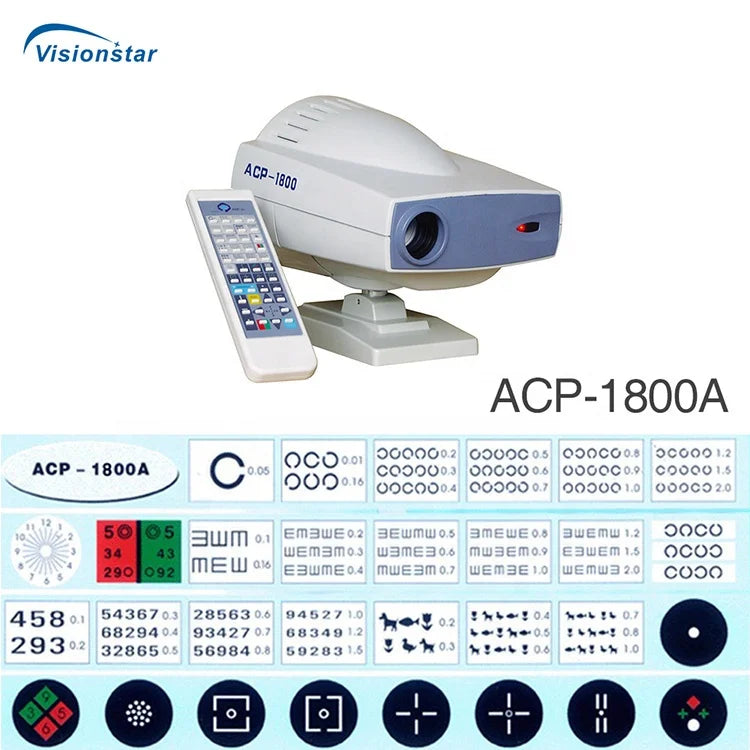

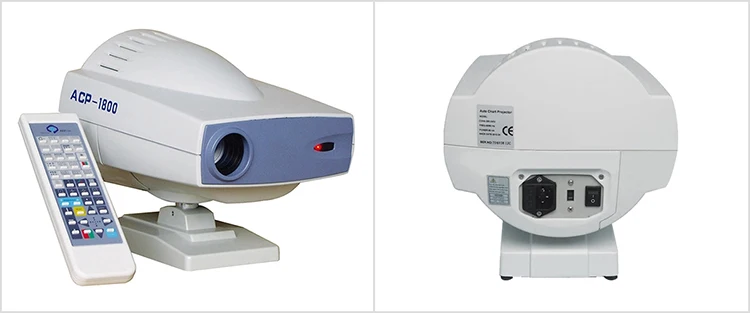

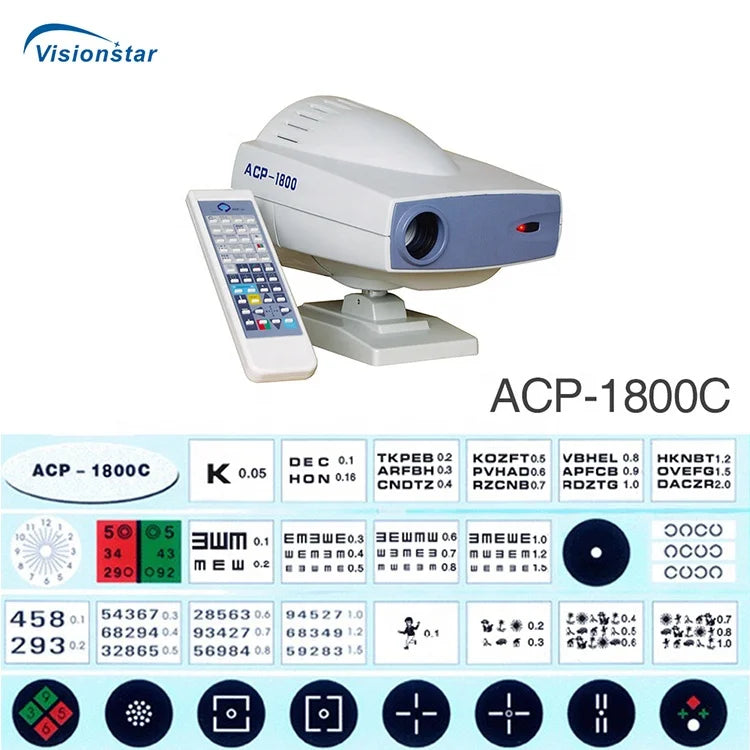

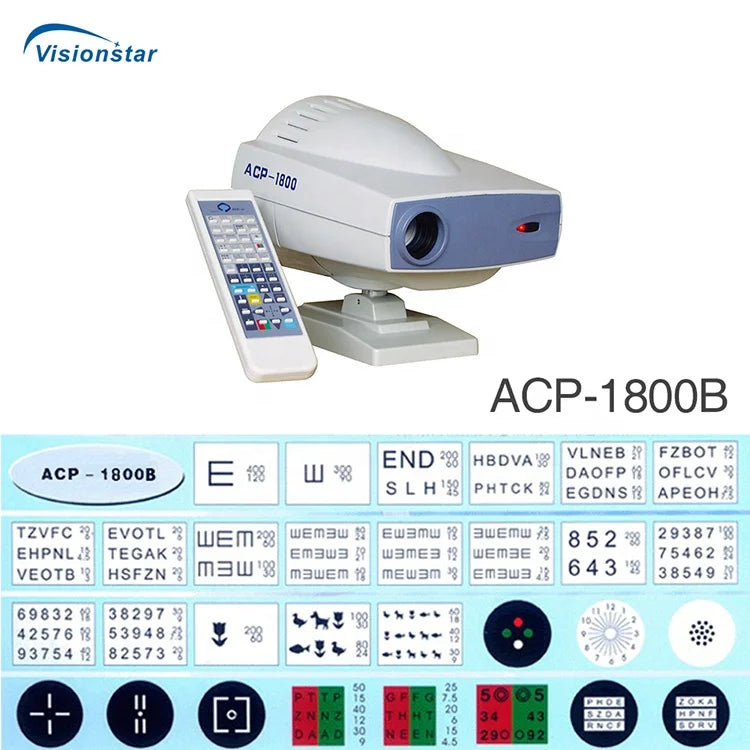

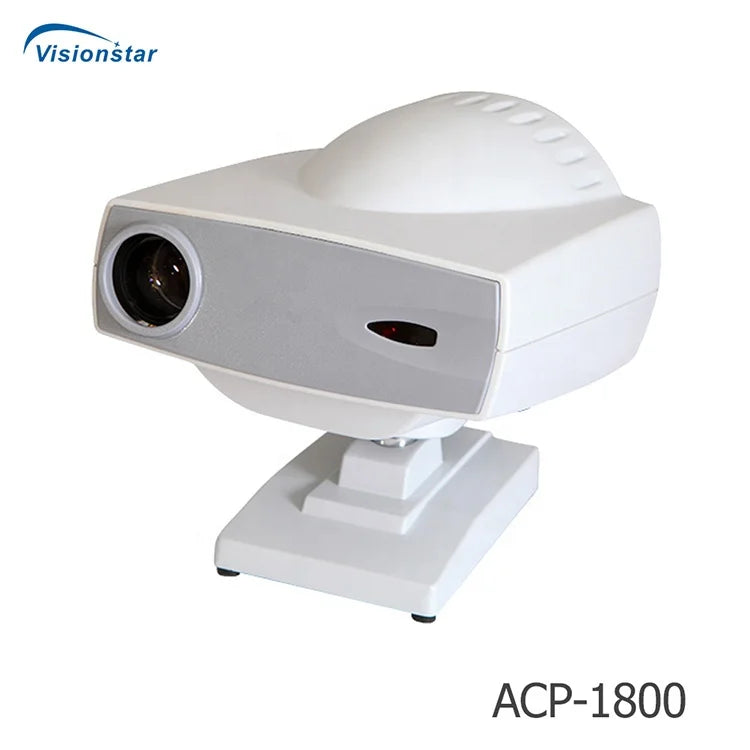

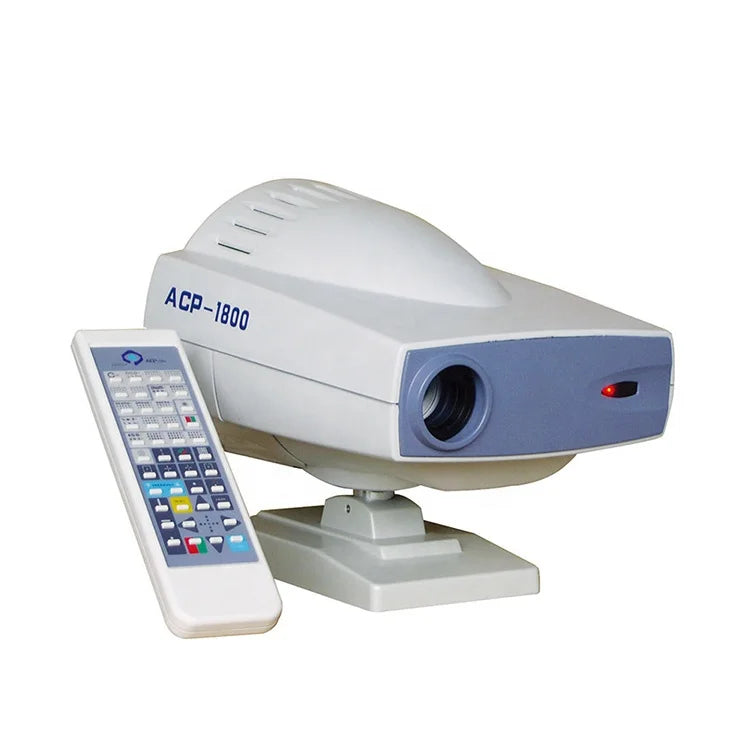

Ophthalmic Auto Chart Projector I Eye Chart Projector I Model ACP1800
l Easy installation and maintenance: It is quite easy to replace light bulks, and unnecessary to adjust its focus and position.
l Customer Programmable: Icons can be displayed in predefined sequence by programming.
l Display Single Icon: Display single icon by multi-function mask plate.
l Tilted Placement: Perfect image position can be obtained by adjusting the horizontal axis of projector.
l Standards parts: Metal plate with polarized coating (410x 410mm)
|Projection Magnification||30x (at 5m)|
|Projection Size||330x270mm (at 5 m)|
|Chart Switching Speed||One chart per 0.03s|
|Mask Switching Speed||1 open, 5 horizontal different lines, 8 vertical lines, 21 single letters, 1 red/green|
|Program||2 sets programs, each program contains up to 30 steps|
|Speed of mask conversion||One mask per 0.03s|
|Auto-off function||After 10 minutes idle time|
|Power Source||AC 220V, 50Hz or 110V, 60Hz|
|Accessories||Remote control, polarized metal screen, halogen lamp, polarized glasses, fuses (2), batteries (2)|
- Model : ACP1800L auto chart projector
- Lamp : LED lamp
- Program : 2 sets programs, each program contains upto30 steps
- Chart Switching Speed : 0.01~0.02S
- Projection Size : 330x270mm (at 5 m)
- usage : ACP-1800L auto chart projector
- name : ACP-1800L auto chart projector
