Portable All in One HD Endoscope Camera for ENT/Laparoscopy/Hysteroscopy/UrologyPopular

$5,000.00 $6,500.00
Unit price  per

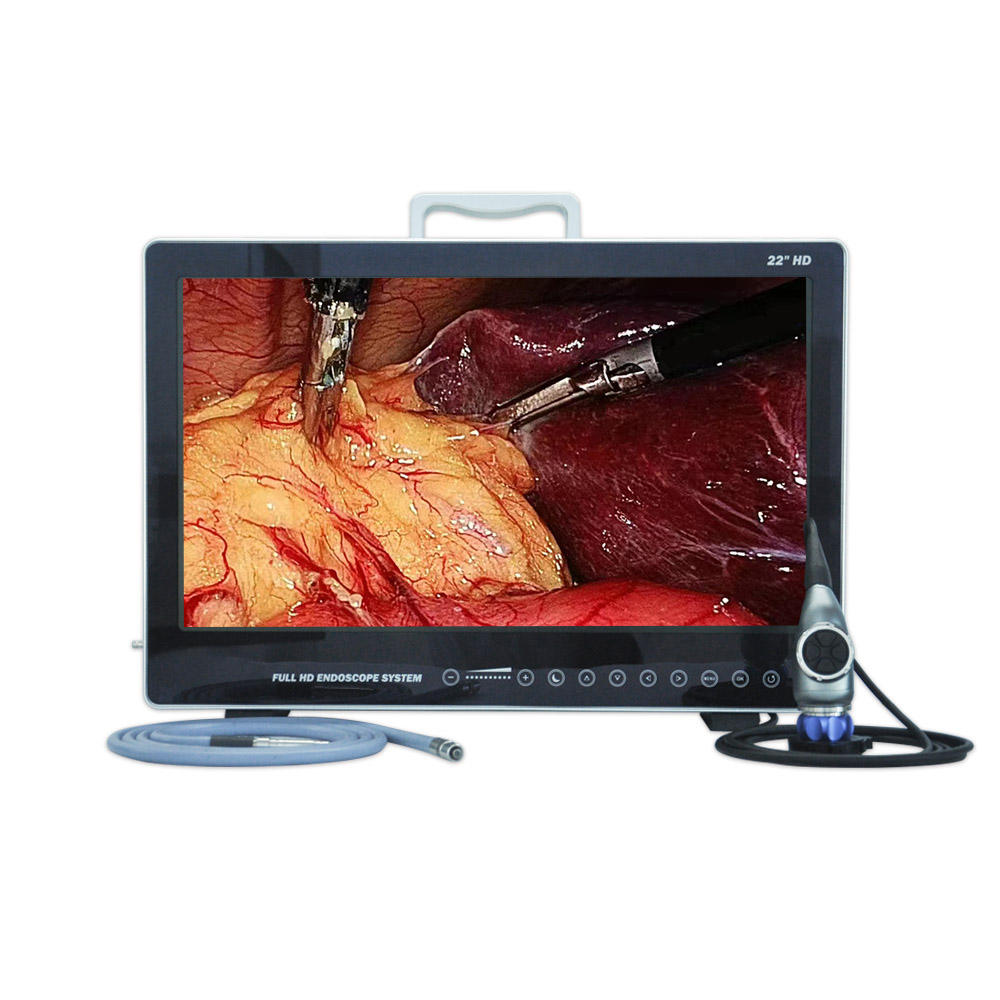

This video system center combines the LED light source, camera, monitor and the processor in one box, defining a new way of simplicity in the OR. The intuitive touch panel with buttons enables easy and fast control with no interruption of the procedure.

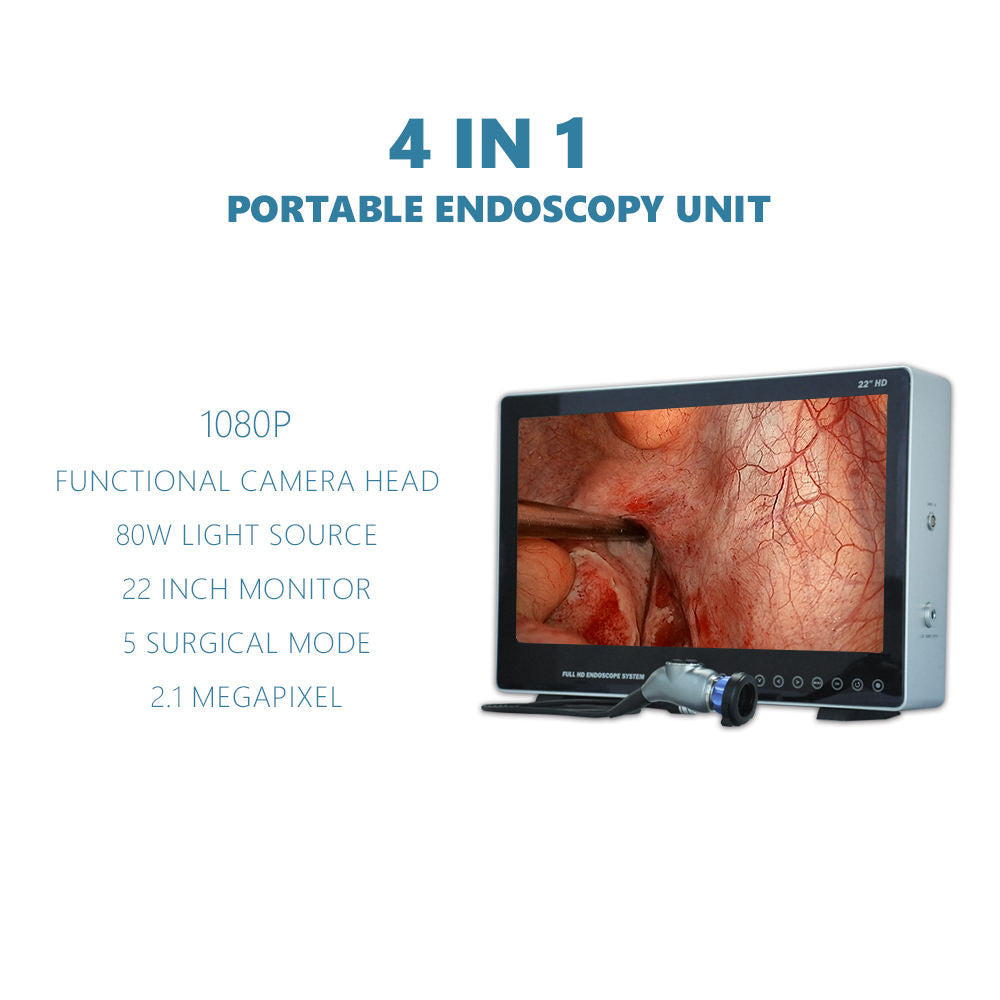

4 in 1 : Camera 2.1MPixels+ LED light source + monitor+ HD recorder.
Medical Grade HD Monitor : 22 Inch.
Built-in USB : FHD Imaging storage.
IPX8 Water Proof Camera: We always ensure high price performance.

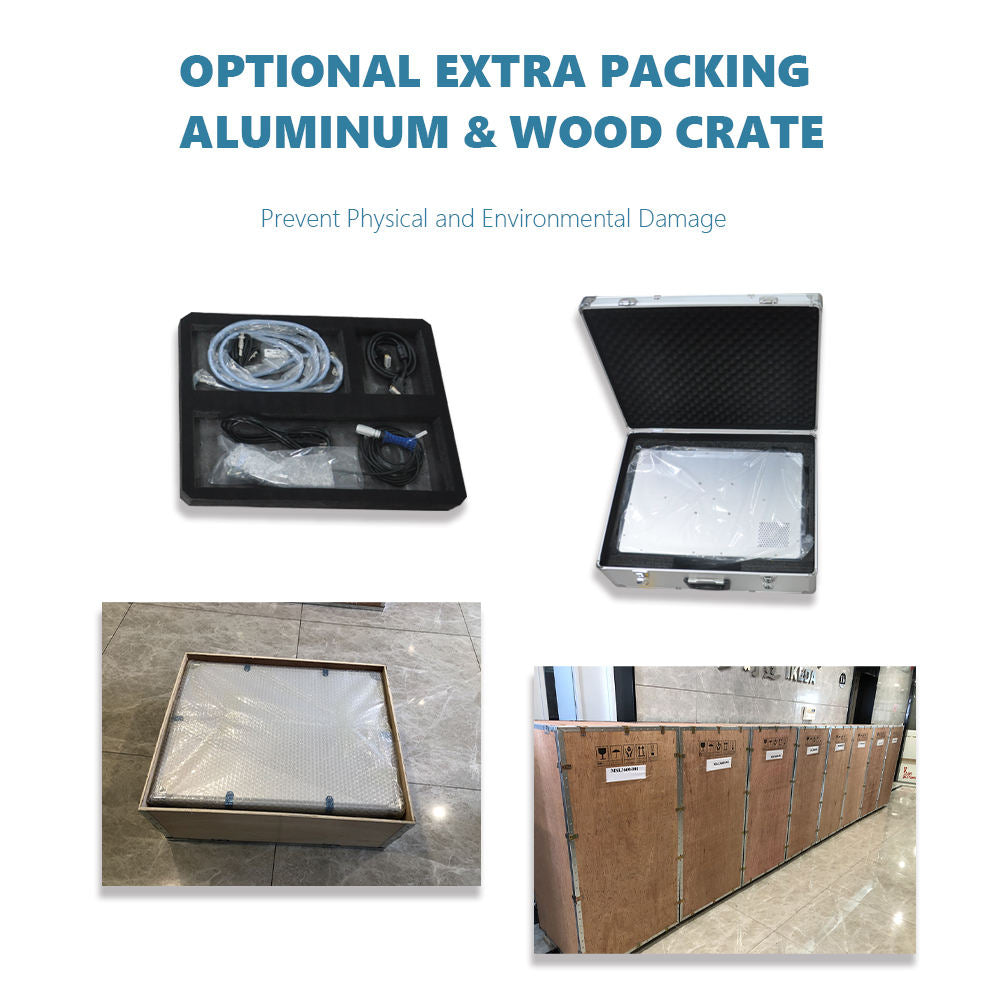

Optional Extra Aluminum Crate : easy to carry and save shipping cost.
Easy to operate and functional : Including Operating room switching, white balance, hue, video, USB stick, noise reduction, brightness, sharpness, saturation, contrast, image gain, gamma settings, Zoom in/Out, screen freeze and flip, resolution, output frame rate, etc.

IKEDA imaging systems could be used for all fields in Hospital and Clinics, such as arthroscopy, ENT, PTED(percutaneous transforaminal endoscopic discectomy), cystoscope, percutaneous nephroscope, ventriculoscope, ductoscope, hysteroscopy, proctoscope, sigmoidoscope, urology resectoscope, plastic surgery endoscope, laparoscope, ductoscopy, breast implant endoscope, thoracoscopy, fiber nasopharyngoscope, fiber choledochoscopy, fber bronchoscope, fiber ureteroscope, APP hernia repair, lacrimal passage, minimally invasive varicose veins, etc.
The camera is applied for both rigid and flexible fiberscopes, sucn as Sinuscope, Otoscope, Laryngoscope, Cystoscope, Arthroscope, Spine endoscope, hysteroscope, laparoscope...
The camera is fit for both diganosis and surgeries.
Item ID
YKD-9122
Camera
1/2.8 /Inch Full HD SONY CMOS, 1/3 Inch SONY CMOS
Image Size
1920x1080P/1305*977
Frame rate
(1920x1080)60fps
Scanning System
Progressive scanning
Pixels
2,100,000 Pixels
Resolution
1080P
LED Light Source
80W, Cold Light Source
Video Output
DVI, HDMI,CVBS
Minimum Illuminance
0.5LUX
Color Temperature
5100-7000K
Luminous Flux Value
≥800lm
Color Rendering Index
≥90
/Monitor
22 INCH
AC Input
AC100-240V 50/60HZ
Video Recording
Build-In USB
Weight
9.85kg
White Balance
AWB & MWB
Dimension(mm)
528*105*370
Camera Control
WB & Photo Capture
SNR
50dB, Tolerance 20%

YKD-9122 video system center combines the LED light source, camera, monitor and the processor in one box, defining a new way of simplicity in the OR. The intuitive touch panel with buttons enables easy and fast control with no interruption of the procedure.

4 in 1 : Camera 2.1MPixels+ LED light source + monitor+ HD recorder.
Medical Grade HD Monitor : 22 Inch.
Built-in USB : FHD Imaging storage.
IPX8 Water Proof Camera: We always ensure high price performance.
Optional Extra Aluminum Crate : easy to carry and save shipping cost.
Easy to operate and functional : Including Operating room switching, white balance, hue, video, USB stick, noise reduction, brightness, sharpness, saturation, contrast, image gain, gamma settings, Zoom in/Out, screen freeze and flip, resolution, output frame rate, etc.

IKEDA imaging systems could be used for all fields in Hospital and Clinics, such as arthroscopy, ENT, PTED(percutaneous transforaminal endoscopic discectomy), cystoscope, percutaneous nephroscope, ventriculoscope, ductoscope, hysteroscopy, proctoscope, sigmoidoscope, urology resectoscope, plastic surgery endoscope, laparoscope, ductoscopy, breast implant endoscope, thoracoscopy, fiber nasopharyngoscope, fiber choledochoscopy, fber bronchoscope, fiber ureteroscope, APP hernia repair, lacrimal passage, minimally invasive varicose veins, etc.
The camera is applied for both rigid and flexible fiberscopes, sucn as Sinuscope, Otoscope, Laryngoscope, Cystoscope, Arthroscope, Spine endoscope, hysteroscope, laparoscope...
The camera is fit for both diganosis and surgeries.


FULL HD CAMERA

We can define auto white balance as the adjustment that allows the camera to select the best white balance and color temperature settings for a given scene. IKEDA HD cameras are best at finding the correct white balance and
maximizing your clinic’s productivity at minimum costs.



RIGID ENDOSCOPES

Adaptable to wide range of rigid endoscopes such as laparoscopes, hysteroscopes, cysteroscopes, arthroscopes, sinuscopes. We offer you High Magnification, High Definition, High Definition plus and 4K endoscopes.




THE ULTIMATE IN BRILLIANCE

Enjoy rich, accurate colours and deeper contrasts with crisp detail. The smallest colour differences are accurately reflected, providing clearer, richer and more realistic colours.


Clinical Surger
