Portable Spectrodensitometer MYDH5050 – High-Precision CMYK Ink & Film Processing Color Measurement Tool
The YD5050 Portable Spectrodensitometer is a professional-grade color measurement and quality control device designed for accurate CMYK density analysis, optical density, and dot gain measurement in ink printing and film processing applications. Featuring advanced 45/0 geometry (45° ring illumination, 0° viewing angle), it complies with ISO 5-4 and CIE No.15 standards, making it ideal for ink printing plants, textile printing, plastic electronics, and other industries requiring precise color calibration and density control.
Built with cutting-edge grating spectrophotometer technology, this densitometer delivers high-accuracy results under ISO 13655 standard conditions (M0, M1, M2, M3). The YD5050 supports multiple color spaces and density standards, helping you ensure print consistency, reduce waste, and improve overall color management workflow.
🔍 Key Features
-
Accurate 45/0 Optical Geometry: Ensures consistent measurements in compliance with ISO 13655 and industry standards.
-
CMYK Density & Dot Gain Analysis: Measures reflectance spectrum, optical density, dot area, dot enlargement, overprint rate, and more.
-

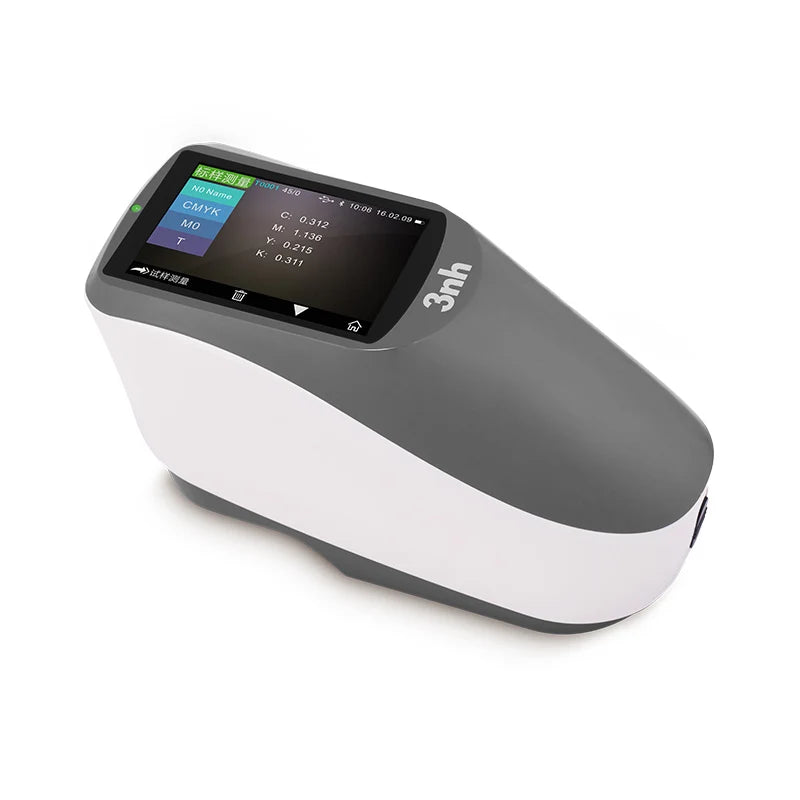

High-Tech Hardware: Equipped with a 3.5-inch capacitive touch screen, concave grating, and dual-array 256-pixel CMOS sensor.
-
Flexible Measurement Options: Customizable apertures (Φ2mm, Φ4mm, Φ8mm) adapt to a wide variety of sample sizes and applications.
-
Data Storage & Connectivity: Stores up to 20,000 results and supports both USB and Bluetooth 4.0 for seamless data transfer.
-
Long Battery Life: Built-in Li-ion battery enables up to 5,000 measurements on a single charge.
-
Durable & Ergonomic: Compact, lightweight design (approx. 600g) for easy handling in on-site or lab environments.
-

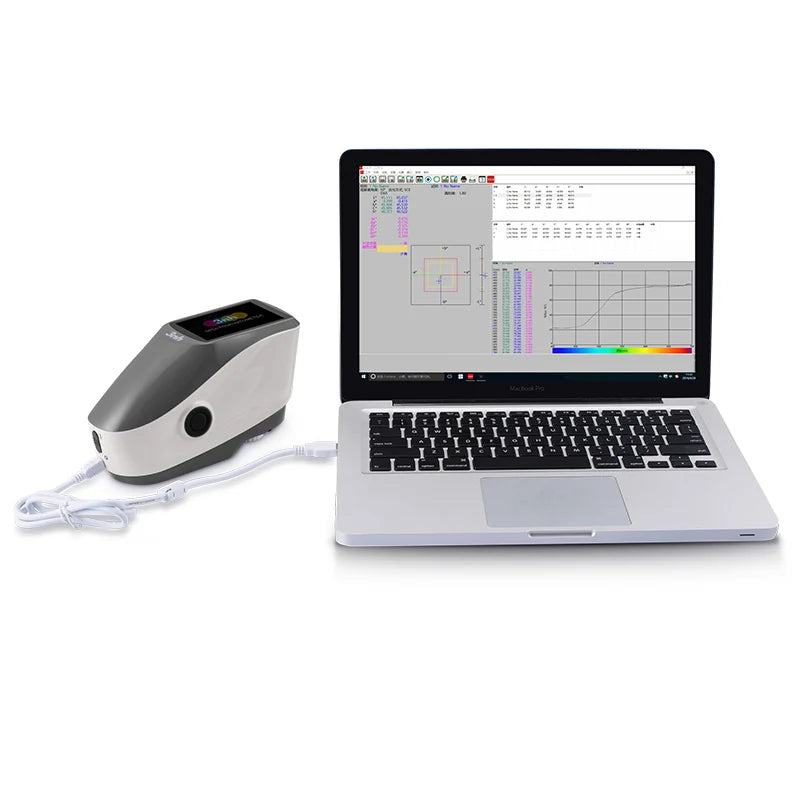

Powerful PC Software Integration: Offers advanced data analysis, reporting, and extended features.
🎯 Applications
Perfect for:
-
Ink Printing Plants – Ensure accurate ink density and dot gain control.
-
Film Processing – Reliable CMYK and grayscale color analysis.
-
Textile Printing & Dyeing
-
Plastic & Electronics Manufacturing
-
Packaging Quality Control
-
Prepress & Pressroom Operations
📊 Specifications Overview
-
Model: MYDH5050
-
Optical Geometry: 45/0 (ring-shaped illumination, 0° viewing)
-
Wavelength Range: 400–700nm
-
Color Spaces: CIE LAB, XYZ, Yxy, LCh, HunterLab, and more
-
Color Difference Formulas: ΔEab, ΔE94, ΔE00, ΔEuv, ΔE*cmc
-
Density Standards: ISO Status A, E, I, T
-
Display: 3.5” TFT Color LCD, Capacitive Touch
-
Interface: USB & Bluetooth 4.0
-
Measurement Conditions: M0, M1, M2, M3
-
Measurement Time: ~1.5 seconds
-
Battery: Rechargeable Li-ion, 5000+ tests per charge
-
Weight: Approx. 600g
📦 Standard Accessories

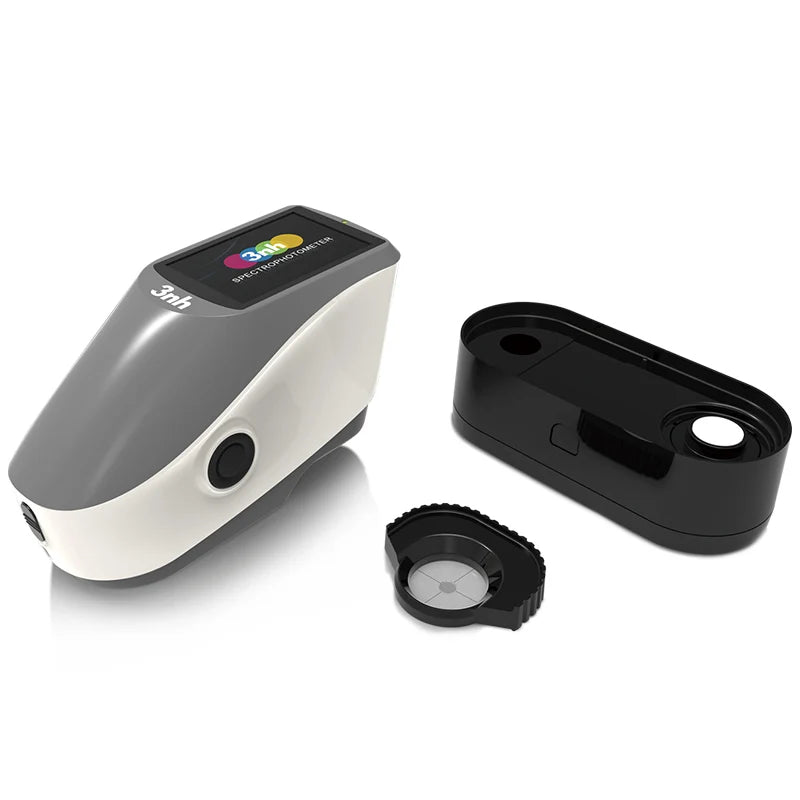

Includes power adapter, USB cable, calibration boards (white/black), polarization filter box, protective cover, locating plate, and downloadable PC software.
- warranty : 1 year
- material : Plastic
- color : Gray
- Function : CMYK measurement
- Application : dot enlargement
- Measurement Geometry : 45/0
- Wavelength Range : 400~700nm
- Density Standards : ISO Status A, E, I, T
- Repeatability : Density: Within 0.01 D
- Power source : Li-ion battery. 5000 measurements within 8 hours
- Display : 3.5-inch TFT color LCD, Capacitive Touch Screen
- Interface : USB
- Data memory : 20000 pcs
