Ophthalmic Equipment I S5D Digital Slit Lamp

Save 18% Save 18%
Original price $5,376.00
Original price $5,376.00 - Original price $5,376.00
Original price $5,376.00
Current price $4,400.00
$4,400.00 - $4,400.00
Current price $4,400.00

S5D digital slit lamp is a professional ophthalmic machine for eye exam. You can easily examine iris, cornea, and lens diseases or problems with this slit lamp. It can be connected with computer, and you can see the whole process on the monitor directly and clearly. This digital slit lamp is simple to operate, and you will be quickly familiar with the operation even you are not an ophthalmologist.

LED lamp is used in S5D slit lamp, and it offers cool light which will give doctors more clear view and make patient more comfortable. 5 Step magnifications (6X, 10X, 16X, 25X, 40X), 4 filters, stepless adjustable slit width (maximum 14mm), continuous adjustable light brightness, and background light, will meet various examination requirements. Professional software will offer options to save, process, and manage exam results, including pictures, video, and reports. Detachable metal base plate makes it easy for you to move the machine, or fix it on an ophthalmic unit (or motorized table).

1. Outstanding Optic Quality Ensure the Comfortable View
2. Precision Machining Makes the Smooth and Flexible Movement
3. Professional & Multi-functional Software With Simple Humanized Human-computer Interface & Easy Operation
4. Have both image capturing function and video capturing function Image processing for better Symptoms Diagnose
5. Backup patient data base easily guarantee data safety
6. Highest Quality Images Captured Which Impressive Every User
7. Aspecial designed black cross in right eyepiece which enable to synchronise the image sharpness in eyepiece

  • Microscope Type : Parallel
  • Diopter Adjustment : -7D ~+7D
  • Slit Width : 0-14MM Continuous
  • Illumination : 12V 50W Halogen Bulb
  • Fixation : Red LED 3.5V Power
  • Input votage : 100~240V
  • Total magnification : 6X 10X 16X 25X 40X

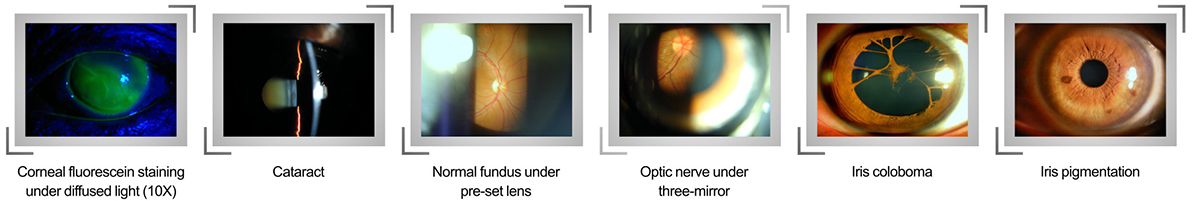

Professional Software and HD Images

S5D Slit Lamp Software

S5D Digital Slit Lamp S5D Digital Slit Lamp

Technical Specifications:

Microscope Type Parallel
Magnification changer Revolving drum
Eyepiece 12.5X
Illumination Source Imported LED
Max Illumination Intensity 60000 Lux
Total magnification 6X 10X 16X 25X 40X
Diameter of Vision field φ37 φ23 φ14 φ8.7 φ5.7mm (φ23 φ14 φ8.7optonal)
Diopter  adjustment -7D~ 7D
Slit image width 0mm~14mm continuous
Slit image length 1mm~14mm continuous
Diameter of aperture Ф14mm Ф10mm Ф5mm  Ф3mm Ф1mmФ0.2mm
Slit angle 0~180 continuously rotation
Illumination tilting 5 10◦ 15◦ 20◦  totally 4 step
Filter Heat absorption, Grey,red freer(Green), Cobalt blue
Illumination 12V 50W Halogen Bulb
Fixation Red LED 3.5V
Power In put votage100~240V
Color: White
