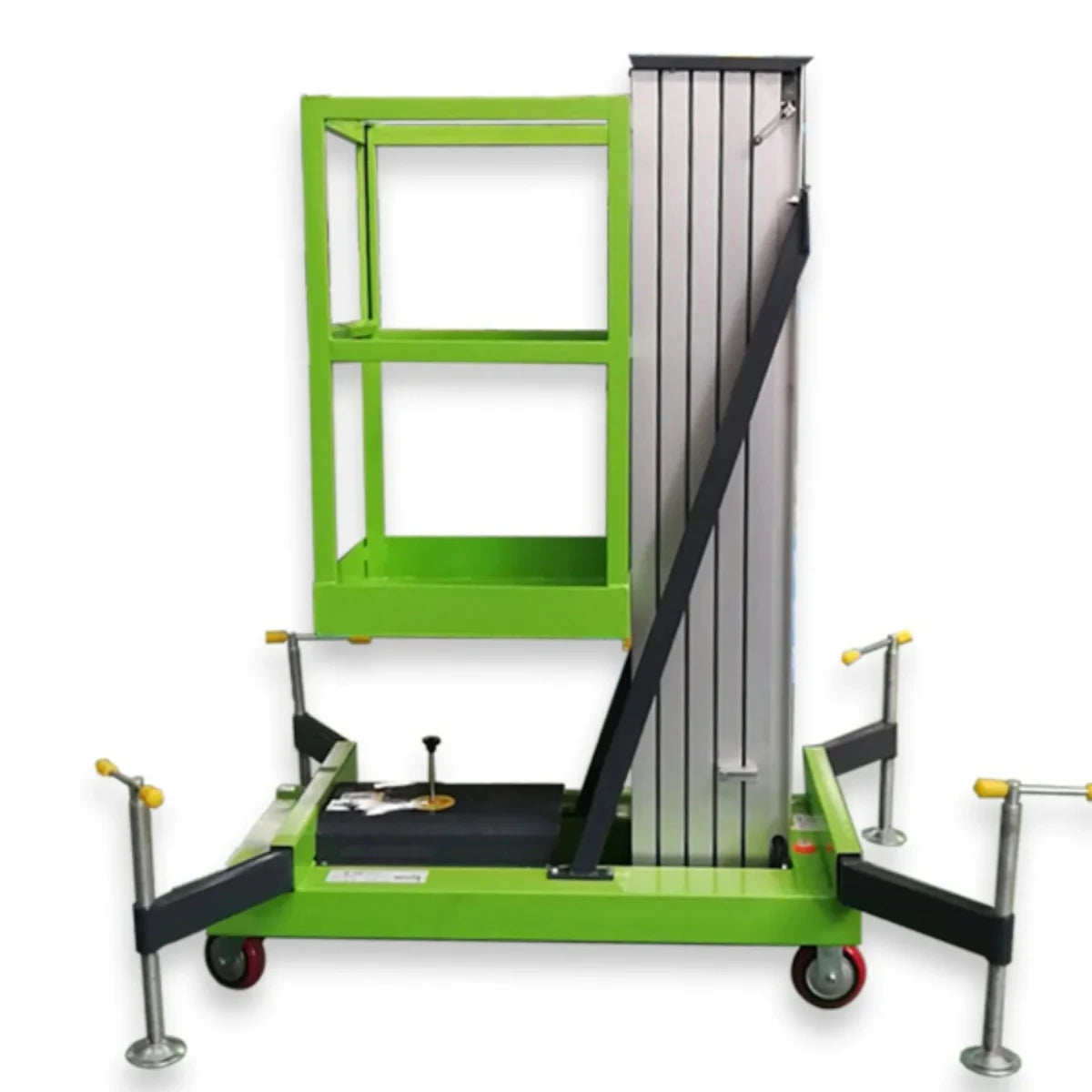

Single Mast Electric Lifting Aluminum Alloy Man Lift: Your Portable Aerial Work Platform Solution I Model MGTWY081

by MEUBON
Save 6% Save 6%
Original price $4,200.00
Original price $4,200.00 - Original price $4,200.00
Original price $4,200.00
Current price $3,950.00
$3,950.00 - $3,950.00
Current price $3,950.00


Experience the Ultimate in Efficiency and Safety with our Aluminum Alloy Lifting Platform! Crafted from high-strength, premium aluminum alloy profiles, this platform boasts a sleek design, lightweight construction, and exceptional stability. Ideal for a wide range of applications including maintenance, painting, decoration, and more, it offers easy maneuverability and single-operator control for added convenience. With a maximum working height of 10m and a safe working load of 280lbs, it's the perfect solution for various industrial and commercial settings. Trust in our MGTWY081 model for reliable performance and peace of mind on the job.

Show the details

Specifications

maximum working height
10m
Maximum platform height
8m
safe working load
130kg
Working platform size (length, width and height)
650*650*1100
Overall dimensions (length, width and height) A×B×C
1420*780*1970
Leg expansion size
1702*1914
Maximum number of workers
1
Minimum ground clearance
0.05m
wheel bas
1.29m
Lift motor
220V/1.1kw
Lift speed
3-5m/min
tyre
6
The weight of the machine
380kg
Mesa material
40*20*1.5
quarter bend
3mm
  • Condition : New
  • Applicable Industries : Hotels, Garment Shops, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Other, Advertising Company
  • Lift Mechanism : Aluminum alloy elevator
  • Lift Drive / Actuation : Electric
  • Power : 220V/1.1KW
  • Min. Lifting Height : 6
  • Table Size : 650*650*1100
  • Overall Dimensions : 1420*780*1970
  • Weight : 380 kg
  • Warranty : 1 Year
  • Warranty of core components : 1 Year
  • Core Components : Pressure vessel, Motor, Other, Bearing, Gear, Pump, Gearbox, Engine, PLC
  • maximum working height : 8m
  • Maximum platform height : 6m
  • safe working load : 260lbs
  • Maximum number of workers : 1
  • Minimum ground clearance : 0.05M
  • Lift motor : 220V/1.1kw
  • Lift speed : 3-5m/min
  • The weight of the machine : 750lbs
  • Working platform size : 650*650*1100
  • Form size of the whole machine : 1420*780*1970
