Features:
1. Transmitted signal’s accuracy control
2. I-station: integral work station
3. Extended Phase Harmonic (EPH)
4. Accurate vessel imaging(AVI)
5. Image: image optimization imaging technique
6. B/C dual real-time display
7. Adaptive color artifact removal technique
8. Convenient and practical data management
9. Linear probe independent angle deflection
Standard Configuration:
1. Main unit with a built-in 500GB hard disk:1 pc
2. Two probe sockets

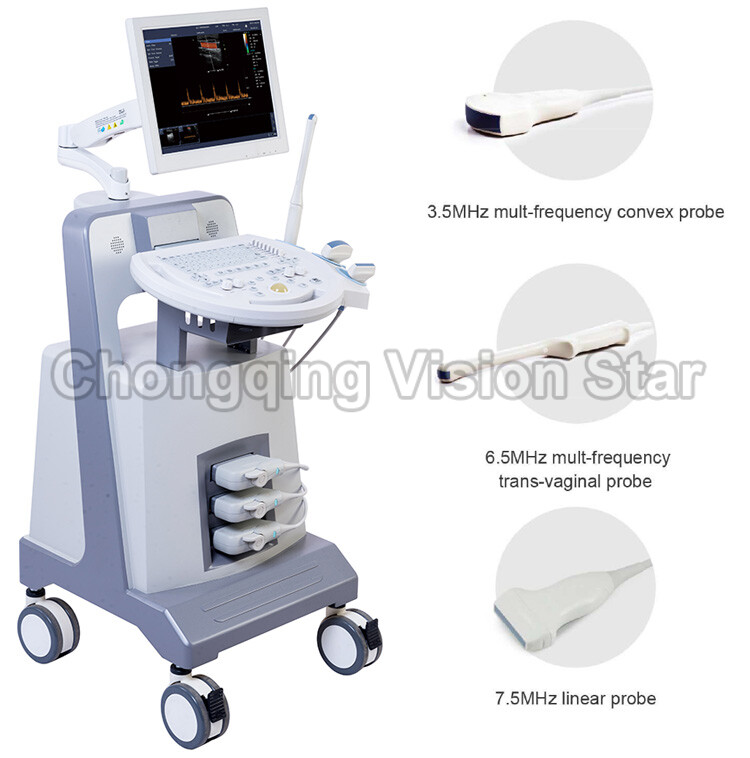

3. Probes: 3.5MHzmulti-frequency abdomen convex probe(128 elements), 7.5MHz linear probe(128 elements), 6.5MHz TV probe(128 elements)
9. Linear probe independent angle deflection
Technical Specifications:
|
Number of channels / array elements |
Channel: 64 channels; Probe elements: 128 |
|
Monitor |
High resolution 15 “LCD display |
|
Full Digital Imaging Technology |
Pulse inverse harmonic composite imaging; Multi-beam synthesis; Space compound; Image enhancement noise reduction |
|
Imaging mode |
B mode, M mode, Color(Color Doppler ) mode, PDI(Energy Doppler)mode, PW(Pulse Doppler)mode |
|
Image display mode |
B, 2B, B+M, 4B, M, B+Color, B+PDI, B+PW, B+Color+PW, B+PDI+PW, ★B+C/PDI Double real time |
|
Supported probes |
Convex probe, Linear probe, Cavity probe, Micro-convex probe Probe frequency: 2.5-10.0MHz Probe socket: 2 PC |
|
Supported frequency |
B/M:Third gear fundamental frequency + second gear harmonic frequency; C:2 gear, PW:2 gear |
|
Cineloop |
2D mode,B Maximum: ≥5000 frames, Color, PDI Maximum: ≥2500 frames; Timeline mode(M, PW), Maximum: ≥ 190s |
|
Image zoom |
Real-time scanning（B、B+C、2B、4B）Status:Step-less enlargement |
|
Image storage |
Support JPG, BMP, FRM image formats and CIN, AVImovie format; Support local storage; Support DICOM, meet the DICOM3.0 standard; Built-in workstations:Support large-capacity hard disk(≥1TB),support patient data retrieval and browsing. |
|
System language |
Chinese / English/ Spanish operating system and language environment, support other languages according to user requirement; Full screen annotation input, Chinese/ English/ Spanish; Chinese input methods ≥2,including Wubi input method |
|
Measurement calculation software package |
Abdomen, gynecology, obstetrics, small organs, heart, blood vessels, etc. |
|
Measurement and calculation |
1. B/C mode routine measurement: Distance, area, perimeter, volume, angle, area ratio, distance ratio 2. M mode routine measurement: time, slope, heart rate, distance 3. Doppler mode routine measurements: heart rate, velocity, velocity ratio, resistance index, pulse index, manual / automatic envelope, acceleration, time 4. Obstetrics B, PW mode application measurements: including comprehensive obstetric line measurement, body weight, single gestational age and growth curve, amniotic fluid index, fetal physiological score measurement, etc. 5. Gynecology B mode application measurements 6. Heart B、M mode application measurements 7. Blood vessels PW mode application measurements 8. Small organ B mode application measurements 9. Urinary B mode application measurements 10. Pediatrics B mode application measurements 11. Abdomen B mode application measurements |
|
Standard configuration |
Main unit (1TB internal hard disk), High-resolution 15-inch LCD monitor, 3.5MHz convex probe: 1pc 7.5MHz linear probe: 1 pc |
