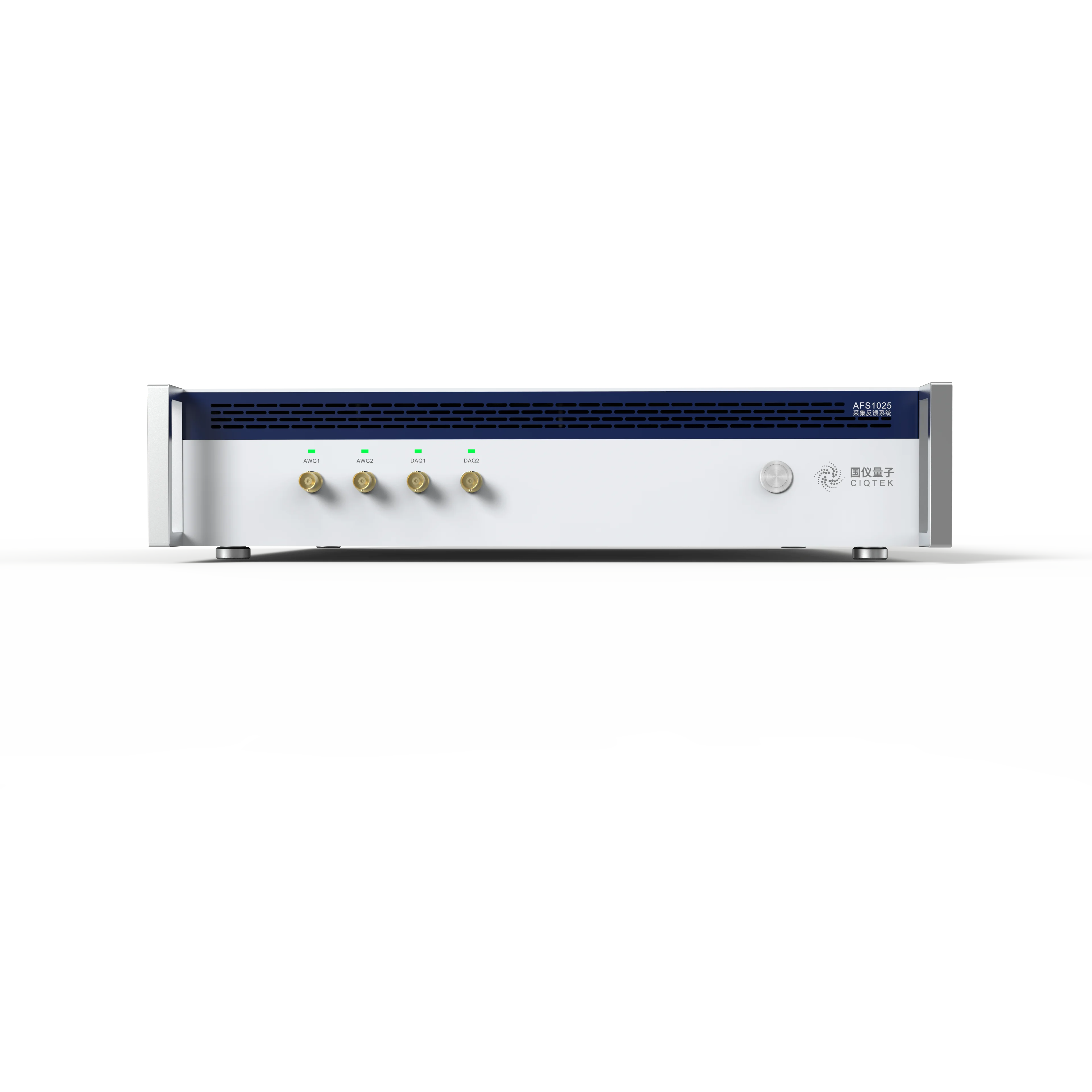

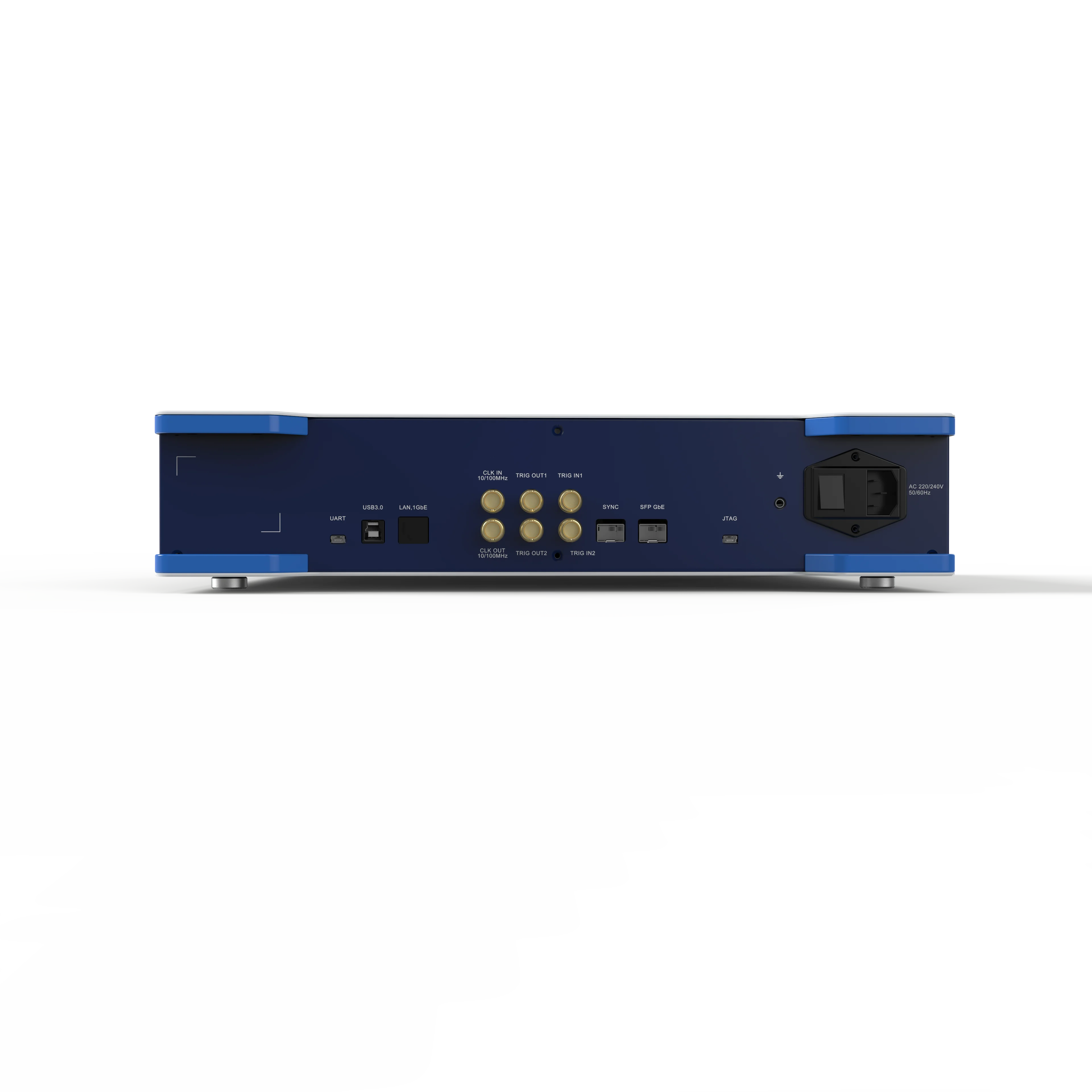

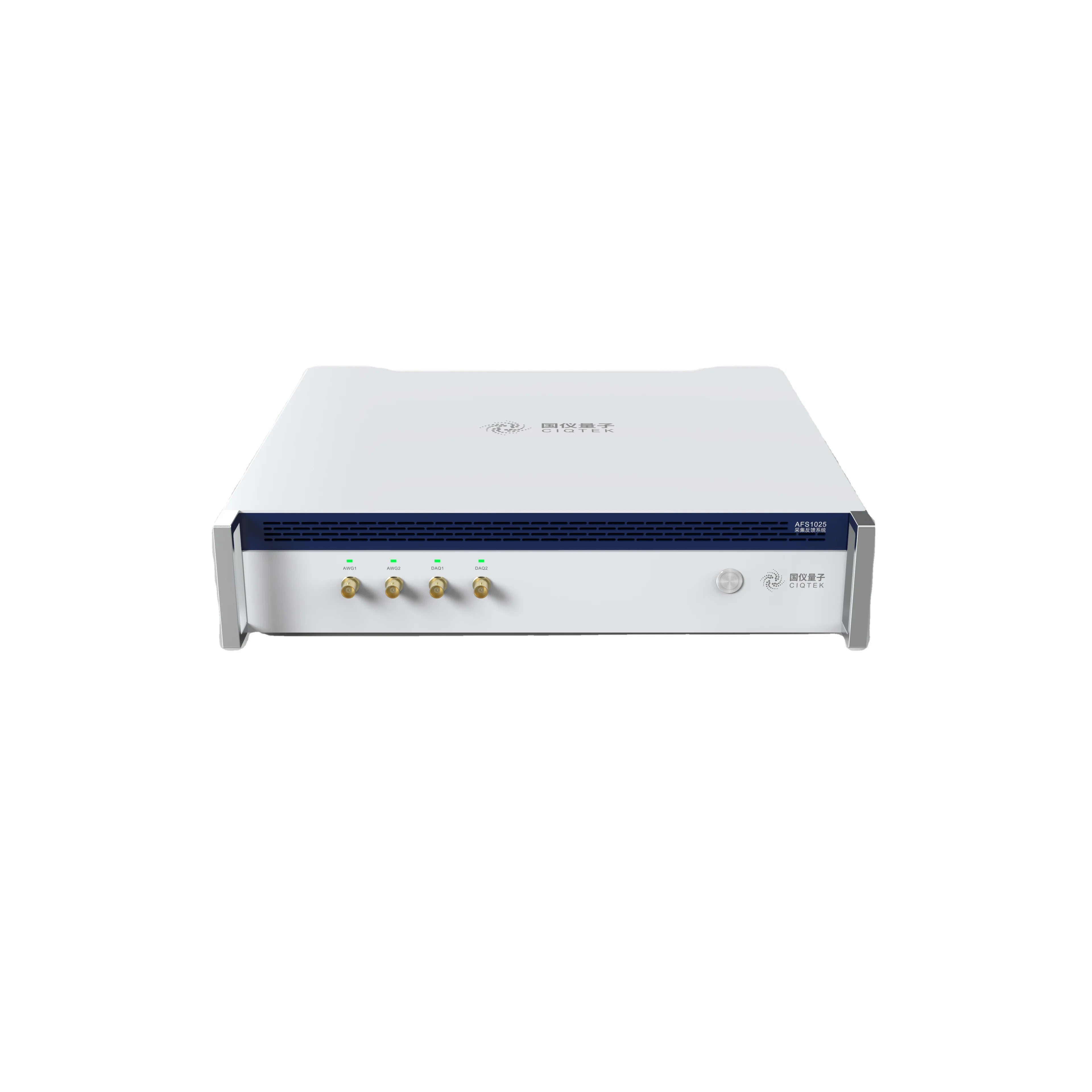

Unlock Radar Precision: Discover the MAFS1025 High-Precision Acquisition & Feedback System

Experience unparalleled precision with the MAFS1025 High-Precision Acquisition & Feedback System tailored for radar applications and beyond. This comprehensive measurement and control system seamlessly integrates analog signal acquisition and signal output functionalities, ensuring optimal performance across various domains such as superconducting quantum computing, communication, electronic warfare, and nuclear magnetic resonance.

Specifications:

• Signal Output Channels: 2
• Interface Type: BNC
• Analog Bandwidth: DC-430 MHz
• Vertical Resolution: 16 bits
• Rise Time/Fall Time: <1 ns (@250 mV, 10%-90%)
• DAC Sample Rate: 2 GSa/s
• Storage Depth: 512 MSa per channel
• Output Amplitude Range: ±250 mV, ±750 mV @50 Ω
• Output Harmonics (@250 mV):
  • HD2: -70 dBc @50 MHz, 55 dBc @100 MHz, -44 dBc @200 MHz, 50 dBc @400 MHz
  • HD3: 67 dBc @50 MHz, -65 dBc @100 MHz, -71 dBc @200 MHz, 66 dBc@400 MHz
• Output Noise Amplitude: 21n V/√Hz @100 kHz (@250 mV)
• Output Phase Noise: -135 dBc @10 MHz offset 1 KHz

Empower your radar systems with unmatched precision and reliability using the MAFS1025, setting new standards for performance and efficiency.

• Warranty : 1 YEAR
